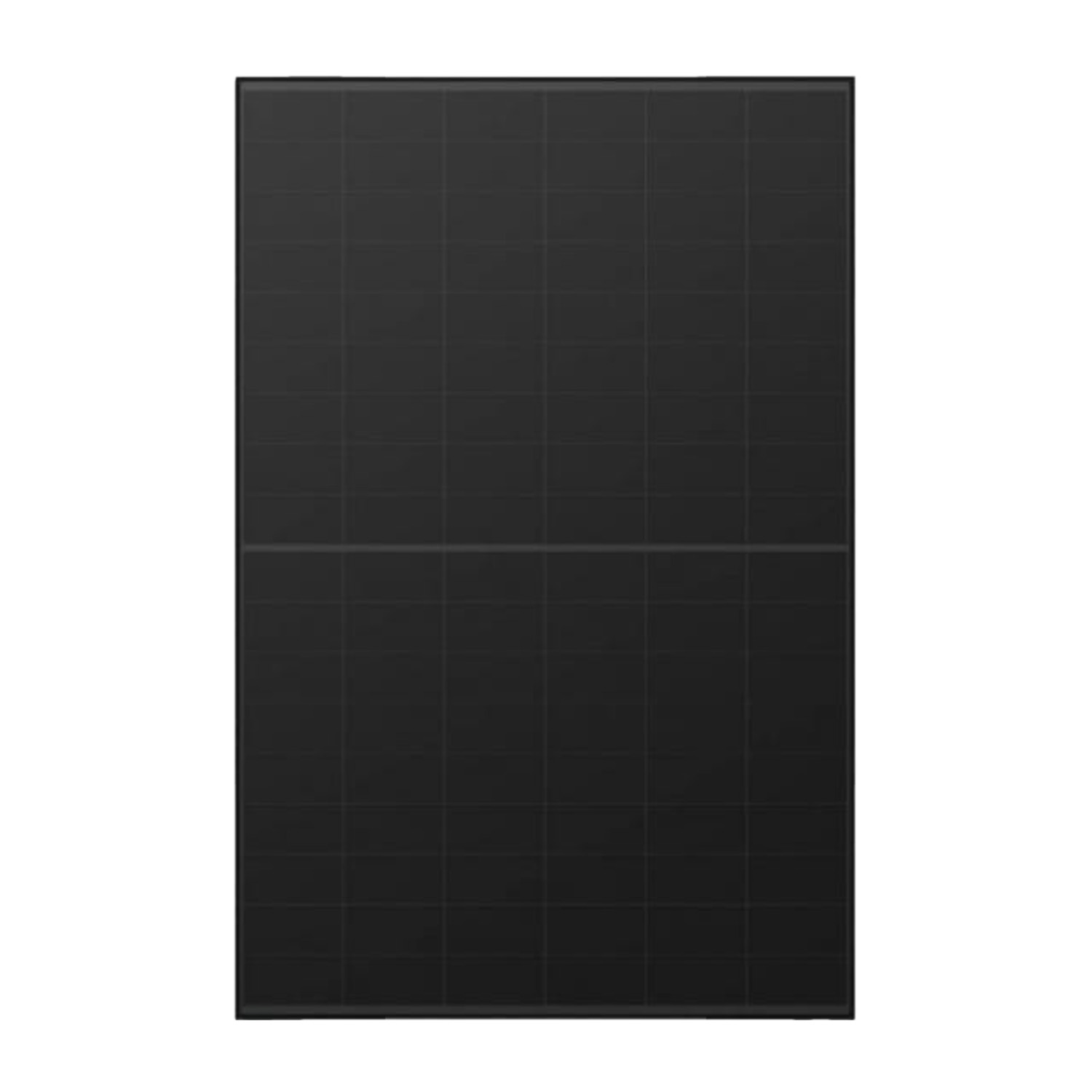

Module AIKO-A460-MAH54Db Full black
SKU: F100J00
EAN: 2010000031568
| Manufacturer | |
|---|---|
| Model | |
| Power | |
| Fullblack | |
| Frame color | |
| Efficiency | |
| Tier 1 | |
| Product warranty | |
| Linear power warranty | |
| Module type | |
| PV cell type | |
| Number of BusBar | |
| Fire resistance class | |
| Frame thickness | |
| Height | |
| Width | |
| Maximum static load (Pa) | |
| Cable length (+) | |
| Cable length (-) | 1200 mm |
| Quantity per pallet | |
| Quantity per container | |
| Weight | 24,2 kg |
| CN | 85414300 |
Price
103,26 €
Gross
Gross
Datasheet AIKO-A440-MAH54Db - A470-MAH-54Db
AIKO-A440-MAH54Db-A470-MAH-54Db-Datasheet.pdf
Product details
| Manufacturer | |
|---|---|
| Model | |
| Power | |
| Fullblack | |
| Frame color | |
| Efficiency | |
| Tier 1 | |
| Product warranty | |
| Linear power warranty | |
| Module type | |
| PV cell type | |
| Number of BusBar | |
| Fire resistance class | |
| Frame thickness | |
| Height | |
| Width | |
| Maximum static load (Pa) | |
| Cable length (+) | |
| Cable length (-) | 1200 mm |
| Quantity per pallet | |
| Quantity per container | |
| Weight | 24,2 kg |
| CN | 85414300 |
Aiko Neostar 2S+ Double-Glass Photovoltaic Module (glass-glass)
The Aiko Neostar 2S+ double-glass (glass-glass) photovoltaic module is a technologically advanced solution that combines high output, attractive design, and reliability. It provides an output power range of 440W–470W and an outstanding efficiency of up to 23.6%. Thanks to its double-glass construction, N-Type ABC technology, and optimization for partial shading, this module ensures long-term, stable energy production and is an ideal choice for the most demanding installations.
Key features of the Aiko Neostar 2S+ Double-Glass Photovoltaic Module:
- High power and efficiency: Output power from 440W to 470W and market-leading efficiency up to 23.6%, delivering maximum energy yield per unit area.
- Double-Glass construction: Use of double, partially tempered coated glass (2.0 + 2.0 mm) increases durability, resistance to weather and microcracks, and provides higher fire resistance (Class A per IEC).
- Long-term performance warranty: An impressive 30-year linear performance warranty with degradation no greater than 1% in the first year and no greater than 0.35% in years 2–30. Product warranty is 25 years.
- Advanced technical characteristics: Optimization for partial shading, a favorable Pmax temperature coefficient (-0.26%/°C), reduced impact from high temperatures, and lower balance-of-system (BOS) costs thanks to higher power.
- High mechanical strength: Resistance to static loads up to 5400 Pa (front) and 2400 Pa (rear), and to hail with a 35 mm diameter at an impact speed of 23 m/s.
Who is this a good choice for?
The Aiko Neostar 2S+ Double-Glass module is an excellent option for investors seeking top quality, durability, and performance. It is well suited for residential, commercial, and industrial installations—especially where long-term reliability, resilience to harsh environmental conditions, and maximizing energy production are priorities. Its attractive appearance and advanced N-Type ABC technology make it a preferred solution for the most demanding photovoltaic projects.
Datasheet AIKO-A440-MAH54Db - A470-MAH-54Db
AIKO-A440-MAH54Db-A470-MAH-54Db-Datasheet.pdf
| Parameter | AIKO-A440-MAH54Db | AIKO-A445-MAH54Db | AIKO-A450-MAH54Db | AIKO-A455-MAH54Db | AIKO-A460-MAH54Db | AIKO-A465-MAH54Db | AIKO-A470-MAH54Db |
|---|---|---|---|---|---|---|---|
| Electrical characteristics | |||||||
| Maximum power (Pmax) (STC) (W) | 440 | 445 | 450 | 455 | 460 | 465 | 470 |
| Maximum power (Pmax) (NOCT) (W) | 331 | 335 | 339 | 343 | 346 | 350 | 354 |
| Open-circuit voltage (Voc) (STC) (V) | 40.82 | 40.88 | 40.94 | 41.00 | 41.06 | 41.12 | 41.18 |
| Open-circuit voltage (Voc) (NOCT) (V) | 38.55 | 38.60 | 38.66 | 38.72 | 38.77 | 38.83 | 38.89 |
| Voltage at maximum power (Vmp) (STC) (V) | 34.38 | 34.44 | 34.50 | 34.56 | 34.62 | 34.68 | 34.74 |
| Voltage at maximum power (Vmp) (NOCT) (V) | 32.47 | 32.52 | 32.58 | 32.64 | 32.69 | 32.75 | 32.81 |
| Short-circuit current (Isc) (STC) (A) | 13.92 | 14.02 | 14.12 | 14.22 | 14.25 | 14.29 | 14.32 |
| Short-circuit current (Isc) (NOCT) (A) | 11.26 | 11.34 | 11.42 | 11.50 | 11.52 | 11.55 | 11.58 |
| Current at maximum power (Imp) (STC) (A) | 12.80 | 12.93 | 13.05 | 13.17 | 13.29 | 13.41 | 13.54 |
| Current at maximum power (Imp) (NOCT) (A) | 10.22 | 10.32 | 10.41 | 10.51 | 10.61 | 10.71 | 10.80 |
| Module efficiency (%) | 22.1% | 22.3% | 22.6% | 22.8% | 23.1% | 23.3% | 23.6% |
| Mechanical specification | |||||||
| Cell type | N-Type ABC | N-Type ABC | N-Type ABC | N-Type ABC | N-Type ABC | N-Type ABC | N-Type ABC |
| Glass | Double glass, semi-tempered coated glass 2.0 + 2.0 mm | Double glass, semi-tempered coated glass 2.0 + 2.0 mm | Double glass, semi-tempered coated glass 2.0 + 2.0 mm | Double glass, semi-tempered coated glass 2.0 + 2.0 mm | Double glass, semi-tempered coated glass 2.0 + 2.0 mm | Double glass, semi-tempered coated glass 2.0 + 2.0 mm | Double glass, semi-tempered coated glass 2.0 + 2.0 mm |
| Frame | Black anodized aluminum | Black anodized aluminum | Black anodized aluminum | Black anodized aluminum | Black anodized aluminum | Black anodized aluminum | Black anodized aluminum |
| Cable | 4 mm² (IEC) 12 AWG (UL) ±1200 mm | 4 mm² (IEC) 12 AWG (UL) ±1200 mm | 4 mm² (IEC) 12 AWG (UL) ±1200 mm | 4 mm² (IEC) 12 AWG (UL) ±1200 mm | 4 mm² (IEC) 12 AWG (UL) ±1200 mm | 4 mm² (IEC) 12 AWG (UL) ±1200 mm | 4 mm² (IEC) 12 AWG (UL) ±1200 mm |
| Number of cells | 108 (6 × 18) | 108 (6 × 18) | 108 (6 × 18) | 108 (6 × 18) | 108 (6 × 18) | 108 (6 × 18) | 108 (6 × 18) |
| Junction box | IP68, 3 bypass diodes | IP68, 3 bypass diodes | IP68, 3 bypass diodes | IP68, 3 bypass diodes | IP68, 3 bypass diodes | IP68, 3 bypass diodes | IP68, 3 bypass diodes |
| Connector | MC4-Evo2 | MC4-Evo2 | MC4-Evo2 | MC4-Evo2 | MC4-Evo2 | MC4-Evo2 | MC4-Evo2 |
| Weight (kg) | 24.2 kg ±3% | 24.2 kg ±3% | 24.2 kg ±3% | 24.2 kg ±3% | 24.2 kg ±3% | 24.2 kg ±3% | 24.2 kg ±3% |
| Dimensions (mm) | 1757 x 1134 × 30 | 1757 x 1134 × 30 | 1757 x 1134 × 30 | 1757 x 1134 × 30 | 1757 x 1134 × 30 | 1757 x 1134 × 30 | 1757 x 1134 × 30 |
| Packing details | 37 pcs/pallet; 222 pcs/20′ GP container; 962 pcs/40′ HC container | 37 pcs/pallet; 222 pcs/20′ GP container; 962 pcs/40′ HC container | 37 pcs/pallet; 222 pcs/20′ GP container; 962 pcs/40′ HC container | 37 pcs/pallet; 222 pcs/20′ GP container; 962 pcs/40′ HC container | 37 pcs/pallet; 222 pcs/20′ GP container; 962 pcs/40′ HC container | 37 pcs/pallet; 222 pcs/20′ GP container; 962 pcs/40′ HC container | 37 pcs/pallet; 222 pcs/20′ GP container; 962 pcs/40′ HC container |
| Rated temperature coefficients (STC) | |||||||
| Temperature coefficient of Isc (%/°C) | +0.05 | +0.05 | +0.05 | +0.05 | +0.05 | +0.05 | +0.05 |
| Temperature coefficient of Voc (%/°C) | -0.22 | -0.22 | -0.22 | -0.22 | -0.22 | -0.22 | -0.22 |
| Temperature coefficient of Pmax (%/°C) | -0.26 | -0.26 | -0.26 | -0.26 | -0.26 | -0.26 | -0.26 |
| Installation instructions | |||||||
| Operating temperature (°C) | -40 to +85 | -40 to +85 | -40 to +85 | -40 to +85 | -40 to +85 | -40 to +85 | -40 to +85 |
| Maximum series fuse current (A) | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Protection class | Class II | Class II | Class II | Class II | Class II | Class II | Class II |
| Voc and Isc tolerance (%) | ± 3 | ± 3 | ± 3 | ± 3 | ± 3 | ± 3 | ± 3 |
| Maximum system voltage (V DC) | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Maximum static load (Pa) | Front 5400 Pa; Rear 2400 Pa | Front 5400 Pa; Rear 2400 Pa | Front 5400 Pa; Rear 2400 Pa | Front 5400 Pa; Rear 2400 Pa | Front 5400 Pa; Rear 2400 Pa | Front 5400 Pa; Rear 2400 Pa | Front 5400 Pa; Rear 2400 Pa |
| Hail resistance | Hail with 35 mm diameter falling at 23 m/s | Hail with 35 mm diameter falling at 23 m/s | Hail with 35 mm diameter falling at 23 m/s | Hail with 35 mm diameter falling at 23 m/s | Hail with 35 mm diameter falling at 23 m/s | Hail with 35 mm diameter falling at 23 m/s | Hail with 35 mm diameter falling at 23 m/s |
| Fire rating | Class per IEC: A | Class per IEC: A | Class per IEC: A | Class per IEC: A | Class per IEC: A | Class per IEC: A | Class per IEC: A |
* AIKO reserves the right to update this specification without prior notice.
