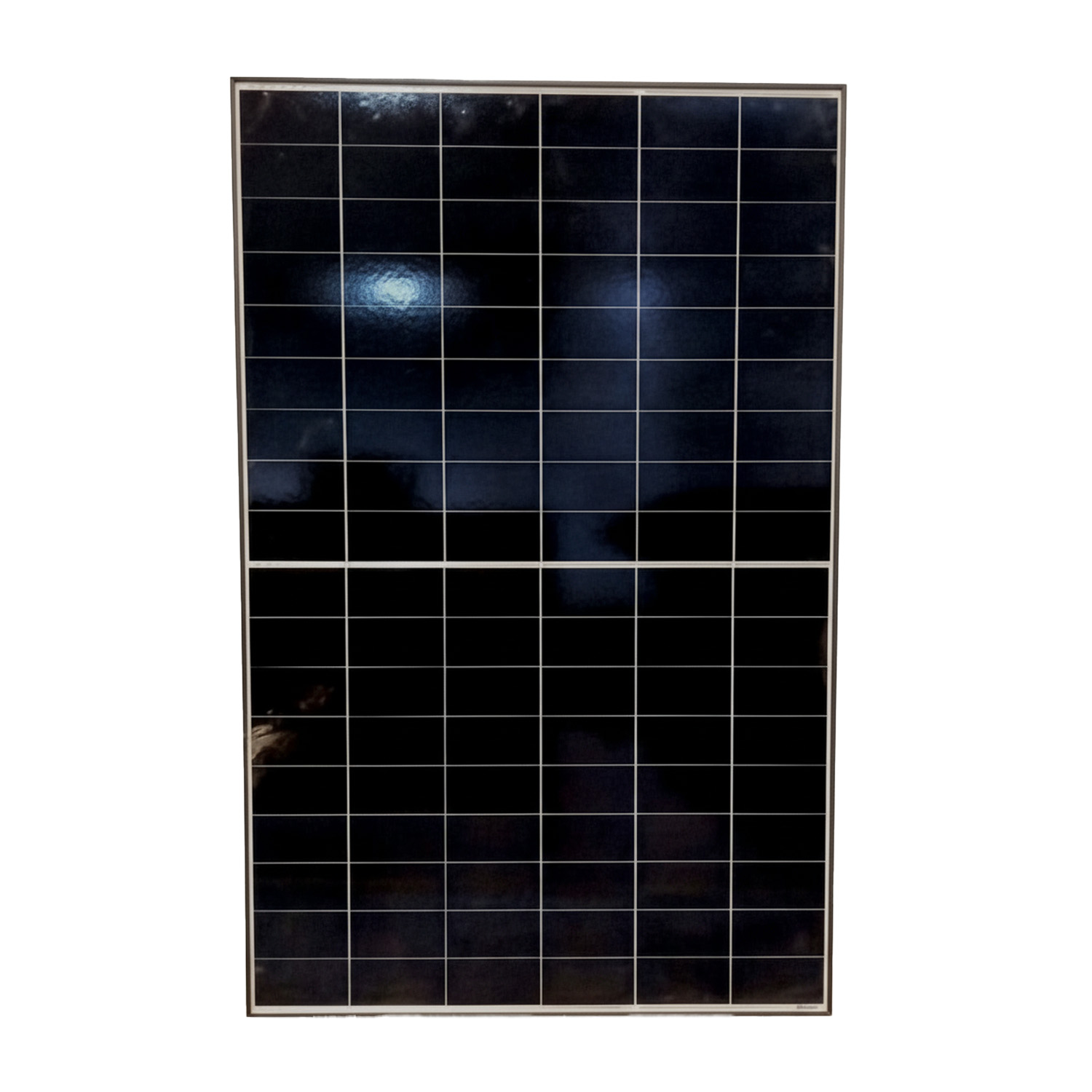

Module AIKO-A465-MAH54Dw Black frame / OUTLET
SKU: F100J01O
EAN: 2010000033661
| Manufacturer | |
|---|---|
| Power | |
| Efficiency | |
| Number of BusBar | |
| Product warranty | |
| Linear power warranty | |
| Maximum static load (Pa) | |
| Frame color | |
| Frame thickness | |
| Height | |
| Width | |
| Quantity per pallet | |
| Quantity per container | |
| Cable length (+) | |
| Cable length (-) | 1200 mm |
| Tier 1 | |
| PV cell type | |
| Module type | |
| Fire resistance class | |
| Weight | 24,2 kg |
| CN | 85414300 |
Price
66,04 €
Gross
Gross
Product details
| Manufacturer | |
|---|---|
| Power | |
| Efficiency | |
| Number of BusBar | |
| Product warranty | |
| Linear power warranty | |
| Maximum static load (Pa) | |
| Frame color | |
| Frame thickness | |
| Height | |
| Width | |
| Quantity per pallet | |
| Quantity per container | |
| Cable length (+) | |
| Cable length (-) | 1200 mm |
| Tier 1 | |
| PV cell type | |
| Module type | |
| Fire resistance class | |
| Weight | 24,2 kg |
| CN | 85414300 |

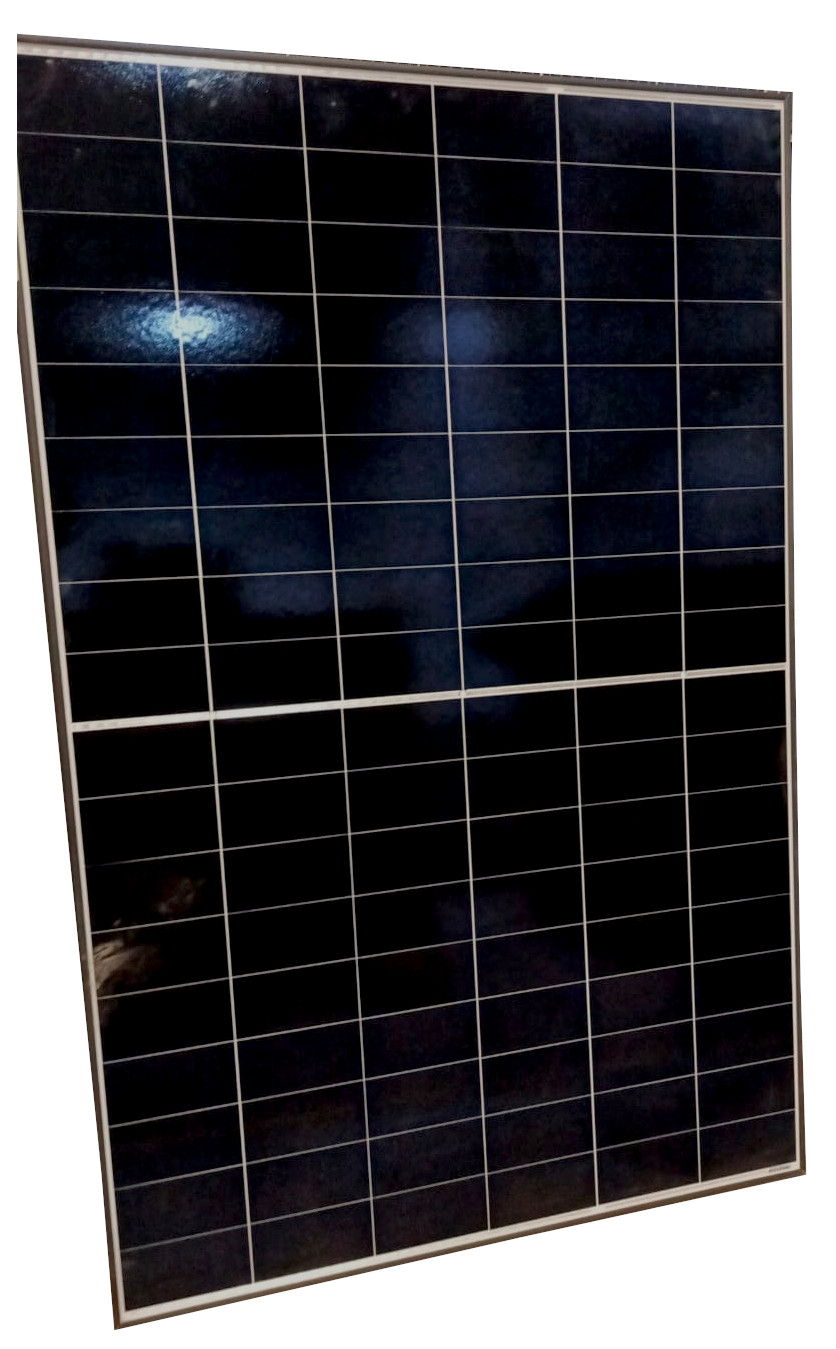

AIKO NEOSTAR 2P+ dual-glass modules

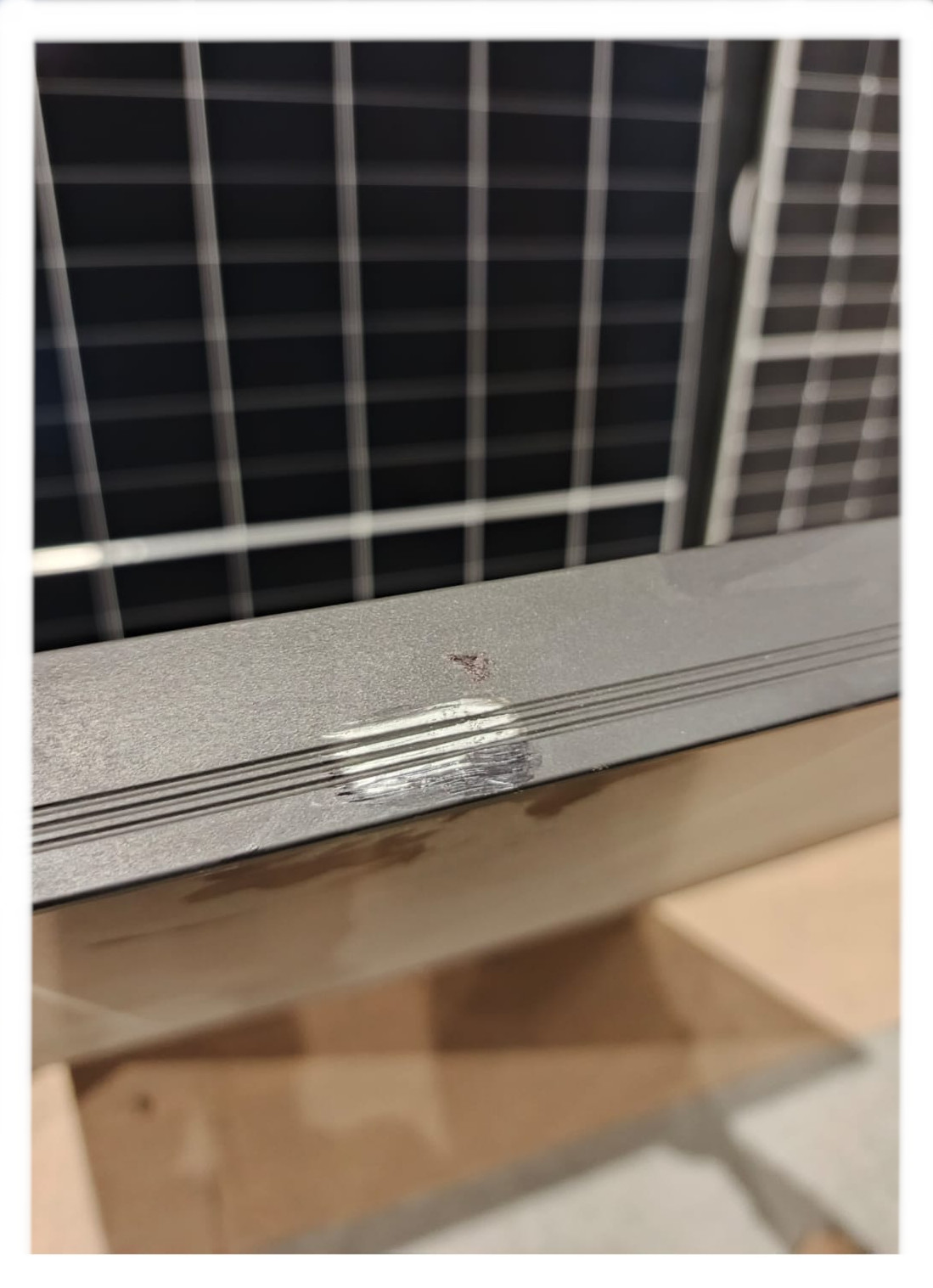

This module has a damaged frame
The AIKO NEOSTAR 2P+ photovoltaic module series consists of advanced dual-glass (glass-glass) panels that use innovative N-type ABC (All Back Contact) cell technology. Offering a power range from 455 W to 475 W, these modules deliver exceptional efficiency, very low degradation, and advanced optimization features, making them an excellent choice for demanding installations.
Key features of the AIKO NEOSTAR 2P+ modules:
- Exceptionally high module efficiency (up to 23.8%) thanks to N-type ABC cells.
- Very low power degradation: ≤1% in the first year and ≤0.35% per year from years 2 to 30.
- Dual-glass construction (glass-glass) providing increased durability, resistance to environmental conditions, and mechanical load tolerance.
- Advanced performance optimization in partial shading conditions.
- Improved power temperature coefficient (-0.26%/°C) and high resistance to elevated temperatures, resulting in higher energy yield.
- High resistance to microcracks, enhancing long-term reliability.
- Long warranties: 15 years on the product (extendable to 25 years) and a 30-year linear power warranty.
Who is this a good choice for?
The AIKO NEOSTAR 2P+ modules are ideal for customers seeking panels with top-level reliability, longevity, and optimal energy production across varying conditions. Their robust dual-glass design makes them especially suitable for installations exposed to harsh weather, while the advanced cell technology ensures strong performance even under partial shading. These panels are aimed at demanding investors who prioritize quality and long-term return on investment.
| Parameter | AIKO-A455-MAH54Dw (2P+) | AIKO-A460-MAH54Dw (2P+) | AIKO-A465-MAH54Dw (2P+) | AIKO-A470-MAH54Dw (2P+) | AIKO-A475-MAH54Dw (2P+) |
|---|---|---|---|---|---|
| Electrical Characteristics | |||||
| Under STC conditions (Standard Test Conditions: irradiance 1000 W/m², cell temperature 25°C, AM1.5) | |||||
| Rated maximum power (Pmax) (W) | 455 | 460 | 465 | 470 | 475 |
| Open-circuit voltage (Voc) (V) | 41.00 | 41.06 | 41.12 | 41.18 | 41.24 |
| Maximum power voltage (Vmp) (V) | 34.56 | 34.62 | 34.68 | 34.74 | 34.80 |
| Short-circuit current (Isc) (A) | 14.22 | 14.25 | 14.29 | 14.32 | 14.35 |
| Maximum power current (Imp) (A) | 13.17 | 13.29 | 13.41 | 13.54 | 13.66 |
| Module efficiency (%) | 22.8 | 23.1 | 23.3 | 23.6 | 23.8 |
| Power tolerance (%) | 0~+3 | 0~+3 | 0~+3 | 0~+3 | 0~+3 |
| Under NOCT conditions (Nominal Operating Cell Temperature: irradiance 800 W/m², ambient temperature 20°C, wind speed 1 m/s) | |||||
| Rated maximum power (Pmax) (W) | 343 | 346 | 350 | 354 | 358 |
| Open-circuit voltage (Voc) (V) | 38.72 | 38.77 | 38.83 | 38.89 | 38.94 |
| Maximum power voltage (Vmp) (V) | 32.64 | 32.69 | 32.75 | 32.81 | 32.86 |
| Short-circuit current (Isc) (A) | 11.50 | 11.52 | 11.55 | 11.58 | 11.60 |
| Maximum power current (Imp) (A) | 10.32 | 10.41 | 10.51 | 10.61 | 10.71 |
| Product Specification | |||||
| Cell type | N-Type ABC | N-Type ABC | N-Type ABC | N-Type ABC | N-Type ABC |
| Glass | Double glass, semi-tempered coated glass 2.0 + 2.0 mm | Double glass, semi-tempered coated glass 2.0 + 2.0 mm | Double glass, semi-tempered coated glass 2.0 + 2.0 mm | Double glass, semi-tempered coated glass 2.0 + 2.0 mm | Double glass, semi-tempered coated glass 2.0 + 2.0 mm |
| Frame | Black anodized aluminum | Black anodized aluminum | Black anodized aluminum | Black anodized aluminum | Black anodized aluminum |
| Cable (mm² / AWG) | 4 (IEC) / 12 (UL) ±1200 mm | 4 (IEC) / 12 (UL) ±1200 mm | 4 (IEC) / 12 (UL) ±1200 mm | 4 (IEC) / 12 (UL) ±1200 mm | 4 (IEC) / 12 (UL) ±1200 mm |
| Number of cells | 108 (6 × 18) | 108 (6 × 18) | 108 (6 × 18) | 108 (6 × 18) | 108 (6 × 18) |
| Junction box | IP68, 3 bypass diodes | IP68, 3 bypass diodes | IP68, 3 bypass diodes | IP68, 3 bypass diodes | IP68, 3 bypass diodes |
| Connector | MC4-Evo2 | MC4-Evo2 | MC4-Evo2 | MC4-Evo2 | MC4-Evo2 |
| Weight (kg) | 24.2±3% | 24.2±3% | 24.2±3% | 24.2±3% | 24.2±3% |
| Dimensions (mm) | 1757 × 1134 × 30 | 1757 × 1134 × 30 | 1757 × 1134 × 30 | 1757 × 1134 × 30 | 1757 × 1134 × 30 |
| Packaging configuration | 37 pcs/pallet; 222 pcs/20′ GP container; 962 pcs/40′ HC container | 37 pcs/pallet; 222 pcs/20′ GP container; 962 pcs/40′ HC container | 37 pcs/pallet; 222 pcs/20′ GP container; 962 pcs/40′ HC container | 37 pcs/pallet; 222 pcs/20′ GP container; 962 pcs/40′ HC container | 37 pcs/pallet; 222 pcs/20′ GP container; 962 pcs/40′ HC container |
| Installation Instructions / Operating Conditions | |||||
| Operating temperature (°C) | -40 ~ +85 | -40 ~ +85 | -40 ~ +85 | -40 ~ +85 | -40 ~ +85 |
| Maximum series fuse rating (A) | 25 | 25 | 25 | 25 | 25 |
| Protection class | Class II | Class II | Class II | Class II | Class II |
| Tolerance of Voc and Isc (%) | ±3 | ±3 | ±3 | ±3 | ±3 |
| Maximum system voltage (V DC) | 1500 | 1500 | 1500 | 1500 | 1500 |
| Maximum static load, front (Pa) | 5400 | 5400 | 5400 | 5400 | 5400 |
| Maximum static load, rear (Pa) | 2400 | 2400 | 2400 | 2400 | 2400 |
| Hail resistance | Hail with a diameter of 35 mm impacting at 23 m/s | Hail with a diameter of 35 mm impacting at 23 m/s | Hail with a diameter of 35 mm impacting at 23 m/s | Hail with a diameter of 35 mm impacting at 23 m/s | Hail with a diameter of 35 mm impacting at 23 m/s |
| Fire resistance | IEC class: A | IEC class: A | IEC class: A | IEC class: A | IEC class: A |
| Temperature Coefficients (STC) | |||||
| Temperature coefficient of Isc (%/°C) | +0.05 | +0.05 | +0.05 | +0.05 | +0.05 |
| Temperature coefficient of Voc (%/°C) | -0.22 | -0.22 | -0.22 | -0.22 | -0.22 |
| Temperature coefficient of Pmax (%/°C) | -0.26 | -0.26 | -0.26 | -0.26 | -0.26 |
