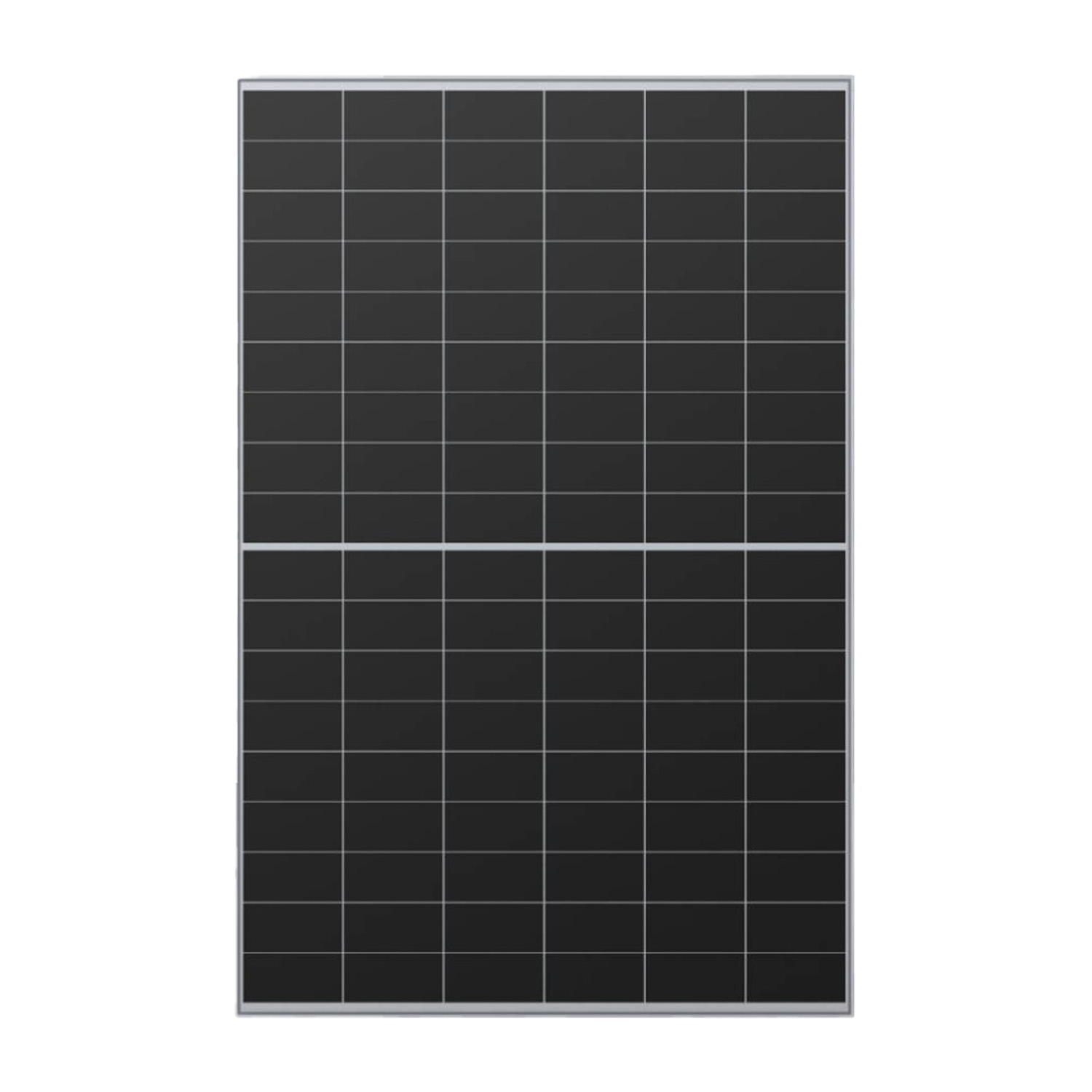

Module – AIKO – A465-MAH54Mw

SKU: F100J0 EAN: 2010000030516
Module - AIKO - A465-MAH54Mw
Manufacturer

Model

Power

Frame color

Efficiency

Tier 1

Product warranty

Linear power warranty

Module type

PV cell type

Number of busbars

Fire resistance class

Frame thickness

Height

Width

Maximum static load (Pa)

Cable length (+)

Quantity per pallet

Quantity per container

Weight 21,5 kg
CN 85414300
Price 69,37 €
Gross

69,37 €
Gross

69,37 €
Gross

Datasheet Aiko-A465-MAH54Mw BF datasheet-aiko-a465-mah54mw-bf.pdf Manual Aiko-A465-MAH54Mw BF AIKO-A450-MAH54Mw-A470-MAH54Mw-Manual.pdf

Product details

Manufacturer

Model

Power

Frame color

Efficiency

Tier 1

Product warranty

Linear power warranty

Module type

PV cell type

Number of busbars

Fire resistance class

Frame thickness

Height

Width

Maximum static load (Pa)

Cable length (+)

Quantity per pallet

Quantity per container

Weight 21,5 kg
CN 85414300

AIKO Neostar 2P Photovoltaic Modules 450W – 470W (AIKO-A-MAH54Mw Series)

The AIKO Neostar 2P photovoltaic modules are the second generation of panels using the innovative N-Type ABC (All Back Contact) cell technology. They feature exceptionally high efficiency, excellent aesthetics thanks to the absence of visible front-side electrodes, and optimized performance even under partial shading.

Key features of the AIKO Neostar 2P modules:

  • N-Type ABC Technology: Advanced cells with all contacts on the back (All Back Contact) provide higher efficiency, no visible busbars on the front for improved aesthetics, and increased light-absorbing surface area.
  • High power and efficiency: Output power up to 470 W and module efficiency reaching 23.6%, allowing you to maximize energy production from a given area.
  • Excellent temperature characteristics: A very favorable Pmax temperature coefficient of -0.26%/°C minimizes power losses at high temperatures.
  • Optimized performance in shade: The optimized design delivers better performance under partial shading compared to standard modules.
  • Low degradation and long warranties: Guaranteed power decline of no more than 1% in the first year and a maximum of 0.35% per year in years 2-30, backed by a 15-year product warranty and a 30-year linear performance warranty.
  • High mechanical and microcrack resistance: A robust construction provides load resistance and minimizes the risk of microcracks.

Who is this a good choice for?

AIKO Neostar 2P modules are an ideal solution for customers seeking top performance, excellent aesthetics, and long-term reliability. They are suitable for both residential and commercial installations, especially where maximizing energy yield from limited roof space and maintaining an immaculate appearance of the PV system matter. Their advanced technology and outstanding specifications make them a premium choice on the market.

Datasheet Aiko-A465-MAH54Mw BF datasheet-aiko-a465-mah54mw-bf.pdf Manual Aiko-A465-MAH54Mw BF AIKO-A450-MAH54Mw-A470-MAH54Mw-Manual.pdf

Neostar 2P Specification

Parameter AIKO-A450-MAH54Mw AIKO-A455-MAH54Mw AIKO-A460-MAH54Mw AIKO-A465-MAH54Mw AIKO-A470-MAH54Mw
STC NOCT STC NOCT STC NOCT STC NOCT STC NOCT
Electrical characteristics (STC: AM 1.5 1000 W/m² 25°C NOCT: AM 1.5 800 W/m² 20°C 1 m/s)
P

max [W]

 450 339 455 343 460 346 465 350 470 354
V

oc [V]

 40.49 38.24 40.59 38.33 40.69 38.43 40.79 38.52 40.89 38.62
V

mp [V]

 33.50 31.64 33.60 31.73 33.70 31.83 33.80 31.92 33.90 32.02
I

sc [A]

 14.21 11.49 14.31 11.57 14.41 11.66 14.51 11.74 14.61 11.82
I

mp [A]

 13.44 10.72 13.55 10.81 13.66 10.90 13.76 10.98 13.87 11.07
Module efficiency 22.6% 22.6% 22.8% 22.8% 23.1% 23.1% 23.3% 23.3% 23.6% 23.6%
Power tolerance 0 ~ +3% 0 ~ +3% 0 ~ +3% 0 ~ +3% 0 ~ +3% 0 ~ +3% 0 ~ +3% 0 ~ +3% 0 ~ +3% 0 ~ +3%
Mechanical specification
Cell type N-Type ABC N-Type ABC N-Type ABC N-Type ABC N-Type ABC N-Type ABC N-Type ABC N-Type ABC N-Type ABC N-Type ABC
Front cover – Mono glass Tempered glass, 3.2 mm thick Tempered glass, 3.2 mm thick Tempered glass, 3.2 mm thick Tempered glass, 3.2 mm thick Tempered glass, 3.2 mm thick Tempered glass, 3.2 mm thick Tempered glass, 3.2 mm thick Tempered glass, 3.2 mm thick Tempered glass, 3.2 mm thick Tempered glass, 3.2 mm thick
Frame Anodized aluminum Anodized aluminum Anodized aluminum Anodized aluminum Anodized aluminum Anodized aluminum Anodized aluminum Anodized aluminum Anodized aluminum Anodized aluminum
Cable 4 mm² (IEC) 12 AWG (UL) 1200 mm 4 mm² (IEC) 12 AWG (UL) 1200 mm 4 mm² (IEC) 12 AWG (UL) 1200 mm 4 mm² (IEC) 12 AWG (UL) 1200 mm 4 mm² (IEC) 12 AWG (UL) 1200 mm 4 mm² (IEC) 12 AWG (UL) 1200 mm 4 mm² (IEC) 12 AWG (UL) 1200 mm 4 mm² (IEC) 12 AWG (UL) 1200 mm 4 mm² (IEC) 12 AWG (UL) 1200 mm 4 mm² (IEC) 12 AWG (UL) 1200 mm
Number of cells 108 (6 x 18) 108 (6 x 18) 108 (6 x 18) 108 (6 x 18) 108 (6 x 18) 108 (6 x 18) 108 (6 x 18) 108 (6 x 18) 108 (6 x 18) 108 (6 x 18)
Junction box IP68, three bypass diodes IP68, three bypass diodes IP68, three bypass diodes IP68, three bypass diodes IP68, three bypass diodes IP68, three bypass diodes IP68, three bypass diodes IP68, three bypass diodes IP68, three bypass diodes IP68, three bypass diodes
Connector MC4-Evo2 MC4-Evo2 MC4-Evo2 MC4-Evo2 MC4-Evo2 MC4-Evo2 MC4-Evo2 MC4-Evo2 MC4-Evo2 MC4-Evo2
Weight 21.5 kg 21.5 kg 21.5 kg 21.5 kg 21.5 kg 21.5 kg 21.5 kg 21.5 kg 21.5 kg 21.5 kg
Dimensions 1757 x 1134 x 30 mm 1757 x 1134 x 30 mm 1757 x 1134 x 30 mm 1757 x 1134 x 30 mm 1757 x 1134 x 30 mm 1757 x 1134 x 30 mm 1757 x 1134 x 30 mm 1757 x 1134 x 30 mm 1757 x 1134 x 30 mm 1757 x 1134 x 30 mm
Packing details 36 pcs/pallet; 216 pcs/20′ GP container; 936 pcs/40′ HC container 36 pcs/pallet; 216 pcs/20′ GP container; 936 pcs/40′ HC container 36 pcs/pallet; 216 pcs/20′ GP container; 936 pcs/40′ HC container 36 pcs/pallet; 216 pcs/20′ GP container; 936 pcs/40′ HC container 36 pcs/pallet; 216 pcs/20′ GP container; 936 pcs/40′ HC container 36 pcs/pallet; 216 pcs/20′ GP container; 936 pcs/40′ HC container 36 pcs/pallet; 216 pcs/20′ GP container; 936 pcs/40′ HC container 36 pcs/pallet; 216 pcs/20′ GP container; 936 pcs/40′ HC container 36 pcs/pallet; 216 pcs/20′ GP container; 936 pcs/40′ HC container 36 pcs/pallet; 216 pcs/20′ GP container; 936 pcs/40′ HC container
Rated temperature coefficients (STC)
Temperature coefficient of I

sc

 +0.05%/°C +0.05%/°C +0.05%/°C +0.05%/°C +0.05%/°C +0.05%/°C +0.05%/°C +0.05%/°C +0.05%/°C +0.05%/°C
Temperature coefficient of V

oc

 -0.22%/°C -0.22%/°C -0.22%/°C -0.22%/°C -0.22%/°C -0.22%/°C -0.22%/°C -0.22%/°C -0.22%/°C -0.22%/°C
Temperature coefficient of P

max

 -0.26%/°C -0.26%/°C -0.26%/°C -0.26%/°C -0.26%/°C -0.26%/°C -0.26%/°C -0.26%/°C -0.26%/°C -0.26%/°C
Installation instructions
Operating temperature -40°C~+85°C -40°C~+85°C -40°C~+85°C -40°C~+85°C -40°C~+85°C -40°C~+85°C -40°C~+85°C -40°C~+85°C -40°C~+85°C -40°C~+85°C
Maximum fuse rating for series connection 25 A 25 A 25 A 25 A 25 A 25 A 25 A 25 A 25 A 25 A
Protection class Class II Class II Class II Class II Class II Class II Class II Class II Class II Class II
Tolerance of V

oc and I

sc

 ± 3% ± 3% ± 3% ± 3% ± 3% ± 3% ± 3% ± 3% ± 3% ± 3%
Maximum system voltage DC 1500 V DC 1500 V DC 1500 V DC 1500 V DC 1500 V DC 1500 V DC 1500 V DC 1500 V DC 1500 V DC 1500 V
Maximum static load Front 5400 Pa

Rear 2400 Pa

 Front 5400 Pa

Rear 2400 Pa

 Front 5400 Pa

Rear 2400 Pa

 Front 5400 Pa

Rear 2400 Pa

 Front 5400 Pa

Rear 2400 Pa

 Front 5400 Pa

Rear 2400 Pa

 Front 5400 Pa

Rear 2400 Pa

 Front 5400 Pa

Rear 2400 Pa

 Front 5400 Pa

Rear 2400 Pa

 Front 5400 Pa

Rear 2400 Pa
Hail resistance Hail with a diameter of 25 mm impacting at 23 m/s Hail with a diameter of 25 mm impacting at 23 m/s Hail with a diameter of 25 mm impacting at 23 m/s Hail with a diameter of 25 mm impacting at 23 m/s Hail with a diameter of 25 mm impacting at 23 m/s Hail with a diameter of 25 mm impacting at 23 m/s Hail with a diameter of 25 mm impacting at 23 m/s Hail with a diameter of 25 mm impacting at 23 m/s Hail with a diameter of 25 mm impacting at 23 m/s Hail with a diameter of 25 mm impacting at 23 m/s
Fire rating Class according to IEC: C Class according to IEC: C Class according to IEC: C Class according to IEC: C Class according to IEC: C Class according to IEC: C Class according to IEC: C Class according to IEC: C Class according to IEC: C Class according to IEC: C
