Module AIKO-A475-MAH54Mw Black frame / OUTLET
SKU: F100J02O
EAN: 2010000033685
| Manufacturer | |
|---|---|
| Power | |
| Efficiency | |
| Number of BusBar | |
| Product warranty | |
| Linear power warranty | |
| Maximum static load (Pa) | |
| Frame color | |
| Frame thickness | |
| Width | |
| Height | |
| Quantity per pallet | |
| Quantity per container | |
| Cable length (+) | |
| Cable length (-) | 1200 mm |
| Tier 1 | |
| PV cell type | |
| Module type | |
| Fire resistance class | |
| Weight | 20,6 kg |
| CN | 85414300 |
Price
70,50 €
Gross
Gross
Product details
| Manufacturer | |
|---|---|
| Power | |
| Efficiency | |
| Number of BusBar | |
| Product warranty | |
| Linear power warranty | |
| Maximum static load (Pa) | |
| Frame color | |
| Frame thickness | |
| Width | |
| Height | |
| Quantity per pallet | |
| Quantity per container | |
| Cable length (+) | |
| Cable length (-) | 1200 mm |
| Tier 1 | |
| PV cell type | |
| Module type | |
| Fire resistance class | |
| Weight | 20,6 kg |
| CN | 85414300 |

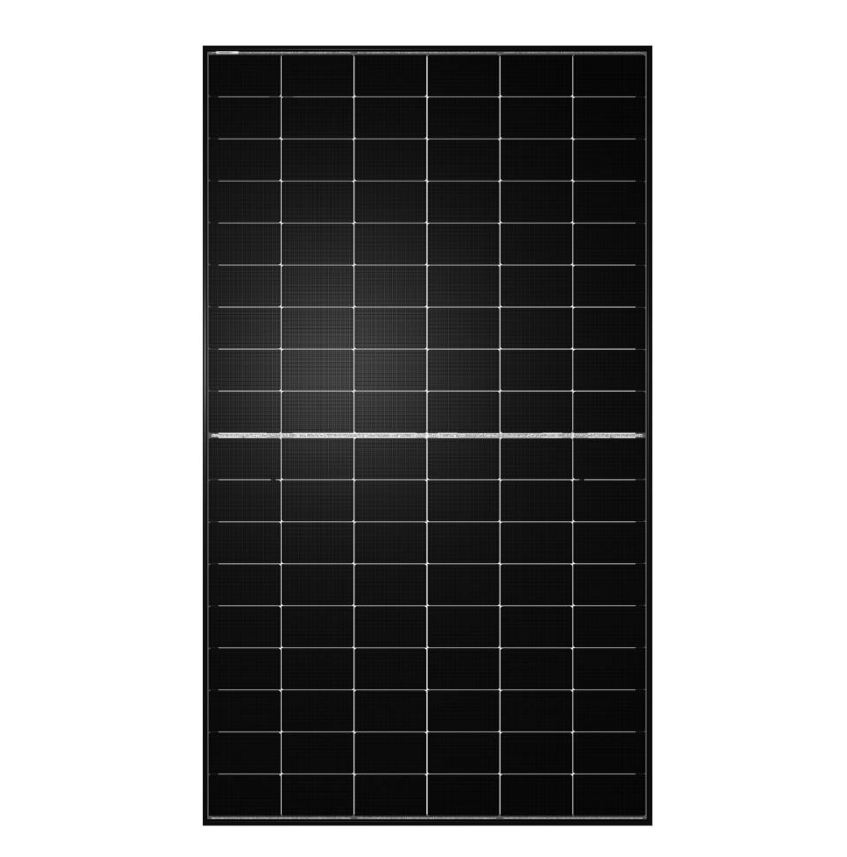

AIKO NEOSTAR 2N Monocrystalline Modules

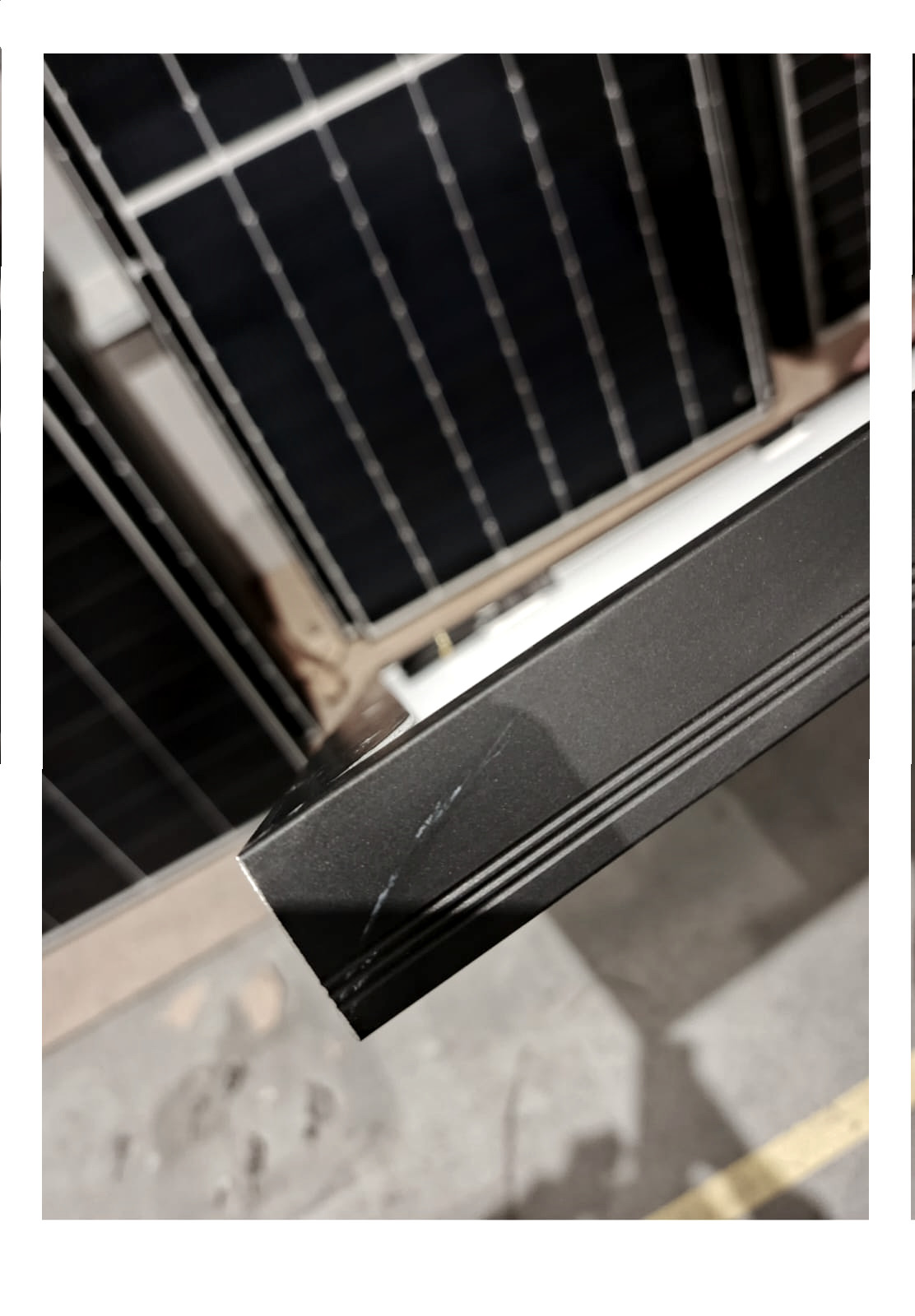

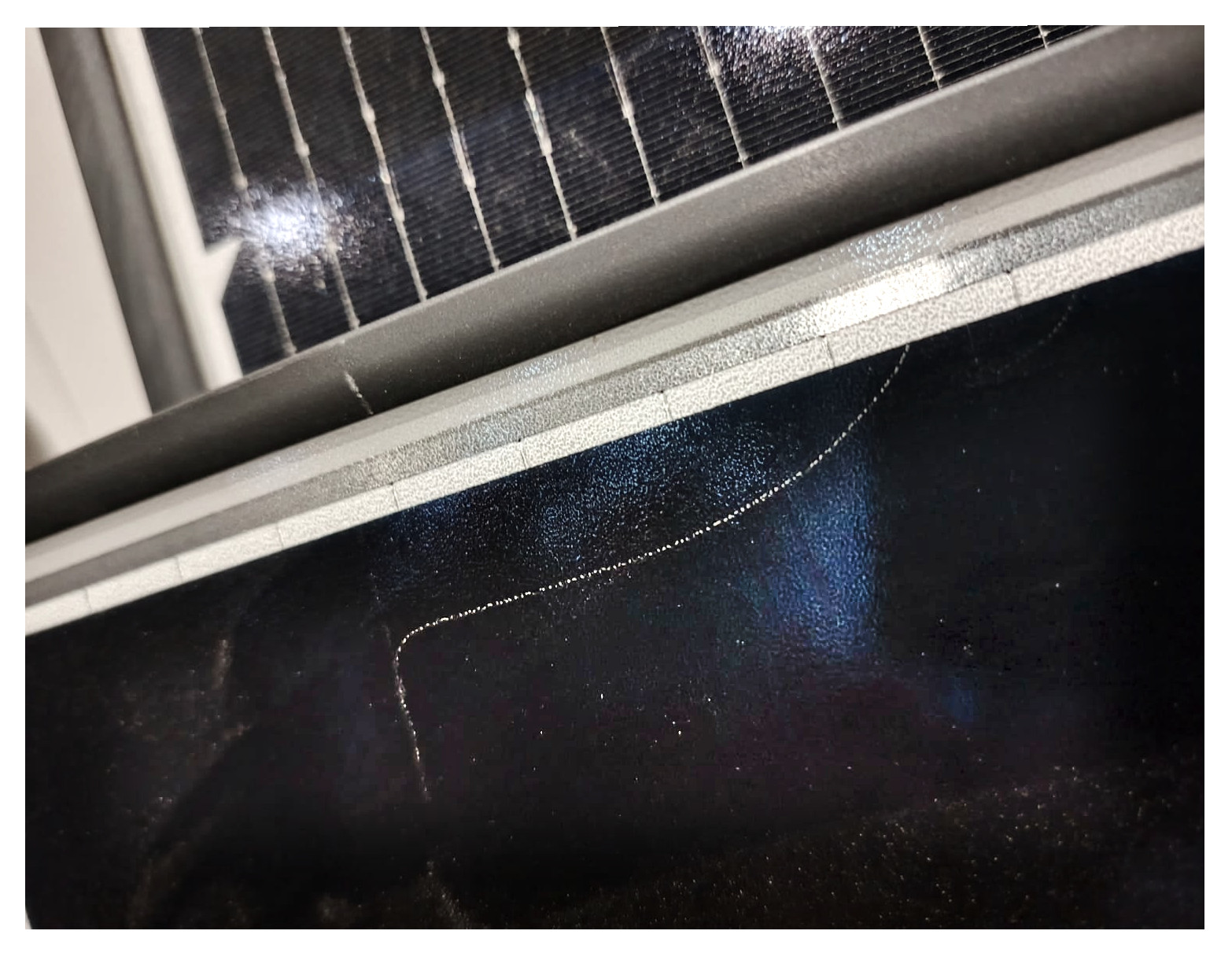

Ex-display unit. It was installed at the 7SUN headquarters for exhibition. It has minor installation marks and light scratches on the frame. The product is fully functional and includes the manufacturer’s warranty.
The AIKO NEOSTAR 2N photovoltaic module series are high-performance N-type monocrystalline panels featuring innovative ABC (All Back Contact) cell technology. Offering a power range of 450W to 485W, these modules deliver exceptional efficiency, low degradation, and advanced optimization functions, making them an excellent choice for demanding installations.
Key features of the AIKO NEOSTAR 2N modules:
- Exceptionally high module efficiency (up to 24.3%) thanks to N-type ABC cells.
- Very low power degradation: ≤1% in the first year and ≤0.35% annually from year 2 to 30.
- Advanced partial-shading optimization for better performance in challenging conditions.
- Improved power temperature coefficient (-0.26%/°C), ensuring higher energy yield at elevated temperatures.
- High resistance to microcracks and a robust construction (front-side static load up to 5400 Pa).
- Sleek appearance with fully black cells and frame, enhancing the visual appeal of the installation.
- Long warranties: 15 years on the product (extendable to 25 years) and a 30-year linear power warranty.
Who is this a good choice for?
The AIKO NEOSTAR 2N modules are ideal for residential and commercial customers who prioritize maximum energy production, long-term reliability, and aesthetics. Their high efficiency and low degradation make them particularly well suited for installations with limited space, where every square meter counts. Advanced features and long warranties provide peace of mind and an optimal return on investment for many years.
| Parameter | AIKO-A450-MAH54Mw | AIKO-A455-MAH54Mw | AIKO-A460-MAH54Mw | AIKO-A465-MAH54Mw | AIKO-A470-MAH54Mw | AIKO-A475-MAH54Mw | AIKO-A480-MAH54Mw | AIKO-A485-MAH54Mw |
|---|---|---|---|---|---|---|---|---|
| Electrical Parameters | ||||||||
| Under STC conditions (Standard Test Conditions: irradiance 1000W/m², cell temperature 25°C, AM1.5) | ||||||||
| Rated maximum power (Pmax) (W) | 450 | 455 | 460 | 465 | 470 | 475 | 480 | 485 |
| Open-circuit voltage (Voc) (V) | 40.94 | 41.00 | 41.06 | 41.12 | 41.18 | 41.24 | 41.30 | 41.36 |
| Voltage at maximum power (Vmp) (V) | 34.50 | 34.56 | 34.62 | 34.68 | 34.74 | 34.80 | 34.86 | 34.92 |
| Short-circuit current (Isc) (A) | 14.12 | 14.22 | 14.25 | 14.29 | 14.32 | 14.35 | 14.38 | 14.41 |
| Current at maximum power (Imp) (A) | 13.05 | 13.17 | 13.29 | 13.41 | 13.54 | 13.66 | 13.78 | 13.90 |
| Module efficiency (%) | 22.6 | 22.8 | 23.1 | 23.3 | 23.6 | 23.8 | 24.1 | 24.3 |
| Power tolerance (%) | 0~+3 | 0~+3 | 0~+3 | 0~+3 | 0~+3 | 0~+3 | 0~+3 | 0~+3 |
| Under NOCT conditions (Nominal Operating Cell Temperature: irradiance 800W/m², ambient temp. 20°C, wind speed 1m/s) | ||||||||
| Rated maximum power (Pmax) (W) | 339 | 343 | 346 | 350 | 354 | 358 | 361 | 365 |
| Open-circuit voltage (Voc) (V) | 38.66 | 38.72 | 38.77 | 38.83 | 38.87 | 38.94 | 39.00 | 39.06 |
| Voltage at maximum power (Vmp) (V) | 32.58 | 32.64 | 32.69 | 32.75 | 32.81 | 32.86 | 32.92 | 32.98 |
| Short-circuit current (Isc) (A) | 11.42 | 11.50 | 11.52 | 11.55 | 11.58 | 11.60 | 11.63 | 11.66 |
| Current at maximum power (Imp) (A) | 10.41 | 10.51 | 10.61 | 10.71 | 10.80 | 10.90 | 10.99 | 11.09 |
| Mechanical Parameters | ||||||||
| Cell type | N-Type ABC | N-Type ABC | N-Type ABC | N-Type ABC | N-Type ABC | N-Type ABC | N-Type ABC | N-Type ABC |
| Glass | Tempered glass 3.2 mm | Tempered glass 3.2 mm | Tempered glass 3.2 mm | Tempered glass 3.2 mm | Tempered glass 3.2 mm | Tempered glass 3.2 mm | Tempered glass 3.2 mm | Tempered glass 3.2 mm |
| Frame | Anodized aluminum | Anodized aluminum | Anodized aluminum | Anodized aluminum | Anodized aluminum | Anodized aluminum | Anodized aluminum | Anodized aluminum |
| Cable (mm² / AWG) | 4 (IEC) / 12 (UL) +1200mm | 4 (IEC) / 12 (UL) +1200mm | 4 (IEC) / 12 (UL) +1200mm | 4 (IEC) / 12 (UL) +1200mm | 4 (IEC) / 12 (UL) +1200mm | 4 (IEC) / 12 (UL) +1200mm | 4 (IEC) / 12 (UL) +1200mm | 4 (IEC) / 12 (UL) +1200mm |
| Number of cells | 108 (6×18) | 108 (6×18) | 108 (6×18) | 108 (6×18) | 108 (6×18) | 108 (6×18) | 108 (6×18) | 108 (6×18) |
| Junction box | IP68, 3 bypass diodes | IP68, 3 bypass diodes | IP68, 3 bypass diodes | IP68, 3 bypass diodes | IP68, 3 bypass diodes | IP68, 3 bypass diodes | IP68, 3 bypass diodes | IP68, 3 bypass diodes |
| Connector | Original MC4 | Original MC4 | Original MC4 | Original MC4 | Original MC4 | Original MC4 | Original MC4 | Original MC4 |
| Weight (kg) | 20.6±3% | 20.6±3% | 20.6±3% | 20.6±3% | 20.6±3% | 20.6±3% | 20.6±3% | 20.6±3% |
| Dimensions (mm) | 1757 × 1134 × 30 | 1757 × 1134 × 30 | 1757 × 1134 × 30 | 1757 × 1134 × 30 | 1757 × 1134 × 30 | 1757 × 1134 × 30 | 1757 × 1134 × 30 | 1757 × 1134 × 30 |
| Packing configuration | 37 pcs/pallet / 222 pcs/20’GP container / 962 pcs/40’HC container | 37 pcs/pallet / 222 pcs/20’GP container / 962 pcs/40’HC container | 37 pcs/pallet / 222 pcs/20’GP container / 962 pcs/40’HC container | 37 pcs/pallet / 222 pcs/20’GP container / 962 pcs/40’HC container | 37 pcs/pallet / 222 pcs/20’GP container / 962 pcs/40’HC container | 37 pcs/pallet / 222 pcs/20’GP container / 962 pcs/40’HC container | 37 pcs/pallet / 222 pcs/20’GP container / 962 pcs/40’HC container | 37 pcs/pallet / 222 pcs/20’GP container / 962 pcs/40’HC container |
| Operating Conditions | ||||||||
| Operating temperature (°C) | -40 ~ +85 | -40 ~ +85 | -40 ~ +85 | -40 ~ +85 | -40 ~ +85 | -40 ~ +85 | -40 ~ +85 | -40 ~ +85 |
| Maximum series fuse rating (A) | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Safety class | Class II | Class II | Class II | Class II | Class II | Class II | Class II | Class II |
| Voc and Isc tolerance (%) | ±3 | ±3 | ±3 | ±3 | ±3 | ±3 | ±3 | ±3 |
| Maximum system voltage (V DC) | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Maximum static load, front (Pa) | 5400 | 5400 | 5400 | 5400 | 5400 | 5400 | 5400 | 5400 |
| Maximum static load, rear (Pa) | 2400 | 2400 | 2400 | 2400 | 2400 | 2400 | 2400 | 2400 |
| Hail test | Hail with diameter 40 mm at 23 m/s | Hail with diameter 40 mm at 23 m/s | Hail with diameter 40 mm at 23 m/s | Hail with diameter 40 mm at 23 m/s | Hail with diameter 40 mm at 23 m/s | Hail with diameter 40 mm at 23 m/s | Hail with diameter 40 mm at 23 m/s | Hail with diameter 40 mm at 23 m/s |
| Fire resistance class | IEC Class C | IEC Class C | IEC Class C | IEC Class C | IEC Class C | IEC Class C | IEC Class C | IEC Class C |
| Temperature Coefficients (STC) | ||||||||
| Isc temperature coefficient (%/°C) | +0.05 | +0.05 | +0.05 | +0.05 | +0.05 | +0.05 | +0.05 | +0.05 |
| Voc temperature coefficient (%/°C) | -0.22 | -0.22 | -0.22 | -0.22 | -0.22 | -0.22 | -0.22 | -0.22 |
| Pmax temperature coefficient (%/°C) | -0.26 | -0.26 | -0.26 | -0.26 | -0.26 | -0.26 | -0.26 | -0.26 |
