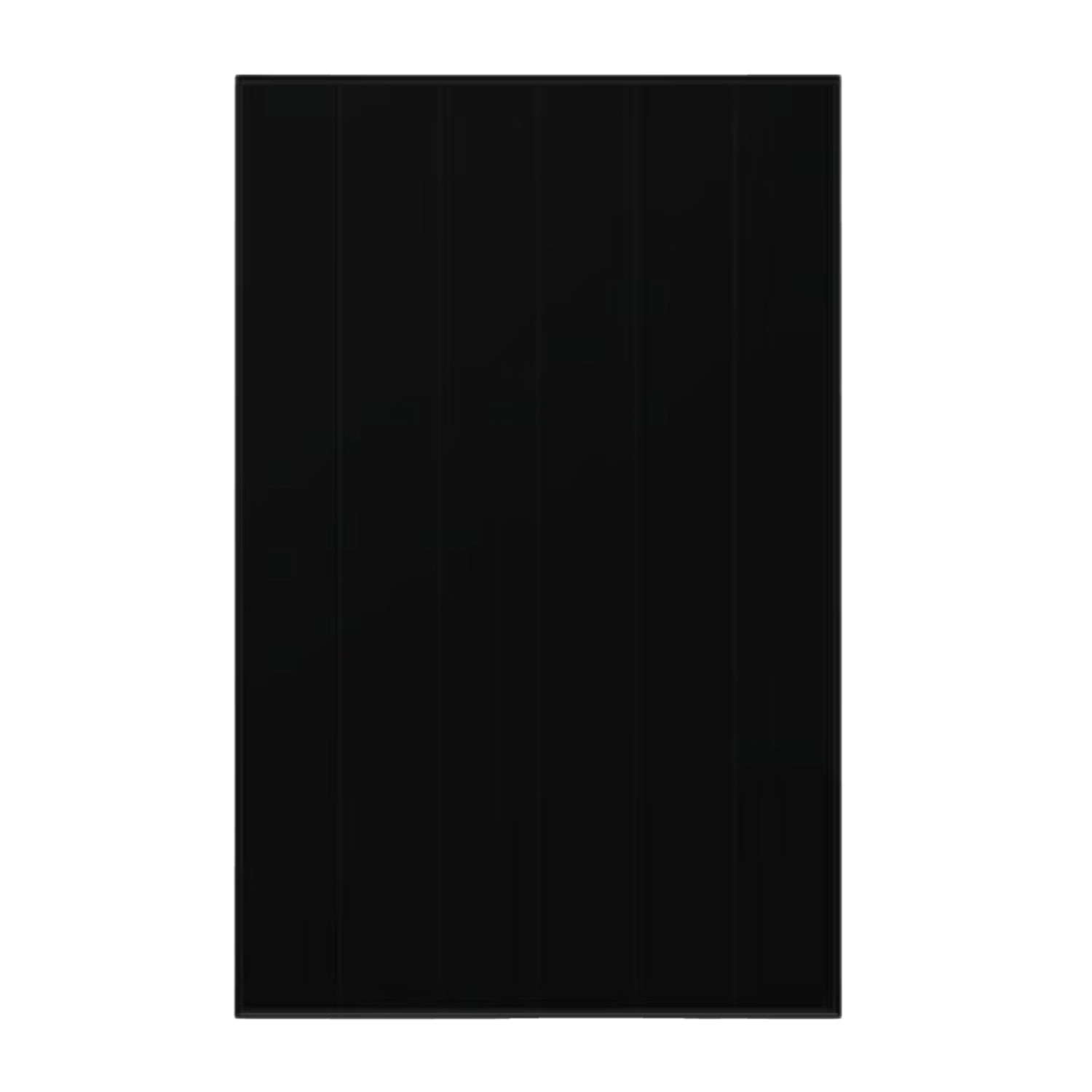

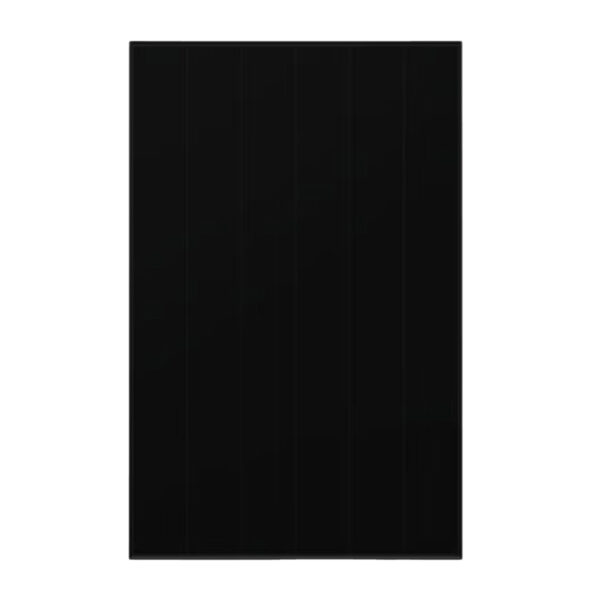

Module AIKO-A475-MCE54Db Full black
SKU: F100J03
EAN: 2010000031582
| Manufacturer | |
|---|---|
| Model | |
| Power | |
| Fullblack | |
| Frame color | |
| Efficiency | |
| Tier 1 | |
| Product warranty | |
| Linear power warranty | |
| Module type | |
| PV cell type | |
| Double glass | |
| Number of BusBar | |
| Fire resistance class | |
| Frame thickness | |
| Height | |
| Width | |
| Maximum static load (Pa) | |
| Cable length (+) | |
| Cable length (-) | 1200 mm |
| Quantity per pallet | |
| Quantity per container | |
| Weight | 24,2 kg |
| CN | 85414300 |
Price
120,70 €
Gross
Gross
Datasheet AIKO-A460-MCE54Db - A485-MCE54Db
AIKO-A460-MCE54Db-A485-MCE54Db-Datasheet.pdf
Product details
| Manufacturer | |
|---|---|
| Model | |
| Power | |
| Fullblack | |
| Frame color | |
| Efficiency | |
| Tier 1 | |
| Product warranty | |
| Linear power warranty | |
| Module type | |
| PV cell type | |
| Double glass | |
| Number of BusBar | |
| Fire resistance class | |
| Frame thickness | |
| Height | |
| Width | |
| Maximum static load (Pa) | |
| Cable length (+) | |
| Cable length (-) | 1200 mm |
| Quantity per pallet | |
| Quantity per container | |
| Weight | 24,2 kg |
| CN | 85414300 |
Aiko Neostar 3S+54 Double-Glass Photovoltaic Module (glass-to-glass)
The Aiko Neostar 3S+54 double-glass photovoltaic module is a technologically advanced solution offering power from 460W to 490W and outstanding efficiency up to 24.5%. By using double glass and N-Type ABC technology, the module delivers optimized performance under partial shading, increased resistance to microcracks, a favorable temperature coefficient, and long-term stability. Its attractive appearance and advanced technical features make it an excellent choice for demanding installations.
Key features of the Aiko Neostar 3S+54 Double-Glass Photovoltaic Module:
- High power and efficiency: Output power range from 460W to 490W and market-leading efficiency up to 24.5%, translating into maximum energy yield per area.
- Double-Glass construction (glass-to-glass): The use of double glass (2.0 + 2.0 mm) increases durability, weather and microcrack resistance, and provides higher fire resistance (IEC Class A).
- Long-term performance warranty: An impressive 30-year linear performance warranty with degradation not exceeding 1% in the first year and no more than 0.35% annually in years 2–30. Product warranty is 25 years.
- Advanced technical characteristics: Optimized performance in partial shading, favorable Pmax temperature coefficient (-0.26%/°C), reduced impact of high temperatures, and lower balance-of-system (BOS) costs thanks to higher power.
- Design and Infinite technology: A modern, clean front appearance with no visible front connections, supported by Infinite technology to enhance the installation’s visual appeal.
Who is this a good choice for?
The Aiko Neostar 3S+54 Double-Glass module is an excellent choice for investors seeking top quality, durability, and performance. It is ideal for residential, commercial, and industrial installations—especially where long-term reliability, resistance to harsh environmental conditions, and maximized energy production matter. Its attractive design and advanced N-Type ABC technology make it a preferred solution for the most demanding photovoltaic projects.
Datasheet AIKO-A460-MCE54Db - A485-MCE54Db
AIKO-A460-MCE54Db-A485-MCE54Db-Datasheet.pdf
| Parameter | AIKO-A460-MCE54Db | AIKO-A465-MCE54Db | AIKO-A470-MCE54Db | AIKO-A475-MCE54Db | AIKO-A480-MCE54Db | AIKO-A485-MCE54Db | AIKO-A490-MCE54Db |
|---|---|---|---|---|---|---|---|
| Electrical characteristics (STC: 1000 W/m², 25°C) | |||||||
| Maximum power (Pmax) (W) | 460 | 465 | 470 | 475 | 480 | 485 | 490 |
| Open-circuit voltage (Voc) (V) | 40.50 | 40.60 | 40.70 | 40.80 | 40.90 | 41.00 | 41.10 |
| Voltage at maximum power (Vmp) (V) | 34.10 | 34.20 | 34.30 | 34.40 | 34.50 | 34.60 | 34.70 |
| Short-circuit current (Isc) (A) | 14.66 | 14.69 | 14.72 | 14.76 | 14.80 | 14.84 | 14.88 |
| Current at maximum power (Imp) (A) | 13.50 | 13.60 | 13.71 | 13.81 | 13.92 | 14.02 | 14.13 |
| Module efficiency (%) | 23.0% | 23.3% | 23.5% | 23.8% | 24.0% | 24.3% | 24.5% |
| Electrical characteristics (NOCT: 800 W/m², 20°C, 1 m/s) | |||||||
| Maximum power (Pmax) (W) | 349 | 352 | 356 | 360 | 364 | 367 | 371 |
| Open-circuit voltage (Voc) (V) | 38.42 | 38.52 | 38.61 | 38.71 | 38.80 | 38.90 | 38.99 |
| Voltage at maximum power (Vmp) (V) | 32.35 | 32.45 | 32.54 | 32.64 | 32.73 | 32.83 | 32.92 |
| Short-circuit current (Isc) (A) | 11.85 | 11.87 | 11.89 | 11.93 | 11.96 | 11.99 | 12.02 |
| Current at maximum power (Imp) (A) | 10.89 | 10.87 | 10.96 | 11.04 | 11.13 | 11.21 | 11.29 |
| Product specification | |||||||
| Cell type | N-Type ABC | N-Type ABC | N-Type ABC | N-Type ABC | N-Type ABC | N-Type ABC | N-Type ABC |
| Glass | Double glass, semi-tempered coated glass 2.0 + 2.0 mm | Double glass, semi-tempered coated glass 2.0 + 2.0 mm | Double glass, semi-tempered coated glass 2.0 + 2.0 mm | Double glass, semi-tempered coated glass 2.0 + 2.0 mm | Double glass, semi-tempered coated glass 2.0 + 2.0 mm | Double glass, semi-tempered coated glass 2.0 + 2.0 mm | Double glass, semi-tempered coated glass 2.0 + 2.0 mm |
| Frame | Black anodized aluminum | Black anodized aluminum | Black anodized aluminum | Black anodized aluminum | Black anodized aluminum | Black anodized aluminum | Black anodized aluminum |
| Cable | 4 mm² (IEC) 12 AWG (UL) ±1200 mm | 4 mm² (IEC) 12 AWG (UL) ±1200 mm | 4 mm² (IEC) 12 AWG (UL) ±1200 mm | 4 mm² (IEC) 12 AWG (UL) ±1200 mm | 4 mm² (IEC) 12 AWG (UL) ±1200 mm | 4 mm² (IEC) 12 AWG (UL) ±1200 mm | 4 mm² (IEC) 12 AWG (UL) ±1200 mm |
| Number of cells | 108 (6 × 18) | 108 (6 × 18) | 108 (6 × 18) | 108 (6 × 18) | 108 (6 × 18) | 108 (6 × 18) | 108 (6 × 18) |
| Junction box | IP68, 3 bypass diodes | IP68, 3 bypass diodes | IP68, 3 bypass diodes | IP68, 3 bypass diodes | IP68, 3 bypass diodes | IP68, 3 bypass diodes | IP68, 3 bypass diodes |
| Connector | Original MC4 connector | Original MC4 connector | Original MC4 connector | Original MC4 connector | Original MC4 connector | Original MC4 connector | Original MC4 connector |
| Weight (kg) | 24.2 kg ±3% | 24.2 kg ±3% | 24.2 kg ±3% | 24.2 kg ±3% | 24.2 kg ±3% | 24.2 kg ±3% | 24.2 kg ±3% |
| Dimensions (mm) | 1762 x 1134 × 30 | 1762 x 1134 × 30 | 1762 x 1134 × 30 | 1762 x 1134 × 30 | 1762 x 1134 × 30 | 1762 x 1134 × 30 | 1762 x 1134 × 30 |
| Packing details | 37 pcs/pallet; 222 pcs/20′ GP container; 962 pcs/40′ HC container | 37 pcs/pallet; 222 pcs/20′ GP container; 962 pcs/40′ HC container | 37 pcs/pallet; 222 pcs/20′ GP container; 962 pcs/40′ HC container | 37 pcs/pallet; 222 pcs/20′ GP container; 962 pcs/40′ HC container | 37 pcs/pallet; 222 pcs/20′ GP container; 962 pcs/40′ HC container | 37 pcs/pallet; 222 pcs/20′ GP container; 962 pcs/40′ HC container | 37 pcs/pallet; 222 pcs/20′ GP container; 962 pcs/40′ HC container |
| Rated temperature coefficients | |||||||
| Temperature coefficient of Isc (%/°C) | +0.05 | +0.05 | +0.05 | +0.05 | +0.05 | +0.05 | +0.05 |
| Temperature coefficient of Voc (%/°C) | -0.22 | -0.22 | -0.22 | -0.22 | -0.22 | -0.22 | -0.22 |
| Temperature coefficient of Pmax (%/°C) | -0.26 | -0.26 | -0.26 | -0.26 | -0.26 | -0.26 | -0.26 |
| Installation instructions | |||||||
| Operating temperature (°C) | -40 ~ +85 | -40 ~ +85 | -40 ~ +85 | -40 ~ +85 | -40 ~ +85 | -40 ~ +85 | -40 ~ +85 |
| Maximum fuse rating (A) | 30 | 30 | 30 | 30 | 30 | 30 | 30 |
| Protection class | Class II | Class II | Class II | Class II | Class II | Class II | Class II |
| Maximum system voltage (V) | DC 1500 | DC 1500 | DC 1500 | DC 1500 | DC 1500 | DC 1500 | DC 1500 |
| Maximum static load (Pa) | Front 5400 Pa / Back 2400 Pa | Front 5400 Pa / Back 2400 Pa | Front 5400 Pa / Back 2400 Pa | Front 5400 Pa / Back 2400 Pa | Front 5400 Pa / Back 2400 Pa | Front 5400 Pa / Back 2400 Pa | Front 5400 Pa / Back 2400 Pa |
| Hail resistance | Hailstones 35 mm in diameter at 23 m/s | Hailstones 35 mm in diameter at 23 m/s | Hailstones 35 mm in diameter at 23 m/s | Hailstones 35 mm in diameter at 23 m/s | Hailstones 35 mm in diameter at 23 m/s | Hailstones 35 mm in diameter at 23 m/s | Hailstones 35 mm in diameter at 23 m/s |
| Fire rating | Class per IEC: A | Class per IEC: A | Class per IEC: A | Class per IEC: A | Class per IEC: A | Class per IEC: A | Class per IEC: A |
* AIKO reserves the right to update this specification without prior notice.
