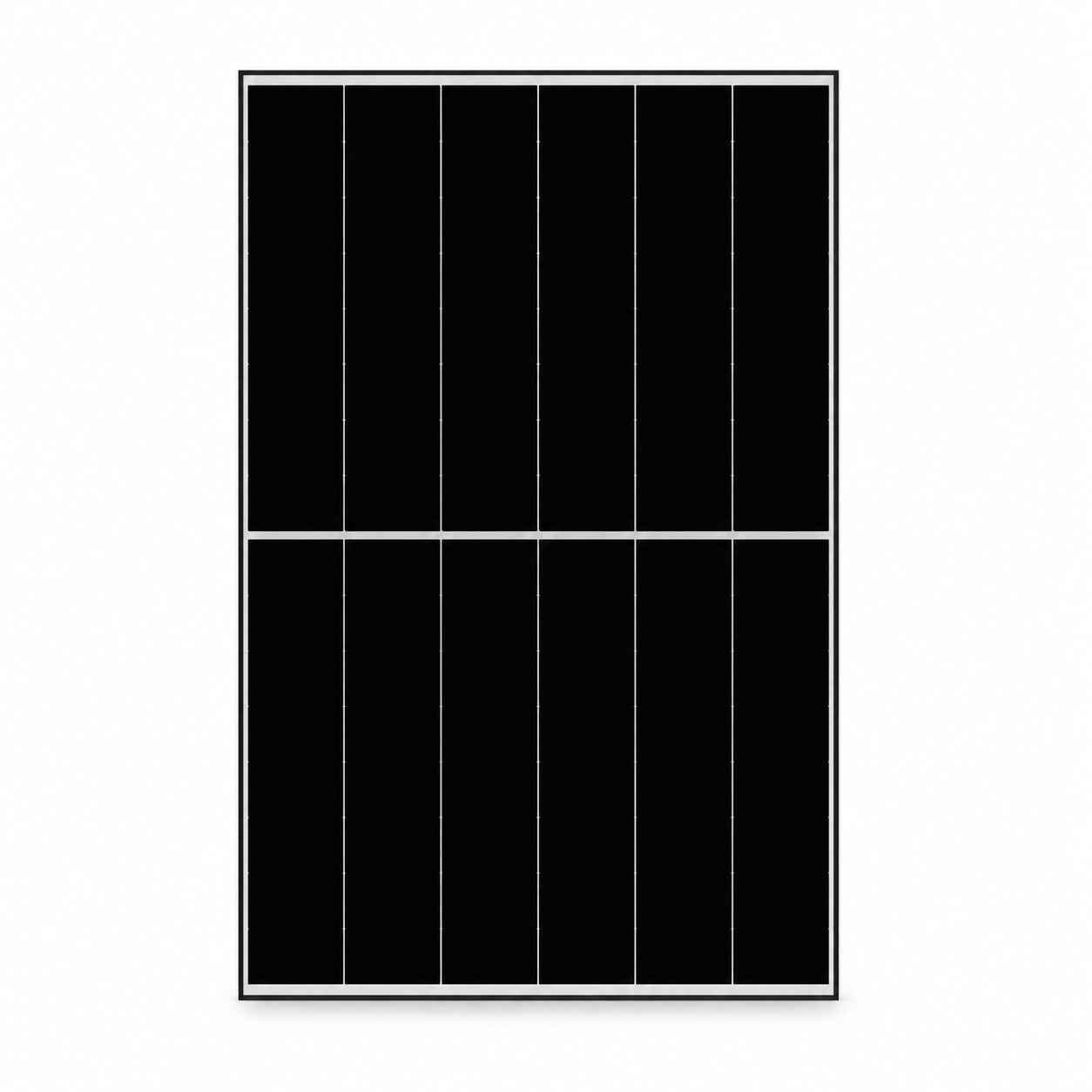

Module – AIKO – A485-GRH48Dw
SKU: F100J030-1
EAN: 2010000043318
| Manufacturer | |
|---|---|
| Model | |
| Power | |
| Frame color | |
| Efficiency | |
| Tier 1 | |
| Product warranty | |
| Linear power warranty | |
| Module type | |
| PV cell type | |
| Double glass | |
| Number of busbars | |
| Fire resistance class | |
| Frame thickness | |
| Height | |
| Width | |
| Maximum static load (Pa) | |
| Cable length (+) | |
| Cable length (-) | 1200 mm |
| Quantity per pallet | |
| Quantity per container | |
| Weight | 24,2 kg |
| CN | 85414300 |
Price
94,25 €
Incl. VAT
Incl. VAT
Complementary products
Product details
| Manufacturer | |
|---|---|
| Model | |
| Power | |
| Frame color | |
| Efficiency | |
| Tier 1 | |
| Product warranty | |
| Linear power warranty | |
| Module type | |
| PV cell type | |
| Double glass | |
| Number of busbars | |
| Fire resistance class | |
| Frame thickness | |
| Height | |
| Width | |
| Maximum static load (Pa) | |
| Cable length (+) | |
| Cable length (-) | 1200 mm |
| Quantity per pallet | |
| Quantity per container | |
| Weight | 24,2 kg |
| CN | 85414300 |
AIKO NEOSTAR 2P+48w (Series AIKO-A-GRH48Dw)
The series of advanced N-Type ABC photovoltaic modules with power from 485W–500W delivers industry-leading efficiency up to 25.0% and exceptional aesthetic qualities. Thanks to innovative gapless technology and excellent optimization under partial shading conditions, these modules ensure maximum energy yield and reliability in all conditions. It is an ideal choice for investors seeking top performance and durability backed by a long-term warranty.
Key features of AIKO NEOSTAR 2P+48w (Series AIKO-A-GRH48Dw):
- High power and efficiency: Power range from 485W to 500W and impressive module efficiency reaching up to 25.0%.
- Advanced N-Type ABC technology: Innovative mono-facial design with double glass (Dual-Glass) providing resistance to microcracks.
- Shading optimization: Better performance under partial shading and limited impact of high temperatures on efficiency.
- Excellent temperature coefficient: Pmax coefficient of -0.26%/°C ensuring stable energy production on hot days.
- Long-term warranty: 15-year product warranty (extendable to 25 years) and a 30-year linear performance warranty with first-year degradation below 1%.
- Robust construction and safety: Static load resistance (front 5400Pa, rear 2400Pa), protection class II and junction box protection rating IP68.
Who is this a good choice for?
Modules from the AIKO NEOSTAR 2P+48w series are an excellent solution for photovoltaic installations on residential and commercial buildings where maximizing the usable roof area is crucial. They are ideal for customers expecting the highest aesthetics (black anodized frame, no visible connections), uncompromising reliability and long-term investment security confirmed by prestigious certifications.
| Parameter | AIKO-A485-GRH48Dw | AIKO-A490-GRH48Dw | AIKO-A495-GRH48Dw | AIKO-A500-GRH48Dw |
|---|---|---|---|---|
| Electrical parameters (STC) | ||||
| Maximum power (Pmax) (W) | 485 | 490 | 495 | 500 |
| Power tolerance (%) | 0 ~ +3 | 0 ~ +3 | 0 ~ +3 | 0 ~ +3 |
| Open-circuit voltage (Voc) (V) | 35.57 | 35.72 | 35.86 | 36.04 |
| Voltage at maximum power (Vmp) (V) | 30.27 | 30.42 | 30.56 | 30.71 |
| Short-circuit current (Isc) (A) | 16.71 | 16.79 | 16.90 | 16.98 |
| Current at maximum power (Imp) (A) | 16.02 | 16.11 | 16.20 | 16.28 |
| Module efficiency (%) | 24.3 | 24.5 | 24.8 | 25.0 |
| Electrical parameters (NOCT) | ||||
| Maximum power (Pmax) (W) | 366 | 370 | 374 | 378 |
| Open-circuit voltage (Voc) (V) | 33.44 | 33.58 | 33.71 | 33.90 |
| Voltage at maximum power (Vmp) (V) | 28.42 | 28.56 | 28.69 | 28.84 |
| Short-circuit current (Isc) (A) | 13.42 | 13.49 | 13.58 | 13.65 |
| Current at maximum power (Imp) (A) | 13.13 | 13.20 | 13.28 | 13.36 |
| Mechanical specification | ||||
| Cell type | N-Type ABC | N-Type ABC | N-Type ABC | N-Type ABC |
| Front cover (mm) | Semi-tempered glass with coating (2.0 mm) | Semi-tempered glass with coating (2.0 mm) | Semi-tempered glass with coating (2.0 mm) | Semi-tempered glass with coating (2.0 mm) |
| Back cover (mm) | Semi-tempered glass (2.0 mm) | Semi-tempered glass (2.0 mm) | Semi-tempered glass (2.0 mm) | Semi-tempered glass (2.0 mm) |
| Frame | Black anodized aluminium | Black anodized aluminium | Black anodized aluminium | Black anodized aluminium |
| Cabling (mm) | 4 mm² (IEC), 12 AWG (UL), ±1200 mm | 4 mm² (IEC), 12 AWG (UL), ±1200 mm | 4 mm² (IEC), 12 AWG (UL), ±1200 mm | 4 mm² (IEC), 12 AWG (UL), ±1200 mm |
| Number of cells | 96 (6 × 16) | 96 (6 × 16) | 96 (6 × 16) | 96 (6 × 16) |
| Junction box | IP68, 3 bypass diodes | IP68, 3 bypass diodes | IP68, 3 bypass diodes | IP68, 3 bypass diodes |
| Connector | Original MC4-EVO2A | Original MC4-EVO2A | Original MC4-EVO2A | Original MC4-EVO2A |
| Weight (kg) | 24.2 ±3% | 24.2 ±3% | 24.2 ±3% | 24.2 ±3% |
| Dimensions (W × H × D) (mm) | 1762 × 1134 × 30 | 1762 × 1134 × 30 | 1762 × 1134 × 30 | 1762 × 1134 × 30 |
| Temperature coefficients | ||||
| Temperature coefficient Isc (%/°C) | +0.05 | +0.05 | +0.05 | +0.05 |
| Temperature coefficient Voc (%/°C) | -0.22 | -0.22 | -0.22 | -0.22 |
| Temperature coefficient Pmax (%/°C) | -0.26 | -0.26 | -0.26 | -0.26 |
| Nominal cell operating temperature (NOCT) (°C) | 45 (±2) | 45 (±2) | 45 (±2) | 45 (±2) |
| Operating parameters | ||||
| Operating temperature (°C) | -40 to +70 | -40 to +70 | -40 to +70 | -40 to +70 |
| Maximum fuse current (A) | 30 | 30 | 30 | 30 |
| Protection class | Class II | Class II | Class II | Class II |
| Maximum system voltage (V) | DC 1500 | DC 1500 | DC 1500 | DC 1500 |
| Maximum static load (Pa) | Front 5400, Rear 2400 | Front 5400, Rear 2400 | Front 5400, Rear 2400 | Front 5400, Rear 2400 |
| Hail resistance | Hail with diameter 25 mm at 23 m/s | Hail with diameter 25 mm at 23 m/s | Hail with diameter 25 mm at 23 m/s | Hail with diameter 25 mm at 23 m/s |
| Fire reaction class | IEC Class A | IEC Class A | IEC Class A | IEC Class A |
