| Manufacturer | |
|---|---|
| Model | |
| Power | |
| Fullblack | |
| Frame color | |
| Efficiency | |
| Tier 1 | |
| Product warranty | |
| Linear power warranty | |
| Module type | |
| PV cell type | |
| Double glass | |
| Number of BusBar | |
| Fire resistance class | |
| Frame thickness | |
| Height | |
| Width | |
| Maximum static load (Pa) | |
| Cable length (+) | |
| Cable length (-) | 1200 mm |
| Quantity per pallet | |
| Quantity per container | |
| Weight | 27,2 kg |
| CN | 85414300 |
| Manufacturer | |
|---|---|
| Model | |
| Power | |
| Fullblack | |
| Frame color | |
| Efficiency | |
| Tier 1 | |
| Product warranty | |
| Linear power warranty | |
| Module type | |
| PV cell type | |
| Double glass | |
| Number of BusBar | |
| Fire resistance class | |
| Frame thickness | |
| Height | |
| Width | |
| Maximum static load (Pa) | |
| Cable length (+) | |
| Cable length (-) | 1200 mm |
| Quantity per pallet | |
| Quantity per container | |
| Weight | 27,2 kg |
| CN | 85414300 |

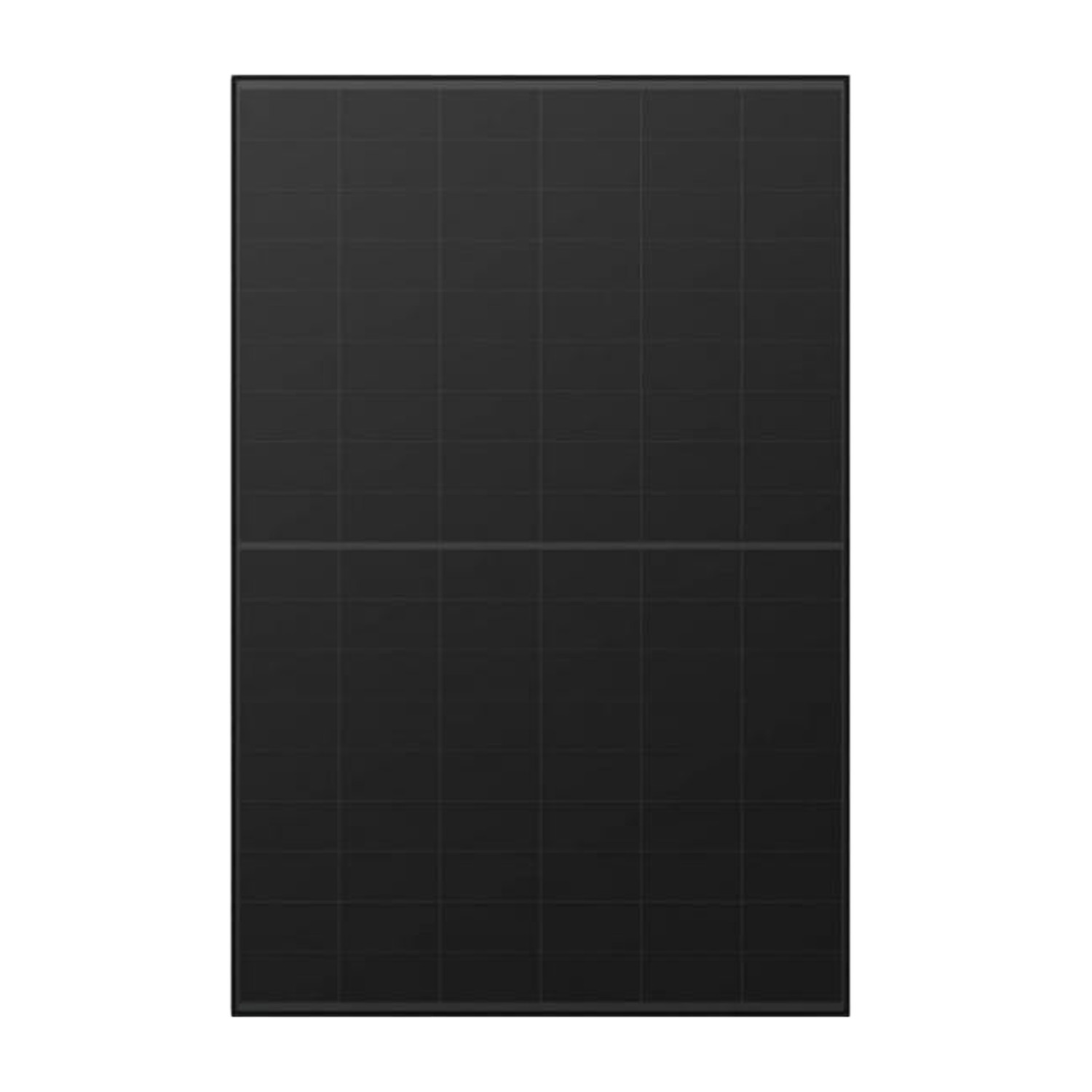

AIKO NEOSTAR 2S+ is a revolutionary series of photovoltaic modules that redefines performance and aesthetics. Using breakthrough, award-winning N-Type All-Back-Contact (ABC) cell technology, these modules remove visible front electrodes, delivering a uniformly black, seamless appearance. The Dual-Glass construction combined with industry-leading warranties and built-in shade-optimization makes them a no-compromise premium choice.
This is an ideal solution for the most demanding homeowners and commercial investors seeking an absolutely premium product. Homeowners will value the flawless aesthetics that complement modern architecture and the higher energy production thanks to shade optimization. For commercial projects, the high power and efficiency mean lower balance-of-system (BOS) costs and maximized return on investment, backed by some of the best warranties on the market.
| Parameter | AIKO-A500-MAH60Db | AIKO-A505-MAH60Db | AIKO-A510-MAH60Db | AIKO-A515-MAH60Db | AIKO-A520-MAH60Db |
|---|---|---|---|---|---|
| Electrical characteristics | |||||
| Maximum power (Pmax) (STC) (W) | 500 | 505 | 510 | 515 | 520 |
| Maximum power (Pmax) (NOCT) (W) | 379 | 383 | 386 | 390 | 394 |
| Open-circuit voltage (Voc) (STC) (V) | 45.02 | 45.12 | 45.22 | 45.32 | 45.42 |
| Open-circuit voltage (Voc) (NOCT) (V) | 42.71 | 42.80 | 42.90 | 42.99 | 43.09 |
| Maximum power point voltage (Vmp) (STC) (V) | 37.90 | 38.00 | 38.10 | 38.20 | 38.30 |
| Maximum power point voltage (Vmp) (NOCT) (V) | 35.96 | 36.05 | 36.15 | 36.24 | 36.34 |
| Short-circuit current (Isc) (STC) (A) | 14.05 | 14.11 | 14.17 | 14.23 | 14.29 |
| Short-circuit current (Isc) (NOCT) (A) | 11.35 | 11.40 | 11.45 | 11.49 | 11.54 |
| Maximum power point current (Imp) (STC) (A) | 13.21 | 13.30 | 13.39 | 13.49 | 13.58 |
| Maximum power point current (Imp) (NOCT) (A) | 10.55 | 10.63 | 10.70 | 10.78 | 10.86 |
| Module efficiency (%) | 22.6% | 22.8% | 23.0% | 23.2% | 23.5% |
| Product specification | |||||
| Cell type | N-Type ABC | N-Type ABC | N-Type ABC | N-Type ABC | N-Type ABC |
| Glass | Double glass, 2.0 + 2.0 mm coated semi-tempered | Double glass, 2.0 + 2.0 mm coated semi-tempered | Double glass, 2.0 + 2.0 mm coated semi-tempered | Double glass, 2.0 + 2.0 mm coated semi-tempered | Double glass, 2.0 + 2.0 mm coated semi-tempered |
| Frame | Black anodized aluminum | Black anodized aluminum | Black anodized aluminum | Black anodized aluminum | Black anodized aluminum |
| Cable | 4mm² (IEC) 12 AWG (UL) ±1200 mm | 4mm² (IEC) 12 AWG (UL) ±1200 mm | 4mm² (IEC) 12 AWG (UL) ±1200 mm | 4mm² (IEC) 12 AWG (UL) ±1200 mm | 4mm² (IEC) 12 AWG (UL) ±1200 mm |
| Number of cells | 120 (6*20) | 120 (6*20) | 120 (6*20) | 120 (6*20) | 120 (6*20) |
| Junction box | IP68, 3 bypass diodes | IP68, 3 bypass diodes | IP68, 3 bypass diodes | IP68, 3 bypass diodes | IP68, 3 bypass diodes |
| Connector | MC4-Evo2 | MC4-Evo2 | MC4-Evo2 | MC4-Evo2 | MC4-Evo2 |
| Weight (kg) | 27.2 kg ±3% | 27.2 kg ±3% | 27.2 kg ±3% | 27.2 kg ±3% | 27.2 kg ±3% |
| Dimensions (mm) | 1954 x 1134 x 30 | 1954 x 1134 x 30 | 1954 x 1134 x 30 | 1954 x 1134 x 30 | 1954 x 1134 x 30 |
| Packing details | 37 pcs per pallet / 185 pcs per 20′ GP / 888 pcs per 40′ HC | 37 pcs per pallet / 185 pcs per 20′ GP / 888 pcs per 40′ HC | 37 pcs per pallet / 185 pcs per 20′ GP / 888 pcs per 40′ HC | 37 pcs per pallet / 185 pcs per 20′ GP / 888 pcs per 40′ HC | 37 pcs per pallet / 185 pcs per 20′ GP / 888 pcs per 40′ HC |
| Temperature coefficient values (STC) | |||||
| Temperature coefficient of Isc (%/°C) | + 0.05 | + 0.05 | + 0.05 | + 0.05 | + 0.05 |
| Temperature coefficient of Voc (%/°C) | – 0.22 | – 0.22 | – 0.22 | – 0.22 | – 0.22 |
| Temperature coefficient of Pmax (%/°C) | – 0.26 | – 0.26 | – 0.26 | – 0.26 | – 0.26 |
| Installation instructions | |||||
| Operating temperature (°C) | -40 ~ +85 | -40 ~ +85 | -40 ~ +85 | -40 ~ +85 | -40 ~ +85 |
| Maximum rated series fuse current (A) | 25 | 25 | 25 | 25 | 25 |
| Protection class | Class II | Class II | Class II | Class II | Class II |
| Voc and Isc tolerance (%) | ±3% | ±3% | ±3% | ±3% | ±3% |
| Maximum system voltage (V) | DC 1500 V | DC 1500 V | DC 1500 V | DC 1500 V | DC 1500 V |
| Maximum static load (Pa) | Front 5400 Pa Rear 2400 Pa | Front 5400 Pa Rear 2400 Pa | Front 5400 Pa Rear 2400 Pa | Front 5400 Pa Rear 2400 Pa | Front 5400 Pa Rear 2400 Pa |
| Hail test | Hail with 25 mm diameter at 23 m/s | Hail with 25 mm diameter at 23 m/s | Hail with 25 mm diameter at 23 m/s | Hail with 25 mm diameter at 23 m/s | Hail with 25 mm diameter at 23 m/s |
| Fire rating | IEC Class A | IEC Class A | IEC Class A | IEC Class A | IEC Class A |
