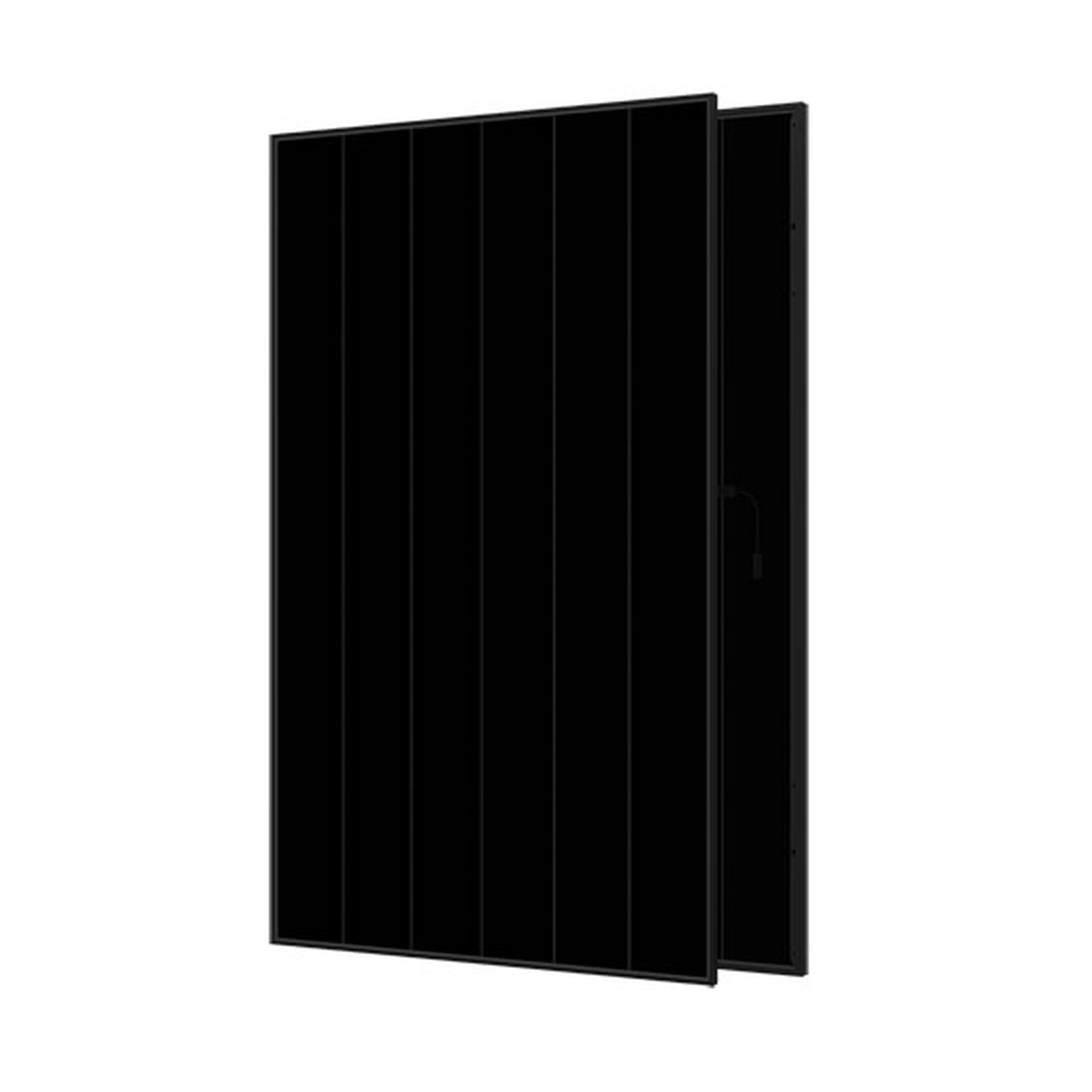

Module – AIKO – A540-MCE60Db – bifacial – full black
SKU: F100J51
EAN: 2010000043165
| Manufacturer | |
|---|---|
| Model | |
| Power | |
| Fullblack | |
| Frame color | |
| Efficiency | |
| Tier 1 | |
| Product warranty | |
| Linear power warranty | |
| Module type | |
| PV cell type | |
| Double glass | |
| Number of busbars | |
| Fire resistance class | |
| Frame thickness | |
| Height | |
| Width | |
| Maximum static load (Pa) | |
| Cable length (+) | |
| Cable length (-) | 1200 mm |
| Quantity per pallet | |
| Quantity per container | |
| Weight | 27,1 kg |
| CN | 85414300 |
Price
123,57 €
Incl. VAT
Incl. VAT
Complementary products
Product details
| Manufacturer | |
|---|---|
| Model | |
| Power | |
| Fullblack | |
| Frame color | |
| Efficiency | |
| Tier 1 | |
| Product warranty | |
| Linear power warranty | |
| Module type | |
| PV cell type | |
| Double glass | |
| Number of busbars | |
| Fire resistance class | |
| Frame thickness | |
| Height | |
| Width | |
| Maximum static load (Pa) | |
| Cable length (+) | |
| Cable length (-) | 1200 mm |
| Quantity per pallet | |
| Quantity per container | |
| Weight | 27,1 kg |
| CN | 85414300 |
AIKO NEOSTAR 3S+60 (AIKO-A-MCE60Db series)
The AIKO NEOSTAR 3S+60 photovoltaic modules are advanced bifacial glass-glass (double-glass) panels based on innovative N-Type ABC cell technology. This series offers an output power range from 515 W to 545 W and an exceptional module efficiency of up to 24.6%. With excellent optimization for partial shading conditions and higher performance, these panels set new standards in the solar industry.
Key features of AIKO NEOSTAR 3S+60:
- High power and efficiency: Power range from 515 W to 545 W and module efficiency reaching up to 24.6% provide maximum energy yield.
- N-Type ABC technology: Advanced cell construction ensures higher performance and excellent resistance to microcracks.
- Glass-glass (double-glass) construction: Two layers of coated semi-tempered glass with thickness 2.0 + 2.0 mm provide exceptional durability and resistance to harsh weather conditions.
- Low degradation: Only up to 1% efficiency loss in the first year of operation and a linear decrease of a maximum of 0.35% per year in years 2–30.
- Long-term warranty: 25-year product warranty and 30-year linear performance warranty.
- Favorable temperature coefficient: Pmax coefficient of -0.26%/°C ensures lower power losses at high operating temperatures.
Who is this a good choice for?
The AIKO NEOSTAR 3S+60 series is an ideal solution for investors seeking the highest quality and maximum efficiency in photovoltaic installations for residential and commercial sectors. Thanks to high resistance to mechanical loads, hail with a diameter of 35 mm, and a high fire resistance class, these panels perform excellently in locations with demanding environmental conditions, ensuring reliability and cost-effectiveness of the investment for decades.
| Parameter | AIKO-A515-MCE60Db | AIKO-A520-MCE60Db | AIKO-A525-MCE60Db | AIKO-A530-MCE60Db | AIKO-A535-MCE60Db | AIKO-A540-MCE60Db | AIKO-A545-MCE60Db |
|---|---|---|---|---|---|---|---|
| Electrical characteristics | |||||||
| STC conditions (AM 1.5, 1000 W/m², 25 °C) | |||||||
| Maximum power Pmax (W) | 515 | 520 | 525 | 530 | 535 | 540 | 545 |
| Open-circuit voltage Voc (V) | 45.10 | 45.20 | 45.30 | 45.40 | 45.50 | 45.60 | 45.70 |
| Maximum power voltage Vmp (V) | 37.90 | 38.00 | 38.10 | 38.20 | 38.30 | 38.40 | 38.50 |
| Short-circuit current Isc (A) | 14.66 | 14.69 | 14.72 | 14.76 | 14.80 | 14.84 | 14.88 |
| Maximum power current Imp (A) | 13.59 | 13.69 | 13.79 | 13.88 | 13.97 | 14.07 | 14.16 |
| Module efficiency (%) | 23.2% | 23.5% | 23.7% | 23.9% | 24.1% | 24.4% | 24.6% |
| Power tolerance (%) | 0 ~ +3% | 0 ~ +3% | 0 ~ +3% | 0 ~ +3% | 0 ~ +3% | 0 ~ +3% | 0 ~ +3% |
| NOCT conditions (AM 1.5, 800 W/m², 20 °C, 1 m/s) | |||||||
| Maximum power Pmax (W) | 390 | 394 | 398 | 402 | 405 | 409 | 413 |
| Open-circuit voltage Voc (V) | 42.79 | 42.88 | 42.98 | 43.07 | 43.17 | 43.26 | 43.36 |
| Maximum power voltage Vmp (V) | 35.96 | 36.05 | 36.15 | 36.24 | 36.34 | 36.43 | 36.53 |
| Short-circuit current Isc (A) | 11.85 | 11.87 | 11.89 | 11.93 | 11.96 | 11.99 | 12.02 |
| Maximum power current Imp (A) | 10.87 | 10.94 | 11.02 | 11.10 | 11.17 | 11.25 | 11.32 |
| BNPI conditions | |||||||
| Maximum power Pmax (W) | 545 | 550 | 555 | 560 | 565 | 570 | 575 |
| Open-circuit voltage Voc (V) | 45.10 | 45.20 | 45.30 | 45.40 | 45.50 | 45.60 | 45.70 |
| Maximum power voltage Vmp (V) | 37.90 | 38.00 | 38.10 | 38.20 | 38.30 | 38.40 | 38.50 |
| Short-circuit current Isc (A) | 15.44 | 15.48 | 15.52 | 15.56 | 15.60 | 15.64 | 15.68 |
| Maximum power current Imp (A) | 14.39 | 14.48 | 14.57 | 14.67 | 14.76 | 14.85 | 14.94 |
| Mechanical specifications | |||||||
| Cell type | N-Type ABC | N-Type ABC | N-Type ABC | N-Type ABC | N-Type ABC | N-Type ABC | N-Type ABC |
| Number of cells | 120 (6 × 20) | 120 (6 × 20) | 120 (6 × 20) | 120 (6 × 20) | 120 (6 × 20) | 120 (6 × 20) | 120 (6 × 20) |
| Glass | Double glass, coated semi-tempered glass 2.0 + 2.0 mm | Double glass, coated semi-tempered glass 2.0 + 2.0 mm | Double glass, coated semi-tempered glass 2.0 + 2.0 mm | Double glass, coated semi-tempered glass 2.0 + 2.0 mm | Double glass, coated semi-tempered glass 2.0 + 2.0 mm | Double glass, coated semi-tempered glass 2.0 + 2.0 mm | Double glass, coated semi-tempered glass 2.0 + 2.0 mm |
| Frame | Black anodized aluminum | Black anodized aluminum | Black anodized aluminum | Black anodized aluminum | Black anodized aluminum | Black anodized aluminum | Black anodized aluminum |
| Junction box | IP68, 3 bypass diodes | IP68, 3 bypass diodes | IP68, 3 bypass diodes | IP68, 3 bypass diodes | IP68, 3 bypass diodes | IP68, 3 bypass diodes | IP68, 3 bypass diodes |
| Cable | 4 mm² (IEC) / 12 AWG (UL) ±1200 mm | 4 mm² (IEC) / 12 AWG (UL) ±1200 mm | 4 mm² (IEC) / 12 AWG (UL) ±1200 mm | 4 mm² (IEC) / 12 AWG (UL) ±1200 mm | 4 mm² (IEC) / 12 AWG (UL) ±1200 mm | 4 mm² (IEC) / 12 AWG (UL) ±1200 mm | 4 mm² (IEC) / 12 AWG (UL) ±1200 mm |
| Connector | MC4-EVO2A | MC4-EVO2A | MC4-EVO2A | MC4-EVO2A | MC4-EVO2A | MC4-EVO2A | MC4-EVO2A |
| Dimensions (L × W × H) (mm) | 1954 × 1134 × 30 | 1954 × 1134 × 30 | 1954 × 1134 × 30 | 1954 × 1134 × 30 | 1954 × 1134 × 30 | 1954 × 1134 × 30 | 1954 × 1134 × 30 |
| Weight (kg) | 27.1 ± 3% | 27.1 ± 3% | 27.1 ± 3% | 27.1 ± 3% | 27.1 ± 3% | 27.1 ± 3% | 27.1 ± 3% |
| Temperature coefficients | |||||||
| Temperature coefficient Isc (%/°C) | +0.05 | +0.05 | +0.05 | +0.05 | +0.05 | +0.05 | +0.05 |
| Temperature coefficient Voc (%/°C) | -0.22 | -0.22 | -0.22 | -0.22 | -0.22 | -0.22 | -0.22 |
| Temperature coefficient Pmax (%/°C) | -0.26 | -0.26 | -0.26 | -0.26 | -0.26 | -0.26 | -0.26 |
| Operating and mounting parameters | |||||||
| Operating temperature (°C) | -40 to +70 | -40 to +70 | -40 to +70 | -40 to +70 | -40 to +70 | -40 to +70 | -40 to +70 |
| Maximum system voltage (V) | DC 1500 | DC 1500 | DC 1500 | DC 1500 | DC 1500 | DC 1500 | DC 1500 |
| Maximum fuse current (A) | 30 | 30 | 30 | 30 | 30 | 30 | 30 |
| Protection class | Class II | Class II | Class II | Class II | Class II | Class II | Class II |
| Maximum static load | Front 5400 Pa / Back 2400 Pa | Front 5400 Pa / Back 2400 Pa | Front 5400 Pa / Back 2400 Pa | Front 5400 Pa / Back 2400 Pa | Front 5400 Pa / Back 2400 Pa | Front 5400 Pa / Back 2400 Pa | Front 5400 Pa / Back 2400 Pa |
| Hail resistance | Hail Ø 35 mm at a speed of 27.2 m/s | Hail Ø 35 mm at a speed of 27.2 m/s | Hail Ø 35 mm at a speed of 27.2 m/s | Hail Ø 35 mm at a speed of 27.2 m/s | Hail Ø 35 mm at a speed of 27.2 m/s | Hail Ø 35 mm at a speed of 27.2 m/s | Hail Ø 35 mm at a speed of 27.2 m/s |
| Fire resistance class | Class according to IEC: A | Class according to IEC: A | Class according to IEC: A | Class according to IEC: A | Class according to IEC: A | Class according to IEC: A | Class according to IEC: A |
| Product warranty (years) | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Performance warranty (years) | 30 | 30 | 30 | 30 | 30 | 30 | 30 |
