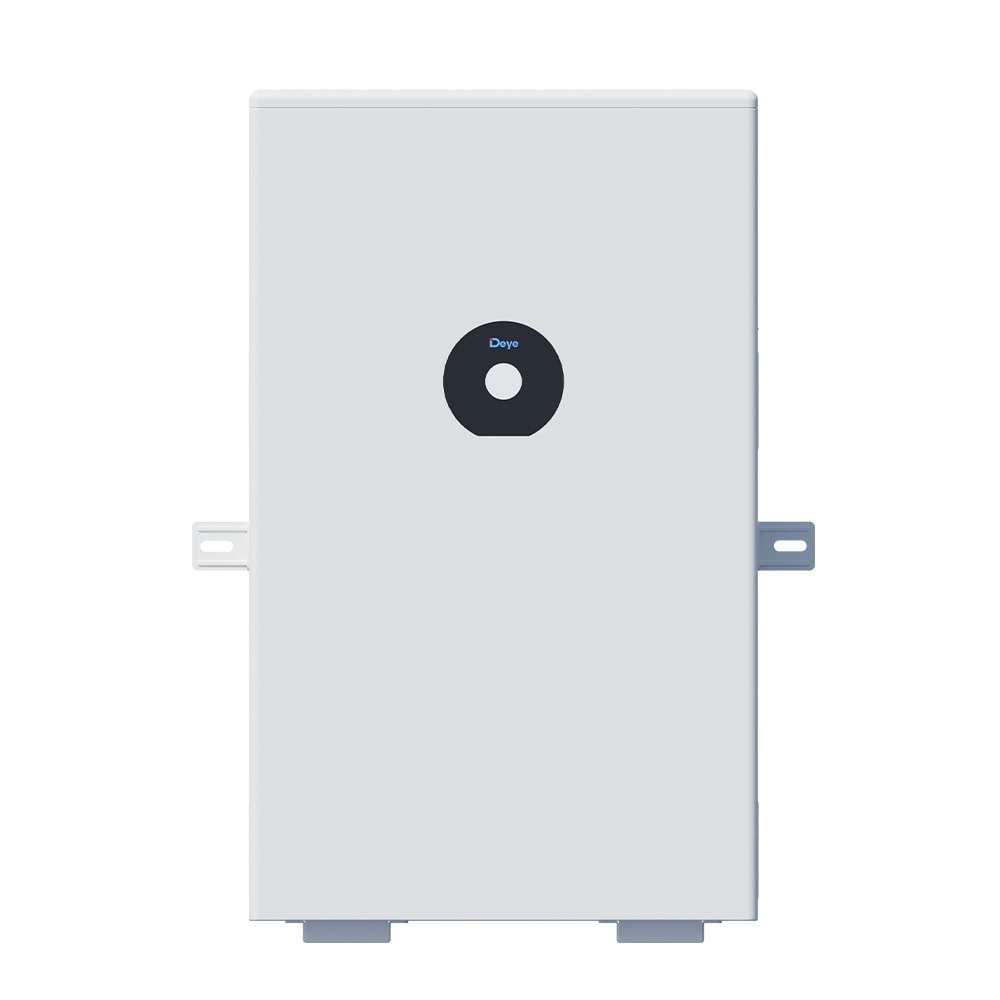

Battery module – DEYE – SE-F12 – MAX – 11,8 kWh – LV
SKU: F11DD
EAN: 2010000043240
| Manufacturer | |
|---|---|
| Capacity | |
| Number of charging cycles | |
| Battery cell type | |
| Module voltage | |
| Charging current | |
| Discharge current | |
| Required number of modules | |
| Depth of Discharge | |
| CAN 2.0 | |
| RS485 | |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| Weight | 109 kg |
| CN | 85076000 |
Price
1 770,97 €
Incl. VAT
Incl. VAT
Product details
| Manufacturer | |
|---|---|
| Capacity | |
| Number of charging cycles | |
| Battery cell type | |
| Module voltage | |
| Charging current | |
| Discharge current | |
| Required number of modules | |
| Depth of Discharge | |
| CAN 2.0 | |
| RS485 | |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| Weight | 109 kg |
| CN | 85076000 |
Deye SE-F5 / SE-F12 / SE-F16
The modern Deye SE-F energy storage series (including models SE-F5, SE-F12, SE-F16 and the Plus, Pro and Max versions) is an advanced ESS solution based on the safe lithium iron phosphate (LiFePO4) technology. The system provides a nominal voltage of 51,2 V and offers nominal capacity ranging from 5,12 kWh to 16 kWh depending on the selected variant. With flexible scalability, high efficiency and intelligent management, these packs offer reliable support for residential and commercial photovoltaic installations.
Key features of the Deye SE-F5 / SE-F12 / SE-F16:
- Advanced BMS system: Integrated battery management system with an active fuse and comprehensive operational protection.
- High efficiency and GaN MOSFETs: Provide charging and discharging up to 1,2C (in selected models) with 50% reduction in energy loss and increased resistance to high temperatures.
- Optimized energy density: Integrated pack design reduces line losses and maximizes space efficiency.
- Flexible system expansion: Can be connected in parallel up to 32 units (and up to 64 units when using the optional CAN-Box module).
- Wide operating temperature range: Reliable operation from -20°C to 55°C supported by natural cooling or optional heating systems.
- Versatile mounting options and communication: Supports wall, floor or stacked mounting and offers rich interfaces CAN2.0, RS485 and Bluetooth connectivity with a dedicated app.
Who is this a good choice for?
The Deye SE-F energy storage series is an ideal choice for customers seeking scalable and reliable energy storage systems for residential and commercial applications. With a range of capacities (from 5,12 to 16 kWh), strong environmental resistance (selected models with IP65 protection rating) and the possibility of expansion and integration with intelligent energy management systems, this solution performs well in both new and upgraded photovoltaic installations aiming for full energy independence.
| Parameter | SE-F5 | SE-F5 Plus | SE-F5 Pro | SE-F12 | SE-F12 Max | SE-F16 | SE-F16 Max |
|---|---|---|---|---|---|---|---|
| Main parameters | |||||||
| Battery chemistry | LiFePO4 | LiFePO4 | LiFePO4 | LiFePO4 | LiFePO4 | LiFePO4 | LiFePO4 |
| Nominal capacity (Ah) | 100 | 100 | 100 | 230 | 230 | 314 | 314 |
| Scalability [1] | Max. 32 szt. równolegle | Max. 32 szt. równolegle | Max. 32 szt. równolegle | Max. 32 szt. równolegle | Max. 32 szt. równolegle | Max. 32 szt. równolegle | Max. 32 szt. równolegle |
| Nominal voltage (V) | 51,2 | 51,2 | 51,2 | 51,2 | 51,2 | 51,2 | 51,2 |
| Operating voltage range (V) | 44,8 – 57,6 | 44,8 – 57,6 | 44,8 – 57,6 | 44,8 – 57,6 | 44,8 – 57,6 | 44,8 – 57,6 | 44,8 – 57,6 |
| Nominal energy (kWh) | 5,12 | 5,12 | 5,12 | 11,8 | 11,8 | 16,0 | 16,0 |
| Recommended charging current (A) [2] | 50 | 50 | 50 | 115 | 115 | 157 | 157 |
| Max. continuous charging current (A) [2] | 100 | 100 | 100 | 230 | 230 | 160 | 160 |
| Peak charging current (A) [2] | 120 (10 s) | 120 (10 s) | 150 (120 s) | 280 (10 s) | 280 (10 s) | 280 (10 s) | 280 (10 s) |
| Recommended discharging current (A) [2] | 50 | 50 | 50 | 115 | 115 | 157 | 157 |
| Max. continuous discharging current (A) [2] | 100 | 100 | 100 | 230 | 230 | 160 | 160 |
| Peak discharging current (A) [2] | 120 (10 s) | 120 (10 s) | 150 (120 s) | 280 (10 s) | 280 (10 s) | 280 (10 s) | 280 (10 s) |
| Other parameters | |||||||
| Recommended depth of discharge (% DoD) | 80% DoD | 90% DoD | 90% DoD | 90% DoD | 90% DoD | 90% DoD | 90% DoD |
| Charge / discharge rate | 1C / 1,2C | 1C / 1,2C | 1C / 1C | 1C / 1C | 1C / 1C | 0,5C / 0,7C | 0,5C / 0,7C |
| Dimensions (W × H × D) (mm) | 370 × 548 × 140 | 370 × 548 × 140 | 404 × 547 × 141 | 400 × 583 × 233 | 464 × 767 × 244,5 | 400 × 708 × 233 | 464 × 914 × 244,5 |
| Approx. weight (kg) | 41 | 41 | 44 | 84 | 93 | 109 | 118 |
| LED indicator / Display | LED (SOC, work, protection) and buzzer | LED (SOC, work, protection) and buzzer | LED (SOC, work, protection) and buzzer | LED (SOC, work, protection) and buzzer | LCD (SOC, alarm) | LED (SOC, work, protection) and buzzer | LCD (SOC, alarm), LED (work) |
| Protection class IP | IP21 | IP21 | IP21 | IP21 | IP65 | IP21 | IP65 |
| Operating temperature (°C) | Charging: 0 ~ 55 / Discharging: -20 ~ 55 | Charging: -10 ~ 55 / Discharging: -20 ~ 55 | Charging: 0 ~ 55 / Discharging: -20 ~ 55 | Charging: 0 ~ 55 / Discharging: -20 ~ 55 | Charging: 0 ~ 55 (-20 ~ 55 with optional heating) / Discharging: -20 ~ 55 | Charging: 0 ~ 55 / Discharging: -20 ~ 55 | Charging: 0 ~ 55 (-20 ~ 55 with optional heating) / Discharging: -20 ~ 55 |
| Storage temperature (°C) | 0 ~ 35 | 0 ~ 35 | 0 ~ 35 | 0 ~ 35 | 0 ~ 35 | 0 ~ 35 | 0 ~ 35 |
| Relative humidity (%) | ≤ 95 (non-condensing) | ≤ 95 (non-condensing) | ≤ 95 (non-condensing) | ≤ 95 (non-condensing) | ≤ 95 (non-condensing) | ≤ 95 (non-condensing) | ≤ 95 (non-condensing) |
| Max. installation altitude (m) | ≤ 3000 | ≤ 3000 | ≤ 3000 | ≤ 3000 | ≤ 3000 | ≤ 3000 | ≤ 3000 |
| Cycle life | > 6000 (25°C ± 2°C, 70% EOL) | > 6000 (25°C ± 2°C, 70% EOL) | > 6000 (25°C ± 2°C, 70% EOL) | > 6000 (25°C ± 2°C, 70% EOL) | > 6000 (25°C ± 2°C, 70% EOL) | > 6000 (25°C ± 2°C, 70% EOL) | > 6000 (25°C ± 2°C, 70% EOL) |
| Mounting method | Wall-mounted, floor-mounted, stacked | Wall-mounted, floor-mounted, stacked | Wall-mounted, floor-mounted, stacked | Wall-mounted, floor-mounted, stacked | Wall-mounted, floor-mounted, stacked | Wall-mounted, floor-mounted, stacked | Wall-mounted, floor-mounted, stacked |
| Communication | CAN2.0, RS485, Bluetooth + app | CAN2.0, RS485, Bluetooth + app | CAN2.0, RS485, optional module (Wi-Fi + Bluetooth + app) | CAN2.0, RS485, Bluetooth + app | CAN2.0, RS485, Bluetooth + app | CAN2.0, RS485, Bluetooth + app | CAN2.0, RS485, Bluetooth + app |
| Warranty period (years) [3] | 5 | 10 | 10 | 10 | 10 | 10 | 10 |
| Energy throughput (MWh) [3] | 8 | 16 | 16 | 37 | 37 | 50 | 50 |
| Certification | UN38.3, MSDS, CE, CB | UN38.3, MSDS, CE, CB, VDE2510-50, CEC | UN38.3, MSDS, CE, CB | UN38.3, CE, CB | UN38.3, CE, CB | UN38.3, CE, CB | UN38.3, CE, CB, UL1973, UL9540A, UL9540-DC, FCC |
[1] Max. 64 szt. równolegle przy użyciu CAN-Box.
[2] Charging and discharging current are affected by temperature and state of charge (SOC).
[3] Deye warranty terms apply.
