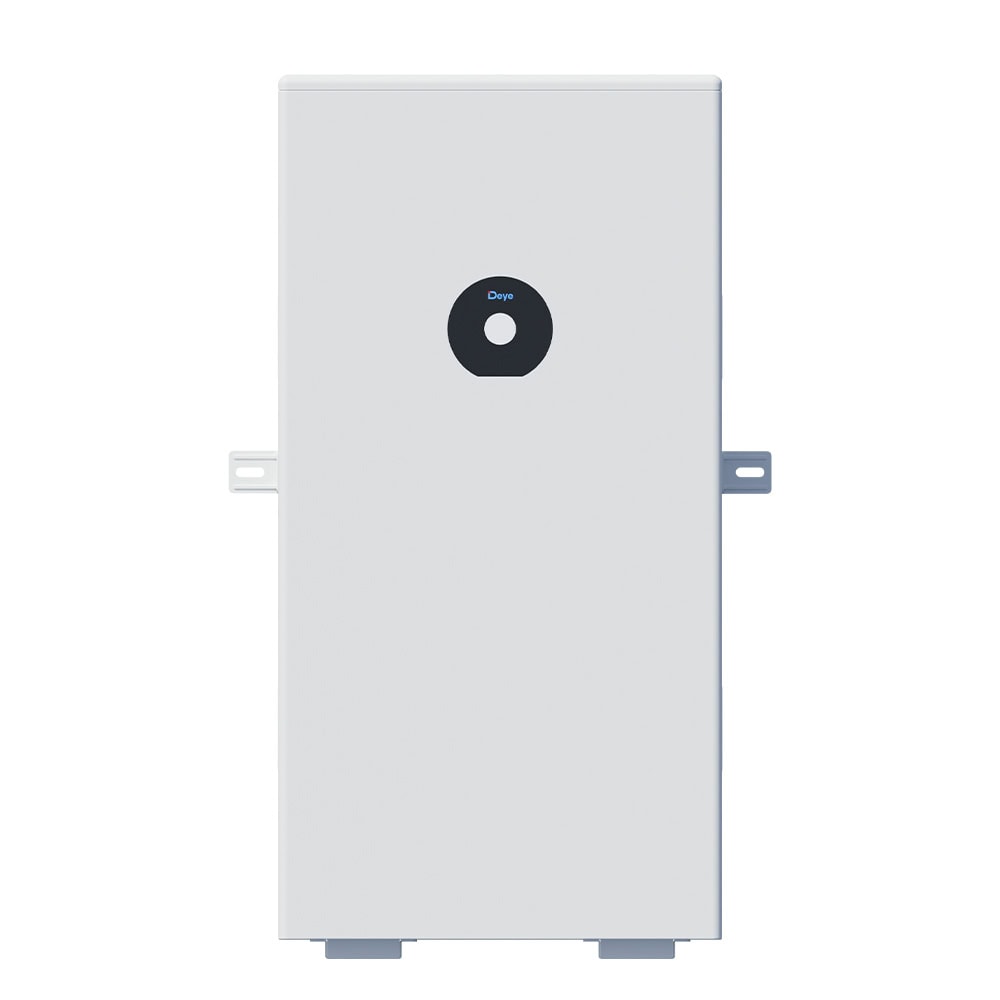

Battery module – DEYE – SE-F16 – MAX – 16 kWh – LV
| Manufacturer | |
|---|---|
| Capacity | |
| Number of charging cycles | |
| Battery cell type | |
| Module voltage | |
| Charging current | |
| Discharge current | |
| Required number of modules | |
| Depth of Discharge | |
| CAN 2.0 | |
| RS485 | |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| Weight | 136 kg |
| CN | 85076000 |
Gross
Product details
| Manufacturer | |
|---|---|
| Capacity | |
| Number of charging cycles | |
| Battery cell type | |
| Module voltage | |
| Charging current | |
| Discharge current | |
| Required number of modules | |
| Depth of Discharge | |
| CAN 2.0 | |
| RS485 | |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| Weight | 136 kg |
| CN | 85076000 |
SE-F
Deye’s SE-F is a series of LiFePO₄ batteries for energy storage systems. The nominal energy of a single battery is 5.12–16 kWh, depending on the model. An advanced battery management system (BMS) with an active fuse provides protection, while parallel connection allows the energy storage system to be expanded.
Key benefits of SE-F
- Capacity selection: nominal energy of 5.12–16 kWh and capacity of 100–314 Ah at a nominal voltage of 51.2 V, depending on the model.
- System expansion: up to 32 batteries connected in parallel, and up to 64 with CAN-Box.
- Protection and monitoring: BMS with an active fuse, automatic networking and local battery monitoring and remote monitoring of the energy storage system.
- Durability: at least 6000 cycles at a temperature of 25°C ±2°C and an end-of-life criterion of 70% capacity; 5–10-year warranty, depending on the model, in accordance with Deye’s warranty terms.
- Operating parameters: natural cooling and discharging at temperatures from -20 to 55°C. Enclosure with an IP21 or IP65 protection rating, depending on the model.
- Mounting methods: installation on a wall, on the floor or stacked.
Who is this a good choice for?
SE-F is an option for household users looking for an energy storage system with selectable capacity and operation monitoring. The series also meets the needs of users planning to expand an existing energy storage system — parallel connection allows the number of batteries to be increased.
| Parameter | SE-F5 | SE-F5 Plus | SE-F5 Pro | SE-F12 | SE-F12 Max | SE-F16 | SE-F16 Max |
|---|---|---|---|---|---|---|---|
| Battery specifications | |||||||
| Battery chemistry | LiFePO₄ | ||||||
| Capacity (Ah) | 100 | 230 | 314 | ||||
| Nominal energy (kWh) | 5,12 | 11,8 | 16 | ||||
| Nominal voltage (V) | 51,2 | ||||||
| Operating voltage (V) | 44.8 V ~ 57.6 V | ||||||
| Maximum number of batteries connected in parallel (pcs.) | 32 | ||||||
| Recommended depth of discharge (%) | 80 | 90 | |||||
| Cycle life (cycles) | ≥6000 (25°C±2°C, 70% EOL) | ||||||
| Energy throughput (MWh) | 8 | 16 | 37 | 50 | |||
| Charging and discharging | |||||||
| Recommended charging current (A) | 50 | 115 | 157 | ||||
| Maximum continuous charging current (A) | 100 | 230 | 160 | ||||
| Peak charging current (A) | 120 A (10 s) | 150 A (120 s) | 280 A (10 s) | ||||
| Recommended discharge current (A) | 50 | 115 | 157 | ||||
| Maximum continuous discharge current (A) | 120 | 100 | 230 | 230 | |||
| Peak discharge current (A) | 150 A (10 s) | 150 A (120 s) | 280 A (10 s) | ||||
| Charge / discharge rate | 1C/1.2C | 1C/1C | 0.5C/0.7C | ||||
| Dimensions and weight | |||||||
| Dimensions without mounting plate (W × H × D) (mm) | 370 × 548 × 140 | 404 × 547 × 141 | 400 × 559 × 233 | 464 × 767 × 244,5 | 400 × 708 × 233 | 464 × 914 × 244,5 | |
| Approximate weight (kg) | 41 | 44 | 84 | 93 | 109 | 118 | |
| Operating conditions | |||||||
| Enclosure protection rating | IP21 | IP65 | IP21 | IP65 | |||
| Charging temperature (°C) | 0~55°C | -10~55°C | 0~55°C | 0~55°C (-20~55°C, 12 max./16 max. with optional heating) | |||
| Discharge temperature (°C) | -20~55°C | ||||||
| Storage temperature (°C) | 0~35°C | ||||||
| Relative humidity (%) | 95% (non-condensing) | ||||||
| Working height (m) | ≤3000 m | ||||||
| Installation and communication | |||||||
| Mounting method | Wall-mounted, floor-mounted, stacked mounting | ||||||
| Status indication | LED (SOC, operation, protection) and buzzer | LCD (SOC, alarm) | LED (SOC, operation, protection) and buzzer | LCD (SOC, alarm), LED (operation) | |||
| Communication | CAN2.0, RS485, Bluetooth + app | CAN2.0, RS485, optional module (WiFi+Bluetooth+APP) | CAN2.0, RS485, Bluetooth + app | ||||
| Certificates | |||||||
| Certification | UN38.3, MSDS, CE, CB | UN38.3, MSDS, CE, CB, VDE2510-50, CEC | UN38.3, CE, CB | UN38.3, CE, CB, UL1973, UL9540A, UL9540-DC, FCC | |||
| Warranty | |||||||
| Product warranty (years) | 5 | 10 | |||||
With CAN-Box, a maximum of 64 batteries are permitted in parallel. Current depends on temperature and SOC. For SE-F12, the parameter table lists dimensions of 400 × 559 × 233 mm, while the comparison table lists 400 × 583 × 233 mm. Empty fields indicate no unambiguous value in the OCR.
