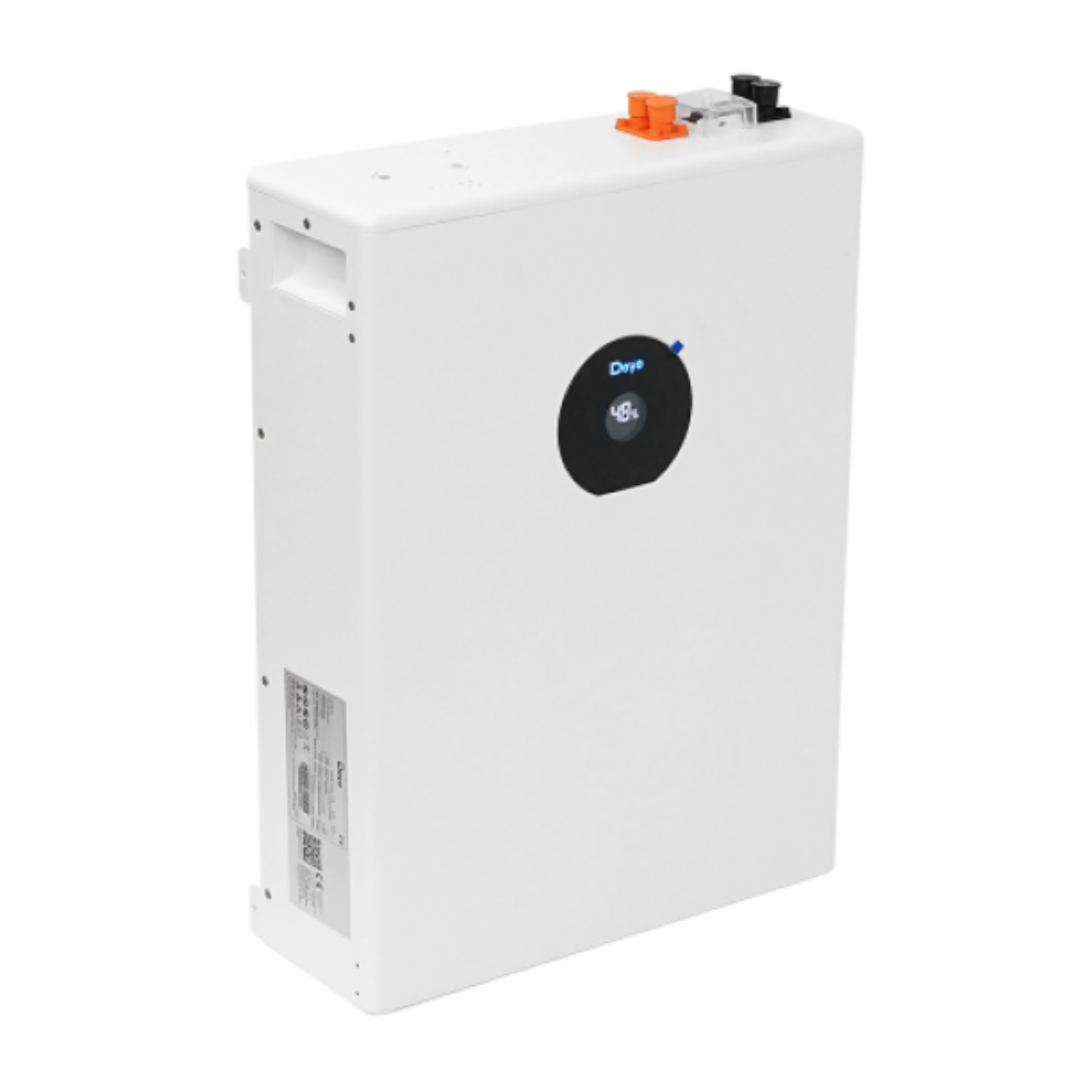

Battery module – DEYE – SE-F5 PRO-C – 5.12 kWh – LV
| Manufacturer | |
|---|---|
| Capacity | |
| Number of charging cycles | |
| Battery cell type | |
| Module voltage | |
| Charging current | |
| Discharge current | |
| Required number of modules | |
| Depth of Discharge | |
| CAN 2.0 | |
| RS485 | |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| Weight | 49 kg |
| CN | 85076000 |
Gross
Product details
| Manufacturer | |
|---|---|
| Capacity | |
| Number of charging cycles | |
| Battery cell type | |
| Module voltage | |
| Charging current | |
| Discharge current | |
| Required number of modules | |
| Depth of Discharge | |
| CAN 2.0 | |
| RS485 | |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| Weight | 49 kg |
| CN | 85076000 |
Deye SE-F5 Pro Battery Module 5.12 kWh
The Deye SE-F5 Pro energy storage system is a residential solution using LiFePO4 cell chemistry, offering optimized energy density thanks to an integrated PACK design. It delivers high charge and discharge rates (up to 1C) and comprehensive protection through an advanced BMS with an active fuse.
Key features of the Deye SE-F5 Pro:
- 5.12 kWh capacity per module, expandable up to 32 units in parallel (up to 64 with CAN-Box).
- Maximum continuous charge/discharge current 100 A, peak 150 A (120 s).
- Wide operating temperature range from -20°C to 55°C (discharge) with passive cooling.
- Reliable longevity with a lifecycle exceeding 6000 cycles to 70% end-of-life.
- Flexible mounting options: wall-mounted, floor-standing, or stacked (cascade).
- Advanced communication options: CAN2.0, RS485, WiFi + Bluetooth + app module.
Who is this a good choice for?
The Deye SE-F5 Pro is an excellent option for homeowners seeking a reliable, scalable energy storage system. Its versatility, high energy performance, and straightforward installation make it well suited for residential use—helping optimize energy consumption, increase energy independence, and enable smart charging/discharging strategies.
| Parameter | SE-F5 PRO-C |
|---|---|
| Main parameters | |
| Battery chemistry | LiFePO4 |
| Capacity | 100 Ah |
| Scalability | Max. 32 units in parallel [1] |
| Nominal voltage | 51.2 V |
| Operating voltage | 44.8 V – 57.6 V |
| Nominal energy | 5.12 kWh |
| Charging current [2] | |
| Max. continuous | 100 A |
| Peak | 150 A (120 s) |
| Discharge current [2] | |
| Max. continuous | 100 A |
| Peak | 150 A (120 s) |
| Other specifications | |
| Recommended depth of discharge (DoD) | 90% DoD |
| Dimensions (W x H x D) (without mounting bracket) | 404 × 547 × 141 mm |
| Approximate weight | 44 kg |
| LED indicator | LED (SOC, operation, protection) and buzzer |
| Enclosure protection rating | IP21 |
| Operating temperature | Charging: 0°C~55°C Discharging: -20°C~55°C |
| Storage temperature | 0°C~35°C |
| Relative humidity | ≤95% (non-condensing) |
| Altitude | ≤3000m |
| Cycle life | >6000 (25°C±2°C, 70% EOL) |
| Installation | Wall mount, floor mount, stackable |
| Communication | CAN2.0, RS485, Optional module (WiFi+Bluetooth+APP) |
| Warranty period [3] | 10 years |
| Energy throughput [3] | 16 MWh |
| Certifications | UN38.3, MSDS, CE, CB, VDE2510–50, FCC, UL1973, UL9540A, CEC |
[1] Up to 64 units can be connected in parallel using a CAN-Box. [2] Operating current is affected by temperature and SOC. The maximum continuous current is supported only in lithium battery mode; for lead-acid mode, please refer to the user manual for the maximum continuous current. [3] Conditions apply, see the Deye Warranty Letter.
