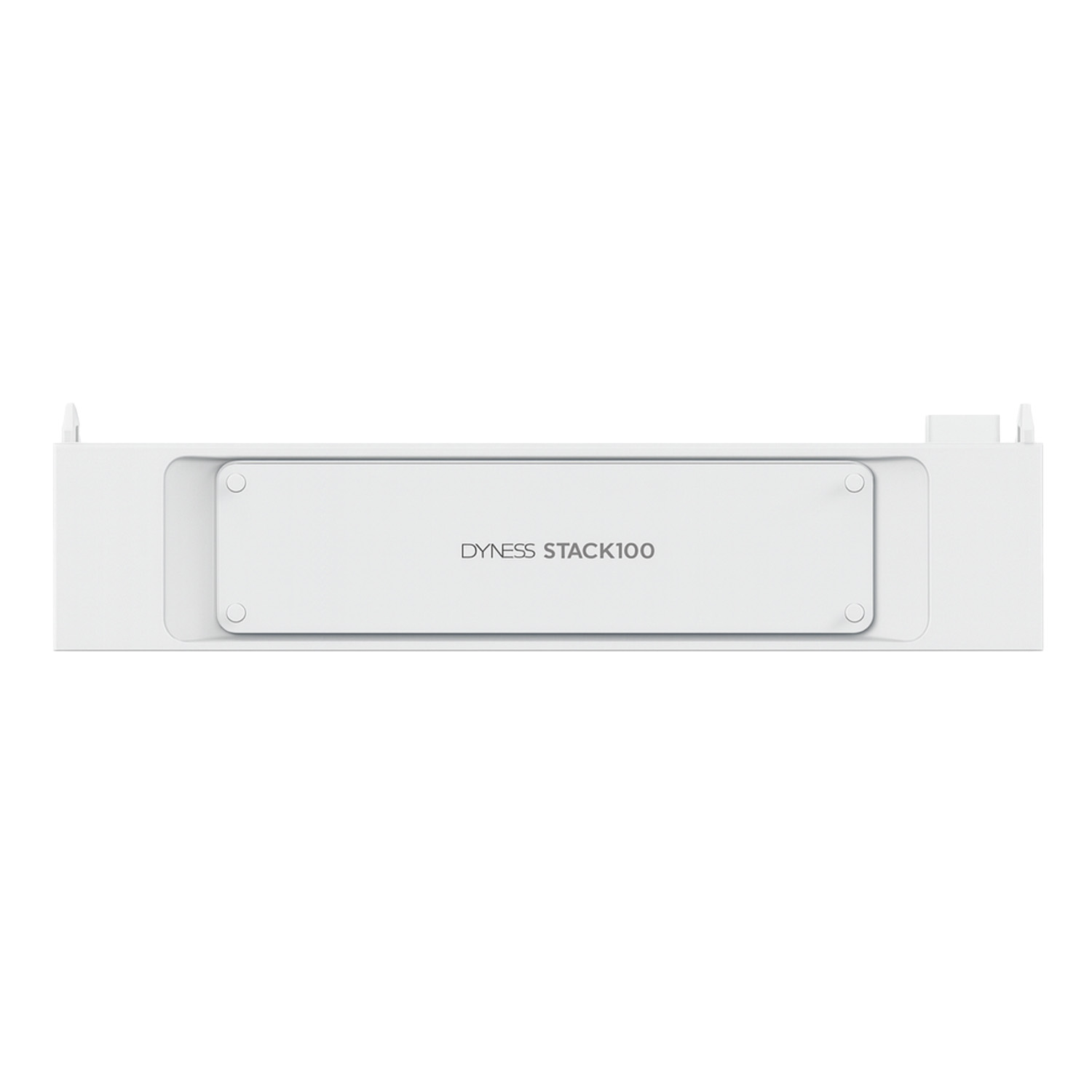

Battery module – DYNESS – STACK100 – 5.12 kWh – High Voltage
| Manufacturer | |
|---|---|
| Capacity | |
| Number of charging cycles | |
| Battery cell type | |
| Module voltage | |
| Charging current | |
| Discharge current | |
| Required number of modules | |
| Depth of Discharge | |
| CAN | |
| RS485 | |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| Weight | 50,82 kg |
| CN | 85076000 |
Gross
Product details
| Manufacturer | |
|---|---|
| Capacity | |
| Number of charging cycles | |
| Battery cell type | |
| Module voltage | |
| Charging current | |
| Discharge current | |
| Required number of modules | |
| Depth of Discharge | |
| CAN | |
| RS485 | |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| Weight | 50,82 kg |
| CN | 85076000 |
DYNESS STACK100
The DYNESS STACK100 energy storage system is a versatile solution for residential, commercial, and industrial applications. With a rack-free, stackable design and plug-and-play configuration, the system offers easy installation and setup. It supports flexible expansion — up to 12 clusters in parallel with a maximum capacity of 921 kWh — and fast charge/discharge capability at 1C.
Key features of the DYNESS STACK100:
- Modular design allowing expansion from 15.36 kWh to 921 kWh (3–15 modules per cluster).
- Rack-free, stackable construction for simple installation and space savings.
- Built-in intelligent fire suppression system that can detect and extinguish a fire within 5 seconds, providing a high level of safety.
- Capable of charging/discharging at 1C — ideal for grid frequency regulation, charging stations, and other applications requiring rapid response.
- Wide operating temperature range from -20°C to 55°C (with an optional automatic self-heating system).
- Long lifecycle of at least 8,000 cycles or 10 years, at up to 95% depth of discharge.
Who is this a good choice for?
The DYNESS STACK100 is an excellent option for homeowners, small and medium-sized businesses, and industrial sites seeking a reliable, scalable energy storage system. Its easy installation, safety features, and flexible configuration make it well suited for off-grid use, renewable energy storage, peak load management, and backup power.
| Parameter | STACK100 |
|---|---|
| Technical specification | |
| Model | STACK100 |
| Battery type | LiFePO4 |
| Module voltage / capacity | 51.2V/5.12 kWh (100Ah) |
| Weight of a single module | 47kg |
| Number of modules in the system | 3~15 |
| System energy range | 15.36-76.8kWh |
| Operating voltage | 134-864V |
| Recommended charge/discharge current | 50A (0.5C) |
| Max. charge/discharge current | 100A (1C) |
| Peak discharge current (2min 25°C) | 125A (1.25C) |
| Depth of discharge | 95% |
| Communication | CAN/RS485 |
| Cycle life | ≥8000 cycles / 10 years |
| Dimensions of a single cluster [S/G/W] (mm) | 590/390/(233+133*n), “n” means number of battery modules |
| Charging temperature range | 0°C~55°C |
| Discharging temperature range | -20°C~55°C |
| Protection rating | IP20 |
| Fire protection system | Aerosol fire extinguisher |
| Installation method | Vertical type (stack) |
| Cooling method | Forced air cooling |
| WIFI module | Built-in Wi-Fi module; APP OTA |
| Battery module name | S51100 |
| Certification and safety standards | CE-EMC/CE-RED/62619/63056/62477/62040/UN38.3 |
| Compatible inverters | Ingeteam/Solis/Good We/Growatt/Solplanet/SAJ/DEYE/Hoymiles/SOLINTEG etc. |
| Additional features | |
| Automatic self-heating | Operating temperature -20°C to 55°C (optional) |
| Battery balance correction | Modules can be mixed freely for up to three years |
| Flexible expansion | Up to 12 clusters in parallel, capacity 15kWh–921KWh |
| Charge/discharge rate | 1C |
| Easy installation | No wiring, free stacking, plug-and-play, install a single cluster in 30 minutes |
Information may change without notice during product upgrades.
