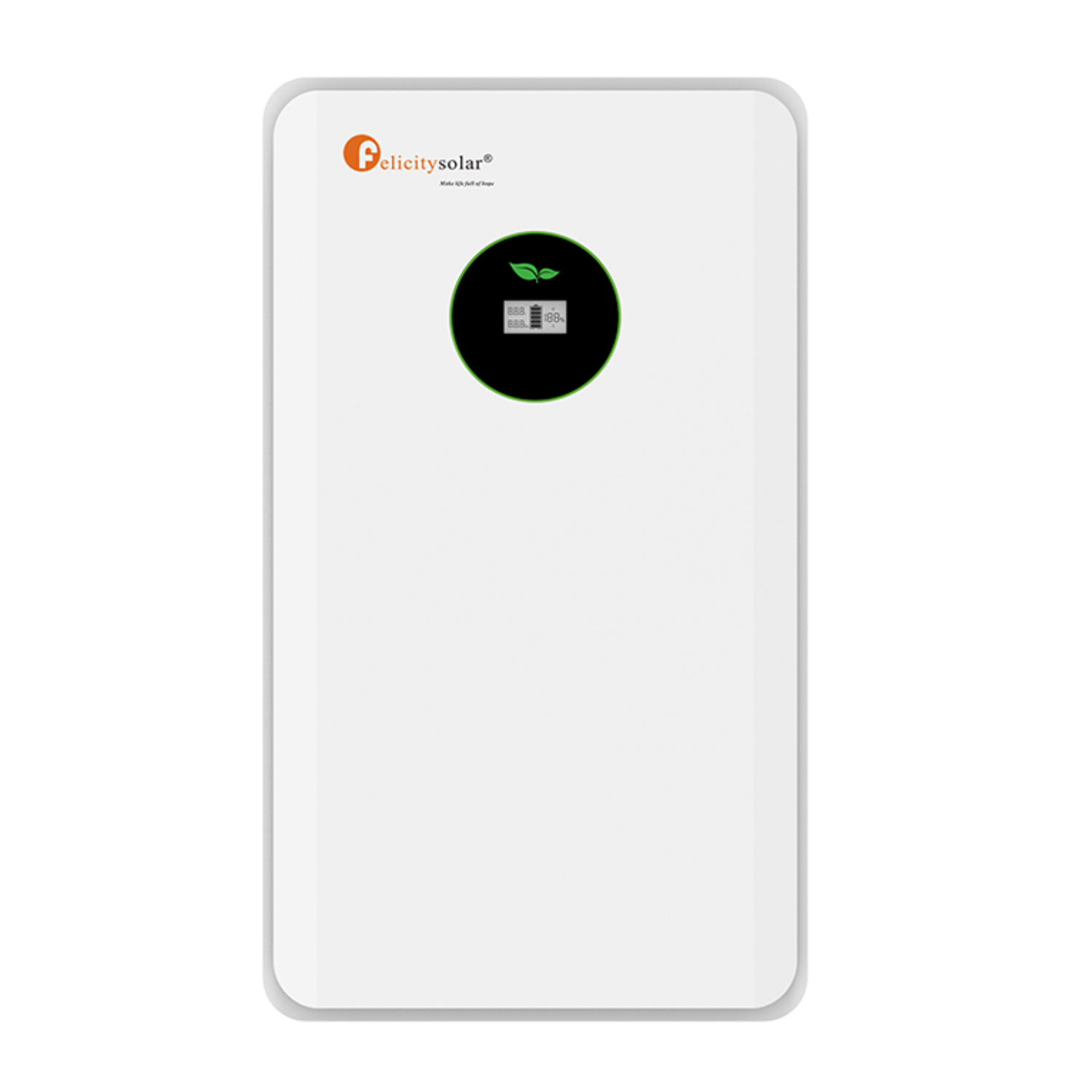

Battery module – FELICITY – FLA48206WG1-EU – 10,5 kWh – LV
SKU: F11G20
EAN: 2010000042113
| Manufacturer | |
|---|---|
| Capacity | |
| Number of charging cycles | |
| Battery cell type | |
| Module voltage | |
| Charging current | |
| Discharge current | |
| Required number of modules | |
| Depth of Discharge | |
| CAN 2.0 | |
| RS485 | |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| Weight | 98 kg |
| CN | 85076000 |
Product details
| Manufacturer | |
|---|---|
| Capacity | |
| Number of charging cycles | |
| Battery cell type | |
| Module voltage | |
| Charging current | |
| Discharge current | |
| Required number of modules | |
| Depth of Discharge | |
| CAN 2.0 | |
| RS485 | |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| Weight | 98 kg |
| CN | 85076000 |
Felicity FLA48206WG1-EU 10.5 kWh Battery Module
The low-voltage lithium iron phosphate (LiFePO4) battery from Felicity Solar’s FLA-EU series is an advanced energy storage solution offering high performance and safety. Its modular design and expandability make it a flexible choice for a variety of applications.
Key features of the Felicity FLA48206WG1-EU Battery Module:
- Remote monitoring and management via the Fsolar app, WiFi and Bluetooth.
- Built-in fire protection module providing a high level of safety.
- Expandable up to 15 units connected in parallel to increase capacity.
- Design with an easily replaceable fuse and intelligent BMS.
- Long cycle life of at least 6,000 cycles at 95% DOD.
- 10-year warranty.
Who is this a good choice for?
The FLA-EU series batteries are ideal for residential and commercial users seeking a reliable, scalable energy storage system. They are well suited for photovoltaic installations, providing stable power and the ability to adjust capacity to growing energy needs, with peace of mind thanks to advanced safety features.
Manual Felicity FLA48206-WG1-EU
Felicity-FLA48206-WG1-EU-Manual.pdf
| Parameter | FLA48206WG1-EU |
|---|---|
| Model | FLA48206WG1-EU |
| Battery type | LiFePO4 |
| Nominal energy (kWh) | 10.5 |
| Nominal voltage (V) | 51.2 |
| Operating voltage (V) | 44.8-57.6 |
| Recommended charge/discharge current (A) | 80 |
| Recommended charge/discharge power (kW) | 4.1 |
| Max. charge/discharge current (15 s) (A) | 160 |
| Max. charge/discharge power (15 s) (W) | 8200 |
| Depth of discharge (DOD) (%) | ≥95 |
| Scalability | Up to 15 units connected in parallel |
| Communication | CAN2.0, RS485, WIFI, Bluetooth |
| Protection rating | IP21 |
| Cycle life | 6000 @25°C |
| Operating temperature range (Charging) (°C) | 0~+55 |
| Operating temperature range (Discharging) (°C) | -20~+55 |
| Display type | LCD+LED |
| Installation | Wall-mounted, floor-mounted |
| Protection | Built-in intelligent BMS, switch, fuse, MX+OF |
| Warranty period (years) | 10 |
| Product weight (kg) | 87 |
| Package weight (kg) | 98 |
| Product dimensions (mm) | 787X450X249 |
| Package dimensions (mm) | 900X568X344 |
[1] Current depends on temperature and state of charge (SOC). [2] Terms apply; see the Felicitysolar warranty statement.
