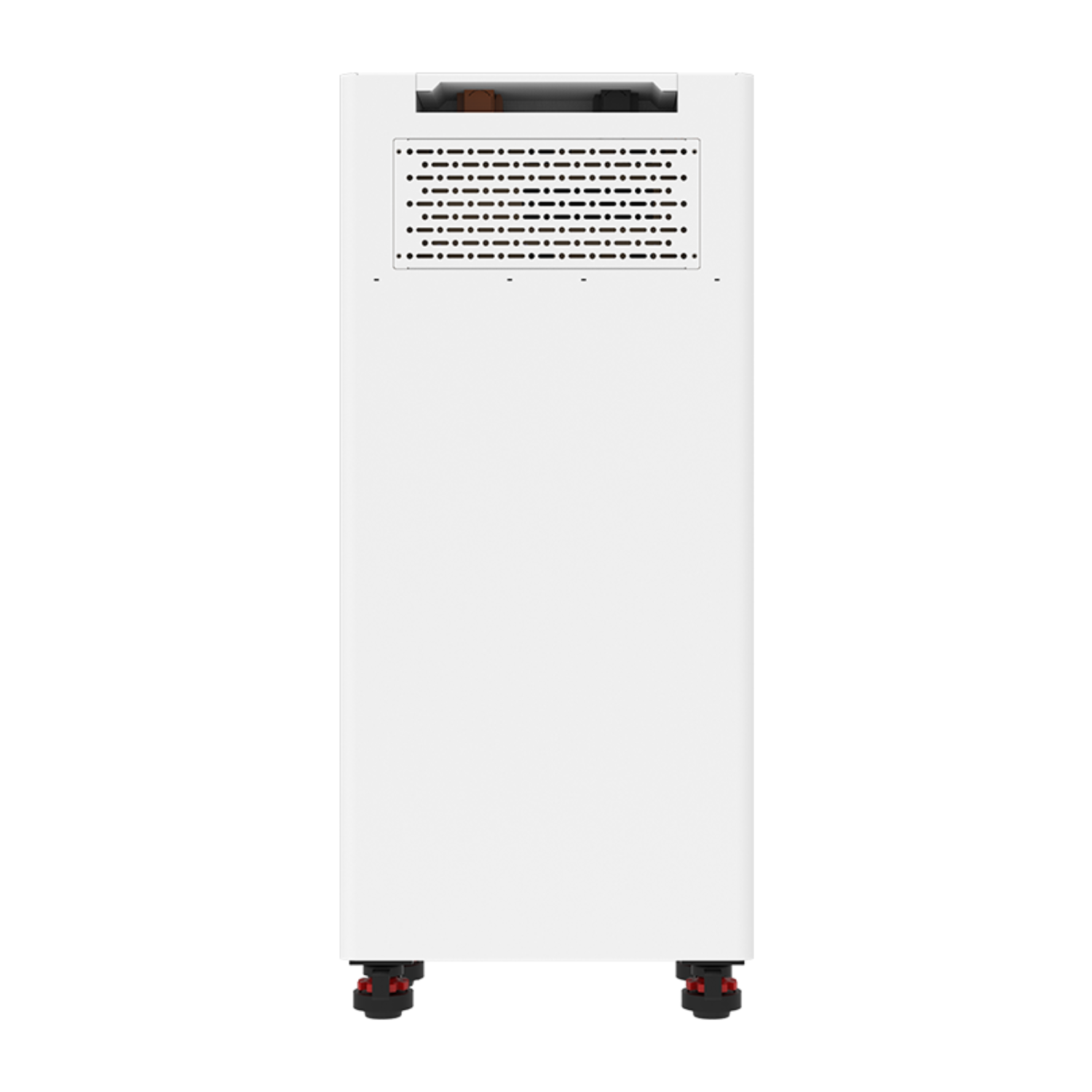

Battery module – FELICITY – FLA48280-EU – 14,3 kWh – LV
| Manufacturer | |
|---|---|
| Capacity | |
| Number of charging cycles | |
| Battery cell type | |
| Module voltage | |
| Charging current | |
| Discharge current | |
| Depth of Discharge | |
| CAN | |
| RS485 | |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| Weight | 160 kg |
| CN | 85076000 |
Gross
Product details
| Manufacturer | |
|---|---|
| Capacity | |
| Number of charging cycles | |
| Battery cell type | |
| Module voltage | |
| Charging current | |
| Discharge current | |
| Depth of Discharge | |
| CAN | |
| RS485 | |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| Weight | 160 kg |
| CN | 85076000 |
Battery Module Felicity FLA48280-EU 14.3 kWh
The Felicitysolar Low-Voltage FLA energy storage system is a modern solution based on LiFePO4 batteries, designed with safety, long lifespan, and flexibility in mind. With an integrated intelligent BMS, multiple protections, and expandability, it provides a reliable power source for a variety of applications.
Key features of the Felicitysolar Low-Voltage FLA Series:
- LiFePO4 battery offering increased safety and longer service life.
- Advanced protection thanks to the integrated intelligent BMS, circuit breaker, and fuse.
- Installation flexibility – can be mounted on a wall or placed on the floor.
- Compatibility with leading inverter brands.
- Scalable up to 15 units in parallel, providing a total capacity of up to 214.5 kWh.
- Built-in WiFi for real-time remote monitoring of battery data.
Who is this a good choice for?
The Felicitysolar Low-Voltage FLA energy storage system is an ideal choice for residential and commercial users seeking a reliable and safe energy storage solution. It is well suited for photovoltaic installations, providing stable power, energy autonomy, and the ability to optimize energy costs. Its flexible configuration and scalability allow the system to be tailored to individual needs, from smaller setups to larger applications.
| Parameter | FLA48280-EU |
|---|---|
| Model | FLA48280-EU |
| Battery type | LiFePO4 |
| Nominal energy | 14.3 kWh |
| Nominal capacity | 280 Ah |
| Nominal voltage | 51.2 V |
| Operating voltage | 44.8-57.6 V |
| Max. continuous charge/discharge current (15 s) [1] | 150 A |
| Peak charge/discharge current (15 s) | 300 A |
| Max. charge/discharge power (15 s) | 7,500 W |
| Scalability | Up to 15 units in parallel (214.5 kWh) |
| Depth of discharge (DOD) | ≥95% |
| Display type | LCD |
| Protection rating | IP21 |
| Operating temperature range (Charging) | 0°C–55°C |
| Operating temperature range (Discharging) | -20°C–55°C |
| Storage temperature range | 0°C to +35°C |
| Humidity | 5%–95% |
| Communication | RS485/CAN |
| Cycle life | ≥6,000 cycles |
| Mounting | Floor-standing |
| Protections | Built-in intelligent BMS, circuit breaker, fuse |
| Warranty period | 10 years |
| Certifications | UN38.3 |
| Product weight | 135 kg |
| Package weight | 160 kg |
| Product dimensions | 480 x 1100 x 300 mm |
| Package dimensions | 1150 x 635 x 498 mm |
[1] The maximum continuous charge/discharge current depends on temperature and state of charge (SOC).
