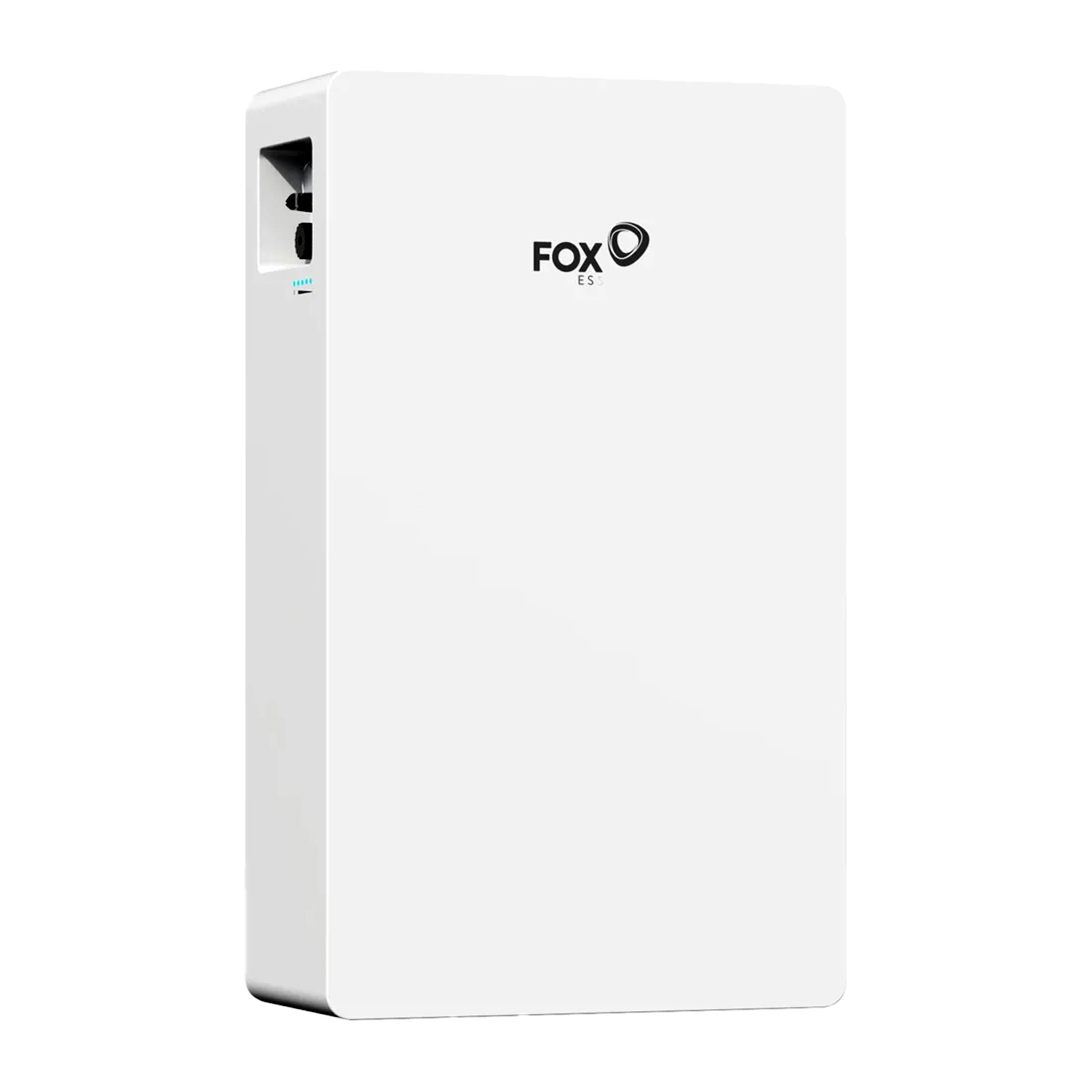

Battery module – FoxESS – EP6 – 5.76 kWh + Battery Management System – High Voltage
SKU: F11CA1
EAN: 2010000036501
| Manufacturer | |
|---|---|
| Capacity | |
| Number of charging cycles | |
| Battery cell type | |
| Module voltage | |
| Charging current | |
| Discharge current | |
| Required number of modules | |
| Depth of Discharge | |
| CAN | |
| Net width | |
| Net depth | |
| Net height | |
| Weight | 59,8 kg |
| CN | 85076000 |
Price
1 049,53 €
Gross
Gross
Datasheet FoxESS EP6
FoxESS-EP6-Datasheet.pdf
IEC Certificate FoxESS EP6
FoxESS-EP6-IEC-Certificate.pdf
EU Certificate FoxESS EP6
FoxESS-EP6-EU-Certificate.pdf
Product details
| Manufacturer | |
|---|---|
| Capacity | |
| Number of charging cycles | |
| Battery cell type | |
| Module voltage | |
| Charging current | |
| Discharge current | |
| Required number of modules | |
| Depth of Discharge | |
| CAN | |
| Net width | |
| Net depth | |
| Net height | |
| Weight | 59,8 kg |
| CN | 85076000 |
FOX ESS EP6 High-Voltage Battery System
The EP6 is a powerful, scalable, and integrated energy storage system designed for maximum flexibility. With the ability to connect modules in parallel, its capacity can be expanded up to 23.04 kWh, making it an ideal solution for a wide range of energy needs.
Key features of the FOX ESS EP6:
- Scalable capacity up to 23.04 kWh through parallel module connection.
- High depth of discharge (DoD) of 90% maximizes usable energy.
- Versatile mounting—can be installed on a wall or on the ground.
- IP65 rating provides dust and water resistance, enabling outdoor installation.
- Easy and fast installation thanks to a well-matched design.
- Safety and reliability certified by IEC 62619, UN38.3, and IP65.
Who is this a good choice for?
The EP6 system is an excellent option for users seeking a flexible and efficient energy storage solution for both residential and commercial applications. Its scalability allows capacity to grow with your needs, and its high efficiency and depth of discharge ensure optimal use of stored energy. Simple installation and the IP65 rating further enhance its versatility.
Datasheet FoxESS EP6
FoxESS-EP6-Datasheet.pdf
IEC Certificate FoxESS EP6
FoxESS-EP6-IEC-Certificate.pdf
EU Certificate FoxESS EP6
FoxESS-EP6-EU-Certificate.pdf
| Parameter | EP6 |
|---|---|
| OPERATING CHARACTERISTICS | |
| Compatible with devices | All series: H1, KH, H3, H3-Pro, P3-Pro, P3-S, US |
| Battery type | LFP (LiFePO4) |
| Nominal capacity (kWh) | 5.76 |
| Nominal voltage (V) | 192 |
| Rated power (kW) | 2.9 |
| Operating voltage (V) | 174~219 |
| Maximum charge/discharge current [A]¹ | 30 |
| Recommended discharge current (A) | 15 |
| Peak discharge current (A) | 65 @ 60s |
| Peak charge current (A) | 36 @ 5s |
| Battery efficiency (entire cycle) (%) | ≥95 |
| Depth of discharge (%) | 90 |
| Cycle life | ≥6000 |
| Communication | CAN |
| Display | LED*5 |
| Scalability | Max. 4 units in parallel |
| OPERATING CONDITIONS | |
| Installation location | Outdoor/Indoor |
| Operating temperature (difference for charging/discharging) (°C) | Charging: 0 ~ 55, Discharging: -10 ~ 55 |
| Storage temperature (°C) | -10~40 |
| Cooling method | Convection |
| Humidity (%) | 5-95 (No condensation) |
| Altitude (m) | Max. 3000 |
| MECHANICAL CHARACTERISTICS | |
| Dimensions (W×H×D) (mm) | 380 x 640 x 185 |
| Weight (kg) | 50 |
| CERTIFICATIONS | |
| Safety | IEC62619 |
| EMC | EN IEC 61000-6-1/2/3/4 |
| Transport | UN38.3 |
| Protection rating | IP65 |
*¹ Current value depends on temperature, voltage and SOC.
