Battery module – GROWATT – AXE-5.0L – 5 kWh – LV
| CN | 85076000 |
|---|
Gross
Product details
| CN | 85076000 |
|---|

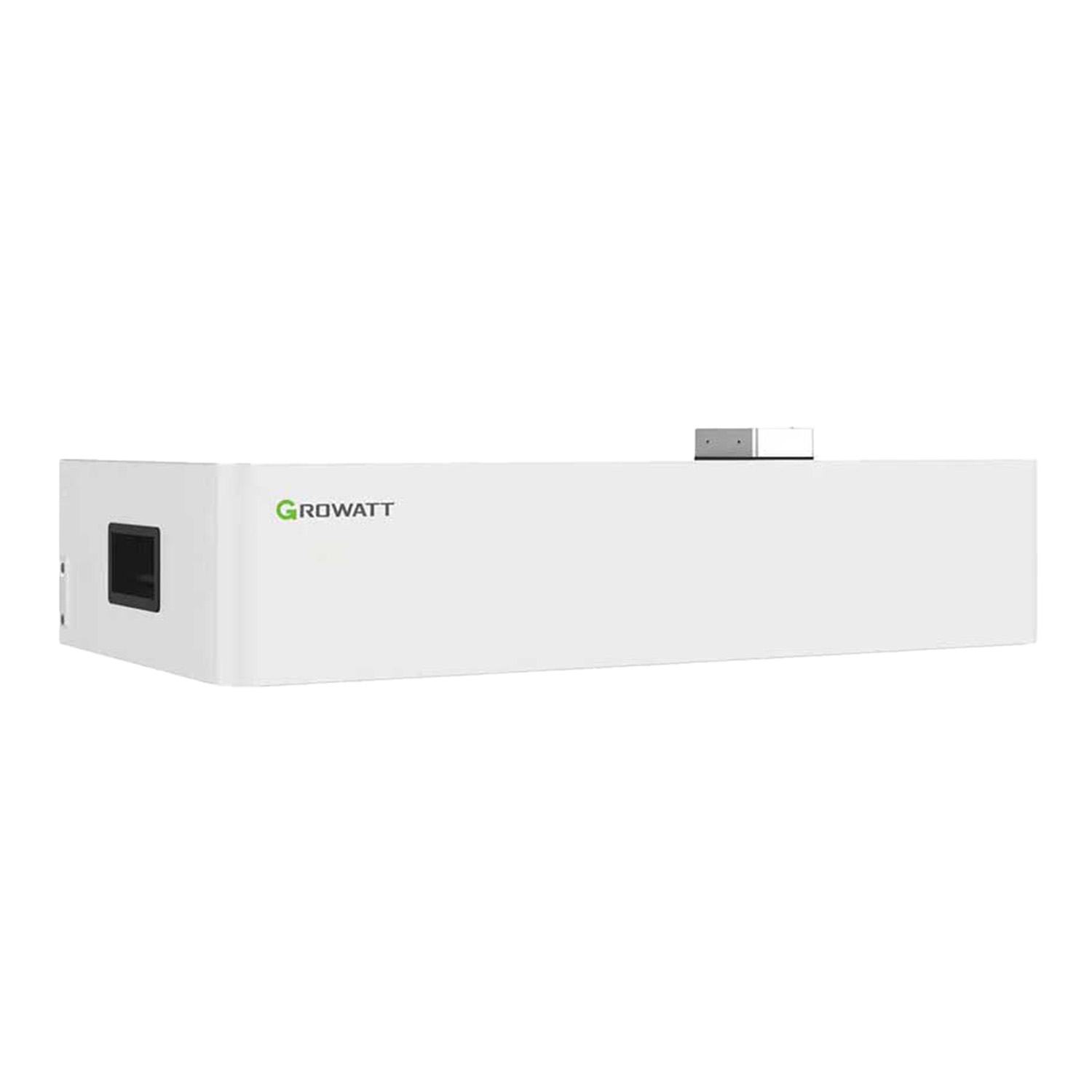

AXE Growatt Battery Module
The AXE battery module from Growatt offers flexible energy storage solutions, ranging from 5 kWh to 400 kWh, using safe cobalt-free lithium iron phosphate (LiFePO4) technology. Its design enables intuitive cascaded installation without the need for cabling between modules, and remote firmware updates ensure ongoing support.
Key features of the AXE Growatt Battery Module:
- Safe cobalt-free lithium iron phosphate (LiFePO4) battery.
- Flexible capacity from 5 kWh to 400 kWh, scalable by connecting up to 8 clusters.
- Intuitive cascaded installation with no wiring between modules.
- Remote firmware update capability.
- The BMS monitors key operating parameters (SOC, voltage, current, cell voltage and temperature, PCBA temperature).
- Certifications: CE, ROHS, UL 1973 + FCC, UN 38.3 + P1965.
Who is this a good choice for?
The AXE Growatt battery module is an ideal solution for users looking for a scalable and safe energy storage system. It suits both residential and commercial applications where capacity needs to be tailored to individual energy requirements. Cobalt-free technology and simple cascaded installation are additional benefits for environmentally conscious and practical users.
| Parameter | AXE 5.0L | AXE 10.0L | AXE 15.0L | AXE 20.0L | AXE 25.0L | AXE 30.0L | AXE 35.0L | AXE 40.0L | AXE 45.0L | AXE 50.0L |
| >Battery module | AXE 5.0L – C1 (5.0kWh, 51.2V, 40kg) | AXE 5.0L – C1 (5.0kWh, 51.2V, 40kg) | AXE 5.0L – C1 (5.0kWh, 51.2V, 40kg) | AXE 5.0L – C1 (5.0kWh, 51.2V, 40kg) | AXE 5.0L – C1 (5.0kWh, 51.2V, 40kg) | AXE 5.0L – C1 (5.0kWh, 51.2V, 40kg) | AXE 5.0L – C1 (5.0kWh, 51.2V, 40kg) | AXE 5.0L – C1 (5.0kWh, 51.2V, 40kg) | AXE 5.0L – C1 (5.0kWh, 51.2V, 40kg) | AXE 5.0L – C1 (5.0kWh, 51.2V, 40kg) |
| Number of modules | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
| Energy capacity (kWh) | 5.0 | 10.0 | 15.0 | 20.0 | 25.0 | 30.0 | 35.0 | 40.0 | 45.0 | 50.0 |
| Rated power*1 (kW) | 3 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
| Nominal charge/discharge current (A) | 60 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 |
| Peak power (kW@3s) | 4.5 | 9 | 11.25 | 11.25 | 11.25 | 11.25 | 11.25 | 11.25 | 11.25 | 11.25 |
| Dimensions (W/D/H) (mm) | 650/350/165 | 650/350/305 | 650/350/445 | 650/350/585 | 650/350/725 | 650/350/865 | 650/350/1005 | 650/350/1145 | 650/350/1285 | 650/350/1425 |
| Weight (kg) | 42 | 82 | 122 | 162 | 202 | 242 | 282 | 322 | 362 | 402 |
| General | ||||||||||
| Battery type | Lithium iron phosphate (LFP), cobalt-free | |||||||||
| Nominal voltage (V) | 51.2 | |||||||||
| Operating voltage range (V) | 48-57.6 | |||||||||
| Protection rating IP | IP20 | |||||||||
| Installation | Floor-mounted installation *3 | |||||||||
| Operating temperature (°C) | 0~50 | |||||||||
| Depth of discharge (DoD) (%) | 92 | |||||||||
| Features | ||||||||||
| Battery system | AXE multi-cluster battery system connected in parallel (max. 8 clusters, max. 400kWh) | |||||||||
| BMS monitoring | Measures system voltage, current, cell voltage, cell temperature, and PCBA temperature | |||||||||
| Communication port | CAN/RS485 | |||||||||
| Warranty (years) | 5/10 | |||||||||
| Certifications | CE, ROHS, UL 1973+FCC, UN 38.3+P1965 | |||||||||
*1 Depends on the inverter’s maximum battery charge/discharge power. *2 System dimensions include the battery base. *3 Floor-mounted installation requires an additional base (W/D/H=654/353/25mm). The nominal charge/discharge current and power will be derated depending on temperature and state of charge (SOC). The AXE series battery is available in a European model and a general model; inverters stocked in European countries are compatible only with the AXE European model.
