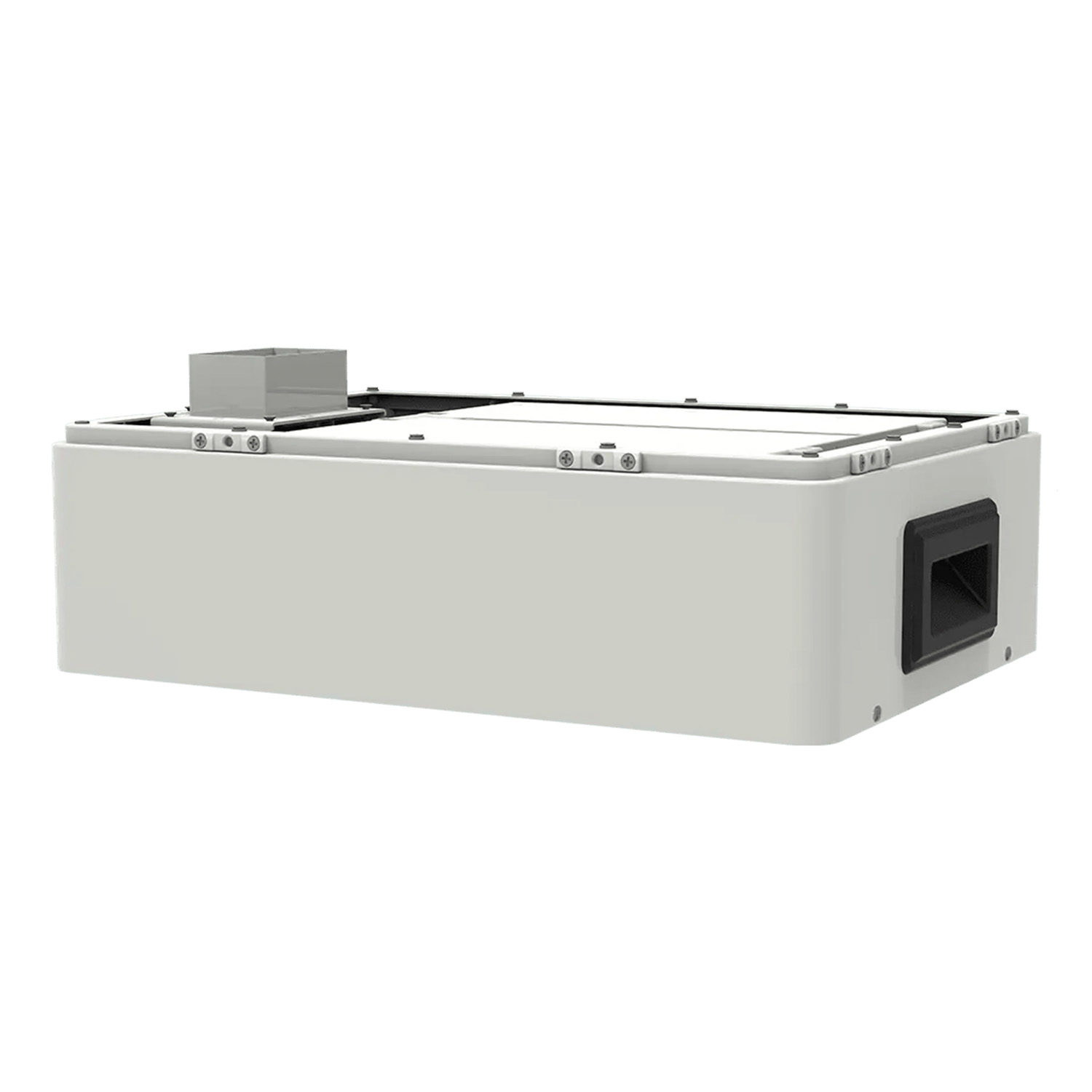

Battery module – SOLAX – T-BAT-SYS-HV-3.6 – TP-HS36 – 3.6 kWh – HV
SKU: F20S320
EAN: 2010000035030
| Manufacturer | |
|---|---|
| Number of charging cycles | |
| Battery cell type | LiFePO4 |
| Module voltage | |
| Charging current | |
| Discharge current | |
| Required number of modules | |
| Depth of Discharge | |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| Weight | 36,3 kg |
| CN | 85076000 |
Price
1 265,73 €
Gross
Gross
Datasheet Solax T-BAT-SYS-HV-3.6
Solax-T-BAT-SYS-HV-3.6-Datasheet.pdf
Manual Solax T-BAT-SYS-HV-3.6
Solax-T-BAT-SYS-HV-3.6-Manual.pdf
Product details
| Manufacturer | |
|---|---|
| Number of charging cycles | |
| Battery cell type | LiFePO4 |
| Module voltage | |
| Charging current | |
| Discharge current | |
| Required number of modules | |
| Depth of Discharge | |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| Weight | 36,3 kg |
| CN | 85076000 |
Solax T-BAT-SYS-HV-S3.6 Battery Module
The Solax T-BAT-SYS-HV-S3.6 is an intelligent energy storage solution offering flexibility and reliability. Thanks to its modular design and wide capacity range, this system can be easily tailored to individual needs, providing long-lasting and efficient power.
Key features of the Solax T-BAT-SYS-HV-S3.6:
- Capacity range from 7.37 kWh to 47.92 kWh, expandable.
- Unique battery heating technology, ensuring operation in low temperatures.
- High performance with a lifecycle of over 6,000 cycles.
- Reliability thanks to LiFePO4 battery cells and high-performance processors, IP65-rated.
- Intelligent management with options for remote fault diagnosis and updates.
- Plug-and-play design with stackable modules, making installation and expansion easier.
Who is this a good choice for?
The Solax T-BAT-SYS-HV-S3.6 battery system is an ideal choice for residential and commercial users seeking a flexible, scalable energy storage solution. It performs especially well in photovoltaic installations, providing stable power even in challenging temperature conditions thanks to its built-in heating system.
Datasheet Solax T-BAT-SYS-HV-3.6
Solax-T-BAT-SYS-HV-3.6-Datasheet.pdf
Manual Solax T-BAT-SYS-HV-3.6
Solax-T-BAT-SYS-HV-3.6-Manual.pdf
| Parameter | T-BAT HS7.2 | T-BAT HS10.8 | T-BAT HS14.4 | T-BAT HS18.0 | T-BAT HS21.6 | T-BAT HS25.2 | T-BAT HS28.8 | T-BAT HS32.4 | T-BAT HS36.0 | T-BAT HS39.6 | T-BAT HS43.2 | T-BAT HS46.8 |
| SYSTEM PARAMETERS | ||||||||||||
| Nominal energy | 7.37 kWh | 11.06 kWh | 14.75 kWh | 18.43 kWh | 22.12 kWh | 25.80 kWh | 29.49 kWh | 33.18 kWh | 36.86 kWh | 40.55 kWh | 44.24 kWh | 47.92 kWh |
| Usable energy (90% DoD) | 6.6 kWh | 10.0 kWh | 13.3 kWh | 16.6 kWh | 19.9 kWh | 23.2 kWh | 26.5 kWh | 29.9 kWh | 33.2 kWh | 36.5 kWh | 39.8 kWh | 43.1 kWh |
| Nominal voltage | 102.4 V | 153.6 V | 204.8 V | 256.0 V | 307.2 V | 358.4 V | 409.6 V | 460.8 V | 512.0 V | 563.2 V | 614.4 V | 665.6 V |
| Operating voltage range | 90-116 V | 135-174 V | 180-232 V | 225-290 V | 270-349 V | 315-406 V | 360-465 V | 405-522 V | 450-580 V | 495-636 V | 540-695 V | 585-750 V |
| Recommended charge/discharge current | 35 A | 35 A | 35 A | 35 A | 35 A | 35 A | 35 A | 35 A | 35 A | 35 A | 35 A | 35 A |
| Max. charge/discharge current | 50 A | 50 A | 50 A | 50 A | 50 A | 50 A | 50 A | 50 A | 50 A | 50 A | 50 A | 50 A |
| Rated power | 3.5 kW | 5.1 kW | 6.6 kW | 8.9 kW | 10.7 kW | 12.5 kW | 14.3 kW | 16.1 kW | 17.9 kW | 19.7 kW | 21.5 kW | 23.3 kW |
| Max. power | 5.3 kW | 7.6 kW | 10.2 kW | 12.8 kW | 15.3 kW | 17.9 kW | 20.4 kW | 23.0 kW | 25.6 kW | 28.1 kW | 30.7 kW | 33.2 kW |
| Depth of discharge | 90% | 90% | 90% | 90% | 90% | 90% | 90% | 90% | 90% | 90% | 90% | 90% |
| Communication interface | RS485, CAN | RS485, CAN | RS485, CAN | RS485, CAN | RS485, CAN | RS485, CAN | RS485, CAN | RS485, CAN | RS485, CAN | RS485, CAN | RS485, CAN | RS485, CAN |
| Dimensions (L × W × H) | 510 × 365 × 659.5 mm | 510 x 365 x 797 mm | 510 × 365 × 934.5 mm | 510 × 365 × 1072 mm | 510 × 365 × 1209.5 mm | 510 x 365 x 1347 mm | 510 × 365 × 1484.5 mm | 510 × 365 × 1572 mm | 510 × 365 × 1709.5 mm | 510 × 365 × 1847 mm | 510 × 365 × 1984.5 mm | 510 × 365 × 2122 mm |
| BATTERY MODEL | ||||||||||||
| Battery model | TP-HS36 | TP-HS36 | TP-HS36 | TP-HS36 | TP-HS36 | TP-HS36 | TP-HS36 | TP-HS36 | TP-HS36 | TP-HS36 | TP-HS36 | TP-HS36 |
| Battery type | Lithium-ion (LFP) | Lithium-ion (LFP) | Lithium-ion (LFP) | Lithium-ion (LFP) | Lithium-ion (LFP) | Lithium-ion (LFP) | Lithium-ion (LFP) | Lithium-ion (LFP) | Lithium-ion (LFP) | Lithium-ion (LFP) | Lithium-ion (LFP) | Lithium-ion (LFP) |
| Battery module | 3.6 kWh | 3.6 kWh | 3.6 kWh | 3.6 kWh | 3.6 kWh | 3.6 kWh | 3.6 kWh | 3.6 kWh | 3.6 kWh | 3.6 kWh | 3.6 kWh | 3.6 kWh |
| Dimensions (L × W × H) | 510 x 365 x 152 mm | 510 x 365 x 152 mm | 510 x 365 x 152 mm | 510 x 365 x 152 mm | 510 x 365 x 152 mm | 510 x 365 x 152 mm | 510 x 365 x 152 mm | 510 x 365 x 152 mm | 510 x 365 x 152 mm | 510 x 365 x 152 mm | 510 x 365 x 152 mm | 510 x 365 x 152 mm |
| Weight | 34 kg | 34 kg | 34 kg | 34 kg | 34 kg | 34 kg | 34 kg | 34 kg | 34 kg | 34 kg | 34 kg | 34 kg |
| STANDARD BOX | ||||||||||||
| Dimensions (L × W × H) | 510 365157 mm | 510 365157 mm | 510 365157 mm | 510 365157 mm | 510 365157 mm | 510 365157 mm | 510 365157 mm | 510 365157 mm | 510 365157 mm | 510 365157 mm | 510 365157 mm | 510 365157 mm |
| Weight | 10 kg | 10 kg | 10 kg | 10 kg | 10 kg | 10 kg | 10 kg | 10 kg | 10 kg | 10 kg | 10 kg | 10 kg |
| GENERAL SPECIFICATIONS | ||||||||||||
| Installation | Floor-standing | Floor-standing | Floor-standing | Floor-standing | Floor-standing | Floor-standing | Floor-standing | Floor-standing | Floor-standing | Floor-standing | Floor-standing | Floor-standing |
| Charging/discharging temperature range (without heater) | 0-53°C (charging) / -20-53°C (discharging) | 0-53°C (charging) / -20-53°C (discharging) | 0-53°C (charging) / -20-53°C (discharging) | 0-53°C (charging) / -20-53°C (discharging) | 0-53°C (charging) / -20-53°C (discharging) | 0-53°C (charging) / -20-53°C (discharging) | 0-53°C (charging) / -20-53°C (discharging) | 0-53°C (charging) / -20-53°C (discharging) | 0-53°C (charging) / -20-53°C (discharging) | 0-53°C (charging) / -20-53°C (discharging) | 0-53°C (charging) / -20-53°C (discharging) | 0-53°C (charging) / -20-53°C (discharging) |
| Charging/discharging temperature range (with heater) | -30 – 53°C (charging/discharging) | -30 – 53°C (charging/discharging) | -30 – 53°C (charging/discharging) | -30 – 53°C (charging/discharging) | -30 – 53°C (charging/discharging) | -30 – 53°C (charging/discharging) | -30 – 53°C (charging/discharging) | -30 – 53°C (charging/discharging) | -30 – 53°C (charging/discharging) | -30 – 53°C (charging/discharging) | -30 – 53°C (charging/discharging) | -30 – 53°C (charging/discharging) |
| Max. operating altitude | < 3000 m | < 3000 m | < 3000 m | < 3000 m | < 3000 m | < 3000 m | < 3000 m | < 3000 m | < 3000 m | < 3000 m | < 3000 m | < 3000 m |
| Environment | Outdoor / Indoor (*Installation conditions are specified in the user manual) | Outdoor / Indoor (*Installation conditions are specified in the user manual) | Outdoor / Indoor (*Installation conditions are specified in the user manual) | Outdoor / Indoor (*Installation conditions are specified in the user manual) | Outdoor / Indoor (*Installation conditions are specified in the user manual) | Outdoor / Indoor (*Installation conditions are specified in the user manual) | Outdoor / Indoor (*Installation conditions are specified in the user manual) | Outdoor / Indoor (*Installation conditions are specified in the user manual) | Outdoor / Indoor (*Installation conditions are specified in the user manual) | Outdoor / Indoor (*Installation conditions are specified in the user manual) | Outdoor / Indoor (*Installation conditions are specified in the user manual) | Outdoor / Indoor (*Installation conditions are specified in the user manual) |
| Ingress protection | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 |
| Relative humidity | 4-100% RH (condensation) | 4-100% RH (condensation) | 4-100% RH (condensation) | 4-100% RH (condensation) | 4-100% RH (condensation) | 4-100% RH (condensation) | 4-100% RH (condensation) | 4-100% RH (condensation) | 4-100% RH (condensation) | 4-100% RH (condensation) | 4-100% RH (condensation) | 4-100% RH (condensation) |
| STANDARDS & CERTIFICATION | ||||||||||||
| Certification | IEC 62619, IEC 60730, IEC 62040, CE, UN38.3 | IEC 62619, IEC 60730, IEC 62040, CE, UN38.3 | IEC 62619, IEC 60730, IEC 62040, CE, UN38.3 | IEC 62619, IEC 60730, IEC 62040, CE, UN38.3 | IEC 62619, IEC 60730, IEC 62040, CE, UN38.3 | IEC 62619, IEC 60730, IEC 62040, CE, UN38.3 | IEC 62619, IEC 60730, IEC 62040, CE, UN38.3 | IEC 62619, IEC 60730, IEC 62040, CE, UN38.3 | IEC 62619, IEC 60730, IEC 62040, CE, UN38.3 | IEC 62619, IEC 60730, IEC 62040, CE, UN38.3 | IEC 62619, IEC 60730, IEC 62040, CE, UN38.3 | IEC 62619, IEC 60730, IEC 62040, CE, UN38.3 |
Please note that the recommended/max. charge/discharge current and the rated/max. power may vary slightly depending on the inverter model, temperature and state of charge (SOC).
