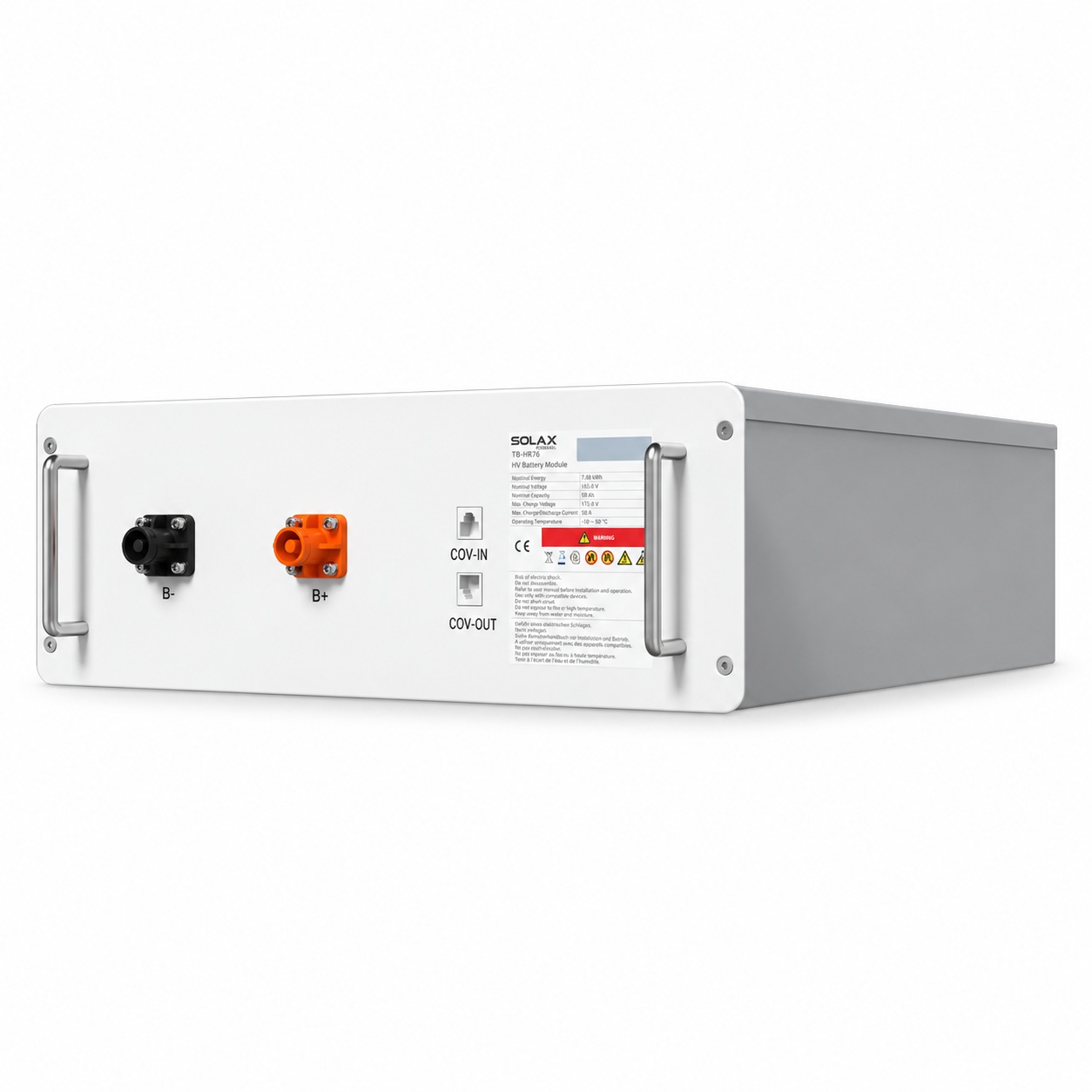

Battery module – SOLAX – TB-HR76 – 7,68 kWh – HV
SKU: F20S351
EAN: 2010000043103
| Manufacturer | |
|---|---|
| Capacity | |
| Number of charging cycles | |
| Battery cell type | |
| Module voltage | |
| CAN | |
| CAN 2.0 | |
| RS485 | |
| RS232 | |
| Warranty | |
| Net width | |
| Net height | |
| Weight | 63,15 kg |
| CN | 85076000 |
Price
1 410,47 €
Incl. VAT
Incl. VAT
Product details
| Manufacturer | |
|---|---|
| Capacity | |
| Number of charging cycles | |
| Battery cell type | |
| Module voltage | |
| CAN | |
| CAN 2.0 | |
| RS485 | |
| RS232 | |
| Warranty | |
| Net width | |
| Net height | |
| Weight | 63,15 kg |
| CN | 85076000 |
SolaX Split C&I Energy Storage Solution X3-AELIO
The three-phase commercial and industrial SolaX Split C&I energy storage system from the X3-AELIO series is an advanced solution designed for flexible configuration and high performance. The system combines a hybrid inverter with power from 49,9 kW to 61 kW with modular LFP batteries, offering storage capacity from 38,4 kWh to 215 kWh. It provides reliable emergency power, support for harsh environmental conditions, and intelligent energy management for commercial scenarios.
Key features of the SolaX Split C&I Energy Storage Solution X3-AELIO:
- Flexible configuration and scalability: Supports up to 10 systems connected in parallel, enabling power from 49,9 kW to 600 kW and battery capacities from 38,4 kWh to 215 kWh.
- High PV performance: Supports PV oversizing up to 200% and maximum efficiency up to 98,0%.
- Safety and reliability: Three-phase unbalance handling up to 100%, long-term overload of 110% and seamless switching in 10 ms between grid and island (EPS) mode.
- Advanced LFP cells: Safe lithium iron phosphate technology providing long life (over 6000 cycles) and 1C performance.
- Intelligent management and VPP: Automated charge/discharge management, integration with virtual power plants (VPP) via IEEE 2030.5 and OpenADR protocols, and remote monitoring via an app.
- Robust design: IP66 protection rating for installation in harsh conditions and a wide operating temperature range.
Who is this a good choice for?
This system is intended for businesses, commercial and industrial facilities seeking energy independence, optimization of electricity procurement costs (peak shaving, self-consumption), and reliable backup power. Thanks to its modular design and extensive expansion capabilities, the X3-AELIO is an ideal choice for enterprises planning gradual growth of their energy infrastructure.
| Parameter | X3-AELIO-49.9K | X3-AELIO-49.9K-P | X3-AELIO-50K | X3-AELIO-60K | X3-AELIO-61K |
|---|---|---|---|---|---|
| PV input | |||||
| Max. recommended PV generator capacity (kWp) | 100 | 120 | 100 | 120 | 120 |
| Max. PV input voltage (V) | 1000 | 1000 | 1000 | 1000 | 1000 |
| Rated PV input voltage (V) | 650 | 650 | 650 | 650 | 650 |
| MPPT voltage range (V) | 160–950 | 160–950 | 160–950 | 160–950 | 160–950 |
| Start-up voltage (V) | 180 | 180 | 180 | 180 | 180 |
| Number of MPPT trackers / strings per MPPT | 5 / 2 | 6 / 2 | 5 / 2 | 6 / 2 | 6 / 2 |
| Max. input current per MPPT (A) | 40 | 50 | 40 | 50 | 50 |
| Max. short-circuit current per MPPT (A) | 50 | 60 | 50 | 60 | 60 |
| AC input and output (grid-tied mode) | |||||
| Rated output power (kW) | 49,9 | 49,9 | 50,0 | 60,0 | 61,0 |
| Rated output current (A) | 75,7 @ 220 V / 72,4 @ 230 V | 75,7 @ 220 V / 72,4 @ 230 V | 75,8 @ 220 V / 72,5 @ 230 V | 91,0 @ 220 V / 87,0 @ 230 V | 92,5 @ 220 V / 88,5 @ 230 V |
| Max. apparent output power (kVA) | 49,9 | 49,9 | 55,0 | 66,0 | 66,0 |
| Max. continuous output current (A) | 75,7 @ 220 V / 72,4 @ 230 V | 75,7 @ 220 V / 72,4 @ 230 V | 83,4 @ 220 V / 79,8 @ 230 V | 100,0 @ 220 V / 95,7 @ 230 V | 100,0 @ 220 V / 95,7 @ 230 V |
| Rated AC voltage (V) | 3/N/PE, 220/380 V; 230/400 V | 3/N/PE, 220/380 V; 230/400 V | 3/N/PE, 220/380 V; 230/400 V | 3/N/PE, 220/380 V; 230/400 V | 3/N/PE, 220/380 V; 230/400 V |
| Rated AC frequency (Hz) | 50 / 60 | 50 / 60 | 50 / 60 | 50 / 60 | 50 / 60 |
| AC frequency range (Hz) | 50 ± 5 / 60 ± 5 | 50 ± 5 / 60 ± 5 | 50 ± 5 / 60 ± 5 | 50 ± 5 / 60 ± 5 | 50 ± 5 / 60 ± 5 |
| Adjustable power factor | ~1 (0,8 leading to 0,8 lagging) | ~1 (0,8 leading to 0,8 lagging) | ~1 (0,8 leading to 0,8 lagging) | ~1 (0,8 leading to 0,8 lagging) | ~1 (0,8 leading to 0,8 lagging) |
| Total harmonic distortion THDi (rated power) (%) | < 3 | < 3 | < 3 | < 3 | < 3 |
| Battery | |||||
| Battery type | LFP (LiFePO4) | LFP (LiFePO4) | LFP (LiFePO4) | LFP (LiFePO4) | LFP (LiFePO4) |
| Battery voltage range (V) | 180–820 | 180–820 | 180–820 | 180–820 | 180–820 |
| Max. charge / discharge current (A) | 160 (80 × 2) | 160 (80 × 2) | 160 (80 × 2) | 160 (80 × 2) | 160 (80 × 2) |
| EPS output (emergency / off-grid mode) | |||||
| Rated EPS voltage and frequency | 3/N/PE, 220/380 V, 50/60 Hz; 230/400 V, 50/60 Hz | 3/N/PE, 220/380 V, 50/60 Hz; 230/400 V, 50/60 Hz | 3/N/PE, 220/380 V, 50/60 Hz; 230/400 V, 50/60 Hz | 3/N/PE, 220/380 V, 50/60 Hz; 230/400 V, 50/60 Hz | 3/N/PE, 220/380 V, 50/60 Hz; 230/400 V, 50/60 Hz |
| Rated EPS output power (kVA) | 49,9 | 49,9 | 50,0 | 60,0 | 61,0 |
| Max. EPS output power (kVA) | 75 (10 s) | 75 (10 s) | 75 (10 s) | 90 (10 s) | 90 (10 s) |
| Switching time (ms) | 10 | 10 | 10 | 10 | 10 |
| Efficiency | |||||
| Maximum efficiency (%) | 98,0 | 98,0 | 98,0 | 98,0 | 98,0 |
| European efficiency (%) | 97,2 | 97,2 | 97,2 | 97,2 | 97,2 |
| Protections | |||||
| Over/under voltage protection | Yes | Yes | Yes | Yes | Yes |
| DC insulation protection | Yes | Yes | Yes | Yes | Yes |
| DC reverse polarity protection | Yes | Yes | Yes | Yes | Yes |
| Grid monitoring | Yes | Yes | Yes | Yes | Yes |
| DC component monitoring | Yes | Yes | Yes | Yes | Yes |
| Backfeed current monitoring | Yes | Yes | Yes | Yes | Yes |
| Residual current detection | Yes | Yes | Yes | Yes | Yes |
| Overheat protection | Yes | Yes | Yes | Yes | Yes |
| Active anti-islanding protection | Yes | Yes | Yes | Yes | Yes |
| Surge protection (DC/AC) | Type II / Type II | Type II / Type II | Type II / Type II | Type II / Type II | Type II / Type II |
| Arc fault circuit interrupter (AFCI) | Optional | Optional | Optional | Optional | Optional |
| Auxiliary AC power (APS) | Built-in | Built-in | Built-in | Built-in | Built-in |
| Frequency shift | Yes | Yes | Yes | Yes | Yes |
| Inverter general data | |||||
| Ingress protection | IP66 | IP66 | IP66 | IP66 | IP66 |
| Operating temperature range (°C) | -35 ~ 60 (power derating > +45) | -35 ~ 60 (power derating > +45) | -35 ~ 60 (power derating > +45) | -35 ~ 60 (power derating > +45) | -35 ~ 60 (power derating > +45) |
| Max. absolute altitude (m) | 3000 | 3000 | 3000 | 3000 | 3000 |
| Relative humidity (%) | 0 ~ 100 (with condensation) | 0 ~ 100 (with condensation) | 0 ~ 100 (with condensation) | 0 ~ 100 (with condensation) | 0 ~ 100 (with condensation) |
| Overvoltage category | Grid: III, Battery: II, PV: II | Grid: III, Battery: II, PV: II | Grid: III, Battery: II, PV: II | Grid: III, Battery: II, PV: II | Grid: III, Battery: II, PV: II |
| Dimensions (W × H × D) (mm) | 670 × 820 × 257 | 670 × 820 × 257 | 670 × 820 × 257 | 670 × 820 × 257 | 670 × 820 × 257 |
| Net weight (kg) | < 100 | < 105 | < 100 | < 105 | < 105 |
| Cooling method | Intelligent air cooling | Intelligent air cooling | Intelligent air cooling | Intelligent air cooling | Intelligent air cooling |
| Communication interfaces | RS485, CAN-BMS, CAN-Parallel, USB, DI×2, DO×1, RCR, DRM | RS485, CAN-BMS, CAN-Parallel, USB, DI×2, DO×1, RCR, DRM | RS485, CAN-BMS, CAN-Parallel, USB, DI×2, DO×1, RCR, DRM | RS485, CAN-BMS, CAN-Parallel, USB, DI×2, DO×1, RCR, DRM | RS485, CAN-BMS, CAN-Parallel, USB, DI×2, DO×1, RCR, DRM |
| Topology | Transformerless | Transformerless | Transformerless | Transformerless | Transformerless |
| Certifications | CE, VDE4105, G99, AS4777, EN50549, CEI 0-21, IEC61727, PEA/MEA, NRS-097-2-1, RD1699, TOR | CE, VDE4105, G99, AS4777, EN50549, CEI 0-21, IEC61727, PEA/MEA, NRS-097-2-1, RD1699, TOR | CE, VDE4105, G99, AS4777, EN50549, CEI 0-21, IEC61727, PEA/MEA, NRS-097-2-1, RD1699, TOR | CE, VDE4105, G99, AS4777, EN50549, CEI 0-21, IEC61727, PEA/MEA, NRS-097-2-1, RD1699, TOR | CE, VDE4105, G99, AS4777, EN50549, CEI 0-21, IEC61727, PEA/MEA, NRS-097-2-1, RD1699, TOR |
| System and battery module (TSYS-HR76 / TB-HR76) | |||||
| System capacity range (kWh) | 38,4 – 215,0 | 38,4 – 215,0 | 38,4 – 215,0 | 38,4 – 215,0 | 38,4 – 215,0 |
| Battery module model | TB-HR76 | TB-HR76 | TB-HR76 | TB-HR76 | TB-HR76 |
| Module capacity / Nominal voltage | 7,68 kWh / 51,2 V (150 Ah) | 7,68 kWh / 51,2 V (150 Ah) | 7,68 kWh / 51,2 V (150 Ah) | 7,68 kWh / 51,2 V (150 Ah) | 7,68 kWh / 51,2 V (150 Ah) |
| Battery module dimensions (W × H × D) (mm) | 450 × 170 × 580 | 450 × 170 × 580 | 450 × 170 × 580 | 450 × 170 × 580 | 450 × 170 × 580 |
| Battery module weight (kg) | 60 | 60 | 60 | 60 | 60 |
| BMS control unit model | TBMS-R76 | TBMS-R76 | TBMS-R76 | TBMS-R76 | TBMS-R76 |
| BMS unit dimensions (W × H × D) (mm) | 450 × 180 × 580 | 450 × 180 × 580 | 450 × 180 × 580 | 450 × 180 × 580 | 450 × 180 × 580 |
| BMS unit weight (kg) | 19,2 | 19,2 | 19,2 | 19,2 | 19,2 |
| Cycle life (90% DOD) | ≥ 6000 (@ 25°C ± 2°C, 0,5C/0,5C, 70% EOL) | ≥ 6000 (@ 25°C ± 2°C, 0,5C/0,5C, 70% EOL) | ≥ 6000 (@ 25°C ± 2°C, 0,5C/0,5C, 70% EOL) | ≥ 6000 (@ 25°C ± 2°C, 0,5C/0,5C, 70% EOL) | ≥ 6000 (@ 25°C ± 2°C, 0,5C/0,5C, 70% EOL) |
| Battery round-trip efficiency (%) | 95 | 95 | 95 | 95 | 95 |
* Rated output current and power values may be limited (derating) depending on ambient temperature or battery state of charge (SOC).
