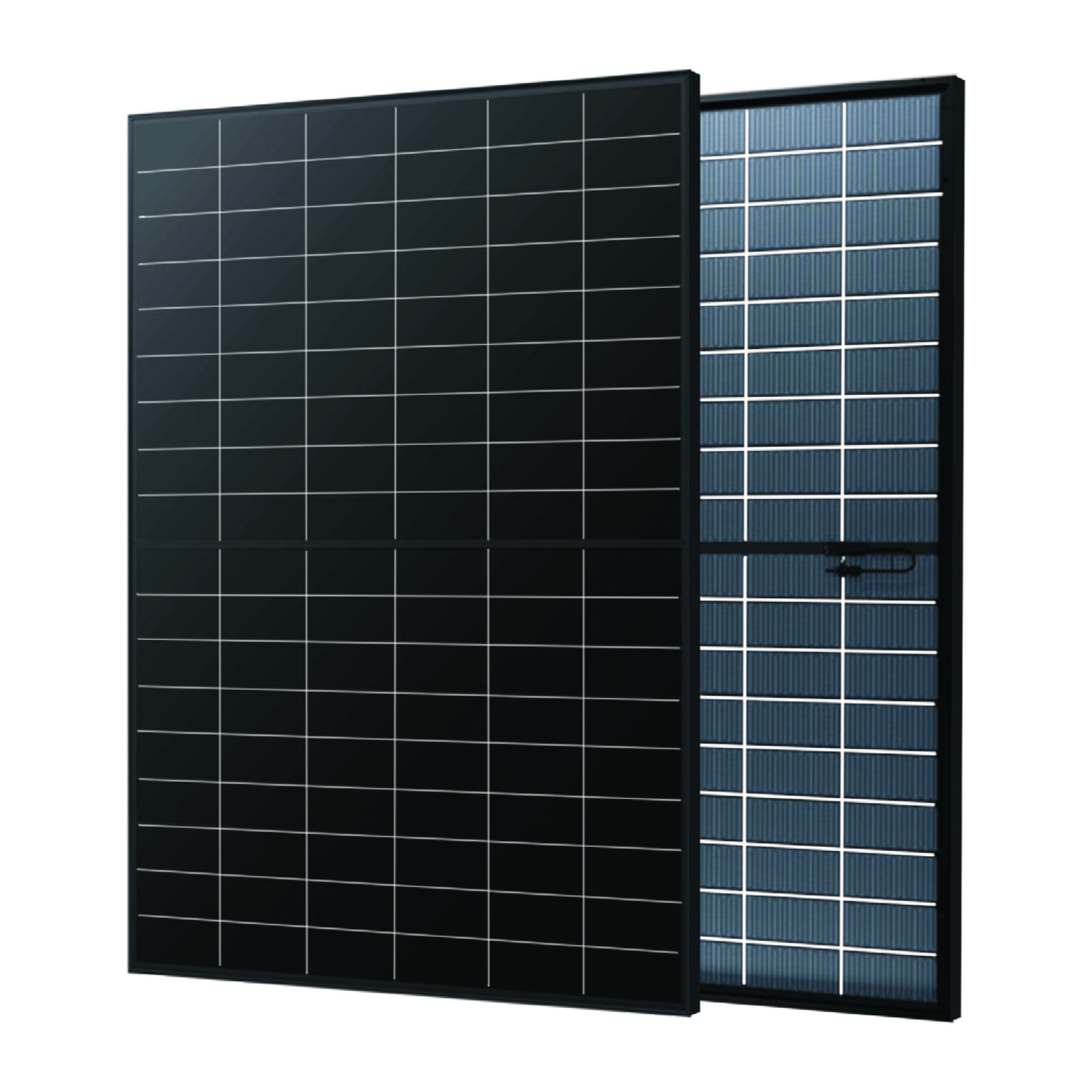

Module – HANERSUN – HN18RB-54HT-490W – bifacial – full black
SKU: F10P0
EAN: 2010000043189
| Manufacturer | |
|---|---|
| Model | |
| Power | |
| Fullblack | |
| Frame color | |
| Efficiency | |
| Tier 1 | |
| Product warranty | |
| Linear power warranty | |
| Module type | |
| PV cell type | |
| Double glass | |
| Number of busbars | |
| Fire resistance class | |
| Frame thickness | |
| Height | |
| Width | |
| Maximum static load (Pa) | |
| Cable length (+) | |
| Cable length (-) | 200 mm |
| Quantity per pallet | |
| Quantity per container | |
| Weight | 23,5 kg |
| CN | 85414300 |
Price
95,61 €
Incl. VAT
Incl. VAT
Complementary products
Product details
| Manufacturer | |
|---|---|
| Model | |
| Power | |
| Fullblack | |
| Frame color | |
| Efficiency | |
| Tier 1 | |
| Product warranty | |
| Linear power warranty | |
| Module type | |
| PV cell type | |
| Double glass | |
| Number of busbars | |
| Fire resistance class | |
| Frame thickness | |
| Height | |
| Width | |
| Maximum static load (Pa) | |
| Cable length (+) | |
| Cable length (-) | 200 mm |
| Quantity per pallet | |
| Quantity per container | |
| Weight | 23,5 kg |
| CN | 85414300 |
HANERSUN Hitouch 5B HN18RB-54HT 475-500W
The HANERSUN Hitouch 5B photovoltaic module from the HN18RB-54HT series with a power range of 475–500 W represents advanced BC (Back Contact) cell technology with a bifacial design and a transparent black rear. It provides maximum light-use efficiency, a modern appearance, and reliability confirmed by long-term warranties and quality certifications.
Key features of the HANERSUN Hitouch 5B HN18RB-54HT 475-500W:
- High module efficiency: Achieves a maximum efficiency of up to 24.5% thanks to the all-back-contact design (All Back Contact).
- Modern and aesthetic appearance: The glossy front surface of the cells gives the installation an elegant, modern look in Transparent Black.
- Mechanical durability: Certified resistance to test loads up to +5400 Pa (snow) and -2400 Pa (wind).
- Resistance to harsh conditions: High resistance to salt, ammonia, sand, high temperatures and high humidity.
- Safe operation: Optimized electrical design and lower operating current reduce the risk of hot-spots and microcracks.
- Long-term warranty: 15-year product warranty and a 30-year linear power output warranty with low annual degradation.
Who is this a good choice for?
This module is an excellent choice for investors seeking top performance and outstanding aesthetics in photovoltaic installations mounted on residential and commercial building roofs. It performs well in demanding environmental conditions, offering long-term energy security and maximum return on investment.
| Parameter | HN18RB-54HT475W | HN18RB-54HT480W | HN18RB-54HT485W | HN18RB-54HT490W | HN18RB-54HT495W | HN18RB-54HT500W |
|---|---|---|---|---|---|---|
| Electrical parameters (STC) | ||||||
| Maximum power (Pmax) (W) | 475 | 480 | 485 | 490 | 495 | 500 |
| Maximum power voltage (Vmp) (V) | 33,40 | 33,51 | 33,62 | 33,73 | 33,84 | 33,95 |
| Maximum power current (Imp) (A) | 14,23 | 14,33 | 14,43 | 14,53 | 14,63 | 14,73 |
| Open-circuit voltage (Voc) (V) | 40,42 | 40,53 | 40,64 | 40,75 | 40,86 | 40,97 |
| Short-circuit current (Isc) (A) | 14,88 | 14,98 | 15,08 | 15,18 | 15,28 | 15,38 |
| Module efficiency (%) | 23,3% | 23,5% | 23,8% | 24,0% | 24,3% | 24,5% |
| Power tolerance (%) | 0~+3% | 0~+3% | 0~+3% | 0~+3% | 0~+3% | 0~+3% |
| Mechanical parameters | ||||||
| Cell type | BC | BC | BC | BC | BC | BC |
| Number of cells | 108 (2 × 9 × 6) | 108 (2 × 9 × 6) | 108 (2 × 9 × 6) | 108 (2 × 9 × 6) | 108 (2 × 9 × 6) | 108 (2 × 9 × 6) |
| Module dimensions (L × W × H) (mm) | 1800 × 1134 × 30 | 1800 × 1134 × 30 | 1800 × 1134 × 30 | 1800 × 1134 × 30 | 1800 × 1134 × 30 | 1800 × 1134 × 30 |
| Weight (kg) | 23,5 | 23,5 | 23,5 | 23,5 | 23,5 | 23,5 |
| Front glass | 2.0 mm, high transmittance, AR coating, thermally strengthened glass | 2.0 mm, high transmittance, AR coating, thermally strengthened glass | 2.0 mm, high transmittance, AR coating, thermally strengthened glass | 2.0 mm, high transmittance, AR coating, thermally strengthened glass | 2.0 mm, high transmittance, AR coating, thermally strengthened glass | 2.0 mm, high transmittance, AR coating, thermally strengthened glass |
| Rear glass | 1.6 mm, thermally strengthened glass | 1.6 mm, thermally strengthened glass | 1.6 mm, thermally strengthened glass | 1.6 mm, thermally strengthened glass | 1.6 mm, thermally strengthened glass | 1.6 mm, thermally strengthened glass |
| Frame | Anodized aluminum alloy | Anodized aluminum alloy | Anodized aluminum alloy | Anodized aluminum alloy | Anodized aluminum alloy | Anodized aluminum alloy |
| Junction box | IP68 | IP68 | IP68 | IP68 | IP68 | IP68 |
| Cables | 4.0 mm², +400/-200 mm | 4.0 mm², +400/-200 mm | 4.0 mm², +400/-200 mm | 4.0 mm², +400/-200 mm | 4.0 mm², +400/-200 mm | 4.0 mm², +400/-200 mm |
| Connectors | PV-ZH202B / MC4-EVO 2A / others | PV-ZH202B / MC4-EVO 2A / others | PV-ZH202B / MC4-EVO 2A / others | PV-ZH202B / MC4-EVO 2A / others | PV-ZH202B / MC4-EVO 2A / others | PV-ZH202B / MC4-EVO 2A / others |
| Operating and temperature parameters | ||||||
| Operating temperature (°C) | -40~+85 | -40~+85 | -40~+85 | -40~+85 | -40~+85 | -40~+85 |
| Maximum system voltage (V DC) | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Maximum rated fuse current (A) | 30 | 30 | 30 | 30 | 30 | 30 |
| Fire resistance class | Class C | Class C | Class C | Class C | Class C | Class C |
| Temperature coefficient Pmax (%/°C) | -0,26 | -0,26 | -0,26 | -0,26 | -0,26 | -0,26 |
| Temperature coefficient Voc (%/°C) | -0,20 | -0,20 | -0,20 | -0,20 | -0,20 | -0,20 |
| Temperature coefficient Isc (%/°C) | +0,05 | +0,05 | +0,05 | +0,05 | +0,05 | +0,05 |
| Packaging | ||||||
| Pieces per pallet | 37 | 37 | 37 | 37 | 37 | 37 |
| Pieces in 40′ HC container | 888 | 888 | 888 | 888 | 888 | 888 |
Standard Test Conditions (STC): irradiance 1000 W/m², cell temperature 25°C, air mass AM1.5.
