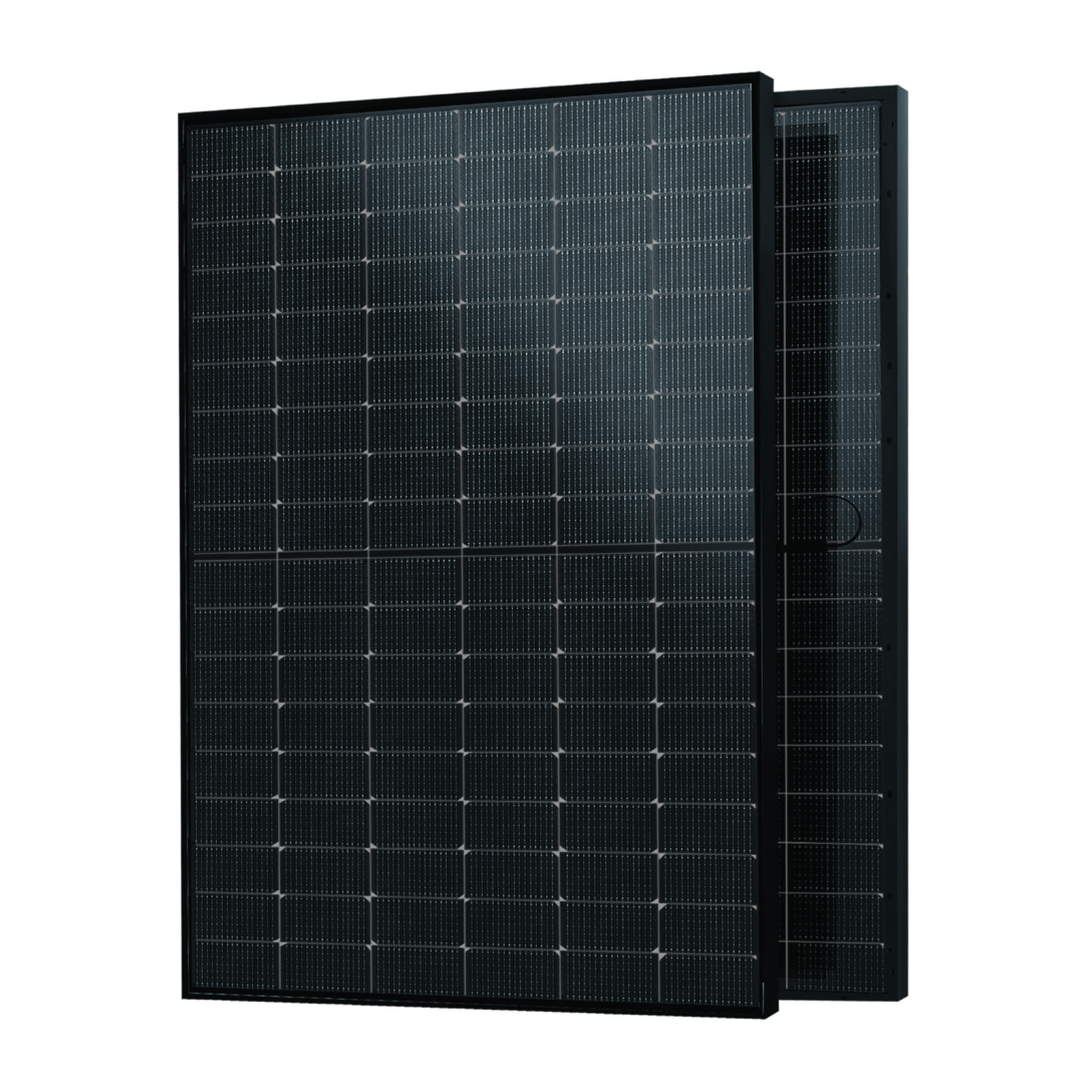

Module – HANERSUN – HN21RN-54HT-500W – bifacial – full black
SKU: F10P1
EAN: 2010000043196
| Manufacturer | |
|---|---|
| Model | |
| Power | |
| Fullblack | |
| Frame color | |
| Efficiency | |
| Tier 1 | |
| Product warranty | |
| Linear power warranty | |
| Module type | |
| PV cell type | |
| Double glass | |
| Number of busbars | |
| Fire resistance class | |
| Frame thickness | |
| Height | |
| Width | |
| Maximum static load (Pa) | |
| Cable length (+) | |
| Cable length (-) | 300 mm |
| Quantity per pallet | |
| Quantity per container | |
| Weight | 26,4 kg |
| CN | 85414300 |
Price
81,71 €
Incl. VAT
Incl. VAT
Complementary products
Product details
| Manufacturer | |
|---|---|
| Model | |
| Power | |
| Fullblack | |
| Frame color | |
| Efficiency | |
| Tier 1 | |
| Product warranty | |
| Linear power warranty | |
| Module type | |
| PV cell type | |
| Double glass | |
| Number of busbars | |
| Fire resistance class | |
| Frame thickness | |
| Height | |
| Width | |
| Maximum static load (Pa) | |
| Cable length (+) | |
| Cable length (-) | 300 mm |
| Quantity per pallet | |
| Quantity per container | |
| Weight | 26,4 kg |
| CN | 85414300 |
HANERSUN Hitouch 6N HN21RN-54HT 485-510W
The Hanersun Hitouch 6N bifacial photovoltaic modules from the HN21RN-54HT series utilize advanced N-TOPCon technology and half-cell structures, offering power in the range of 485 to 510 W. Thanks to the innovative bifacial design and high efficiency reaching 22,9%, these panels deliver maximum energy yield and reliability in challenging environmental conditions. This is a modern solution dedicated to demanding photovoltaic installations.
Key features of HANERSUN Hitouch 6N HN21RN-54HT 485-510W:
- High module efficiency: Reaches up to 22,9% thanks to the use of a larger wafer and half-cell technology.
- MBB (Multi-Busbar) technology: Improves current collection and reduces series resistance and the risk of cell cracking.
- Bifacial construction: Allows generation of additional energy from the rear side of the module (BNPI gain up to 566 W for the 510W model).
- Excellent temperature coefficient: Lower operating temperature (-0,28%/°C for Pmax) translates into higher output power on hot days.
- Long-term warranty: 15-year product warranty and a 30-year linear warranty on output power with an average annual degradation below 0,4%.
- High mechanical durability: Certified resistance to positive load 5400 Pa and negative load 2400 Pa, as well as excellent resistance to PID.
Who is this a good choice for?
The Hanersun Hitouch 6N modules are an excellent choice for investors seeking high-performance solutions for commercial, industrial, and modern residential systems. With high load resistance, excellent temperature characteristics, and long-term warranties, these panels provide safe and profitable generation of clean energy for decades.
| Parameter | HN21RN-54HT485W | HN21RN-54HT490W | HN21RN-54HT495W | HN21RN-54HT500W | HN21RN-54HT505W | HN21RN-54HT510W |
|---|---|---|---|---|---|---|
| Electrical characteristics (STC) | ||||||
| Maximum power (Pmax) (W) | 485 | 490 | 495 | 500 | 505 | 510 |
| Voltage at maximum power (Vmp) (V) | 32,70 | 32,88 | 33,06 | 33,24 | 33,42 | 33,60 |
| Current at maximum power (Imp) (A) | 14,84 | 14,91 | 14,98 | 15,05 | 15,12 | 15,18 |
| Open circuit voltage (Voc) (V) | 39,30 | 39,50 | 39,70 | 39,90 | 40,10 | 40,30 |
| Short-circuit current (Isc) (A) | 15,72 | 15,80 | 15,88 | 15,95 | 16,02 | 16,10 |
| Module efficiency (%) | 21,8 | 22,0 | 22,3 | 22,5 | 22,7 | 22,9 |
| Electrical characteristics (BNPI) | ||||||
| Maximum power (Pmax) (W) | 538 | 543 | 549 | 554 | 560 | 566 |
| Voltage at maximum power (Vmp) (V) | 32,70 | 32,88 | 33,06 | 33,24 | 33,42 | 33,60 |
| Current at maximum power (Imp) (A) | 16,46 | 16,52 | 16,61 | 16,67 | 16,76 | 16,85 |
| Open circuit voltage (Voc) (V) | 39,30 | 39,50 | 39,70 | 39,90 | 40,10 | 40,30 |
| Short-circuit current (Isc) (A) | 17,42 | 17,51 | 17,60 | 17,68 | 17,76 | 17,84 |
| Mechanical parameters | ||||||
| Cell type | Monocrystalline N-type (210R) | Monocrystalline N-type (210R) | Monocrystalline N-type (210R) | Monocrystalline N-type (210R) | Monocrystalline N-type (210R) | Monocrystalline N-type (210R) |
| Number of cells | 108 [2 × (9 × 6)] | 108 [2 × (9 × 6)] | 108 [2 × (9 × 6)] | 108 [2 × (9 × 6)] | 108 [2 × (9 × 6)] | 108 [2 × (9 × 6)] |
| Module dimensions (L × W × H) (mm) | 1961 × 1134 × 30 | 1961 × 1134 × 30 | 1961 × 1134 × 30 | 1961 × 1134 × 30 | 1961 × 1134 × 30 | 1961 × 1134 × 30 |
| Weight (kg) | 26,4 | 26,4 | 26,4 | 26,4 | 26,4 | 26,4 |
| Glass (mm) | 2,0 + 2,0 (double) | 2,0 + 2,0 (double) | 2,0 + 2,0 (double) | 2,0 + 2,0 (double) | 2,0 + 2,0 (double) | 2,0 + 2,0 (double) |
| Junction box | IP68 | IP68 | IP68 | IP68 | IP68 | IP68 |
| Frame | Anodized aluminum alloy | Anodized aluminum alloy | Anodized aluminum alloy | Anodized aluminum alloy | Anodized aluminum alloy | Anodized aluminum alloy |
| Output cable cross-section (mm²) | 4,0 | 4,0 | 4,0 | 4,0 | 4,0 | 4,0 |
| Cable length (mm) | 300 / 300 (customizable) | 300 / 300 (customizable) | 300 / 300 (customizable) | 300 / 300 (customizable) | 300 / 300 (customizable) | 300 / 300 (customizable) |
| Connectors | Z4S-abcd / MC4-EVO 2A / other | Z4S-abcd / MC4-EVO 2A / other | Z4S-abcd / MC4-EVO 2A / other | Z4S-abcd / MC4-EVO 2A / other | Z4S-abcd / MC4-EVO 2A / other | Z4S-abcd / MC4-EVO 2A / other |
| Operating parameters | ||||||
| Operating temperature (°C) | -40 do +70 | -40 do +70 | -40 do +70 | -40 do +70 | -40 do +70 | -40 do +70 |
| Maximum system voltage (V) | 1500 DC (IEC) | 1500 DC (IEC) | 1500 DC (IEC) | 1500 DC (IEC) | 1500 DC (IEC) | 1500 DC (IEC) |
| Maximum fuse current (A) | 35 | 35 | 35 | 35 | 35 | 35 |
| Bifaciality (%) | 80 ± 5 | 80 ± 5 | 80 ± 5 | 80 ± 5 | 80 ± 5 | 80 ± 5 |
| Fire resistance class | Class C | Class C | Class C | Class C | Class C | Class C |
| Temperature coefficients | ||||||
| Temperature coefficient Pmax (%/°C) | -0,28 | -0,28 | -0,28 | -0,28 | -0,28 | -0,28 |
| Temperature coefficient Voc (%/°C) | -0,23 | -0,23 | -0,23 | -0,23 | -0,23 | -0,23 |
| Temperature coefficient Isc (%/°C) | +0,045 | +0,045 | +0,045 | +0,045 | +0,045 | +0,045 |
| Packaging | ||||||
| Pieces per pallet | 37 | 37 | 37 | 37 | 37 | 37 |
| Pieces in 40′ HC container | 888 | 888 | 888 | 888 | 888 | 888 |
* STC: Irradiance 1000 W/m², cell temperature 25°C, air mass AM 1,5. Power tolerance: 0~+3%.
* BNPI: Irradiance: front side 1000 W/m², rear side 135 W/m², cell temperature 25°C, air mass AM 1,5.
