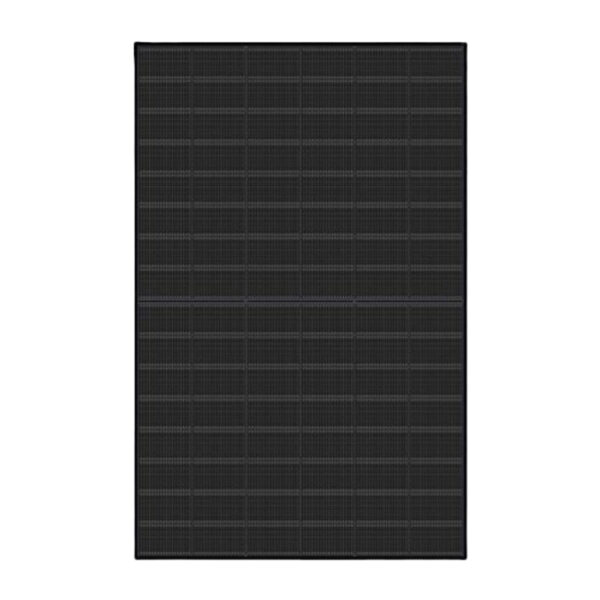

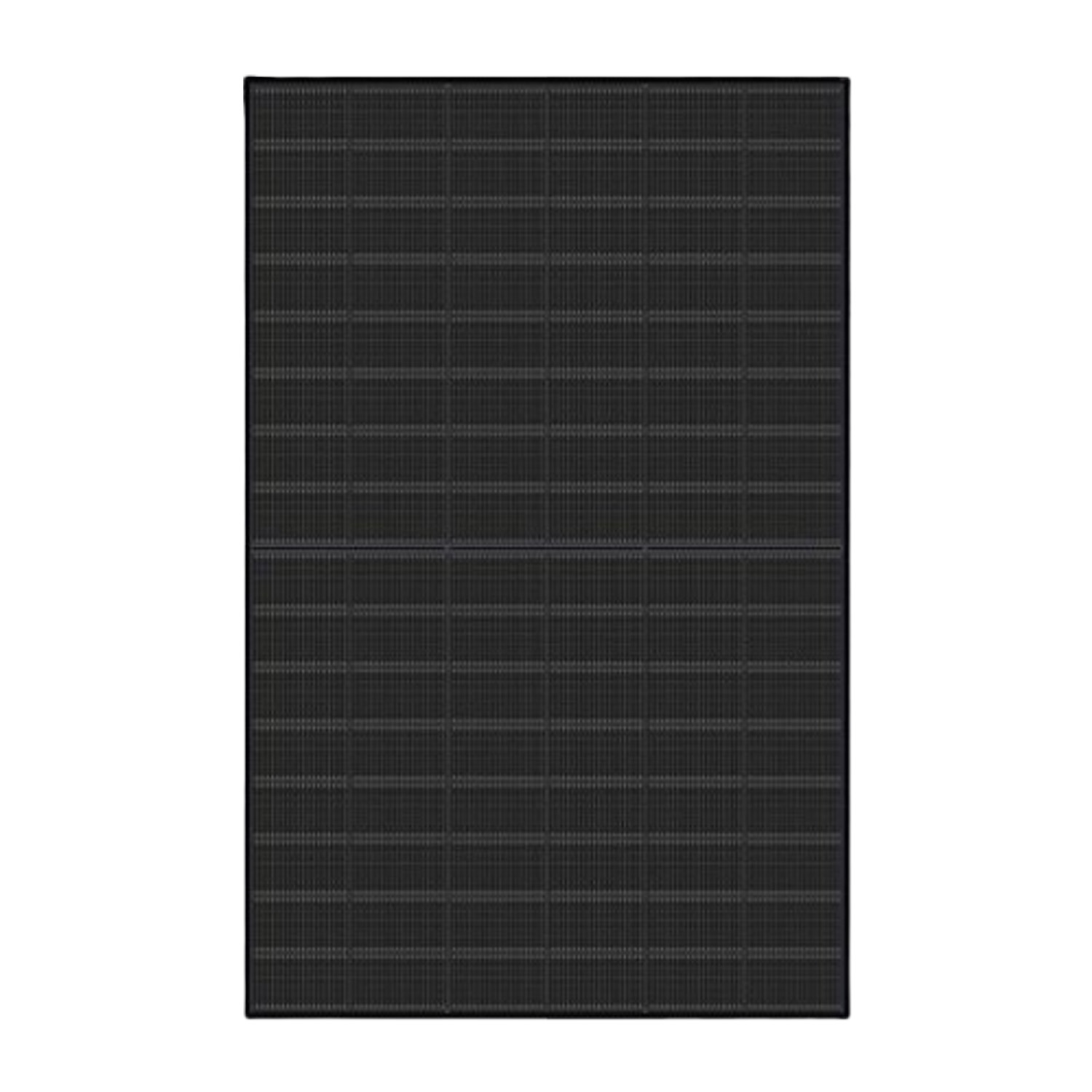

Module HYUNDAI HiT-H500LF Full black
SKU: F150B1
EAN: 2010000034163
| Manufacturer | |
|---|---|
| Model | |
| Power | |
| Fullblack | Yes |
| Frame color | |
| Efficiency | |
| Tier 1 | |
| Product warranty | |
| Linear power warranty | |
| Module type | |
| PV cell type | N-type HJT |
| Double glass | Yes |
| Number of BusBar | |
| Fire resistance class | |
| Frame thickness | |
| Height | |
| Width | |
| Maximum static load (Pa) | |
| Cable length (+) | 1250 mm |
| Cable length (-) | 1250 mm |
| Quantity per pallet | |
| Quantity per container | |
| Weight | 27,4 kg |
| CN | 85414300 |
Price
82,30 €
Gross
Gross
Datasheet Hyundai HiT-H500-520LF-FB
Hyundai-HiT-H500-520LF-FB-Datasheet.pdf
Manual Hyundai HiT-H500-520LF-FB
Hyundai-HiT-H500-520LF-FB-Manual.pdf
Warranty Hyundai HiT-H500-520LF-FB
Hyundai-HiT-H500-520LF-FB-Warranty.pdf
Certificate of compliance 1 Hyundai HiT-H500-520LF-FB
Hyundai-HiT-H500-520LF-FB-Certificate-of-compliance-1.pdf
Certificate of compliance 2 Hyundai HiT-H500-520LF-FB
Hyundai-HiT-H500-520LF-FB-Certificate-of-compliance-2.pdf
Product details
| Manufacturer | |
|---|---|
| Model | |
| Power | |
| Fullblack | Yes |
| Frame color | |
| Efficiency | |
| Tier 1 | |
| Product warranty | |
| Linear power warranty | |
| Module type | |
| PV cell type | N-type HJT |
| Double glass | Yes |
| Number of BusBar | |
| Fire resistance class | |
| Frame thickness | |
| Height | |
| Width | |
| Maximum static load (Pa) | |
| Cable length (+) | 1250 mm |
| Cable length (-) | 1250 mm |
| Quantity per pallet | |
| Quantity per container | |
| Weight | 27,4 kg |
| CN | 85414300 |
HD HYUNDAI HeteroMax™ (LF-FB Series)
The HD HYUNDAI HeteroMax™ photovoltaic modules from the LF-FB series are an advanced solution using N-Type HJT (Heterojunction) technology, delivering high efficiency and excellent energy production. With a low temperature coefficient and improved performance in low-light conditions, these modules are an ideal choice for modern solar installations.
Key features of the HD HYUNDAI HeteroMax™ (LF-FB Series):
- High module efficiency of up to 23.4% thanks to N-Type HJT technology.
- Significantly increased energy yield due to a low Pmax temperature coefficient of -0.24%/K.
- Better performance in low-light conditions, resulting in higher energy output year-round.
- Durable construction with double-sided tempered glass (2.0 mm) and an anodized aluminum frame.
- 30-year product warranty and a 30-year performance warranty with linear degradation of 0.3% per year after the first year (first-year degradation 1%).
- Maximum system DC voltage of 1500 V.
Who is this a good choice for?
The HeteroMax™ (LF-FB Series) modules are ideal for residential installations seeking high-performance, reliable solutions with an all-black aesthetic. HJT technology and the performance warranty make them an excellent option for users who value long-term energy stability and minimal power degradation.
Datasheet Hyundai HiT-H500-520LF-FB
Hyundai-HiT-H500-520LF-FB-Datasheet.pdf
Manual Hyundai HiT-H500-520LF-FB
Hyundai-HiT-H500-520LF-FB-Manual.pdf
Warranty Hyundai HiT-H500-520LF-FB
Hyundai-HiT-H500-520LF-FB-Warranty.pdf
Certificate of compliance 1 Hyundai HiT-H500-520LF-FB
Hyundai-HiT-H500-520LF-FB-Certificate-of-compliance-1.pdf
Certificate of compliance 2 Hyundai HiT-H500-520LF-FB
Hyundai-HiT-H500-520LF-FB-Certificate-of-compliance-2.pdf
| Parameter | HIT-H500LF-FB | HIT-H505LF-FB | HIT-H510LF-FB | HIT-H515LF-FB | HIT-H520LF-FB |
| Electrical Characteristics (STC) | |||||
| Rated power (Pmax) (W) | 500 | 505 | 510 | 515 | 520 |
| Open-circuit voltage (Voc) (V) | 40.76 | 40.87 | 40.98 | 41.09 | 41.20 |
| Short-circuit current (Isc) (A) | 15.48 | 15.59 | 15.70 | 15.81 | 15.92 |
| Voltage at Pmax (Vmpp) (V) | 34.16 | 34.27 | 34.38 | 34.49 | 34.60 |
| Current at Pmax (Impp) (A) | 14.64 | 14.74 | 14.84 | 14.94 | 15.04 |
| Module efficiency (%) | 22.5 | 22.7 | 22.9 | 23.2 | 23.4 |
| Power tolerance (%) | 0~+5 | 0~+5 | 0~+5 | 0~+5 | 0~+5 |
| Temperature coefficient of Pmax (%/K) | -0.24 | -0.24 | -0.24 | -0.24 | -0.24 |
| Temperature coefficient of Voc (%/K) | -0.22 | -0.22 | -0.22 | -0.22 | -0.22 |
| Temperature coefficient of Isc (%/K) | 0.04 | 0.04 | 0.04 | 0.04 | 0.04 |
| NMOT Characteristics | |||||
| Rated power (Pmax) (W) | 381 | 385 | 389 | 393 | 397 |
| Open-circuit voltage (Voc) (V) | 38.90 | 39.01 | 39.11 | 39.22 | 39.32 |
| Short-circuit current (Isc) (A) | 12.37 | 12.46 | 12.55 | 12.64 | 12.72 |
| Voltage at Pmax (Vmpp) (V) | 32.63 | 32.73 | 32.83 | 32.93 | 33.03 |
| Current at Pmax (Impp) (A) | 11.70 | 11.78 | 11.86 | 11.94 | 12.02 |
| Mechanical Characteristics | |||||
| Dimensions (mm) | 1960 x 1134 x 30 | 1960 x 1134 x 30 | 1960 x 1134 x 30 | 1960 x 1134 x 30 | 1960 x 1134 x 30 |
| Weight (kg) | 27.4 | 27.4 | 27.4 | 27.4 | 27.4 |
| Solar cells | N-Type HJT, 108 (6×18) monocrystalline half-cut bifacial cells | N-Type HJT, 108 (6×18) monocrystalline half-cut bifacial cells | N-Type HJT, 108 (6×18) monocrystalline half-cut bifacial cells | N-Type HJT, 108 (6×18) monocrystalline half-cut bifacial cells | N-Type HJT, 108 (6×18) monocrystalline half-cut bifacial cells |
| Output cables | 4mm²/12AWG/(+)1,250 mm, (-)1,250 mm / Custom length | 4mm²/12AWG/(+)1,250 mm, (-)1,250 mm / Custom length | 4mm²/12AWG/(+)1,250 mm, (-)1,250 mm / Custom length | 4mm²/12AWG/(+)1,250 mm, (-)1,250 mm / Custom length | 4mm²/12AWG/(+)1,250 mm, (-)1,250 mm / Custom length |
| Connector | MC4/MC4-Evo2A/PV-H4/Z4S-abcd /ST4 | MC4/MC4-Evo2A/PV-H4/Z4S-abcd /ST4 | MC4/MC4-Evo2A/PV-H4/Z4S-abcd /ST4 | MC4/MC4-Evo2A/PV-H4/Z4S-abcd /ST4 | MC4/MC4-Evo2A/PV-H4/Z4S-abcd /ST4 |
| Junction box | 3-part, 3 bypass diodes, IP68 protection rating | 3-part, 3 bypass diodes, IP68 protection rating | 3-part, 3 bypass diodes, IP68 protection rating | 3-part, 3 bypass diodes, IP68 protection rating | 3-part, 3 bypass diodes, IP68 protection rating |
| Construction | Front: 2.0mm semi-tempered solar glass with high cut-off and anti-reflective coating Back: 2.0mm semi-tempered solar glass | Front: 2.0mm semi-tempered solar glass with high cut-off and anti-reflective coating Back: 2.0mm semi-tempered solar glass | Front: 2.0mm semi-tempered solar glass with high cut-off and anti-reflective coating Back: 2.0mm semi-tempered solar glass | Front: 2.0mm semi-tempered solar glass with high cut-off and anti-reflective coating Back: 2.0mm semi-tempered solar glass | Front: 2.0mm semi-tempered solar glass with high cut-off and anti-reflective coating Back: 2.0mm semi-tempered solar glass |
| Frame | Black anodized aluminum alloy | Black anodized aluminum alloy | Black anodized aluminum alloy | Black anodized aluminum alloy | Black anodized aluminum alloy |
| Other parameters | |||||
| Maximum system voltage (V) | 1500 | 1500 | 1500 | 1500 | 1500 |
| Maximum reverse current (A) | 30 | 30 | 30 | 30 | 30 |
| Maximum test load (Pa) | Front 5,400 / Back 2,400 | Front 5,400 / Back 2,400 | Front 5,400 / Back 2,400 | Front 5,400 / Back 2,400 | Front 5,400 / Back 2,400 |
| Module operating temperature (°C) | -40 to +85 | -40 to +85 | -40 to +85 | -40 to +85 | -40 to +85 |
| Nominal cell operating temperature (°C) | 44 ± 2 | 44 ± 2 | 44 ± 2 | 44 ± 2 | 44 ± 2 |
