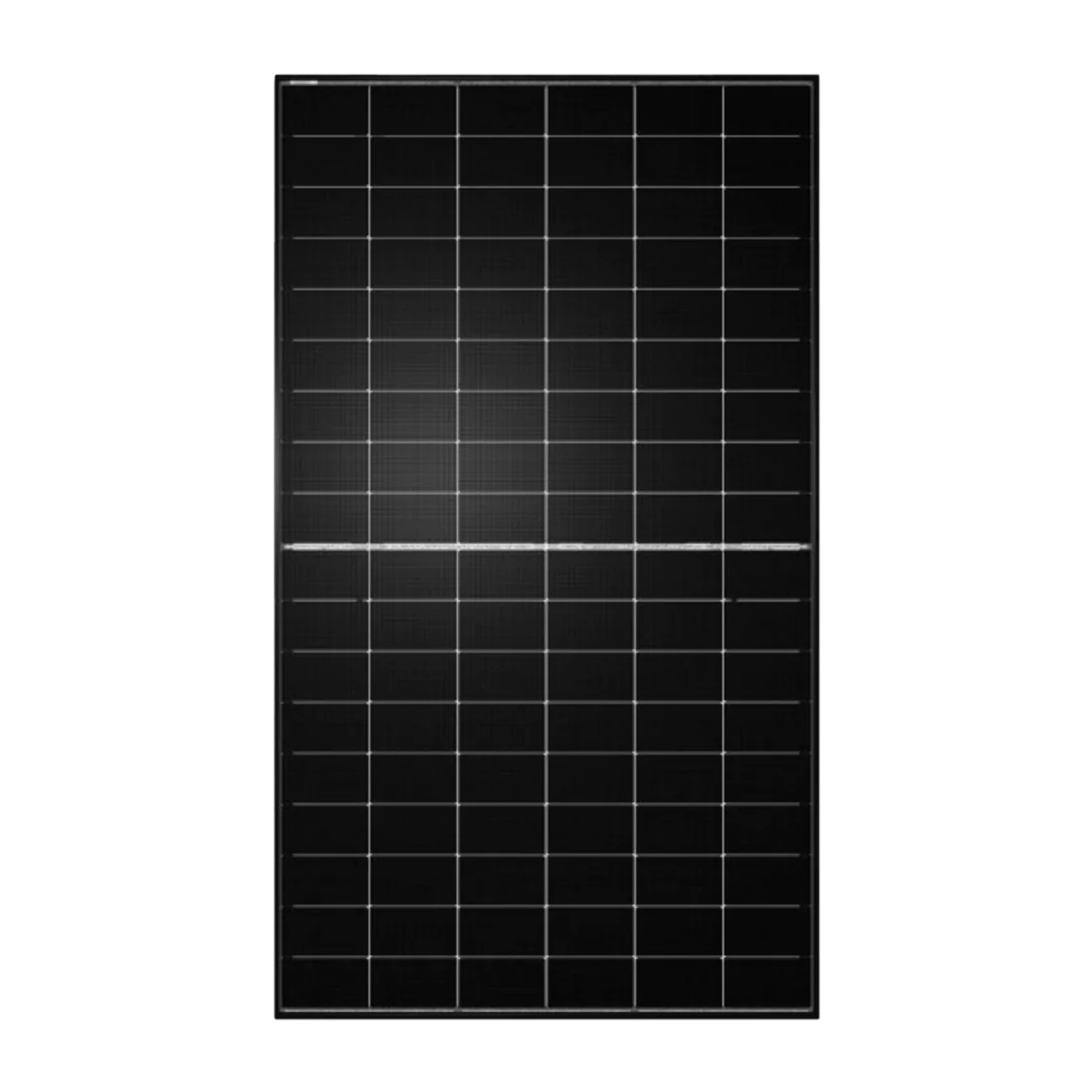

Module JA SOLAR JAM60D40-500/LB – Black Frame – Bifacial

JA SOLAR JAM60D40 LB Deep Blue 4.0 Pro Solar Panel

The JA SOLAR JAM60D40 LB from the Deep Blue 4.0 Pro series is an advanced bifacial n-type photovoltaic module built with double glass (glass-glass) technology. It offers up to 510 W of power and features top-quality n-Bycium+ cells with efficiencies up to 26%. Thanks to MBB half-cell module technology, the panel delivers higher power generation at a lower levelized cost of energy (LCOE), making it a highly efficient and cost-effective solution.

Key features of the JA SOLAR JAM60D40 LB Solar Panel:

• High power and efficiency: Rated power between 485–510 W and module efficiency up to 23.0%, ensuring excellent energy yield.
• n-type Bifacial Double Glass technology: Bifacial design (bifaciality 80% ±5%) allows additional energy yield from the rear side, while n-type technology ensures very low degradation (LID).
• Long-term performance warranty: 30-year linear power output warranty, with 1% degradation in the first year and only 0.4% annually for the following 29 years, plus a 15-year product warranty.
• Excellent performance in challenging conditions: Improved temperature coefficient (−0.290%/°C) and better low-irradiance response deliver higher energy production in real-world conditions.
• Mechanical durability and reliability: Double glass construction (2.0 mm + 2.0 mm) and a robust frame provide high resistance to static loads (up to 5400 Pa front and 2400 Pa rear).

Who is this a good choice for?

The JA SOLAR JAM60D40 LB is an ideal choice for investors and system owners seeking a premium product with maximum performance, durability, and long-term reliability. Its bifacial construction is especially suitable for large-scale ground projects and flat roofs where reflected light can be effectively used. Its advanced technical parameters and sturdy build make it a secure investment that will deliver high energy yields and a low levelized cost of energy (LCOE) for many years.
