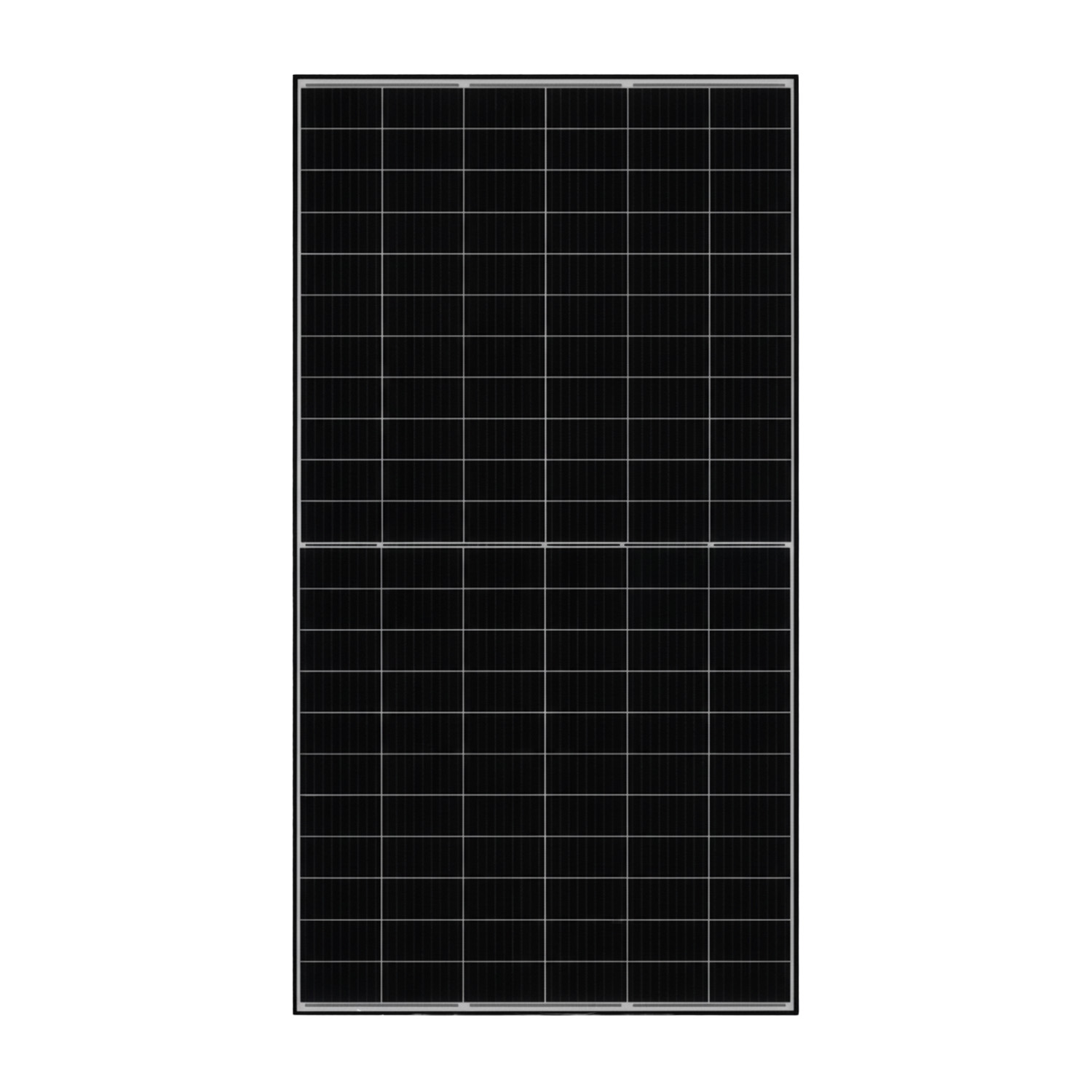

Module JA SOLAR JAM60D40-500/LB – Black frame – Bifacial / OUTLET

JA SOLAR JAM60D40 LB Deep Blue 4.0 Pro PV Panel

Module has a damaged frame

The JA SOLAR JAM60D40 LB photovoltaic panel from the Deep Blue 4.0 Pro series is an advanced, bifacial (double-sided) n-type module built with double-glass (glass-glass) technology. It offers up to 510 W of power and features top-quality n-Bycium+ cells with efficiencies up to 26%. Thanks to MBB half-cell technology, the panel delivers higher power generation at a lower levelized cost of electricity (LCOE), making it a highly efficient and cost-effective solution.

Key features of the JA SOLAR JAM60D40 LB PV Panel:

• High power and efficiency: Nameplate power between 485–510 W and module efficiency up to 23.0%, ensuring excellent energy yield.
• n-type bifacial double-glass technology: The double-sided design (bifaciality 80% ±5%) provides additional energy from the rear side, while n-type technology ensures very low light-induced degradation (LID).
• Long-term performance warranty: 30-year linear power output warranty, with 1% degradation in the first year and only 0.4% per year for the following 29 years, plus a 15-year product warranty.
• Excellent performance in challenging conditions: A favorable temperature coefficient (-0.290%/°C) and improved low-light response deliver higher energy production in real-world conditions.
• Mechanical strength and reliability: Double-glass construction (2.0 mm + 2.0 mm) and a robust frame provide high resistance to static loads (up to 5400 Pa front and 2400 Pa rear).

Who is this a good choice for?

The JA SOLAR JAM60D40 LB panel is an ideal option for investors and system owners seeking a premium product with maximum performance, durability, and long-term reliability. Its bifacial design is particularly well suited for large-scale ground-mounted projects and flat roofs where reflected light can be effectively used. Its advanced technical specifications and solid construction make it a reliable investment that will deliver high energy yields and a low LCOE for many years.
