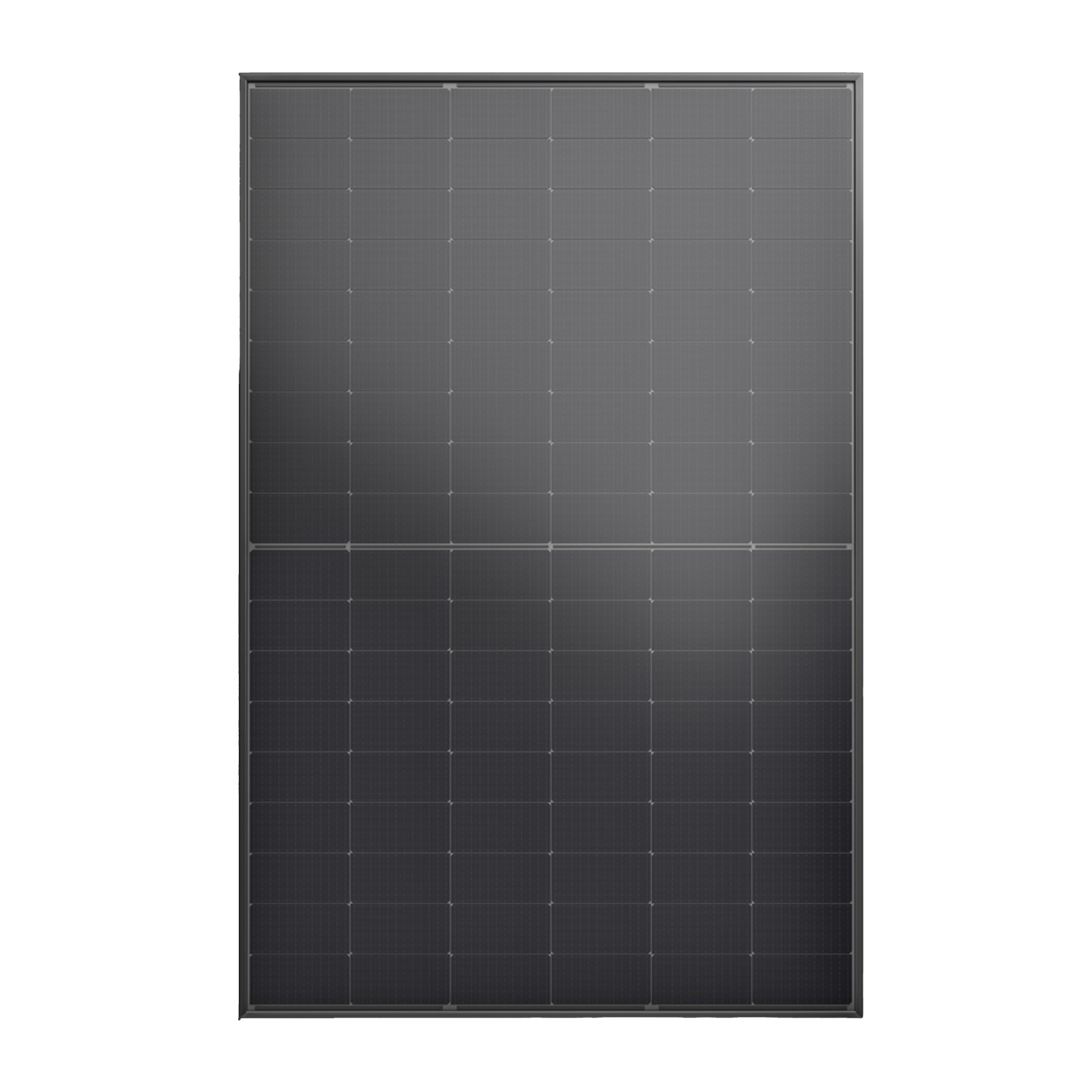

JINKO JKM435N-54HL4R-B Full Black Module
SKU: F10C0111
EAN: 5905951589312
| Manufacturer | |
|---|---|
| Model | |
| Power | |
| Fullblack | |
| Frame color | |
| Efficiency | |
| Tier 1 | |
| Product warranty | |
| Linear power warranty | |
| Module type | |
| PV cell type | |
| Number of BusBar | |
| Fire resistance class | |
| Frame thickness | |
| Height | |
| Width | |
| Maximum static load (Pa) | |
| Cable length (+) | |
| Cable length (-) | 200 mm |
| Quantity per pallet | |
| Quantity per container | |
| Weight | 22 kg |
| CN | 85414300 |
Price
58,17 €
Gross
Gross
Datasheet JINKO JKM420N-54HL4R-B - JKM440N-54HL4R-B
JINKO-JKM420N-54HL4R-B-JKM440N-54HL4R-B-Datasheet.pdf
Product details
| Manufacturer | |
|---|---|
| Model | |
| Power | |
| Fullblack | |
| Frame color | |
| Efficiency | |
| Tier 1 | |
| Product warranty | |
| Linear power warranty | |
| Module type | |
| PV cell type | |
| Number of BusBar | |
| Fire resistance class | |
| Frame thickness | |
| Height | |
| Width | |
| Maximum static load (Pa) | |
| Cable length (+) | |
| Cable length (-) | 200 mm |
| Quantity per pallet | |
| Quantity per container | |
| Weight | 22 kg |
| CN | 85414300 |

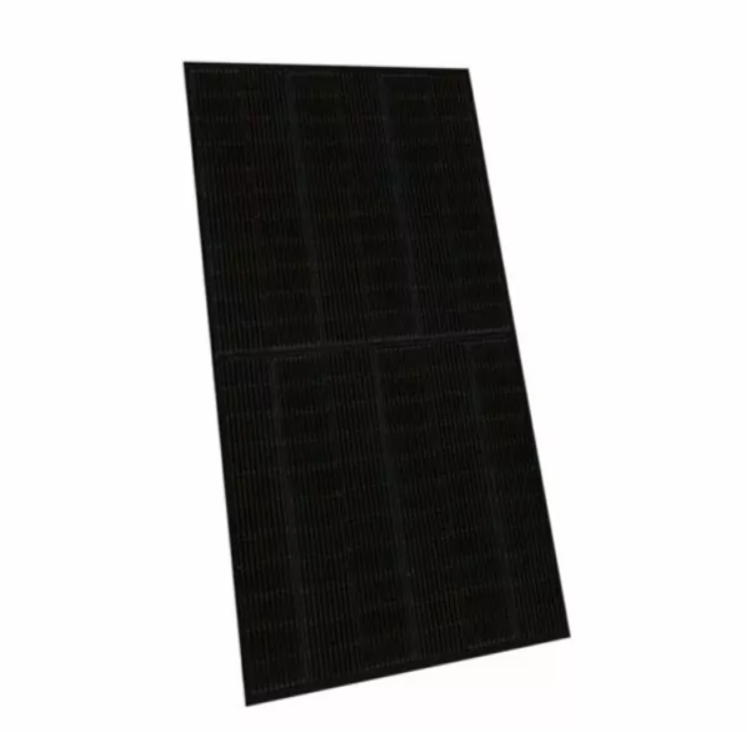

Jinko Solar Tiger Neo N-type 54HL4R-B Photovoltaic Module (All-Black)
The Jinko Solar Tiger Neo N-type 54HL4R-B photovoltaic module is a sleek all-black panel that combines modern design with advanced N-type technology. It delivers power in the 420–440 Watt range and a positive power tolerance of 0~+3%. Thanks to SMBB and Hot 2.0 technologies, the module offers improved light capture, greater reliability and reduced LID/LETID degradation, resulting in long-term performance.
Key features of the Jinko Solar Tiger Neo N-type 54HL4R-B Photovoltaic Module:
- N-type and Hot 2.0 technology: Provides higher efficiency, improved reliability and reduced power degradation (LID/LETID), which translates into greater energy yield over the module’s lifetime.
- SMBB technology: Enhanced light capture and current collection result in higher module output power and increased reliability.
- High resistance to PID: Excellent resistance to potential-induced degradation (PID) thanks to an optimized mass-production process and strict material control.
- Long-term performance warranty: A 25-year product warranty and a 30-year linear power warranty, with an annual degradation rate of 0.40% over 30 years (retaining 87.4% of rated power after 30 years).
- All-Black aesthetic: The fully black module design blends well with various roof types and facades, enhancing the visual appeal of the installation.
Who is this a good choice for?
The Jinko Solar Tiger Neo N-type 54HL4R-B (All-Black) is an excellent choice for customers who value a combination of high performance, reliability and aesthetics. It is well suited for residential and commercial installations where appearance matters as much as technical specifications. With advanced technologies and long-term warranties, it is a reliable investment for those seeking durable and efficient photovoltaic solutions.
Datasheet JINKO JKM420N-54HL4R-B - JKM440N-54HL4R-B
JINKO-JKM420N-54HL4R-B-JKM440N-54HL4R-B-Datasheet.pdf
| Parameter | JKM420N-54HL4R-B | JKM425N-54HL4R-B | JKM430N-54HL4R-B | JKM435N-54HL4R-B | JKM440N-54HL4R-B |
|---|---|---|---|---|---|
| Mechanical characteristics | |||||
| Cell type | N-type Mono-crystalline | N-type Mono-crystalline | N-type Mono-crystalline | N-type Mono-crystalline | N-type Mono-crystalline |
| Number of cells | 108 (6×18) | 108 (6×18) | 108 (6×18) | 108 (6×18) | 108 (6×18) |
| Dimensions (mm) | 1762×1134×30 (69.36×44.65×1.18 inches) | 1762×1134×30 (69.36×44.65×1.18 inches) | 1762×1134×30 (69.36×44.65×1.18 inches) | 1762×1134×30 (69.36×44.65×1.18 inches) | 1762×1134×30 (69.36×44.65×1.18 inches) |
| Weight (kg) | 22 kg (48.50 lbs) | 22 kg (48.50 lbs) | 22 kg (48.50 lbs) | 22 kg (48.50 lbs) | 22 kg (48.50 lbs) |
| Front glass | 3.2mm, Anti-reflective coating, High transmittance, Low iron, Tempered glass | 3.2mm, Anti-reflective coating, High transmittance, Low iron, Tempered glass | 3.2mm, Anti-reflective coating, High transmittance, Low iron, Tempered glass | 3.2mm, Anti-reflective coating, High transmittance, Low iron, Tempered glass | 3.2mm, Anti-reflective coating, High transmittance, Low iron, Tempered glass |
| Frame | Anodized aluminum alloy | Anodized aluminum alloy | Anodized aluminum alloy | Anodized aluminum alloy | Anodized aluminum alloy |
| Junction box (IP rating) | IP68 | IP68 | IP68 | IP68 | IP68 |
| Output cables | TUV 1×4.0mm², (+): 400mm, (-): 200mm or custom length | TUV 1×4.0mm², (+): 400mm, (-): 200mm or custom length | TUV 1×4.0mm², (+): 400mm, (-): 200mm or custom length | TUV 1×4.0mm², (+): 400mm, (-): 200mm or custom length | TUV 1×4.0mm², (+): 400mm, (-): 200mm or custom length |
| Packing configuration (Two pallets = One stack) | |||||
| Pieces | 36 pcs/pallet, 72 pcs/stack, 936 pcs/40’HQ container | 36 pcs/pallet, 72 pcs/stack, 936 pcs/40’HQ container | 36 pcs/pallet, 72 pcs/stack, 936 pcs/40’HQ container | 36 pcs/pallet, 72 pcs/stack, 936 pcs/40’HQ container | 36 pcs/pallet, 72 pcs/stack, 936 pcs/40’HQ container |
| Specifications | |||||
| STC conditions | |||||
| Maximum power (Pmax) (Wp) | 420 | 425 | 430 | 435 | 440 |
| Voltage at maximum power (Vmp) (V) | 32.16 | 32.37 | 32.58 | 32.78 | 32.99 |
| Current at maximum power (Imp) (A) | 13.06 | 13.13 | 13.20 | 13.27 | 13.34 |
| Open-circuit voltage (Voc) (V) | 38.74 | 38.95 | 39.16 | 39.36 | 39.57 |
| Short-circuit current (Isc) (A) | 13.51 | 13.58 | 13.65 | 13.72 | 13.80 |
| Module efficiency (STC) (%) | 21.02% | 21.27% | 21.52% | 21.77% | 22.02% |
| NOCT conditions | |||||
| Maximum power (Pmax) (Wp) | 316 | 320 | 323 | 327 | 331 |
| Voltage at maximum power (Vmp) (V) | 29.95 | 30.19 | 30.30 | 30.50 | 30.73 |
| Current at maximum power (Imp) (A) | 10.55 | 10.60 | 10.66 | 10.72 | 10.77 |
| Open-circuit voltage (Voc) (V) | 36.80 | 37.00 | 37.20 | 37.39 | 37.59 |
| Short-circuit current (Isc) (A) | 10.91 | 10.96 | 11.02 | 11.08 | 11.14 |
| Operating temperature (°C) | -40°C to +85°C | -40°C to +85°C | -40°C to +85°C | -40°C to +85°C | -40°C to +85°C |
| Maximum system voltage (VDC IEC) | 1000 | 1000 | 1000 | 1000 | 1000 |
| Maximum series fuse current (A) | 25 | 25 | 25 | 25 | 25 |
| Power tolerance (%) | 0~+3% | 0~+3% | 0~+3% | 0~+3% | 0~+3% |
| Temperature coefficient Pmax (%/°C) | -0.29 | -0.29 | -0.29 | -0.29 | -0.29 |
| Temperature coefficient Voc (%/°C) | -0.25 | -0.25 | -0.25 | -0.25 | -0.25 |
| Temperature coefficient Isc (%/°C) | 0.045 | 0.045 | 0.045 | 0.045 | 0.045 |
| Nominal cell operating temperature (NOCT) (°C) | 45±2 | 45±2 | 45±2 | 45±2 | 45±2 |
| Linear Performance Warranty | |||||
| Product warranty (Years) | 25 | 25 | 25 | 25 | 25 |
| Linear power warranty (Years) | 30 | 30 | 30 | 30 | 30 |
| Annual degradation over 30 years (%) | 0.40% | 0.40% | 0.40% | 0.40% | 0.40% |
| First-year degradation (%) | 1% | 1% | 1% | 1% | 1% |
| Guaranteed power after 30 years (%) | 87.4% | 87.4% | 87.4% | 87.4% | 87.4% |
*STC: Irradiance 1000 W/m², Cell temperature 25°C, AM=1.5
NOCT: Irradiance 800 W/m², Ambient temperature 20°C, AM=1.5, Wind speed 1 m/s
