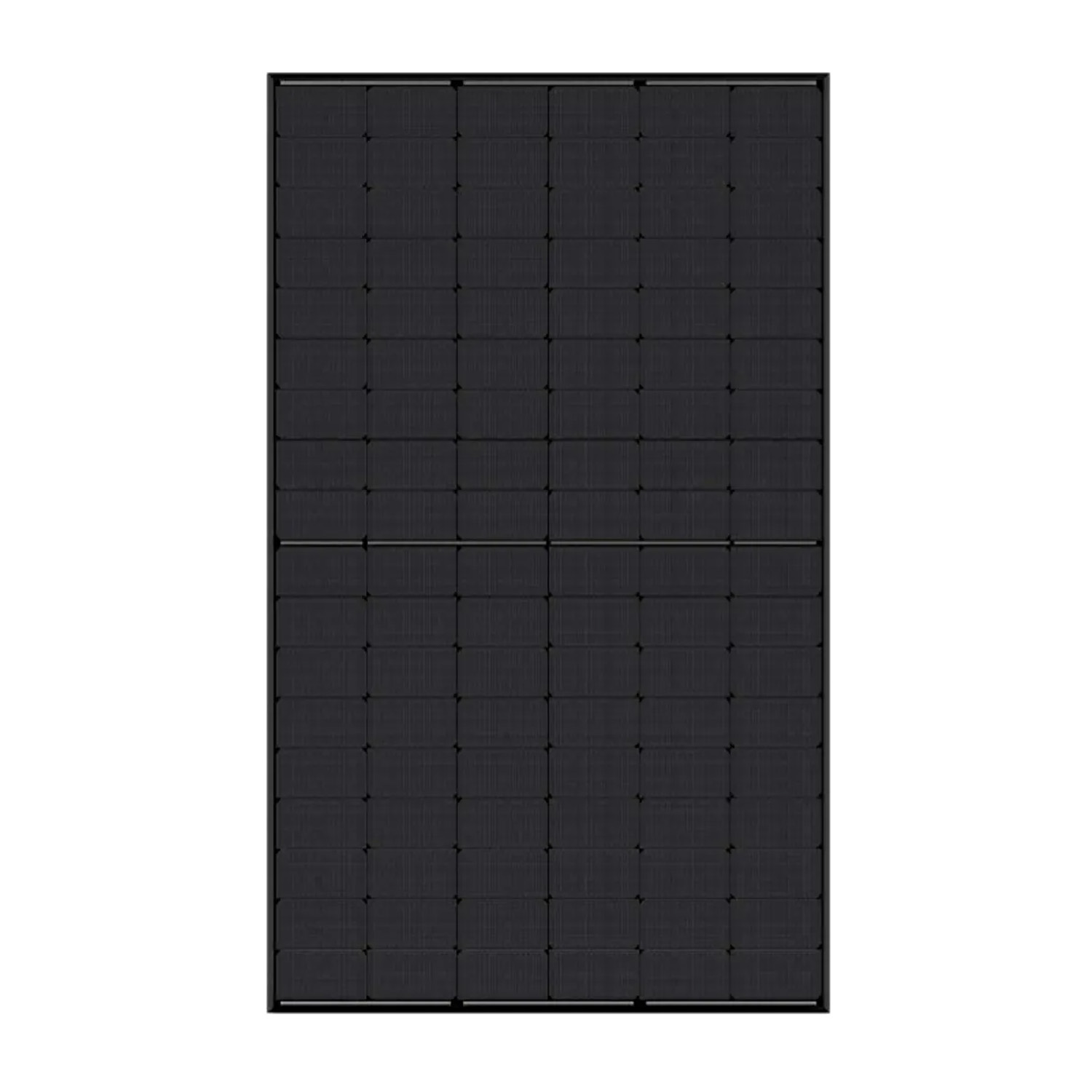

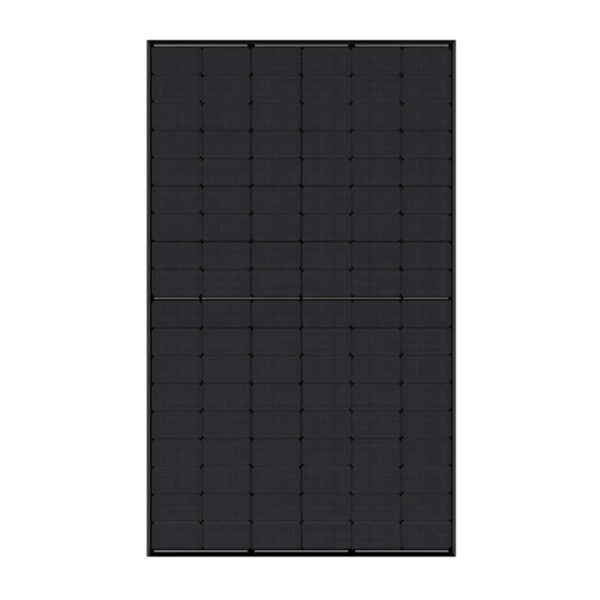

Module JINKO JKM445N-54HL4R-B Full black

SKU: F10C0113 EAN: 2010000033593
Manufacturer

Model

Power

Fullblack

Frame color

Efficiency

Tier 1

Product warranty

Linear power warranty

Module type

PV cell type

Number of BusBar

Fire resistance class

Frame thickness

Height

Width

Maximum static load (Pa)

Cable length (+)

Cable length (-)

200 mm

Quantity per pallet

Quantity per container

Weight 22 kg
CN 85414300
Price 75,62
Gross

75,62
Gross

In stock:

1421 pcs
Login to place an order

75,62
Gross

In stock:

1421 pcs
Login to place an order

Datasheet JINKO JKM425N-54HL4R-B - JKM445N-54HL4R-B JINKO-JKM425N-54HL4R-B-JKM445N-54HL4R-B-Datasheet.pdf Manual JINKO JKM425N-54HL4R-B - JKM445N-54HL4R-B JINKO-JKM425N-54HL4R-B-JKM445N-54HL4R-B-Manual.pdf Warranty JINKO JKM425N-54HL4R-B - JKM445N-54HL4R-B JINKO-JKM425N-54HL4R-B-JKM445N-54HL4R-B-Warranty.pdf Declaration of conformity JINKO JKM425N-54HL4R-B - JKM445N-54HL4R-B JINKO-JKM425N-54HL4R-B-JKM445N-54HL4R-B-Deklaracja-zgodnosci.pdf Certificate of Conformity 1 JINKO JKM425N-54HL4R-B - JKM445N-54HL4R-B JINKO-JKM425N-54HL4R-B-JKM445N-54HL4R-B-Certyfikat-zgodnosci-1.pdf Certificate of Conformity 2 JINKO JKM425N-54HL4R-B - JKM445N-54HL4R-B JINKO-JKM425N-54HL4R-B-JKM445N-54HL4R-B-Certyfikat-zgodnosci-2.pdf

Product details

Manufacturer

Model

Power

Fullblack

Frame color

Efficiency

Tier 1

Product warranty

Linear power warranty

Module type

PV cell type

Number of BusBar

Fire resistance class

Frame thickness

Height

Width

Maximum static load (Pa)

Cable length (+)

Cable length (-)

200 mm

Quantity per pallet

Quantity per container

Weight 22 kg
CN 85414300

Jinko Solar Tiger Neo N-type All Black photovoltaic module 425-445W

The Jinko Solar Tiger Neo N-type is a series of high-performance photovoltaic modules in an elegant “All Black” finish. They use advanced N-type cell technology and Hot 2.0, which not only ensures a great look but also higher reliability, reduced degradation, and excellent performance for decades. It’s an ideal choice for modern residential installations where both power and aesthetics matter.

Key features of the Jinko Solar Tiger Neo N-type:

  • N-type and Hot 2.0 technology: Provides higher reliability, reduced power degradation (LID/LETID) and excellent performance, resulting in greater energy yield over the long term.
  • Extended 30-year performance warranty: Guarantees a linear degradation of just 0.40% per year after the first year, ensuring 87.4% of initial power after 30 years, complemented by a 25-year product warranty.
  • Increased mechanical durability: Certified resistance to heavy snow loads (up to 6000 Pa) and wind loads (up to 4000 Pa) ensures durability in harsh weather conditions.
  • Performance and All Black design: Module power up to 445 W and efficiency reaching 22.27% in a completely black finish that blends perfectly with modern roof architecture.
  • Guaranteed resistance to PID: Optimized manufacturing processes and material control provide excellent protection against potential-induced degradation (PID).

Who is this a good choice for?

This is an excellent option for owners of single-family homes who are looking for a product that combines top-tier aesthetics with uncompromising performance and long-term reliability. The all-black design makes the installation elegant and unobtrusive. At the same time, advanced N-type technology and industry-leading warranties (25 years on the product and 30 years on power) make it a secure and highly cost-effective investment for decades, providing peace of mind and maximum returns from solar energy.

Datasheet JINKO JKM425N-54HL4R-B - JKM445N-54HL4R-B JINKO-JKM425N-54HL4R-B-JKM445N-54HL4R-B-Datasheet.pdf Manual JINKO JKM425N-54HL4R-B - JKM445N-54HL4R-B JINKO-JKM425N-54HL4R-B-JKM445N-54HL4R-B-Manual.pdf Warranty JINKO JKM425N-54HL4R-B - JKM445N-54HL4R-B JINKO-JKM425N-54HL4R-B-JKM445N-54HL4R-B-Warranty.pdf Declaration of conformity JINKO JKM425N-54HL4R-B - JKM445N-54HL4R-B JINKO-JKM425N-54HL4R-B-JKM445N-54HL4R-B-Deklaracja-zgodnosci.pdf Certificate of Conformity 1 JINKO JKM425N-54HL4R-B - JKM445N-54HL4R-B JINKO-JKM425N-54HL4R-B-JKM445N-54HL4R-B-Certyfikat-zgodnosci-1.pdf Certificate of Conformity 2 JINKO JKM425N-54HL4R-B - JKM445N-54HL4R-B JINKO-JKM425N-54HL4R-B-JKM445N-54HL4R-B-Certyfikat-zgodnosci-2.pdf



Parameter JKM425N-54HL4R-B JKM430N-54HL4R-B JKM435N-54HL4R-B JKM440N-54HL4R-B JKM445N-54HL4R-B
Specifications
Maximum power (Pmax) (STC) (Wp) 425 430 435 440 445
Maximum power (Pmax) (NOCT) (Wp) 320 323 327 331 335
Voltage at maximum power point (Vmp) (STC) (V) 32.37 32.58 32.78 32.99 33.19
Voltage at maximum power point (Vmp) (NOCT) (V) 30.19 30.30 30.50 30.73 30.93
Current at maximum power point (Imp) (STC) (A) 13.13 13.20 13.27 13.34 13.41
Current at maximum power point (Imp) (NOCT) (A) 10.60 10.66 10.72 10.77 10.83
Open-circuit voltage (Voc) (STC) (V) 38.95 39.16 39.36 39.57 39.77
Open-circuit voltage (Voc) (NOCT) (V) 37.00 37.20 37.39 37.59 37.78
Short-circuit current (Isc) (STC) (A) 13.58 13.65 13.72 13.80 13.87
Short-circuit current (Isc) (NOCT) (A) 10.96 11.02 11.08 11.14 11.20
Module efficiency at STC (%) 21.27% 21.52% 21.77% 22.02% 22.27%
Operating temperature (°C) -40°C to +85°C -40°C to +85°C -40°C to +85°C -40°C to +85°C -40°C to +85°C
Maximum system voltage (V) 1000VDC (IEC) 1000VDC (IEC) 1000VDC (IEC) 1000VDC (IEC) 1000VDC (IEC)
Maximum rated fuse current (A) 25A 25A 25A 25A 25A
Power tolerance 0 to +3% 0 to +3% 0 to +3% 0 to +3% 0 to +3%
Temperature coefficient for Pmax (%/°C) -0.29%/°C -0.29%/°C -0.29%/°C -0.29%/°C -0.29%/°C
Temperature coefficient for Voc (%/°C) -0.25%/°C -0.25%/°C -0.25%/°C -0.25%/°C -0.25%/°C
Temperature coefficient for Isc (%/°C) 0.045%/°C 0.045%/°C 0.045%/°C 0.045%/°C 0.045%/°C
Nominal operating cell temperature (NOCT) (°C) 45±2°C 45±2°C 45±2°C 45±2°C 45±2°C
Mechanical characteristics
Cell type N-type monocrystalline N-type monocrystalline N-type monocrystalline N-type monocrystalline N-type monocrystalline
Number of cells 108 (6×18) 108 (6×18) 108 (6×18) 108 (6×18) 108 (6×18)
Dimensions (mm) 1762×1134×30 1762×1134×30 1762×1134×30 1762×1134×30 1762×1134×30
Weight (kg) 22 22 22 22 22
Front glass 3.2 mm, anti-reflective coating, high transmittance, low-iron, tempered glass 3.2 mm, anti-reflective coating, high transmittance, low-iron, tempered glass 3.2 mm, anti-reflective coating, high transmittance, low-iron, tempered glass 3.2 mm, anti-reflective coating, high transmittance, low-iron, tempered glass 3.2 mm, anti-reflective coating, high transmittance, low-iron, tempered glass
Frame Anodized aluminum alloy Anodized aluminum alloy Anodized aluminum alloy Anodized aluminum alloy Anodized aluminum alloy
Junction box IP68-rated IP68-rated IP68-rated IP68-rated IP68-rated
Output cables TUV 1×4.0 mm2, (+): 400 mm, (-): 200 mm or custom length TUV 1×4.0 mm2, (+): 400 mm, (-): 200 mm or custom length TUV 1×4.0 mm2, (+): 400 mm, (-): 200 mm or custom length TUV 1×4.0 mm2, (+): 400 mm, (-): 200 mm or custom length TUV 1×4.0 mm2, (+): 400 mm, (-): 200 mm or custom length
