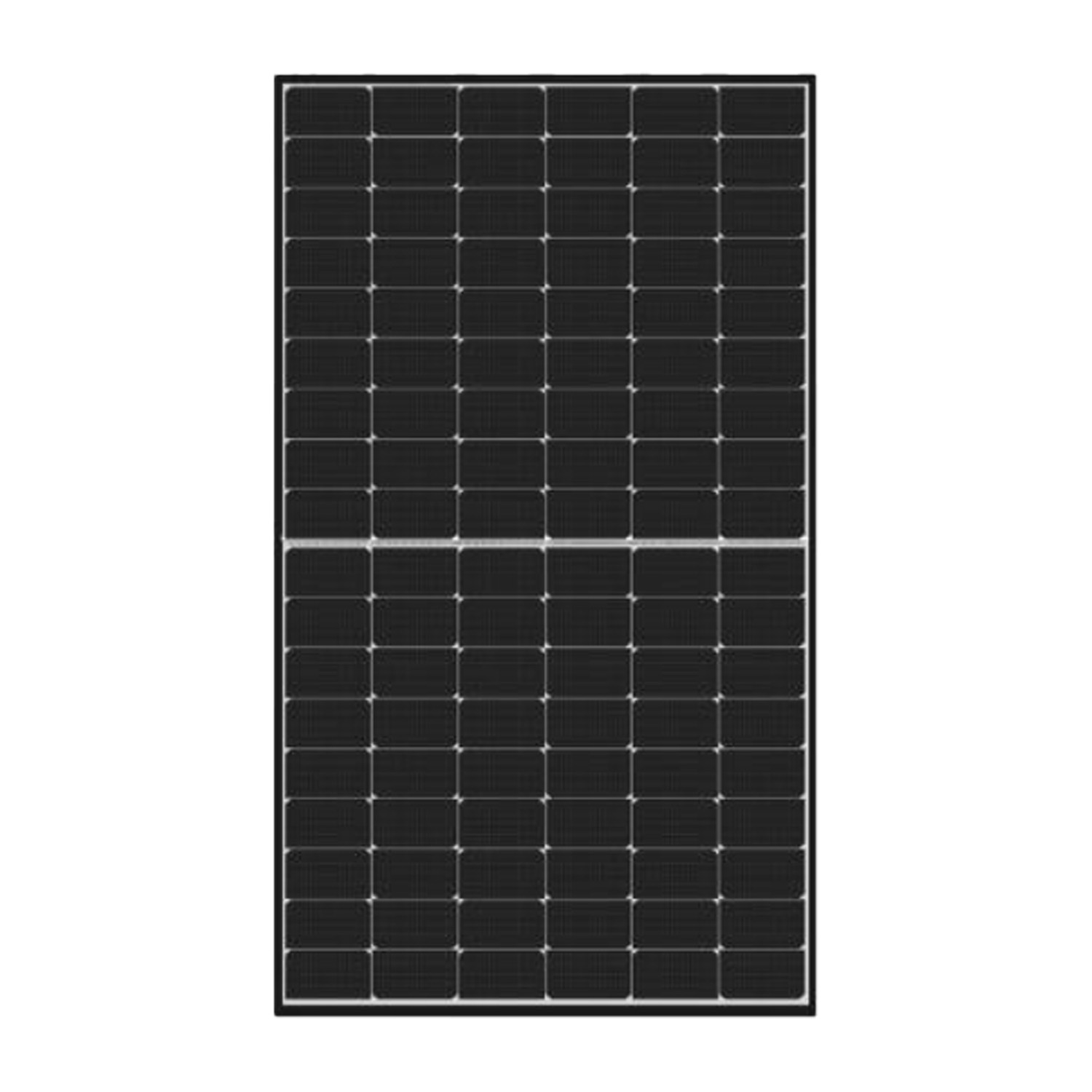

JINKO Module JKM455N-54HL4R-V / 1500V BF
SKU: F10C0120-11
EAN: 2010000031681
| Manufacturer | |
|---|---|
| Model | |
| Power | |
| Frame color | |
| Efficiency | |
| Tier 1 | |
| Product warranty | |
| Linear power warranty | |
| Module type | |
| PV cell type | |
| Number of BusBar | |
| Fire resistance class | |
| Frame thickness | |
| Height | |
| Width | |
| Maximum static load (Pa) | |
| Cable length (+) | |
| Cable length (-) | 200 mm |
| Quantity per pallet | |
| Quantity per container | |
| Weight | 21 kg |
| CN | 85414300 |
Price
68,35 €
Gross
Gross
Datasheet JINKO JKM435N-54HL4R-V - JKM460N-54HL4R-V
JINKO-JKM435N-54HL4R-V-JKM460N-54HL4R-V-Datasheet.pdf
Manual JINKO JKM435N-54HL4R-V - JKM460N-54HL4R-V
JINKO-JKM435N-54HL4R-V-JKM460N-54HL4R-V-Manual.pdf
Warranty JINKO JKM435N-54HL4R-V - JKM460N-54HL4R-V
JINKO-JKM435N-54HL4R-V-JKM460N-54HL4R-V-Warranty.pdf
Declaration of confirmity JINKO JKM435N-54HL4R-V - JKM460N-54HL4R-V
JINKO-JKM435N-54HL4R-V-JKM460N-54HL4R-V-Declaration-of-confirmity.pdf
Product details
| Manufacturer | |
|---|---|
| Model | |
| Power | |
| Frame color | |
| Efficiency | |
| Tier 1 | |
| Product warranty | |
| Linear power warranty | |
| Module type | |
| PV cell type | |
| Number of BusBar | |
| Fire resistance class | |
| Frame thickness | |
| Height | |
| Width | |
| Maximum static load (Pa) | |
| Cable length (+) | |
| Cable length (-) | 200 mm |
| Quantity per pallet | |
| Quantity per container | |
| Weight | 21 kg |
| CN | 85414300 |

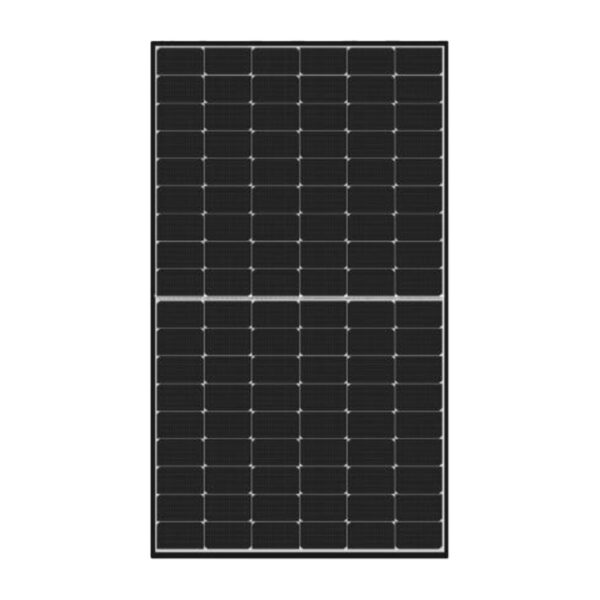

Jinko Solar TIGER Neo 54HL4R-(V) 435-460 Wp Photovoltaic Module
The Jinko Solar TIGER Neo 54HL4R-(V) photovoltaic module is a single-sided N-type panel that uses advanced technologies such as TOPCon and HOT 3.0 to deliver high efficiency, excellent performance even in partial shading, and outstanding durability. It offers power ratings from 435 Wp to 460 Wp and comes with extensive warranties, making it a reliable choice for modern photovoltaic installations.
Key features of the Jinko Solar TIGER Neo 54HL4R-(V) 435-460 Wp Photovoltaic Module:
- Advanced N-type TOPCon technology: Provides high module efficiency (up to 23.02%) and slower power degradation caused by LID and LeTID effects, resulting in greater energy yield over the long term.
- HOT 3.0 technology: N-type modules using JinkoSolar’s HOT 3.0 technology offer improved performance and reliability, even under challenging conditions.
- Exceptional durability and resistance: High resistance to salt mist and ammonia, plus enhanced mechanical strength (up to 6000 Pa front load and 4000 Pa rear load), ensure long service life in extreme environments.
- SMBB technology and guaranteed PID resistance: Better light capture and current collection (SMBB) along with an optimized manufacturing process deliver higher power, module reliability, and excellent protection against potential-induced degradation (PID).
- Comprehensive warranties: 15-year product warranty and a 30-year linear power warranty (only 1% degradation in the first year and 0.40% annually for the following 29 years, retaining 87.4% power after 30 years).
Who is this a good choice for?
The Jinko Solar TIGER Neo 54HL4R-(V) module is an excellent option for investors and users seeking top quality and performance in photovoltaic systems, both residential and commercial. With advanced N-type technologies, strong resistance to harsh environmental conditions, and long-term warranties, it is an ideal solution for those who value reliability, long system lifetime, and maximizing return on investment.
Datasheet JINKO JKM435N-54HL4R-V - JKM460N-54HL4R-V
JINKO-JKM435N-54HL4R-V-JKM460N-54HL4R-V-Datasheet.pdf
Manual JINKO JKM435N-54HL4R-V - JKM460N-54HL4R-V
JINKO-JKM435N-54HL4R-V-JKM460N-54HL4R-V-Manual.pdf
Warranty JINKO JKM435N-54HL4R-V - JKM460N-54HL4R-V
JINKO-JKM435N-54HL4R-V-JKM460N-54HL4R-V-Warranty.pdf
Declaration of confirmity JINKO JKM435N-54HL4R-V - JKM460N-54HL4R-V
JINKO-JKM435N-54HL4R-V-JKM460N-54HL4R-V-Declaration-of-confirmity.pdf
| Parameter | JKM435N-54HL4R-(V) | JKM440N-54HL4R-(V) | JKM445N-54HL4R-(V) | JKM450N-54HL4R-(V) | JKM455N-54HL4R-(V) | JKM460N-54HL4R-(V) |
|---|---|---|---|---|---|---|
| Mechanical characteristics | ||||||
| Cell type | N-type monocrystalline | N-type monocrystalline | N-type monocrystalline | N-type monocrystalline | N-type monocrystalline | N-type monocrystalline |
| Number of cells | 108 (54×2) | 108 (54×2) | 108 (54×2) | 108 (54×2) | 108 (54×2) | 108 (54×2) |
| Dimensions (mm) | 1762×1134×30 | 1762×1134×30 | 1762×1134×30 | 1762×1134×30 | 1762×1134×30 | 1762×1134×30 |
| Weight (kg) | 21.0 | 21.0 | 21.0 | 21.0 | 21.0 | 21.0 |
| Front glass | 3.2 mm, anti-reflective coating, tempered glass, high light transmittance, low iron content | 3.2 mm, anti-reflective coating, tempered glass, high light transmittance, low iron content | 3.2 mm, anti-reflective coating, tempered glass, high light transmittance, low iron content | 3.2 mm, anti-reflective coating, tempered glass, high light transmittance, low iron content | 3.2 mm, anti-reflective coating, tempered glass, high light transmittance, low iron content | 3.2 mm, anti-reflective coating, tempered glass, high light transmittance, low iron content |
| Frame | Anodized aluminum alloy | Anodized aluminum alloy | Anodized aluminum alloy | Anodized aluminum alloy | Anodized aluminum alloy | Anodized aluminum alloy |
| Junction box (IP rating) | IP68 | IP68 | IP68 | IP68 | IP68 | IP68 |
| Protection class | Class II | Class II | Class II | Class II | Class II | Class II |
| IEC fire safety class | Class C | Class C | Class C | Class C | Class C | Class C |
| Connector type | JK03M / JK03M2 / Others* | JK03M / JK03M2 / Others* | JK03M / JK03M2 / Others* | JK03M / JK03M2 / Others* | JK03M / JK03M2 / Others* | JK03M / JK03M2 / Others* |
| Output cables (Including connector) (mm) | 4.0 mm²; (+): 400 mm, (-): 200 mm; other lengths available on request | 4.0 mm²; (+): 400 mm, (-): 200 mm; other lengths available on request | 4.0 mm²; (+): 400 mm, (-): 200 mm; other lengths available on request | 4.0 mm²; (+): 400 mm, (-): 200 mm; other lengths available on request | 4.0 mm²; (+): 400 mm, (-): 200 mm; other lengths available on request | 4.0 mm²; (+): 400 mm, (-): 200 mm; other lengths available on request |
| Packing configuration | ||||||
| Pallet dimensions (mm) | 1792×1140×1249 | 1792×1140×1249 | 1792×1140×1249 | 1792×1140×1249 | 1792×1140×1249 | 1792×1140×1249 |
| Packing details (Two pallets = One stack) | 37 pcs/pallet, 74 pcs/stack, 962 pcs/40’HQ container | 37 pcs/pallet, 74 pcs/stack, 962 pcs/40’HQ container | 37 pcs/pallet, 74 pcs/stack, 962 pcs/40’HQ container | 37 pcs/pallet, 74 pcs/stack, 962 pcs/40’HQ container | 37 pcs/pallet, 74 pcs/stack, 962 pcs/40’HQ container | 37 pcs/pallet, 74 pcs/stack, 962 pcs/40’HQ container |
| Electrical parameters (STC) | ||||||
| Maximum power – Pmax (Wp) | 435 | 440 | 445 | 450 | 455 | 460 |
| Voltage at maximum power – Vmp (V) | 32.59 | 32.81 | 33.02 | 33.21 | 33.41 | 33.60 |
| Current at maximum power – Imp (A) | 13.35 | 13.41 | 13.48 | 13.55 | 13.62 | 13.69 |
| Open-circuit voltage – Voc (V) | 39.16 | 39.38 | 39.59 | 39.78 | 39.98 | 40.17 |
| Short-circuit current – Isc (A) | 13.80 | 13.86 | 13.93 | 14.00 | 14.07 | 14.14 |
| Module efficiency STC (%) | 21.77 | 22.02 | 22.27 | 22.52 | 22.77 | 23.02 |
| Power tolerance (%) | 0~+3% | 0~+3% | 0~+3% | 0~+3% | 0~+3% | 0~+3% |
| Temperature coefficient for Pmax (%/°C) | -0.29 | -0.29 | -0.29 | -0.29 | -0.29 | -0.29 |
| Temperature coefficient for Voc (%/°C) | -0.25 | -0.25 | -0.25 | -0.25 | -0.25 | -0.25 |
| Temperature coefficient for Isc (%/°C) | 0.045 | 0.045 | 0.045 | 0.045 | 0.045 | 0.045 |
| Environmental conditions | ||||||
| Operating temperature (°C) | -40 °C ~ +70 °C | -40 °C ~ +70 °C | -40 °C ~ +70 °C | -40 °C ~ +70 °C | -40 °C ~ +70 °C | -40 °C ~ +70 °C |
| Maximum system voltage (VDC IEC) | 1000/1500 | 1000/1500 | 1000/1500 | 1000/1500 | 1000/1500 | 1000/1500 |
| Maximum rated fuse current (A) | 25 | 25 | 25 | 25 | 25 | 25 |
| Warranty | ||||||
| Product warranty (years) | 15 | 15 | 15 | 15 | 15 | 15 |
| Linear power degradation warranty (years) | 30 | 30 | 30 | 30 | 30 | 30 |
| First year degradation (%) | 1% | 1% | 1% | 1% | 1% | 1% |
| Annual degradation over 30 years (%) | 0.40% | 0.40% | 0.40% | 0.40% | 0.40% | 0.40% |
| Guaranteed power after 30 years (%) | 87.4% | 87.4% | 87.4% | 87.4% | 87.4% | 87.4% |
* MC4 and MC4-Evo2 available upon request and subject to availability.
STC conditions: Irradiance 1000 W/m², Cell temperature 25°C, AM = 1.5
