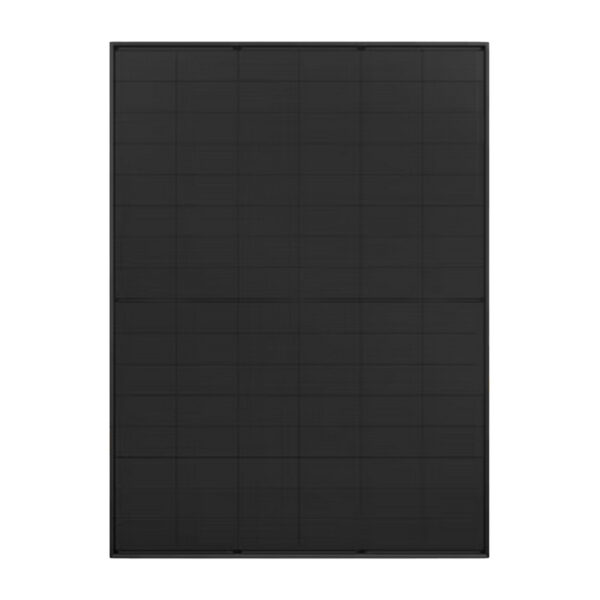

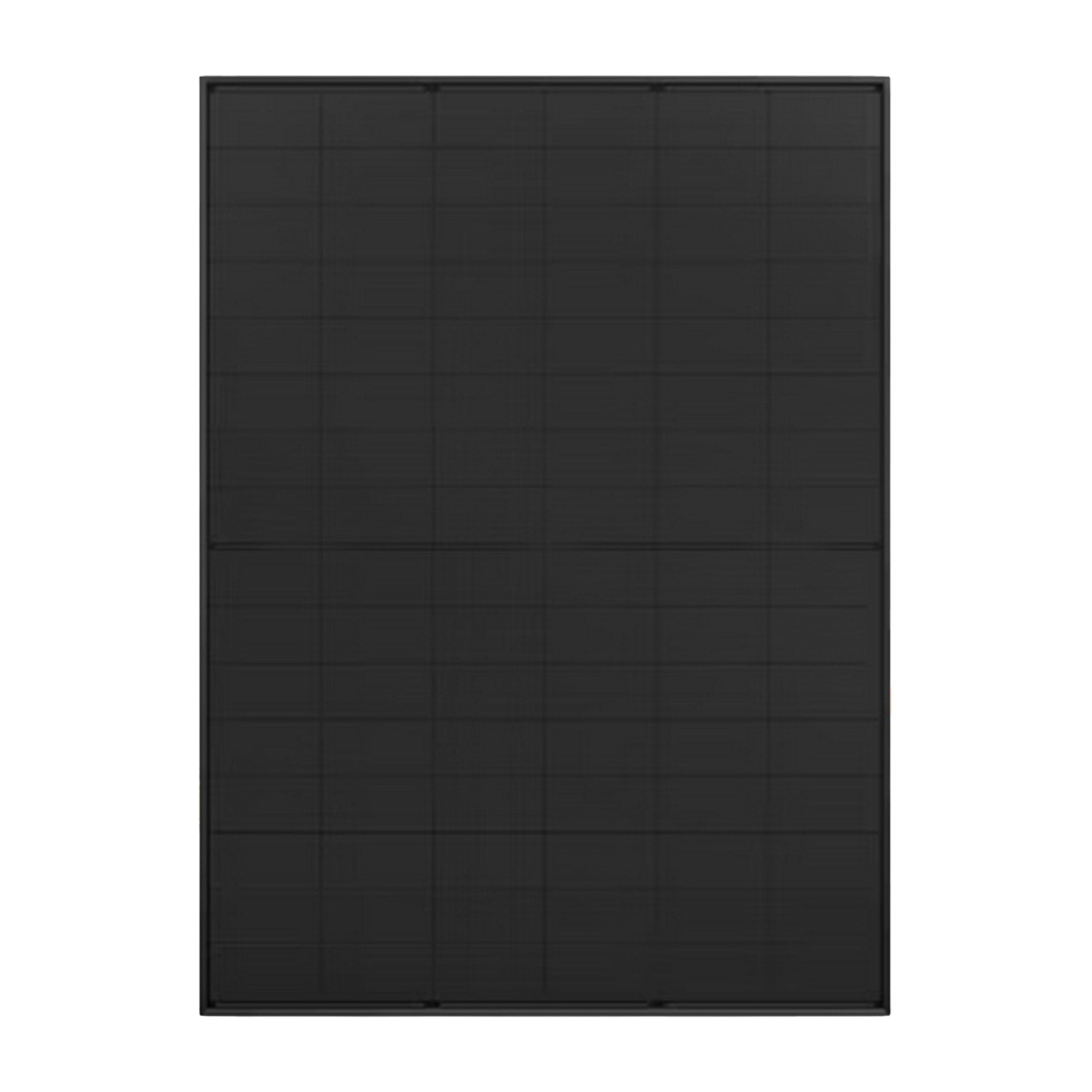

JINKO JKM460N-48HL4M-DB full black module

SKU: F10C0120-13 EAN: 2010000031834
Manufacturer

Model

Power

Fullblack

Yes

Frame color

Tier 1

Product warranty

Linear power warranty

Module type

PV cell type

N-type TOPCon

Double glass

Yes

Number of BusBar

Fire resistance class

Frame thickness

Height

Width

Maximum static load (Pa)

Cable length (+)

400 mm

Cable length (-)

200 mm

Quantity per pallet

Quantity per container

Weight 24 kg
CN 85414300
Price 79,42
Gross

79,42
Gross

In stock:

955 pcs
Login to place an order

79,42
Gross

In stock:

955 pcs
Login to place an order

Datasheet JINKO JKM450N-48HL4M-DB - JKM475N-48HL4M-DB JINKO-JKM450N-48HL4M-DB-JKM475N-48HL4M-DB-Datasheet.pdf Manual JINKO JKM450N-48HL4M-DB - JKM475N-48HL4M-DB JINKO-JKM450N-48HL4M-DB-JKM475N-48HL4M-DB-Manual.pdf Warranty JINKO JKM450N-48HL4M-DB - JKM475N-48HL4M-DB JINKO-JKM450N-48HL4M-DB-JKM475N-48HL4M-DB-Warranty.pdf Certificate of compliance JINKO JKM450N-48HL4M-DB - JKM475N-48HL4M-DB JINKO-JKM450N-48HL4M-DB-JKM475N-48HL4M-DB-Certificate-of-compliance.pdf

Product details

Manufacturer

Model

Power

Fullblack

Yes

Frame color

Tier 1

Product warranty

Linear power warranty

Module type

PV cell type

N-type TOPCon

Double glass

Yes

Number of BusBar

Fire resistance class

Frame thickness

Height

Width

Maximum static load (Pa)

Cable length (+)

400 mm

Cable length (-)

200 mm

Quantity per pallet

Quantity per container

Weight 24 kg
CN 85414300

Jinko Solar TIGER Neo 48HL4M-DB

The Jinko Solar TIGER Neo 48HL4M-DB photovoltaic modules are technologically advanced panels built using N-type TOPCon cells. They deliver high efficiency, low degradation and increased reliability even in challenging environmental conditions, making them an excellent choice for modern installations.

Key features of the Jinko Solar TIGER Neo 48HL4M-DB:

  • N-type TOPCon technology for lower LID/LETID degradation and improved low-light performance.
  • HOT 3.0 technology that enhances module reliability and performance.
  • Durability in extreme environmental conditions, including high resistance to salt mist and ammonia.
  • Certified mechanical loading: 6000 Pa on the front side and 4000 Pa on the rear side.
  • 25-year product warranty and a 30-year linear power warranty with minimal degradation of 0.40% per year.
  • SMBB technology improves light capture and current collection, increasing output power and reliability.

Who is this a good choice for?

The Jinko Solar TIGER Neo 48HL4M-DB modules are ideal for customers seeking efficient, long-lasting photovoltaic solutions for both residential and commercial applications. Their strong resistance to weathering and advanced technologies ensure stable energy production for many years.

Datasheet JINKO JKM450N-48HL4M-DB - JKM475N-48HL4M-DB JINKO-JKM450N-48HL4M-DB-JKM475N-48HL4M-DB-Datasheet.pdf Manual JINKO JKM450N-48HL4M-DB - JKM475N-48HL4M-DB JINKO-JKM450N-48HL4M-DB-JKM475N-48HL4M-DB-Manual.pdf Warranty JINKO JKM450N-48HL4M-DB - JKM475N-48HL4M-DB JINKO-JKM450N-48HL4M-DB-JKM475N-48HL4M-DB-Warranty.pdf Certificate of compliance JINKO JKM450N-48HL4M-DB - JKM475N-48HL4M-DB JINKO-JKM450N-48HL4M-DB-JKM475N-48HL4M-DB-Certificate-of-compliance.pdf

Parameter 450 W 455 W 460 W 465 W 470 W 475 W
Mechanical Characteristics
Cell type N-type Mono-crystalline
Number of cells 96 (48×2)
Dimensions (mm) 1762 x 1134 x 30
Weight (kg) 24.0
Front glass 2.0 mm, anti-reflective coating
Back glass 2.0 mm, tempered glass
Frame Anodized aluminum alloy
Junction box IP68
Fire protection class Class II
IEC fire type Class C
Connector type JK03M/JK03M2/Other*
Output cables (with connector) 4.0 mm² (+): 400 mm, (-): 200 mm or custom length
Specifications (STC)
Maximum power – Pmax [Wp] 450 455 460 465 470 475
Voltage at maximum power – Vmp [V] 30.25 30.48 30.71 30.94 31.17 31.40
Current at maximum power – Imp [A] 14.88 14.93 14.98 15.03 15.08 15.13
Open-circuit voltage – Voc [V] 36.04 36.21 36.38 36.55 36.72 36.89
Short-circuit current – Isc [A] 15.76 15.81 15.86 15.91 15.96 16.01
Module efficiency (STC) [%] 22.52 22.77 23.02 23.27 23.52 23.77
Power tolerance 0~+3%
Temperature coefficient Pmax -0.29%/°C
Temperature coefficient Voc -0.25%/°C
Temperature coefficient Isc 0.045%/°C
Operating Conditions
Operating temperature (°C) -40 ~ +70
Maximum system voltage 1500 VDC (IEC)
Maximum series fuse rating 30 A

* MC4 and MC4-EVO2 connectors available upon request and subject to availability.
