Module – JINKO – JKM510N-54HL4M-BDV – bifacial
SKU: F10C033
EAN: 2010000044292
| Manufacturer | |
|---|---|
| Model | |
| Power | |
| Efficiency | |
| Product warranty | |
| Linear power warranty | |
| Module type | |
| PV cell type | |
| Double glass | |
| Fire resistance class | |
| Frame thickness | |
| Height | |
| Width | |
| Maximum static load (Pa) | |
| Cable length (+) | |
| Cable length (-) | 200 mm |
| Quantity per pallet | |
| Quantity per container |
Price
77,87 €
Incl. VAT
Incl. VAT
Product details
| Manufacturer | |
|---|---|
| Model | |
| Power | |
| Efficiency | |
| Product warranty | |
| Linear power warranty | |
| Module type | |
| PV cell type | |
| Double glass | |
| Fire resistance class | |
| Frame thickness | |
| Height | |
| Width | |
| Maximum static load (Pa) | |
| Cable length (+) | |
| Cable length (-) | 200 mm |
| Quantity per pallet | |
| Quantity per container |

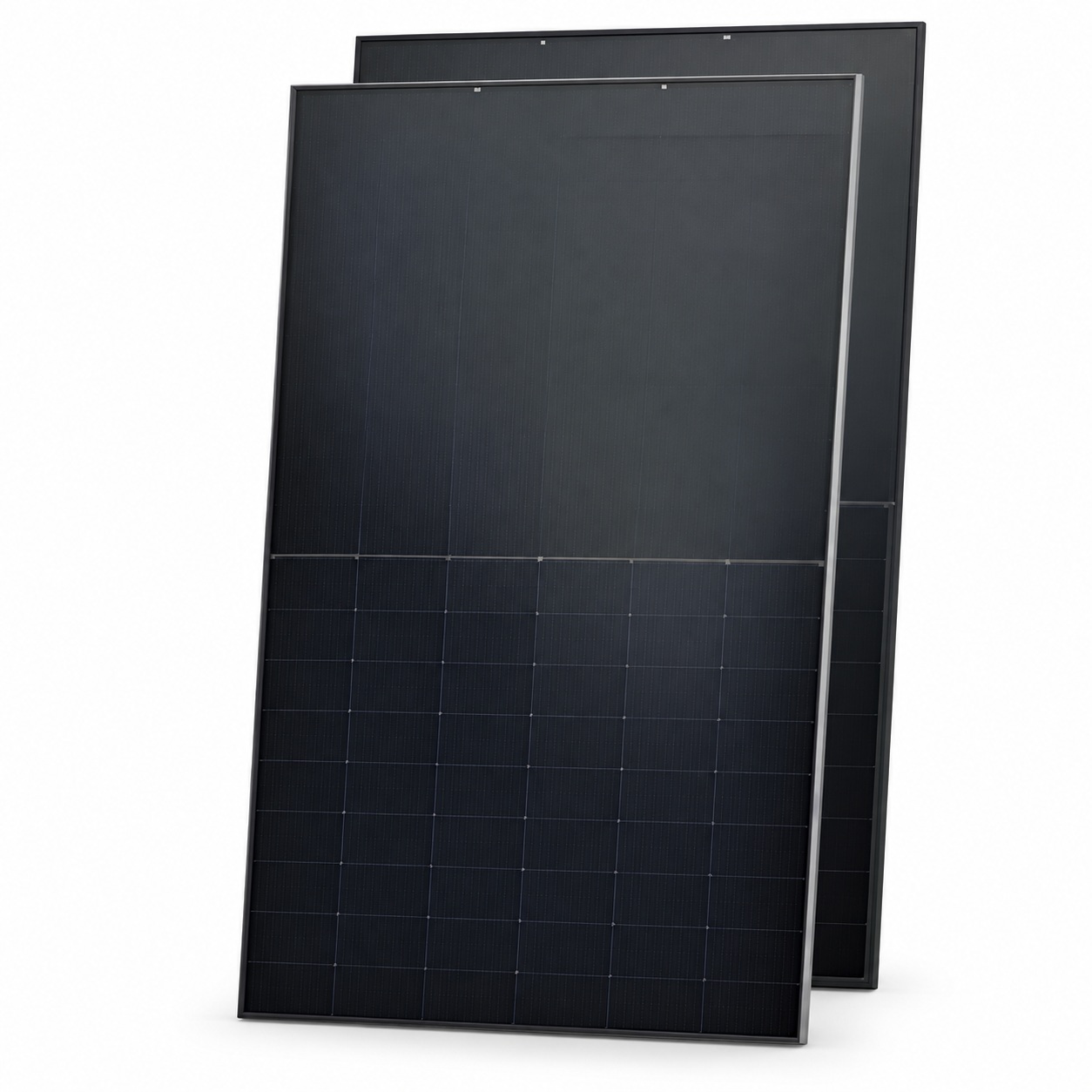

Tiger Neo 54HL4M-BDV 495-525 Wp
Bifacial photovoltaic module from JinkoSolar with double glass and advanced N-type TOPCon and HOT 3.0 technology provides high efficiency under low irradiance conditions and slower power degradation. The glass-glass construction enables two-sided energy generation by utilizing light reflected from the ground, which effectively reduces the levelized cost of energy (LCOE). This is a modern and reliable solution for demanding photovoltaic installations.
Main features of Tiger Neo 54HL4M-BDV 495-525 Wp:
- N-type TOPCon and HOT 3.0 technology: Offers higher performance, better temperature characteristics and lower degradation over time.
- High output power: Power range from 495 Wp to 525 Wp and module efficiency up to 23.61%.
- Bifacial energy generation: Utilizing radiation reflected from the ground increases the total energy yield from the installation.
- SMBB technology: Better light capture and effective current conduction provide higher reliability.
- Durability and robustness: Mechanical load resistance up to 5400 Pa on the front and 2400 Pa on the rear, and certified PID resistance.
- Long-term warranty: 15-year product warranty and 30-year linear power degradation warranty with low annual degradation.
Who is this a good choice for?
The Tiger Neo 54HL4M-BDV module is intended for residential and commercial photovoltaic installations where maximizing energy yields from limited surface area is crucial. Thanks to its bifacial design and increased resistance to harsh environmental conditions, the product performs excellently in modern solar farms as well as on flat and pitched roofs of utility buildings.
| Parameter | JKM495N-54HL4M-BDV | JKM500N-54HL4M-BDV | JKM505N-54HL4M-BDV | JKM510N-54HL4M-BDV | JKM515N-54HL4M-BDV | JKM520N-54HL4M-BDV | JKM525N-54HL4M-BDV |
|---|---|---|---|---|---|---|---|
| Mechanical characteristics | |||||||
| Cell type | N-type monocrystalline | N-type monocrystalline | N-type monocrystalline | N-type monocrystalline | N-type monocrystalline | N-type monocrystalline | N-type monocrystalline |
| Number of cells | 108 (54 × 2) | 108 (54 × 2) | 108 (54 × 2) | 108 (54 × 2) | 108 (54 × 2) | 108 (54 × 2) | 108 (54 × 2) |
| Dimensions (L × W × H) (mm) | 1961 × 1134 × 30 | 1961 × 1134 × 30 | 1961 × 1134 × 30 | 1961 × 1134 × 30 | 1961 × 1134 × 30 | 1961 × 1134 × 30 | 1961 × 1134 × 30 |
| Weight (kg) | 27.0 | 27.0 | 27.0 | 27.0 | 27.0 | 27.0 | 27.0 |
| Front glass | 2.0 mm, anti-reflective coating | 2.0 mm, anti-reflective coating | 2.0 mm, anti-reflective coating | 2.0 mm, anti-reflective coating | 2.0 mm, anti-reflective coating | 2.0 mm, anti-reflective coating | 2.0 mm, anti-reflective coating |
| Rear glass | 2.0 mm, tempered reinforced glass | 2.0 mm, tempered reinforced glass | 2.0 mm, tempered reinforced glass | 2.0 mm, tempered reinforced glass | 2.0 mm, tempered reinforced glass | 2.0 mm, tempered reinforced glass | 2.0 mm, tempered reinforced glass |
| Frame | Anodized aluminum alloy | Anodized aluminum alloy | Anodized aluminum alloy | Anodized aluminum alloy | Anodized aluminum alloy | Anodized aluminum alloy | Anodized aluminum alloy |
| Junction box | Protection rating IP68 | Protection rating IP68 | Protection rating IP68 | Protection rating IP68 | Protection rating IP68 | Protection rating IP68 | Protection rating IP68 |
| Protection class | Class II | Class II | Class II | Class II | Class II | Class II | Class II |
| IEC fire class | Class C | Class C | Class C | Class C | Class C | Class C | Class C |
| Connector type | JK03M / JK03M2 / Others | JK03M / JK03M2 / Others | JK03M / JK03M2 / Others | JK03M / JK03M2 / Others | JK03M / JK03M2 / Others | JK03M / JK03M2 / Others | JK03M / JK03M2 / Others |
| Output cables | 4.0 mm² (+): 400 mm, (-): 200 mm | 4.0 mm² (+): 400 mm, (-): 200 mm | 4.0 mm² (+): 400 mm, (-): 200 mm | 4.0 mm² (+): 400 mm, (-): 200 mm | 4.0 mm² (+): 400 mm, (-): 200 mm | 4.0 mm² (+): 400 mm, (-): 200 mm | 4.0 mm² (+): 400 mm, (-): 200 mm |
| Electrical parameters (STC) | |||||||
| Maximum power – Pmax (Wp) | 495 | 500 | 505 | 510 | 515 | 520 | 525 |
| Voltage at maximum power point – Vmp (V) | 33.72 | 33.95 | 34.17 | 34.39 | 34.62 | 34.83 | 35.05 |
| Current at maximum power point – Imp (A) | 14.68 | 14.73 | 14.78 | 14.83 | 14.88 | 14.93 | 14.98 |
| Open-circuit voltage – Voc (V) | 40.21 | 40.38 | 40.55 | 40.72 | 40.89 | 41.06 | 41.23 |
| Short-circuit current – Isc (A) | 15.58 | 15.63 | 15.68 | 15.73 | 15.78 | 15.83 | 15.88 |
| Module efficiency STC (%) | 22.26 | 22.48 | 22.71 | 22.93 | 23.16 | 23.38 | 23.61 |
| Power tolerance (%) | 0 ~ +3 | 0 ~ +3 | 0 ~ +3 | 0 ~ +3 | 0 ~ +3 | 0 ~ +3 | 0 ~ +3 |
| Temperature coefficient Pmax (%/°C) | -0.29 | -0.29 | -0.29 | -0.29 | -0.29 | -0.29 | -0.29 |
| Temperature coefficient Voc (%/°C) | -0.25 | -0.25 | -0.25 | -0.25 | -0.25 | -0.25 | -0.25 |
| Temperature coefficient Isc (%/°C) | 0.045 | 0.045 | 0.045 | 0.045 | 0.045 | 0.045 | 0.045 |
| Electrical parameters (BNPI) | |||||||
| Maximum power – Pmax (Wp) | 545 | 551 | 556 | 562 | 567 | 573 | 578 |
| Voltage at maximum power point – Vmp (V) | 33.72 | 33.95 | 34.17 | 34.39 | 34.62 | 34.83 | 35.05 |
| Current at maximum power point – Imp (A) | 16.16 | 16.22 | 16.27 | 16.33 | 16.38 | 16.44 | 16.49 |
| Open-circuit voltage – Voc (V) | 40.21 | 40.38 | 40.55 | 40.72 | 40.89 | 41.06 | 41.23 |
| Short-circuit current – Isc (A) | 17.15 | 17.21 | 17.26 | 17.32 | 17.37 | 17.43 | 17.48 |
| Environmental and operating conditions | |||||||
| Operating temperature (°C) | -40 ~ +70 | -40 ~ +70 | -40 ~ +70 | -40 ~ +70 | -40 ~ +70 | -40 ~ +70 | -40 ~ +70 |
| Maximum system voltage (VDC) | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Maximum rated fuse current (A) | 35 | 35 | 35 | 35 | 35 | 35 | 35 |
| Bifaciality coefficient | Voc: 98 ± 5%, pIsc: 80 ± 5%, pPmax: 80 ± 5% | Voc: 98 ± 5%, pIsc: 80 ± 5%, pPmax: 80 ± 5% | Voc: 98 ± 5%, pIsc: 80 ± 5%, pPmax: 80 ± 5% | Voc: 98 ± 5%, pIsc: 80 ± 5%, pPmax: 80 ± 5% | Voc: 98 ± 5%, pIsc: 80 ± 5%, pPmax: 80 ± 5% | Voc: 98 ± 5%, pIsc: 80 ± 5%, pPmax: 80 ± 5% | Voc: 98 ± 5%, pIsc: 80 ± 5%, pPmax: 80 ± 5% |
STC conditions: irradiance 1000 W/m², cell temperature 25°C, air mass coefficient AM = 1.5. BNPI conditions: front irradiance 1000 W/m², rear 135 W/m², cell temperature 25°C, AM = 1.5. MC4 and MC4-Evo2 connectors are available on request depending on availability.
