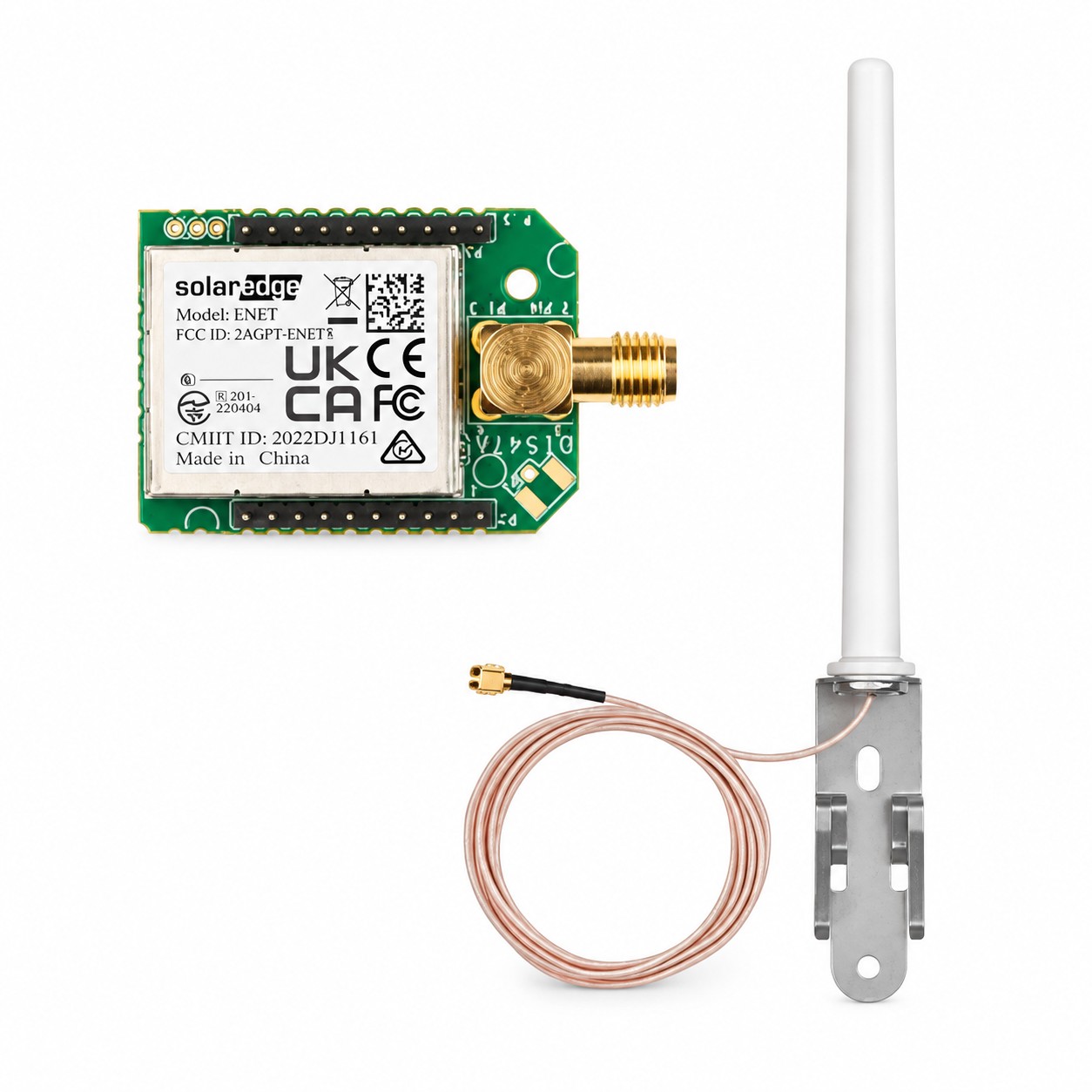

Communication module – SOLAREDGE – SE-ENET-HBNP-01 – Energy Net Plug-in + antenna
SKU: F270B1
EAN: 2010000044346
Product details
SolarEdge Energy Net Module
The SolarEdge Energy Net module is an advanced solution providing wireless mesh connectivity within the SolarEdge ecosystem for intelligent energy management. This technology ensures a fast, easy and clean installation process by completely eliminating issues related to infrastructure wiring. The device provides reliable telemetry and stable operation in demanding environmental conditions.
Key features of the SolarEdge Energy Net Module:
- Wireless mesh network: Enables seamless connectivity between the inverter and system devices without using traditional wiring.
- Fast setup: Ready-to-use connection and automatic device discovery using the SetApp application.
- Long range and stability: Network topology providing long transmission range and reliable operation in challenging conditions.
- Data security: Advanced authentication and data encryption ensuring secure telemetry.
- Wide compatibility: Works with inverters that support Energy Net and selected SolarEdge Smart Energy devices.
Who is this a good choice for?
The module is an ideal choice for installers and users of photovoltaic systems seeking wireless, reliable and easy-to-configure communication solutions. It is suitable for both residential and commercial installations where eliminating wiring, fast installation and stable integration of energy storage and EV chargers are crucial.
| Parameter | ENET-XBNP-01 | ENET-XBCL-01 | ENET-XBRP-01 |
|---|---|---|---|
| Performance | |||
| Transmit power (max.) (dBm) | 17(1) | 17(1) | 17(1) |
| Receiver sensitivity (dBm) | -100 | -100 | -100 |
| EIRP with antenna (dBm) | 22(1) | 22(1) | 22(1) |
| Indoor range (no obstructions) (m / ft) | 50 / 160 | 50 / 160 | 50 / 160 |
| Frequency band (MHz) | High band: 863–876, 902–930; Low band: 310–358, 426–445 | High band: 863–876, 902–930; Low band: 310–358, 426–445 | High band: 863–876, 902–930; Low band: 310–358, 426–445 |
| Environmental conditions | |||
| Operating temperature (°C) | od -40 do +185 | od -40 do +185 | od -40 do +185 |
| Storage temperature (°C) | od -40 do +185 | od -40 do +185 | od -40 do +185 |
| Mechanical data | |||
| Size (mm) | 25 × 35 | 33 × 76 | 25 × 35 |
| Power | |||
| DC voltage (rated) (V DC) | 3,3 | 3,3 | 3,3 |
| Maximum input current (mA) | 200 | 200 | 200 |
| Antenna | |||
| Antenna bands (MHz) | High band: 863–930; Low band: 310–445 | High band: 863–930; Low band: 310–445 | High band: 863–930; Low band: 310–445 |
| Antenna type | External | External | External |
| Antenna connector | RP-SMA | RP-SMA | RP-SMA |
| VSWR | < 4,0 | < 4,0 | < 4,0 |
| Gain (dBi) | 2 | 2 | 2 |
| Polarization | Vertical | Vertical | Vertical |
| Material | PC Lexan 503R-WH5151L or WH8G952 Sabic | PC Lexan 503R-WH5151L or WH8G952 Sabic | PC Lexan 503R-WH5151L or WH8G952 Sabic |
| Antenna dimensions (L × diameter) (mm) | 200 × 20 | 200 × 20 | 200 × 20 |
| Compliance | |||
| USA | FCC Part 15B, FCC Part 15C | FCC Part 15B, FCC Part 15C | FCC Part 15B, FCC Part 15C |
| Canada | ICES-003, RSS-247 for SRD, RSS-102 report regarding maximum permissible exposure | ICES-003, RSS-247 for SRD, RSS-102 report regarding maximum permissible exposure | ICES-003, RSS-247 for SRD, RSS-102 report regarding maximum permissible exposure |
| Europe – EMC/EMI emissions | CISPR 32, EN 55032, EN 55035, EN 301 489-1, EN 301 489-3 | CISPR 32, EN 55032, EN 55035, EN 301 489-1, EN 301 489-3 | CISPR 32, EN 55032, EN 55035, EN 301 489-1, EN 301 489-3 |
| Europe – Radio signal | EN 62311 (test for exposure to electromagnetic fields), EN 300-220-1, EN 300-220-2 | EN 62311 (test for exposure to electromagnetic fields), EN 300-220-1, EN 300-220-2 | EN 62311 (test for exposure to electromagnetic fields), EN 300-220-1, EN 300-220-2 |
| Australia – EMC/EMI emissions | CISPR 32, AS/NZS CISPR 32, AS/NZS 4268 | CISPR 32, AS/NZS CISPR 32, AS/NZS 4268 | CISPR 32, AS/NZS CISPR 32, AS/NZS 4268 |
| Australia – Radio signal | AS/NZS 4268 | AS/NZS 4268 | AS/NZS 4268 |
| Japan – EMC/EMI emissions | VCCI CISPR 32 | VCCI CISPR 32 | VCCI CISPR 32 |
| Japan – Radio signal | ARIB STD-T93, extremely low power – Japanese standard | ARIB STD-T93, extremely low power – Japanese standard | ARIB STD-T93, extremely low power – Japanese standard |
| Korea – EMC/EMI and radio | Korea RF (KN 32/35) | Korea RF (KN 32/35) | Korea RF (KN 32/35) |
| Taiwan – EMC/EMI and radio | NCC LP0002 | NCC LP0002 | NCC LP0002 |
| Compatibility | |||
| Device compatibility | Inverter supporting Energy Net with part number format: SE…-…BExx, SE…-…BZxx, SE…-…BXxx, SE…-…BLxx (e.g., SE7K-AUBTEBEU4) | Inverter with SetApp support (Note: connection to cellular plug; cannot be installed in parallel with the cellular plug or the ZigBee plug) | LCD inverter supporting the SetApp application(2) (requires replacement with a communication card with LCD) |
(1) Transmit power / EIRP may be higher according to national requirements in specific countries.
(2) A communication card with LCD adapted for Energy Net communication is required.
