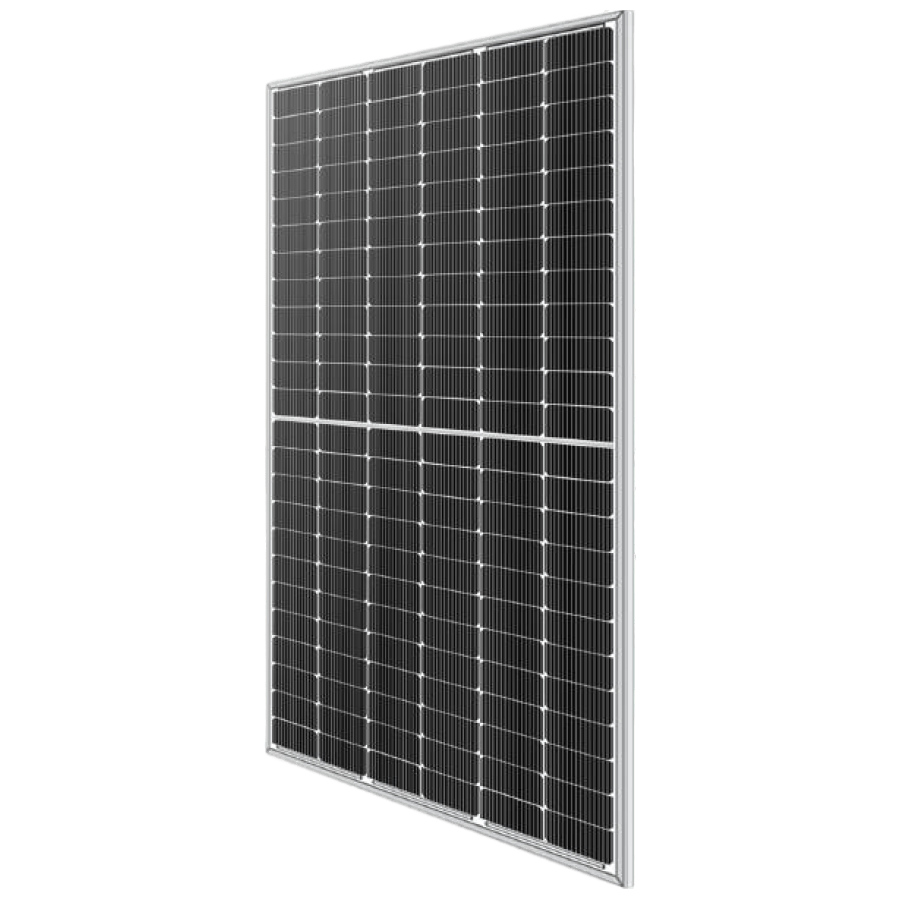

Module – LEAPTON – LP182*199-M-66-NH-580W
| Manufacturer | |
|---|---|
| Model | |
| Power | |
| Fullblack | |
| Frame color | |
| Efficiency | |
| Tier 1 | |
| Product warranty | |
| Linear power warranty | |
| Module type | |
| PV cell type | |
| Double glass | |
| Number of busbars | |
| Fire resistance class | |
| Frame thickness | |
| Height | |
| Width | |
| Maximum static load (Pa) | |
| Cable length (+) | |
| Cable length (-) | 300 mm |
| Quantity per pallet | |
| Quantity per container | |
| CN | 85414300 |
Incl. VAT
Product details
| Manufacturer | |
|---|---|
| Model | |
| Power | |
| Fullblack | |
| Frame color | |
| Efficiency | |
| Tier 1 | |
| Product warranty | |
| Linear power warranty | |
| Module type | |
| PV cell type | |
| Double glass | |
| Number of busbars | |
| Fire resistance class | |
| Frame thickness | |
| Height | |
| Width | |
| Maximum static load (Pa) | |
| Cable length (+) | |
| Cable length (-) | 300 mm |
| Quantity per pallet | |
| Quantity per container | |
| CN | 85414300 |
LP182*199-M-66-NH
LP182*199-M-66-NH is a photovoltaic module using N-type cells in TOPCon technology to generate electrical energy from solar radiation. The half-cut cell design with dimensions 182 × 199 mm provides a rated power of 560–585 W, depending on the variant. The module features enhanced low-light performance and protection that reduces the risk of PID-induced degradation.
Key advantages of LP182*199-M-66-NH
- Power and efficiency: rated power 560–585 W and efficiency 21.67–22.64% under Standard Test Conditions (STC), depending on the variant.
- N-type cells with multiple busbars: the new circuit design can increase output power by 10–20 W.
- Low-light performance: improved efficiency in low-irradiance conditions.
- Proven durability: TÜV Nord tests include wind load 2400 Pa, snow load 5400 Pa, and resistance to salt mist and ammonia corrosion.
- Module construction: IP68 junction box, aluminum alloy frame and 3.2 mm tempered front glass with anti-reflective coating.
- Warranties: 25-year product warranty and 30-year power warranty; the linear power warranty specifies an annual degradation of 0.4% and 87.4% after 30 years.
Who is this a good choice for?
This is an option for photovoltaic system users looking for a module with up to 585 W of power and documented efficiency. The enhanced low-light performance will be important for those concerned with module operation at lower irradiance, and the 30-year power warranty is attractive for owners planning long-term system operation.
| Parameter | LP182*199-M-66-NH 560W | LP182*199-M-66-NH 565W | LP182*199-M-66-NH 570W | LP182*199-M-66-NH 575W | LP182*199-M-66-NH 580W | LP182*199-M-66-NH 585W |
|---|---|---|---|---|---|---|
| Electrical data (STC) | ||||||
| Maximum power (W) | 421 | 471 | 429 | 433 | 437 | 440 |
| Open-circuit voltage Voc (V) | 45,04 | 45,24 | 45,44 | 45,64 | 45,84 | 46,04 |
| Short-circuit current Isc (A) | 12,01 | 12,07 | 12,13 | 12,19 | 12,23 | 12,25 |
| Voltage at maximum power point Vmp (V) | 36,84 | 37,04 | 34,24 | 37,44 | 37,64 | 37,84 |
| Current at maximum power point Imp (A) | 11,43 | 11,48 | 11,52 | 11,57 | 11,61 | 11,63 |
| Module efficiency (%) | 21,67 | 21,86 | 22,06 | 22,25 | 22,44 | 22,64 |
| Electrical data (NMOT) | ||||||
| Maximum power (W) | 421 | 471 | 429 | 433 | 437 | 440 |
| Open-circuit voltage Voc (V) | 45,04 | 45,24 | 45,44 | 45,64 | 45,84 | 46,04 |
| Short-circuit current Isc (A) | 12,01 | 12,07 | 12,13 | 12,19 | 12,23 | 12,25 |
| Voltage at maximum power point Vmp (V) | 36,84 | 37,04 | 34,24 | 37,44 | 37,64 | 37,84 |
| Current at maximum power point Imp (A) | 11,43 | 11,48 | 11,52 | 11,57 | 11,61 | 11,63 |
| Dimensions and construction | ||||||
| Weight (kg) | 27 | |||||
| Dimensions (mm) | 2279×1134×30 | |||||
| Cell dimensions (mm) | 182×199 | |||||
| Number of cells (pcs) | 66×2 | |||||
| Front glass thickness (mm) | 3,2 | |||||
| Front glass | 3.2mm, anti-reflective coating, high transmittance, low-iron, tempered | |||||
| Frame material | Aluminum alloy | |||||
| Electrical connections | ||||||
| Junction box protection rating | IP68 | |||||
| Cable cross-section (mm²) | 4 | |||||
| Cable length for horizontal installation (mm) | N: 1400 / P: 1400 | |||||
| Cable length for vertical installation (mm) | N: 300 / P: 300 | |||||
| Connectors | Compatible with MC4 | |||||
| Temperature characteristics | ||||||
| Nominal module operating temperature NMOT (°C) | 41±3 | |||||
| Temperature coefficient Voc (%/°C) | -0,25 | |||||
| Temperature coefficient Isc (%/°C) | +0,046 | |||||
| Temperature coefficient Pmax (%/°C) | -0,30 | |||||
| Operating conditions and limits | ||||||
| Maximum system voltage (V) | 1500 | |||||
| Power tolerance (W) | 0~+5 | |||||
| Operating temperature (°C) | -40~+85 | |||||
| Wind load (Pa) | 2400 | |||||
| Snow load (Pa) | 5400 | |||||
| Fuse current (A) | 25 | |||||
| Warranty | ||||||
| Product warranty (years) | 25 | |||||
STC: irradiance 1000 W/m², AM 1.5 spectrum, cell temperature 25°C. NMOT: irradiance 800 W/m², AM 1.5 spectrum, ambient temperature 20°C, wind speed 1 m/s.
