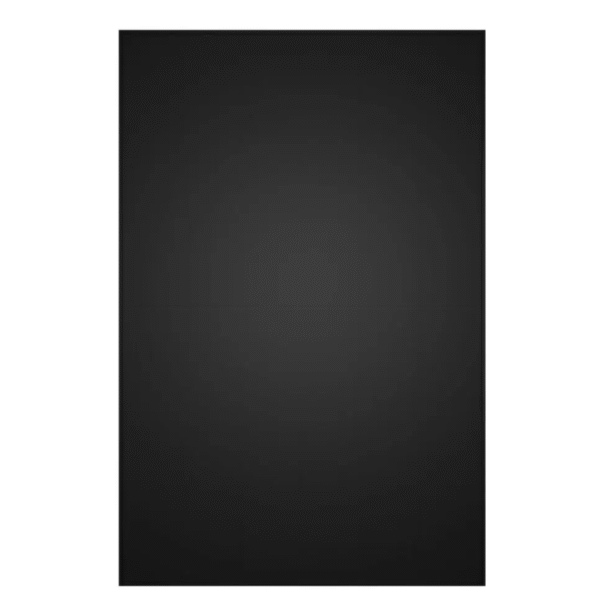

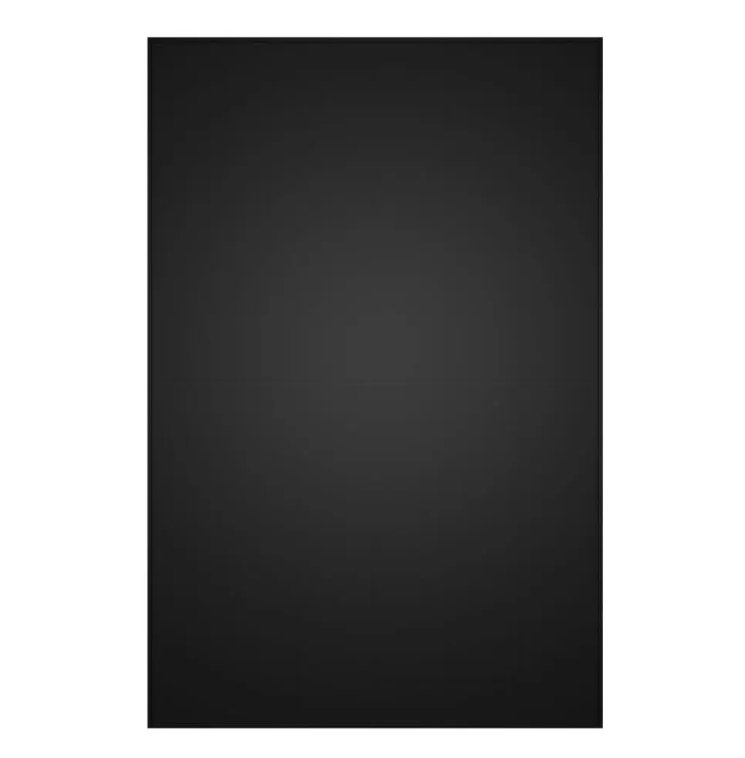

LONGI 425 Module – LR5-54HTDB-425M Ultra Black / Back Contact

SKU: F1100 EAN: 2010000032107
Manufacturer

Power

Efficiency

Product warranty

Linear power warranty

Maximum static load (Pa)

Frame color

Frame thickness

Height

Width

Tier 1

Quantity per pallet

Quantity per container

Cable length (+)

Cable length (-)

1200 mm

Fire resistance class

Double glass

PV cell type

Module type

Model

Weight 22,5 kg
CN 85414300
Price 72,72
Gross

72,72
Gross

72,72
Gross

Datasheet Longi Solar LR5-54HTDB-420M - LR5-54HTDB-435M Longi-Solar-LR5-54HTDB-420M-LR5-54HTDB-435M-Datasheet.pdf Certificate of compliance 1 Longi Solar LR5-54HTDB-420M - LR5-54HTDB-435M Longi-Solar-LR5-54HTDB-420M-LR5-54HTDB-435M-Certificate-of-compliance-1.pdf Certificate of compliance 2 Longi Solar LR5-54HTDB-420M - LR5-54HTDB-435M Longi-Solar-LR5-54HTDB-420M-LR5-54HTDB-435M-Certificate-of-compliance-2.pdf

Product details

Manufacturer

Power

Efficiency

Product warranty

Linear power warranty

Maximum static load (Pa)

Frame color

Frame thickness

Height

Width

Tier 1

Quantity per pallet

Quantity per container

Cable length (+)

Cable length (-)

1200 mm

Fire resistance class

Double glass

PV cell type

Module type

Model

Weight 22,5 kg
CN 85414300

LONGi Hi-MO X6 Artist Ultra Black LR5-54HTDB Solar Panel

The LONGi Hi-MO X6 Artist Ultra Black LR5-54HTDB solar panel combines a sleek, fully black appearance with uncompromising quality and state-of-the-art technology. Designed for both aesthetics and maximum performance, it delivers power in the 420–435 W range with module efficiency up to 22.3%. It’s an ideal solution for those seeking “Green Energy for a Better Life”, backed by long warranties and numerous certifications that confirm its high standards.

Key features of the LONGi Hi-MO X6 Artist Ultra Black LR5-54HTDB Solar Panel:

  • Elegant Ultra Black design: The fully black module provides excellent aesthetics, blending perfectly with modern architecture and enhancing the visual appeal of any installation.
  • High power and efficiency: Output power ranging from 420 W to 435 W and a maximum module efficiency of 22.3%, ensuring excellent energy yield.
  • Long-term warranties: An impressive 25-year product warranty and a 30-year warranty on linear power degradation, ensuring 86.9% power retention after 30 years.
  • Low power degradation: Maximum power loss below 1.5% in the first year and only 0.40% per year from years 2 to 30, demonstrating high durability.
  • Mechanical strength: Double-glass construction (coated tempered glass 2.0 mm + partially tempered glass 1.6 mm), resistance to static loads up to 6000 Pa (front) and 3600 Pa (rear), and a hail test (25 mm spheres at 23 m/s).

Who is this a good choice for?

The LONGi Hi-MO X6 Artist Ultra Black panel is an excellent choice for customers who value not only high performance and reliability but also outstanding aesthetics for their photovoltaic installation. It is ideal for modern single-family homes and commercial buildings where appearance matters. Long warranties, high efficiency, and a robust construction make it a reliable and cost-effective option for many years, delivering green energy and increasing property value.

Datasheet Longi Solar LR5-54HTDB-420M - LR5-54HTDB-435M Longi-Solar-LR5-54HTDB-420M-LR5-54HTDB-435M-Datasheet.pdf Certificate of compliance 1 Longi Solar LR5-54HTDB-420M - LR5-54HTDB-435M Longi-Solar-LR5-54HTDB-420M-LR5-54HTDB-435M-Certificate-of-compliance-1.pdf Certificate of compliance 2 Longi Solar LR5-54HTDB-420M - LR5-54HTDB-435M Longi-Solar-LR5-54HTDB-420M-LR5-54HTDB-435M-Certificate-of-compliance-2.pdf



Parameter LR5-54HTDB-420M LR5-54HTDB-425M LR5-54HTDB-430M LR5-54HTDB-435M
ELECTRICAL PARAMETERS (STC: AM1.5, 1000W/m², 25°C)
Maximum power (Pmax/W) 420 425 430 435
Open-circuit voltage (Voc/V) 39.45 39.65 39.85 40.05
Short-circuit current (Isc/A) 13.54 13.61 13.69 13.77
Voltage at Pmax (Vmp/V) 33.07 33.27 33.47 33.67
Current at Pmax (Imp/A) 12.71 12.78 12.85 12.92
Module efficiency (%) 21.5 21.8 22.0 22.3
ELECTRICAL PARAMETERS (NOCT: AM1.5, 800W/m², 20°C, 1m/s)
Maximum power (Pmax/W) 313 317 321 325
Open-circuit voltage (Voc/V) 37.04 37.23 37.42 37.60
Short-circuit current (Isc/A) 10.94 10.99 11.06 11.12
Voltage at Pmax (Vmp/V) 30.18 30.36 30.54 30.72
Current at Pmax (Imp/A) 10.40 10.46 10.53 10.58
MECHANICAL PARAMETERS
Number of cells 108 (6×18) 108 (6×18) 108 (6×18) 108 (6×18)
Connectors IP68 IP68 IP68 IP68
Output cables 4 mm², ±1200 mm (length customizable) 4 mm², ±1200 mm (length customizable) 4 mm², ±1200 mm (length customizable) 4 mm², ±1200 mm (length customizable)
Glass Double glass, 2.0 mm coated tempered glass + 1.6 mm partially tempered glass Double glass, 2.0 mm coated tempered glass + 1.6 mm partially tempered glass Double glass, 2.0 mm coated tempered glass + 1.6 mm partially tempered glass Double glass, 2.0 mm coated tempered glass + 1.6 mm partially tempered glass
Frame Anodized aluminum alloy frame Anodized aluminum alloy frame Anodized aluminum alloy frame Anodized aluminum alloy frame
Weight (kg) 22.5 22.5 22.5 22.5
Dimensions (mm) 1722 × 1134 × 30 1722 × 1134 × 30 1722 × 1134 × 30 1722 × 1134 × 30
Packaging 36 pcs per pallet 36 pcs per pallet 36 pcs per pallet 36 pcs per pallet
OPERATING CONDITIONS AND LOADS
Operating temperature (°C) -40 ~ +85 -40 ~ +85 -40 ~ +85 -40 ~ +85
Power output tolerance (%) 0 ~ +3 0 ~ +3 0 ~ +3 0 ~ +3
Maximum system voltage (V DC) 1500 (IEC) 1500 (IEC) 1500 (IEC) 1500 (IEC)
Fuse rating (A) 30 30 30 30
Cell temperature under normal operating conditions (NOCT) (°C) 45 ± 2 45 ± 2 45 ± 2 45 ± 2
Protection class II II II II
Fire rating IEC Class C IEC Class C IEC Class C IEC Class C
Max front static load (Pa) 6000 6000 6000 6000
Max rear static load (Pa) 3600 3600 3600 3600
Hailstone test 25 mm hailstone at 23 m/s 25 mm hailstone at 23 m/s 25 mm hailstone at 23 m/s 25 mm hailstone at 23 m/s
THERMAL PARAMETERS (STC)
Temperature coefficient of Isc (%/°C) +0.050 +0.050 +0.050 +0.050
Temperature coefficient of Voc (%/°C) -0.230 -0.230 -0.230 -0.230
Temperature coefficient of Pmax (%/°C) -0.290 -0.290 -0.290 -0.290
