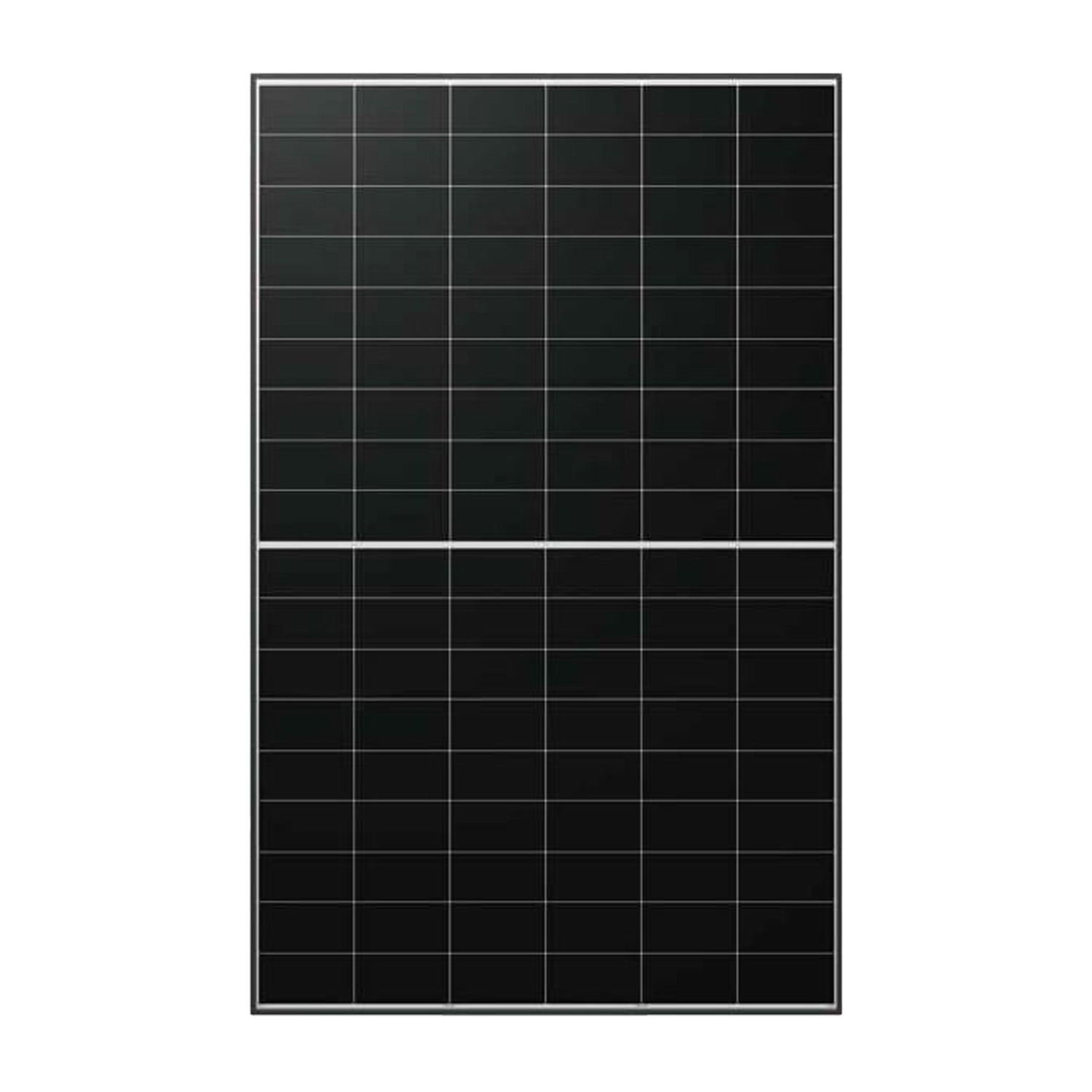

LONGI Module 465 – LR7-54HTH-465M BF
SKU: F130C12
| Manufacturer | |
|---|---|
| Power | |
| Type | Monocrystalline |
| Efficiency | |
| Product warranty | |
| Linear power warranty | |
| Maximum static load (Pa) | |
| Frame color | |
| Frame thickness | |
| Height | |
| Width | |
| Cell type | |
| Tier 1 | |
| Quantity per pallet | |
| Quantity per container | |
| Cable length (+) | 1200 mm |
| Cable length (-) | 1200 mm |
| Technology | |
| Weight | 21,6 kg |
| CN | 85414300 |
Product details
| Manufacturer | |
|---|---|
| Power | |
| Type | Monocrystalline |
| Efficiency | |
| Product warranty | |
| Linear power warranty | |
| Maximum static load (Pa) | |
| Frame color | |
| Frame thickness | |
| Height | |
| Width | |
| Cell type | |
| Tier 1 | |
| Quantity per pallet | |
| Quantity per container | |
| Cable length (+) | 1200 mm |
| Cable length (-) | 1200 mm |
| Technology | |
| Weight | 21,6 kg |
| CN | 85414300 |
LONGi Hi-MO X6 Explorer LR7-54HTH 455~465M Solar Panel
The LONGi Hi-MO X6 Explorer LR7-54HTH solar panel is a technologically advanced solution designed for the distribution market, combining modern design with top-notch energy generation efficiency. This module features exceptional performance parameters and an extended warranty, resulting in reliability and superior service. It is the ideal choice for those seeking effective and durable photovoltaic systems.
Key Features of the LONGi Hi-MO X6 Explorer LR7-54HTH 455~465M Solar Panel:
- High Efficiency: Maximum module efficiency reaching 22.8%, ensuring optimal energy production.
- Power Range: Output power ranging from 455W to 465W with a positive power tolerance of 0~+3%.
- Extended Warranty: A 15-year warranty on materials and workmanship and a 25-year warranty on linear output power (maintaining 89.4% output after 25 years).
- Low Power Degradation: Power degradation below 1% in the first year and only 0.40% annually from years 2 to 25.
- Modern Design and Certifications: Simple, elegant aesthetics along with a full set of system and product certifications, including IEC 61215, IEC 61730, UL 61730.
Who is this a good choice for?
The LONGi Hi-MO X6 Explorer panel is an excellent choice for clients in the distribution market, including installers and companies executing photovoltaic projects in both residential and commercial sectors. Its high efficiency, long-term warranty, and aesthetic appeal make it a suitable product for those who value reliability, modern technology, and cost optimization in electricity production over the long term.
| Parameter | LR7-54HTH-455M | LR7-54HTH-460M | LR7-54HTH-465M |
|---|---|---|---|
| Electrical Characteristics | |||
| Parameters under STC (Irradiance 1000W/m², Cell temperature 25°C, AM1.5) | |||
| Maximum Power (Pmax/W) | 455 | 460 | 465 |
| Open Circuit Voltage (Voc/V) | 39.15 | 39.35 | 39.55 |
| Short Circuit Current (Isc/A) | 14.79 | 14.86 | 14.93 |
| Voltage at Maximum Power (Vmp/V) | 32.98 | 33.19 | 33.39 |
| Current at Maximum Power (Imp/A) | 13.80 | 13.86 | 13.93 |
| Module Efficiency (%) | 22.3 | 22.5 | 22.8 |
| Parameters under NOCT (Irradiance 800W/m², Ambient temperature 20°C, Wind 1m/s, AM1.5) | |||
| Maximum Power (Pmax/W) | 340.0 | 343.7 | 347.4 |
| Open Circuit Voltage (Voc/V) | 36.76 | 36.95 | 37.13 |
| Short Circuit Current (Isc/A) | 11.95 | 12.00 | 12.06 |
| Voltage at Maximum Power (Vmp/V) | 30.09 | 30.29 | 30.47 |
| Current at Maximum Power (Imp/A) | 11.30 | 11.35 | 11.41 |
| Key Features | |||
| Target Market | Designed for the distribution market | Designed for the distribution market | Designed for the distribution market |
| Design | Sleek design embodying modern style | Sleek design embodying modern style | Sleek design embodying modern style |
| Performance | Top efficiency and best energy generation performance | Top efficiency and best energy generation performance | Top efficiency and best energy generation performance |
| Support | Better product warranty and service | Better product warranty and service | Better product warranty and service |
| Product Warranty | |||
| Warranty for materials and workmanship (years) | 15 | 15 | 15 |
| Warranty for linear output power (years) | 25 | 25 | 25 |
| Key Performance Indicators of the Series | |||
| Output Power Tolerance (%) | 0~+3 | 0~+3 | 0~+3 |
| Power Degradation in the First Year (%) | <1 | <1 | <1 |
| Power Degradation in Years 2-25 (%/year) | 0.40 | 0.40 | 0.40 |
| Guaranteed Power Output after 1 Year (%) | ≥99 | ≥99 | ≥99 |
| Guaranteed Power Output after 25 Years (%) | ≥89.4 | ≥89.4 | ≥89.4 |
| Mechanical Parameters | |||
| Cell Orientation | 108 (6×18) | 108 (6×18) | 108 (6×18) |
| Junction Box (protection class) | IP68 | IP68 | IP68 |
| Output Cable (cross-section, mm²) | 4 | 4 | 4 |
| Output Cable (length, mm) | ±1200 (length can be customized) | ±1200 (length can be customized) | ±1200 (length can be customized) |
| Glass | Single glass, 3.2mm tempered glass with coating | Single glass, 3.2mm tempered glass with coating | Single glass, 3.2mm tempered glass with coating |
| Frame | Anodized aluminum alloy frame | Anodized aluminum alloy frame | Anodized aluminum alloy frame |
| Weight (kg) | 21.6 | 21.6 | 21.6 |
| Dimensions (L×W×H, mm) | 1800×1134×30 | 1800×1134×30 | 1800×1134×30 |
| Packaging | 36 pcs/palette; 216 pcs/20’GP; 864 pcs/40’HC | 36 pcs/palette; 216 pcs/20’GP; 864 pcs/40’HC | 36 pcs/palette; 216 pcs/20’GP; 864 pcs/40’HC |
| Operational Parameters | |||
| Operating Temperature (°C) | -40 ~ +85 | -40 ~ +85 | -40 ~ +85 |
| Maximum System Voltage (V DC) | 1500 (IEC/UL) | 1500 (IEC/UL) | 1500 (IEC/UL) |
| Maximum Rated Current of Series Fuse (A) | 25 | 25 | 25 |
| Nominal Operating Cell Temperature (°C) | 45 ± 2 | 45 ± 2 | 45 ± 2 |
| Protection Class | Class II | Class II | Class II |
| Fire Resistance Class | IEC Class C | IEC Class C | IEC Class C |
| Mechanical Load | |||
| Maximum Static Load (front, Pa) | 5400 | 5400 | 5400 |
| Maximum Static Load (back, Pa) | 2400 | 2400 | 2400 |
| Hail Resistance | Hail with a diameter of 25mm at a speed of 23m/s | Hail with a diameter of 25mm at a speed of 23m/s | Hail with a diameter of 25mm at a speed of 23m/s |
| Temperature Coefficients (STC) | |||
| Temperature Coefficient Isc (%/°C) | +0.050 | +0.050 | +0.050 |
| Temperature Coefficient Voc (%/°C) | -0.230 | -0.230 | -0.230 |
| Temperature Coefficient Pmax (%/°C) | -0.280 | -0.280 | -0.280 |
| Certifications and Standards | |||
| Product Certifications | IEC 61215, IEC 61730, UL 61730 | IEC 61215, IEC 61730, UL 61730 | IEC 61215, IEC 61730, UL 61730 |
| Management System Certifications | ISO 9001:2015, ISO 14001:2015, ISO 45001:2018 | ISO 9001:2015, ISO 14001:2015, ISO 45001:2018 | ISO 9001:2015, ISO 14001:2015, ISO 45001:2018 |
| Module Design Qualification and Type Approval | IEC 62941 | IEC 62941 | IEC 62941 |
