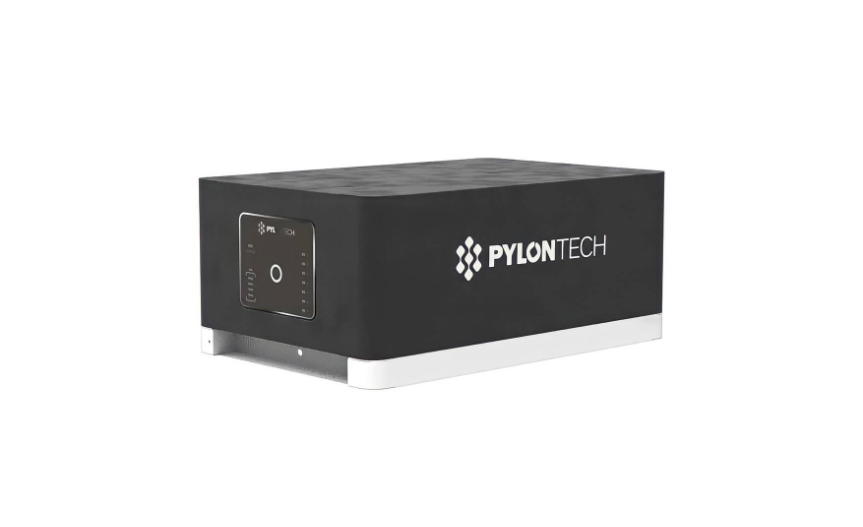

Control module – PYLONTECH – Force L2 BMS
SKU: F11621
EAN: 5905951589749
| Manufacturer | |
|---|---|
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| Weight | 17 kg |
| CN | 85371010 |
Price
112,34 €
Gross
Gross
Product details
| Manufacturer | |
|---|---|
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| Weight | 17 kg |
| CN | 85371010 |
FORCE SERIES
FORCE SERIES by PYLONTECH is a range of low-voltage energy storage systems designed for households and small and medium-sized businesses. It uses lithium iron phosphate (LFP) cells and a modular design that allows capacity to be tailored to the user’s needs. The systems offer a usable capacity of 6.39–22.37 kWh, depending on the model.
Key benefits of FORCE SERIES
- Modular design: configurations with 2–7 modules provide a nominal capacity of 7.10–24.86 kWh, depending on the model.
- LFP technology: lithium iron phosphate cells and a BMS battery management system compatible with inverters.
- Energy parameters: efficiency of 96% at a charge or discharge rate of up to 0.5C and a depth of discharge of 90%.
- Rated power on the DC side: 3.6–4.8 kW, depending on the model, and a maximum power of 5.28 kW for 15 seconds.
- IP55 protection rating: operating temperature from 0 to 50°C.
- Durability and warranty: declared service life of over 15 years and a 10-year warranty.
Who is this a good choice for?
FORCE SERIES is designed for households needing energy storage and small and medium-sized businesses seeking a system with selectable capacity. Modular configurations allow users to choose the amount of energy stored, while RS485 and CAN communication and BMS compatibility with inverters support system integration.
| Parameter | US2000C | US3000C | Phantom-S | Force-L1-48-148 | Force-L1-48-222 | Force-L1-48-296 | Force-L1-48-370 | Force-L1-48-444 | Force-L1-48-518 | Force-L2-48/148AH | Force-L2-48/222AH | Force-L2-48/296AH |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Electrical data | ||||||||||||
| Cell technology | Li-ion (LFP) | |||||||||||
| Nominal voltage (V) | 48 | |||||||||||
| Nominal energy (Wh) | 2400 | 3552 | 2400 | |||||||||
| Usable energy (Wh) | 2280 | 3374,4 | 2200 | |||||||||
| Nominal system energy (kWh) | 7,10 | 10,65 | 14,20 | 17,76 | 21,31 | 24,86 | 7,10 | 10,65 | 14,20 | |||
| Usable system energy (kWh) | 6,39 | 9,59 | 12,78 | 15,98 | 19,18 | 22,37 | 6,39 | 9,59 | 12,78 | |||
| System capacity (Ah) | 148 | 222 | 296 | 370 | 444 | 518 | 148 | 222 | 296 | |||
| Discharge voltage range (V) | 44,5 ~ 53,5 | |||||||||||
| Charging voltage range (V) | 52,5 ~ 53,5 | |||||||||||
| Maximum system charging voltage (V DC) | 53,5 | |||||||||||
| System lower discharge voltage (V DC) | 44,5 | |||||||||||
| Recommended charging and discharging current (A) | 25 | 37 | 25 | |||||||||
| Maximum charging and discharging current (A) | 50 | 74 | 50 | |||||||||
| Standard charging and discharging current (A) | 30 | 45 | 60 | 75 | 90 | 100 | 30 | 45 | 60 | |||
| Normal charging and discharging current (A) | 75 | 100 | 75 | 100 | ||||||||
| Peak charging and discharging current for 15 s (A) | 90 | 100 | 110 | |||||||||
| Rated DC system power (kW) | 3,6 | 4,8 | 3,6 | 4,8 | ||||||||
| Maximum DC system power for 15 s (kW) | 5,28 | |||||||||||
| Efficiency and durability | ||||||||||||
| Efficiency at a current of ≤0.5C (%) | 96 | |||||||||||
| Depth of discharge (%) | 90 | |||||||||||
| Design life at 25°C (years) | 15⁺ | |||||||||||
| Service life (years) | 15+ | |||||||||||
| Cycle life at 25°C (cycles) | >6000 | |||||||||||
| Configuration and communication | ||||||||||||
| Communication interface | RS485, CAN | RS485\CAN | ||||||||||
| Number of units in a single string (pcs.) | 16 | 8 | ||||||||||
| Battery controller model | FC0048-100S | FC0048M-100S | ||||||||||
| Battery module model | FL48074 | FL4874M | ||||||||||
| Number of battery modules (pcs.) | 2 | 3 | 4 | 5 | 6 | 7 | 2 | 3 | 4 | |||
| Nominal energy of the battery module (kWh) | 3,552 | |||||||||||
| Battery module voltage (V DC) | 48 | |||||||||||
| Battery module capacity (Ah) | 74 | |||||||||||
| Protection and control functions | Pre-charging; dual active protection; flexible current steps; wake-up via potential-free contact | |||||||||||
| Dimensions and weight | ||||||||||||
| Dimensions (mm) | 442*410*89 | 442*420*132 | 440*440*88,5 | 600*380*530 | 600*380*700 | 600*380*870 | 600*380*1040 | 600*380*1210 | 600*380*1380 | 450*296*822 | 450*296*1120 | 450*296*1415 |
| Weight (kg) | 24 | 32 | 24 | 86,5 | 123 | 159,5 | 196 | 232,5 | 269 | 82 | 117,5 | 153 |
| Battery controller dimensions, W × D × H (mm) | 600x380x150 | 450×296×190 | ||||||||||
| Battery module dimensions, W × D × H (mm) | 600x380x170 | 450×296×296 | ||||||||||
| Base dimensions, W × D × H (mm) | 600x380x40 | 450×296×40 | ||||||||||
| Operating conditions | ||||||||||||
| Operating temperature (°C) | 0~50 | |||||||||||
| Storage temperature (°C) | -20~60 | |||||||||||
| Humidity (%) | 5%~95 | |||||||||||
| Altitude above sea level (m) | <2000 | <2,000 | ||||||||||
| Degree of protection | IP55 | |||||||||||
| Certificates | ||||||||||||
| Certificates and standards | IEC62619/CE /UN38.3 | VDE2510-50/IEC62619/UL1973 UL9540A/CE/UN38.3 | IEC62619/CE /UN38.3 | VDE2510-50, IEC62619, CE RED, IEC62477-1, UN38.3 | ||||||||
| Warranty | ||||||||||||
| Product warranty (years) | 10 | |||||||||||
