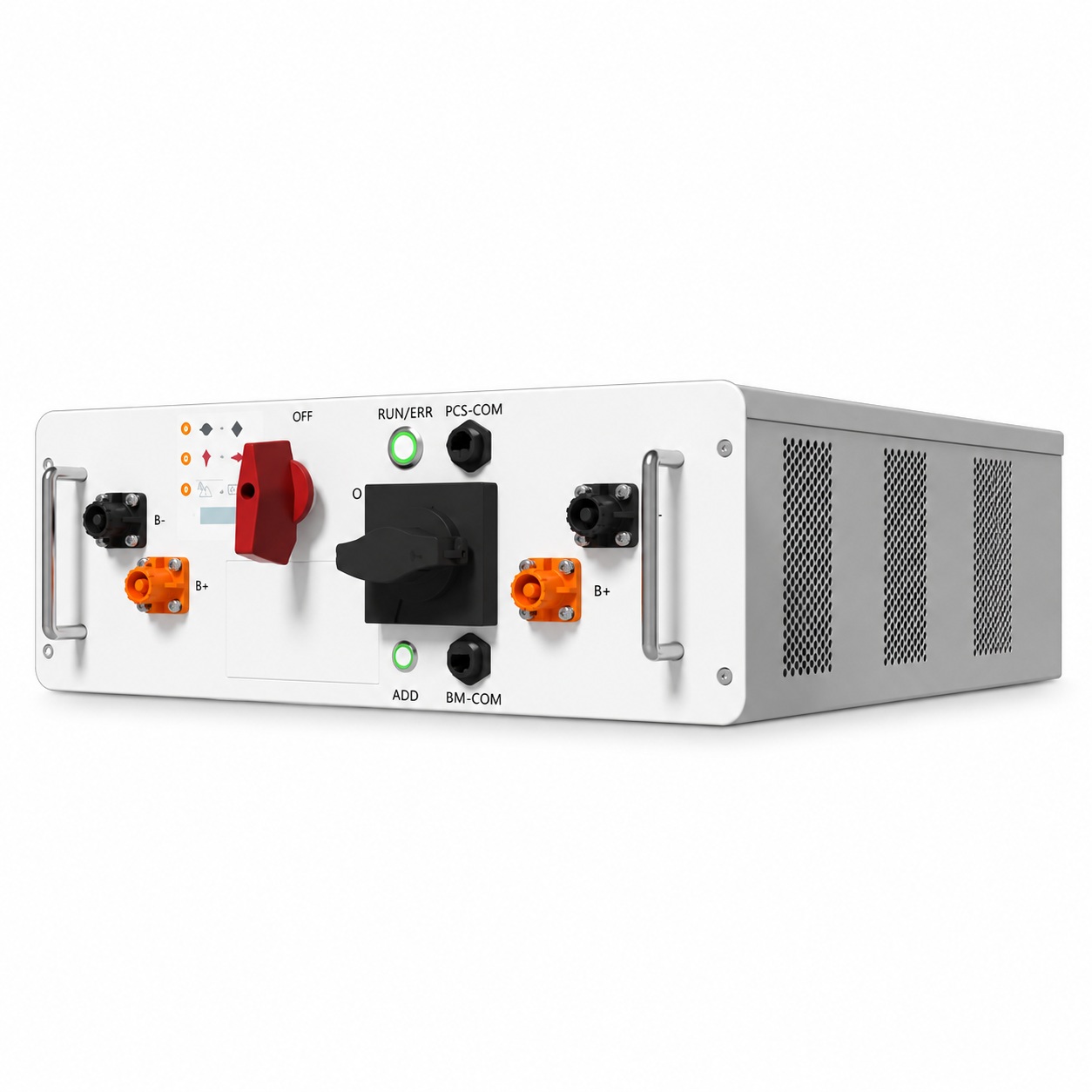

Control module – SOLAX – TBMS-R76
SKU: F20S3222
EAN: 2010000043110
| Manufacturer | |
|---|---|
| CAN | |
| CAN 2.0 | |
| RS485 | |
| RS232 | |
| Warranty | |
| Net width | |
| Net height | |
| Weight | 28,14 kg |
| CN | 85371010 |
Price
1 188,60 €
Incl. VAT
Incl. VAT
Product details
| Manufacturer | |
|---|---|
| CAN | |
| CAN 2.0 | |
| RS485 | |
| RS232 | |
| Warranty | |
| Net width | |
| Net height | |
| Weight | 28,14 kg |
| CN | 85371010 |
SolaX Split C&I Energy Storage Solution X3-AELIO
The three-phase commercial and industrial SolaX Split C&I energy storage system from the X3-AELIO series is an advanced solution designed for flexible configuration and high performance. The system combines a hybrid inverter with power from 49.9 kW to 61 kW with modular LFP batteries, offering storage capacity from 38.4 kWh to 215 kWh. It provides reliable backup power, support for harsh environmental conditions and intelligent energy management in commercial scenarios.
Key features of SolaX Split C&I Energy Storage Solution X3-AELIO:
- Flexible configuration and scalability: Support for up to 10 systems connected in parallel, enabling power from 49.9 kW to 600 kW and battery capacities from 38.4 kWh to 215 kWh.
- High PV performance: Support for PV oversizing up to 200% and high maximum efficiency of up to 98.0%.
- Safety and reliability: Three-phase unsymmetry handling up to 100%, long-term overload at 110% and seamless switching within 10 ms between grid-tied and islanded (EPS) modes.
- Advanced LFP cells: Safe lithium iron phosphate technology providing long lifespan (over 6000 cycles) and 1C performance.
- Smart management and VPP: Automated charge/discharge management, integration with virtual power plants (VPP) via IEEE 2030.5 and OpenADR protocols, and remote monitoring via an app.
- Durable design: IP66 protection rating enabling installation in harsh conditions and a wide operating temperature range.
Who is this a good choice for?
This system is intended for businesses, commercial and industrial facilities seeking energy independence, optimization of electricity purchase costs (peak shaving, self-consumption) and reliable backup power. Thanks to its modular design and extensive expandability, the X3-AELIO is an ideal choice for companies planning gradual expansion of their energy infrastructure.
| Parameter | X3-AELIO-49.9K | X3-AELIO-49.9K-P | X3-AELIO-50K | X3-AELIO-60K | X3-AELIO-61K |
|---|---|---|---|---|---|
| PV Input | |||||
| Max. recommended PV generator power (kWp) | 100 | 120 | 100 | 120 | 120 |
| Max. PV input voltage (V) | 1000 | 1000 | 1000 | 1000 | 1000 |
| Rated PV input voltage (V) | 650 | 650 | 650 | 650 | 650 |
| MPPT voltage range (V) | 160–950 | 160–950 | 160–950 | 160–950 | 160–950 |
| Start-up voltage (V) | 180 | 180 | 180 | 180 | 180 |
| Number of MPPT trackers / strings per MPPT | 5 / 2 | 6 / 2 | 5 / 2 | 6 / 2 | 6 / 2 |
| Max. input current per MPPT (A) | 40 | 50 | 40 | 50 | 50 |
| Max. short-circuit current per MPPT (A) | 50 | 60 | 50 | 60 | 60 |
| AC input and output (grid-tied mode) | |||||
| Rated output power (kW) | 49.9 | 49.9 | 50.0 | 60.0 | 61.0 |
| Rated output current (A) | 75.7 @ 220 V / 72.4 @ 230 V | 75.7 @ 220 V / 72.4 @ 230 V | 75.8 @ 220 V / 72.5 @ 230 V | 91.0 @ 220 V / 87.0 @ 230 V | 92.5 @ 220 V / 88.5 @ 230 V |
| Max. apparent output power (kVA) | 49.9 | 49.9 | 55.0 | 66.0 | 66.0 |
| Max. continuous output current (A) | 75.7 @ 220 V / 72.4 @ 230 V | 75.7 @ 220 V / 72.4 @ 230 V | 83.4 @ 220 V / 79.8 @ 230 V | 100.0 @ 220 V / 95.7 @ 230 V | 100.0 @ 220 V / 95.7 @ 230 V |
| Rated AC voltage (V) | 3/N/PE, 220/380 V; 230/400 V | 3/N/PE, 220/380 V; 230/400 V | 3/N/PE, 220/380 V; 230/400 V | 3/N/PE, 220/380 V; 230/400 V | 3/N/PE, 220/380 V; 230/400 V |
| Rated AC frequency (Hz) | 50 / 60 | 50 / 60 | 50 / 60 | 50 / 60 | 50 / 60 |
| AC frequency range (Hz) | 50 ± 5 / 60 ± 5 | 50 ± 5 / 60 ± 5 | 50 ± 5 / 60 ± 5 | 50 ± 5 / 60 ± 5 | 50 ± 5 / 60 ± 5 |
| Adjustable power factor | ~1 (0.8 leading to 0.8 lagging) | ~1 (0.8 leading to 0.8 lagging) | ~1 (0.8 leading to 0.8 lagging) | ~1 (0.8 leading to 0.8 lagging) | ~1 (0.8 leading to 0.8 lagging) |
| Total harmonic distortion THDi (rated power) (%) | < 3 | < 3 | < 3 | < 3 | < 3 |
| Battery | |||||
| Battery type | LFP (LiFePO4) | LFP (LiFePO4) | LFP (LiFePO4) | LFP (LiFePO4) | LFP (LiFePO4) |
| Battery voltage range (V) | 180–820 | 180–820 | 180–820 | 180–820 | 180–820 |
| Max. charging/discharging current (A) | 160 (80 × 2) | 160 (80 × 2) | 160 (80 × 2) | 160 (80 × 2) | 160 (80 × 2) |
| EPS output (emergency / off-grid mode) | |||||
| Rated EPS voltage and frequency | 3/N/PE, 220/380 V, 50/60 Hz; 230/400 V, 50/60 Hz | 3/N/PE, 220/380 V, 50/60 Hz; 230/400 V, 50/60 Hz | 3/N/PE, 220/380 V, 50/60 Hz; 230/400 V, 50/60 Hz | 3/N/PE, 220/380 V, 50/60 Hz; 230/400 V, 50/60 Hz | 3/N/PE, 220/380 V, 50/60 Hz; 230/400 V, 50/60 Hz |
| Rated EPS output power (kVA) | 49.9 | 49.9 | 50.0 | 60.0 | 61.0 |
| Max. EPS output power (kVA) | 75 (10 s) | 75 (10 s) | 75 (10 s) | 90 (10 s) | 90 (10 s) |
| Switching time (ms) | 10 | 10 | 10 | 10 | 10 |
| Efficiency | |||||
| Max. efficiency (%) | 98.0 | 98.0 | 98.0 | 98.0 | 98.0 |
| European efficiency (%) | 97.2 | 97.2 | 97.2 | 97.2 | 97.2 |
| Protections | |||||
| Over/under voltage protection | Yes | Yes | Yes | Yes | Yes |
| DC isolation protection | Yes | Yes | Yes | Yes | Yes |
| DC reverse polarity protection | Yes | Yes | Yes | Yes | Yes |
| Grid monitoring | Yes | Yes | Yes | Yes | Yes |
| DC component monitoring | Yes | Yes | Yes | Yes | Yes |
| Reverse current monitoring | Yes | Yes | Yes | Yes | Yes |
| Residual current detection | Yes | Yes | Yes | Yes | Yes |
| Overheat protection | Yes | Yes | Yes | Yes | Yes |
| Active anti-islanding protection | Yes | Yes | Yes | Yes | Yes |
| Surge protection (DC/AC) | Type II / Type II | Type II / Type II | Type II / Type II | Type II / Type II | Type II / Type II |
| Arc fault circuit interrupter (AFCI) | Optional | Optional | Optional | Optional | Optional |
| Auxiliary AC power supply (APS) | Built-in | Built-in | Built-in | Built-in | Built-in |
| Frequency shift | Yes | Yes | Yes | Yes | Yes |
| General inverter data | |||||
| Protection rating | IP66 | IP66 | IP66 | IP66 | IP66 |
| Operating temperature range (°C) | -35 ~ 60 (power derating > +45°C) | -35 ~ 60 (power derating > +45°C) | -35 ~ 60 (power derating > +45°C) | -35 ~ 60 (power derating > +45°C) | -35 ~ 60 (power derating > +45°C) |
| Max. absolute altitude (m) | 3000 | 3000 | 3000 | 3000 | 3000 |
| Relative humidity (%) | 0 ~ 100 (with condensation) | 0 ~ 100 (with condensation) | 0 ~ 100 (with condensation) | 0 ~ 100 (with condensation) | 0 ~ 100 (with condensation) |
| Overvoltage category | Grid: III, Battery: II, PV: II | Grid: III, Battery: II, PV: II | Grid: III, Battery: II, PV: II | Grid: III, Battery: II, PV: II | Grid: III, Battery: II, PV: II |
| Dimensions (W × H × D) (mm) | 670 × 820 × 257 | 670 × 820 × 257 | 670 × 820 × 257 | 670 × 820 × 257 | 670 × 820 × 257 |
| Net weight (kg) | < 100 | < 105 | < 100 | < 105 | < 105 |
| Cooling method | Intelligent air cooling | Intelligent air cooling | Intelligent air cooling | Intelligent air cooling | Intelligent air cooling |
| Communication interfaces | RS485, CAN-BMS, CAN-Parallel, USB, DI×2, DO×1, RCR, DRM | RS485, CAN-BMS, CAN-Parallel, USB, DI×2, DO×1, RCR, DRM | RS485, CAN-BMS, CAN-Parallel, USB, DI×2, DO×1, RCR, DRM | RS485, CAN-BMS, CAN-Parallel, USB, DI×2, DO×1, RCR, DRM | RS485, CAN-BMS, CAN-Parallel, USB, DI×2, DO×1, RCR, DRM |
| Topology | Transformerless | Transformerless | Transformerless | Transformerless | Transformerless |
| Certifications | CE, VDE4105, G99, AS4777, EN50549, CEI 0-21, IEC61727, PEA/MEA, NRS-097-2-1, RD1699, TOR | CE, VDE4105, G99, AS4777, EN50549, CEI 0-21, IEC61727, PEA/MEA, NRS-097-2-1, RD1699, TOR | CE, VDE4105, G99, AS4777, EN50549, CEI 0-21, IEC61727, PEA/MEA, NRS-097-2-1, RD1699, TOR | CE, VDE4105, G99, AS4777, EN50549, CEI 0-21, IEC61727, PEA/MEA, NRS-097-2-1, RD1699, TOR | CE, VDE4105, G99, AS4777, EN50549, CEI 0-21, IEC61727, PEA/MEA, NRS-097-2-1, RD1699, TOR |
| Battery system and module (TSYS-HR76 / TB-HR76) | |||||
| System capacity range (kWh) | 38.4 – 215.0 | 38.4 – 215.0 | 38.4 – 215.0 | 38.4 – 215.0 | 38.4 – 215.0 |
| Battery module model | TB-HR76 | TB-HR76 | TB-HR76 | TB-HR76 | TB-HR76 |
| Module capacity / Nominal voltage | 7.68 kWh / 51.2 V (150 Ah) | 7.68 kWh / 51.2 V (150 Ah) | 7.68 kWh / 51.2 V (150 Ah) | 7.68 kWh / 51.2 V (150 Ah) | 7.68 kWh / 51.2 V (150 Ah) |
| Battery module dimensions (W × H × D) (mm) | 450 × 170 × 580 | 450 × 170 × 580 | 450 × 170 × 580 | 450 × 170 × 580 | 450 × 170 × 580 |
| Battery module weight (kg) | 60 | 60 | 60 | 60 | 60 |
| BMS control unit model | TBMS-R76 | TBMS-R76 | TBMS-R76 | TBMS-R76 | TBMS-R76 |
| BMS unit dimensions (W × H × D) (mm) | 450 × 180 × 580 | 450 × 180 × 580 | 450 × 180 × 580 | 450 × 180 × 580 | 450 × 180 × 580 |
| BMS unit weight (kg) | 19.2 | 19.2 | 19.2 | 19.2 | 19.2 |
| Cycle life (90% DOD) | ≥ 6000 (@ 25°C ± 2°C, 0.5C/0.5C, 70% EOL) | ≥ 6000 (@ 25°C ± 2°C, 0.5C/0.5C, 70% EOL) | ≥ 6000 (@ 25°C ± 2°C, 0.5C/0.5C, 70% EOL) | ≥ 6000 (@ 25°C ± 2°C, 0.5C/0.5C, 70% EOL) | ≥ 6000 (@ 25°C ± 2°C, 0.5C/0.5C, 70% EOL) |
| Round-trip battery efficiency (%) | 95 | 95 | 95 | 95 | 95 |
* Rated current and output power values may be derated depending on ambient temperature or battery state of charge (SOC).
