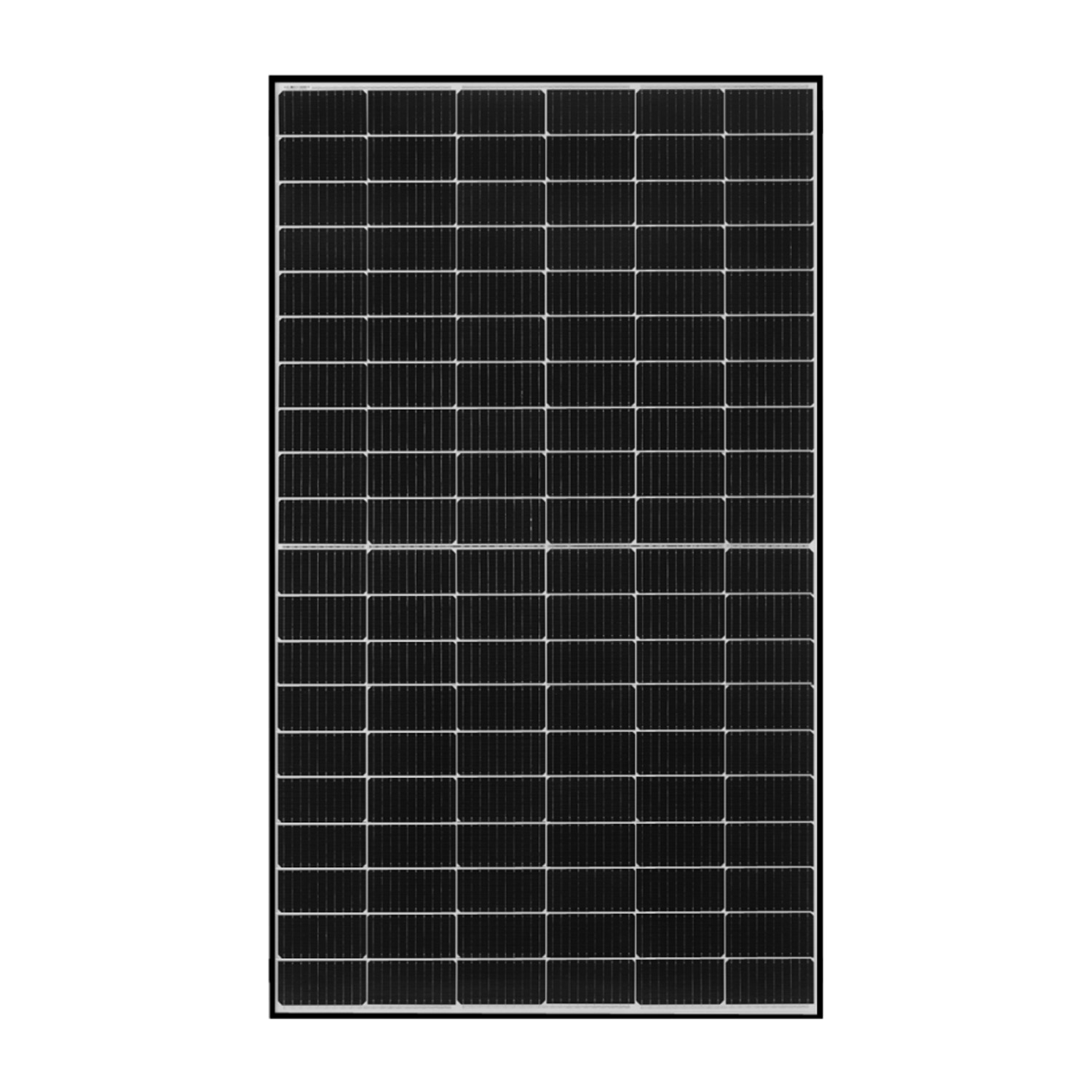

Module JINKO JKM460M-60HL4-V SF
SKU: F10C0121
EAN: 5905951589305
| Manufacturer | |
|---|---|
| Cable length (+) | |
| Frame thickness | |
| Linear power warranty | |
| Product warranty | |
| Number of BusBar | |
| Quantity per pallet | |
| Quantity per container | |
| Frame color | |
| Power | |
| Efficiency | |
| Width | |
| Type | Monocrystalline |
| Cell type | |
| Height | |
| Maximum static load (Pa) | |
| Tier 1 | |
| Technology | |
| Weight | 24,2 kg |
| CN | 85414300 |
Datasheet Jinko JKM460M-60HL4-V SF
datasheet-jinko-jkm460m-60hl4-v-sf.pdf
Product details
| Manufacturer | |
|---|---|
| Cable length (+) | |
| Frame thickness | |
| Linear power warranty | |
| Product warranty | |
| Number of BusBar | |
| Quantity per pallet | |
| Quantity per container | |
| Frame color | |
| Power | |
| Efficiency | |
| Width | |
| Type | Monocrystalline |
| Cell type | |
| Height | |
| Maximum static load (Pa) | |
| Tier 1 | |
| Technology | |
| Weight | 24,2 kg |
| CN | 85414300 |
Tiger Pro 60HC 440–460 W Series
The Tiger Pro 60HC 440–460 W photovoltaic modules are technologically advanced P-type panels that offer high efficiency and reliability. With multi-busbar technology and enhanced mechanical and environmental resistance, these modules are an excellent choice for residential, commercial, and industrial installations.
Key Features of the Tiger Pro 60HC Modules:
- Multi-Busbar Technology (MBB HC) – enhances light capture and energy storage efficiency, providing higher output power and reliability of the module.
- Reduction in Hot Spot Losses – optimized electrical installation reduces the risk of hot spots and lowers operating current, improving efficiency and durability.
- PID Resistance – offers protection against Potential Induced Degradation (PID) through an optimized manufacturing process and materials control.
- Increased Mechanical Resistance – certified wind load resistance (2400 Pa) and snow load (5400 Pa) ensure durability in extreme weather conditions.
- Resistance to Extreme External Conditions – high resistance to salt mist and ammonia makes the modules suitable for various environmental applications.
- Positive Power Tolerance – power tolerance range of 0~+3% ensures increased energy efficiency of the system.
- Long-Term Warranties – a 12-year product warranty and a 25-year linear power warranty with a maximum annual degradation of 0.55% ensure stability and security of investment.
Who is it a Good Choice For?
The Tiger Pro 60HC 440–460 W modules are an ideal solution for users looking for efficient, durable, and reliable photovoltaic panels. With advanced technologies and a wide range of applications, these panels are suitable for both rooftop installations and large commercial and industrial projects.
Datasheet Jinko JKM460M-60HL4-V SF
datasheet-jinko-jkm460m-60hl4-v-sf.pdf
Integrated Module Specifications
| Specifications (STC) & Electrical Parameters (NOCT) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Parameter | JKM440M-60HL4 JKM440M-60HL4-V | JKM445M-60HL4 JKM445M-60HL4-V | JKM450M-60HL4 JKM450M-60HL4-V | JKM455M-60HL4 JKM455M-60HL4-V | JKM460M-60HL4 JKM460M-60HL4-V | |||||
| STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT | |
| Maximum Power (Pmax) [Wp] | 440 Wp | 327 Wp | 445 Wp | 331 Wp | 450 Wp | 335 Wp | 455 Wp | 339 Wp | 460 Wp | 342 Wp |
| Voltage at Maximum Power (Vmp) [V] | 33.72 V | 31.39 V | 33.82 V | 31.56 V | 33.91 V | 31.73 V | 34.06 V | 31.91 V | 34.20 V | 32.07 V |
| Maximum Current (Imp) [A] | 13.05 A | 10.43 A | 13.16 A | 10.49 A | 13.27 A | 10.55 A | 13.36 A | 10.61 A | 13.45 A | 10.67 A |
| Open Circuit Voltage (Voc) [V] | 41.02 V | 38.72 V | 41.10 V | 38.79 V | 41.18 V | 38.87 V | 41.33 V | 39.01 V | 41.48 V | 39.15 V |
| Short Circuit Current (Isc) [A] | 13.73 A | 11.09 A | 13.79 A | 11.14 A | 13.85 A | 11.19 A | 13.93 A | 11.25 A | 14.01 A | 11.32 A |
| Module Efficiency STC [%] | 20.39% | 20.62% | 20.85% | 21.08% | 21.32% | |||||
| Mechanical Characteristics | ||||||||||
| Parameter | Value | Value | Value | Value | Value | |||||
| Cell Type | P-Type Monocrystalline | P-Type Monocrystalline | P-Type Monocrystalline | P-Type Monocrystalline | P-Type Monocrystalline | |||||
| Number of Cells | 120 (6 × 20) | 120 (6 × 20) | 120 (6 × 20) | 120 (6 × 20) | 120 (6 × 20) | |||||
| Dimensions [mm] | 1903 × 1134 × 30 mm | 1903 × 1134 × 30 mm | 1903 × 1134 × 30 mm | 1903 × 1134 × 30 mm | 1903 × 1134 × 30 mm | |||||
| Weight [kg] | 24.2 kg | 24.2 kg | 24.2 kg | 24.2 kg | 24.2 kg | |||||
| Front Glass | 3.2 mm, anti-reflective coating, high transmission coefficient, low iron content, tempered glass | 3.2 mm, anti-reflective coating, high transmission coefficient, low iron content, tempered glass | 3.2 mm, anti-reflective coating, high transmission coefficient, low iron content, tempered glass | 3.2 mm, anti-reflective coating, high transmission coefficient, low iron content, tempered glass | 3.2 mm, anti-reflective coating, high transmission coefficient, low iron content, tempered glass | |||||
| Frame | Anodized Aluminum Alloy | Anodized Aluminum Alloy | Anodized Aluminum Alloy | Anodized Aluminum Alloy | Anodized Aluminum Alloy | |||||
| Junction Box | IP68 Protection Class | IP68 Protection Class | IP68 Protection Class | IP68 Protection Class | IP68 Protection Class | |||||
| Output Wires | TUV 1 × 4.0 mm² (+): 290 mm, (-): 145 mm or custom length | TUV 1 × 4.0 mm² (+): 290 mm, (-): 145 mm or custom length | TUV 1 × 4.0 mm² (+): 290 mm, (-): 145 mm or custom length | TUV 1 × 4.0 mm² (+): 290 mm, (-): 145 mm or custom length | TUV 1 × 4.0 mm² (+): 290 mm, (-): 145 mm or custom length | |||||
| Operating Conditions | ||||||||||
| Parameter | Value | Value | Value | Value | Value | |||||
| Operating Temperature [°C] | -40 ~ +85 | -40 ~ +85 | -40 ~ +85 | -40 ~ +85 | -40 ~ +85 | |||||
| Nominal Operating Cell Temperature (NOCT) | 45±2°C | 45±2°C | 45±2°C | 45±2°C | 45±2°C | |||||
| Maximum System Voltage [V] | 1000 / 1500 V DC (IEC) | 1000 / 1500 V DC (IEC) | 1000 / 1500 V DC (IEC) | 1000 / 1500 V DC (IEC) | 1000 / 1500 V DC (IEC) | |||||
| Maximum Series Fuse Rating [A] | 25 A | 25 A | 25 A | 25 A | 25 A | |||||
| Power Tolerance | 0–3% | 0–3% | 0–3% | 0–3% | 0–3% | |||||
| Power Temperature Coefficient (Pmax) | -0.35%/°C | -0.35%/°C | -0.35%/°C | -0.35%/°C | -0.35%/°C | |||||
| Voltage Temperature Coefficient (Voc) | -0.28%/°C | -0.28%/°C | -0.28%/°C | -0.28%/°C | -0.28%/°C | |||||
| Current Temperature Coefficient (Isc) | +0.048%/°C | +0.048%/°C | +0.048%/°C | +0.048%/°C | +0.048%/°C | |||||
| Mechanical Resistance | ||||||||||
| Parameter | Value | Value | Value | Value | Value | |||||
| Wind Load | 2400 Pa | 2400 Pa | 2400 Pa | 2400 Pa | 2400 Pa | |||||
| Snow Load | 5400 Pa | 5400 Pa | 5400 Pa | 5400 Pa | 5400 Pa | |||||
| Packaging Configuration | ||||||||||
| Parameter | Value | Value | Value | Value | Value | |||||
| Pallet | 35 pcs / pallet | 35 pcs / pallet | 35 pcs / pallet | 35 pcs / pallet | 35 pcs / pallet | |||||
| Stack | 70 pcs / stack | 70 pcs / stack | 70 pcs / stack | 70 pcs / stack | 70 pcs / stack | |||||
| 40′ Container | 840 pcs / container | 840 pcs / container | 840 pcs / container | 840 pcs / container | 840 pcs / container | |||||
