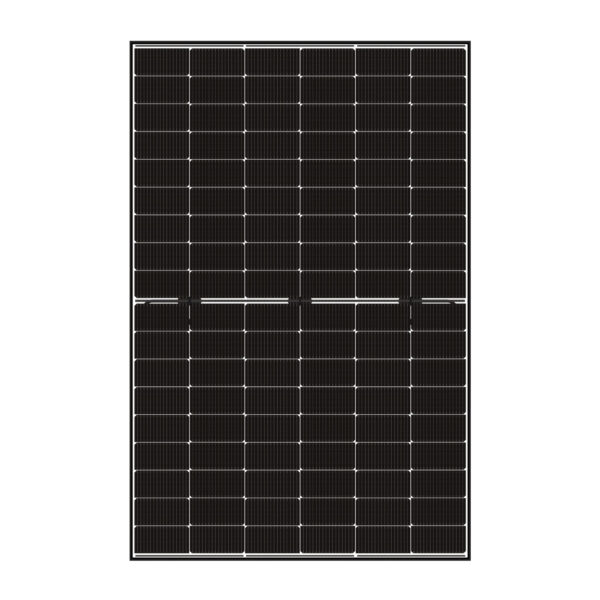

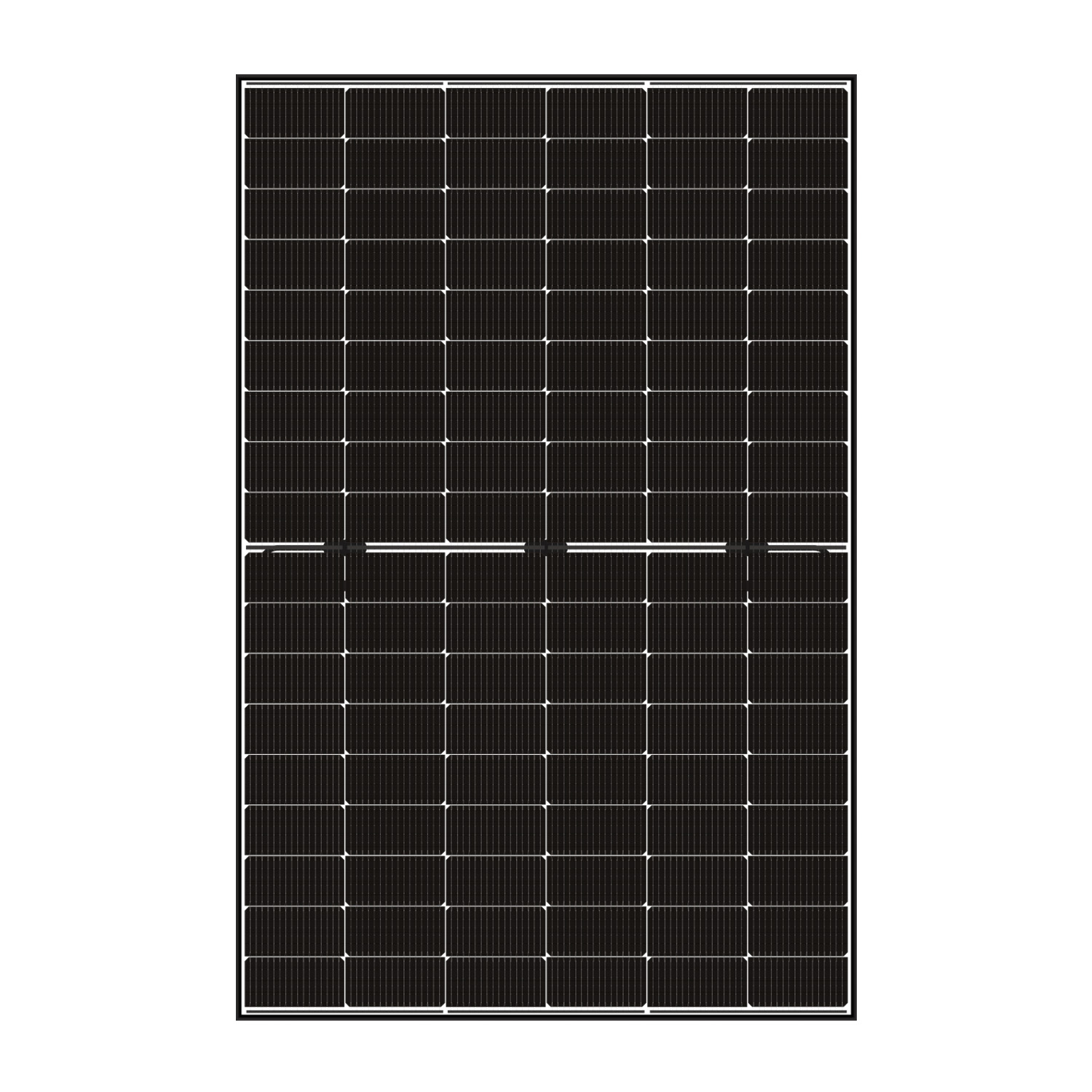

Module JOLYWOOD JW-HD144N-580W / Bifacial SF
SKU: F19090
EAN: 5905951587707
| Manufacturer | |
|---|---|
| Frame thickness | |
| Linear power warranty | |
| Product warranty | |
| Number of BusBar | |
| Quantity per pallet | |
| Quantity per container | |
| Fire resistance class | |
| Frame color | |
| Power | |
| Efficiency | |
| Width | |
| Type | Bifacial |
| Cell type | |
| Height | |
| Maximum static load (Pa) | |
| Tier 1 | |
| Technology | |
| Cable length (+) | 1250 mm |
| Cable length (-) | 1250 mm |
| Weight | 31,5 kg |
| CN | 85414300 |
Datasheet JOLYWOOD JW-HD144N-580W / Bifacjal SF
karta-katalogowa-modul-jolywood-jw-hd144n-580w-bifacjal-sf.pdf
Product details
| Manufacturer | |
|---|---|
| Frame thickness | |
| Linear power warranty | |
| Product warranty | |
| Number of BusBar | |
| Quantity per pallet | |
| Quantity per container | |
| Fire resistance class | |
| Frame color | |
| Power | |
| Efficiency | |
| Width | |
| Type | Bifacial |
| Cell type | |
| Height | |
| Maximum static load (Pa) | |
| Tier 1 | |
| Technology | |
| Cable length (+) | 1250 mm |
| Cable length (-) | 1250 mm |
| Weight | 31,5 kg |
| CN | 85414300 |
Jolywood JW Pro Series JW-HD144N 565-590W Solar Module
The
Jolywood JW Pro Series JW-HD144N module is an innovative photovoltaic solution that utilizes advanced n-TOPCon technology. With high output power, a maximum efficiency of 22.84%, and an exceptionally durable design, this module delivers outstanding performance in various installation conditions.
Key Features of the Jolywood JW Pro Series JW-HD144N 565-590W Module:
- Increased Value for Customers – Lower BOS system costs and annual degradation, higher energy generation, reduced LCOE, and increased ROI. The bifacial module offers up to 30% more energy thanks to its rear side.
- Higher Energy Yield – Improved response to low light, low degradation in the first year (1%) and annual (0.4%), and a lower temperature coefficient (-0.30%).
- High Reliability – Next-generation TOPCon technology reduces LID and LETID, enhances resistance to micro-cracks, and performs well in extreme environmental conditions.
- High Safety – Better resistance to hotspots, mechanical strength to loads up to 5400 Pa (front) and 2400 Pa (back).
Who is this a Good Choice For?
The
Jolywood JW Pro Series JW-HD144N module is an excellent choice for those seeking top-quality solutions for commercial and industrial installations. With its high efficiency, resilience to challenging conditions, and long-term durability, this module meets the expectations of even the most demanding users.
Datasheet JOLYWOOD JW-HD144N-580W / Bifacjal SF
karta-katalogowa-modul-jolywood-jw-hd144n-580w-bifacjal-sf.pdf
| Electrical Properties Front Side (STC) | ||||||
|---|---|---|---|---|---|---|
| Peak Power (Pmax) (W) | 565 | 570 | 575 | 580 | 585 | 590 |
| MPP Voltage (Vmp) (V) | 42.60 | 42.80 | 43.00 | 43.20 | 43.40 | 43.60 |
| MPP Current (Imp) (A) | 13.27 | 13.32 | 13.38 | 13.43 | 13.48 | 13.54 |
| Open Circuit Voltage (Voc) (V) | 50.88 | 51.08 | 51.28 | 51.48 | 51.68 | 51.88 |
| Short Circuit Current (Isc) (A) | 14.18 | 14.24 | 14.30 | 14.36 | 14.42 | 14.48 |
| Module Efficiency (%) | 21.87 | 22.07 | 22.26 | 22.45 | 22.65 | 22.84 |
| Electrical Properties Front Side (NMOT) | ||||||
| Peak Power (Pmax) (W) | 428 | 432 | 436 | 440 | 444 | 448 |
| MPP Voltage (Vmp) (V) | 40.00 | 40.20 | 40.40 | 40.60 | 40.80 | 41.00 |
| MPP Current (Imp) (A) | 10.70 | 10.74 | 10.79 | 10.84 | 10.89 | 10.93 |
| Open Circuit Voltage (Voc) (V) | 48.60 | 48.70 | 48.90 | 49.10 | 49.30 | 49.50 |
| Short Circuit Current (Isc) (A) | 11.33 | 11.38 | 11.42 | 11.46 | 11.50 | 11.54 |
| Operational Properties | ||||||
| Operating Temperature | -40℃~+85℃ | -40℃~+85℃ | -40℃~+85℃ | -40℃~+85℃ | -40℃~+85℃ | -40℃~+85℃ |
| Maximum System Voltage | 1500V (IEC) | 1500V (IEC) | 1500V (IEC) | 1500V (IEC) | 1500V (IEC) | 1500V (IEC) |
| Maximum Series Fuse Rating | 30A | 30A | 30A | 30A | 30A | 30A |
| Bifaciality | 80% | 80% | 80% | 80% | 80% | 80% |
| Maximum Static Load | Snow Load 5400Pa, Wind Load 2400Pa | Snow Load 5400Pa, Wind Load 2400Pa | Snow Load 5400Pa, Wind Load 2400Pa | Snow Load 5400Pa, Wind Load 2400Pa | Snow Load 5400Pa, Wind Load 2400Pa | Snow Load 5400Pa, Wind Load 2400Pa |
| Temperature Coefficient | ||||||
| Peak Power Coefficient (Pmax) | -0.300%/°C | -0.300%/°C | -0.300%/°C | -0.300%/°C | -0.300%/°C | -0.300%/°C |
| Open Circuit Voltage Coefficient (Voc) | -0.250%/°C | -0.250%/°C | -0.250%/°C | -0.250%/°C | -0.250%/°C | -0.250%/°C |
| Short Circuit Current Coefficient (Isc) | +0.045%/°C | +0.045%/°C | +0.045%/°C | +0.045%/°C | +0.045%/°C | +0.045%/°C |
| Nominal Operating Cell Temperature (NOCT) | 42±2°C | 42±2°C | 42±2°C | 42±2°C | 42±2°C | 42±2°C |
| Specification | ||||||
| Number of Cells | 144 pcs | 144 pcs | 144 pcs | 144 pcs | 144 pcs | 144 pcs |
| Module Dimensions | 2278mm * 1134mm * 30mm | 2278mm * 1134mm * 30mm | 2278mm * 1134mm * 30mm | 2278mm * 1134mm * 30mm | 2278mm * 1134mm * 30mm | 2278mm * 1134mm * 30mm |
| Weight | 31.5 kg | 31.5 kg | 31.5 kg | 31.5 kg | 31.5 kg | 31.5 kg |
| Front/Back Glass | 2.0 mm / 2.0 mm, tempered with high permeability | 2.0 mm / 2.0 mm, tempered with high permeability | 2.0 mm / 2.0 mm, tempered with high permeability | 2.0 mm / 2.0 mm, tempered with high permeability | 2.0 mm / 2.0 mm, tempered with high permeability | 2.0 mm / 2.0 mm, tempered with high permeability |
| Frame | Anodized aluminum | Anodized aluminum | Anodized aluminum | Anodized aluminum | Anodized aluminum | Anodized aluminum |
| Junction Box | IP68 (3 diodes) | IP68 (3 diodes) | IP68 (3 diodes) | IP68 (3 diodes) | IP68 (3 diodes) | IP68 (3 diodes) |
| Cable Length | 4.0 mm², +300 mm / -180 mm (customizable) | 4.0 mm², +300 mm / -180 mm (customizable) | 4.0 mm², +300 mm / -180 mm (customizable) | 4.0 mm², +300 mm / -180 mm (customizable) | 4.0 mm², +300 mm / -180 mm (customizable) | 4.0 mm², +300 mm / -180 mm (customizable) |
| Packaging Configuration | 36 pcs / Pallet, 720 / 40HQ Container | 36 pcs / Pallet, 720 / 40HQ Container | 36 pcs / Pallet, 720 / 40HQ Container | 36 pcs / Pallet, 720 / 40HQ Container | 36 pcs / Pallet, 720 / 40HQ Container | 36 pcs / Pallet, 720 / 40HQ Container |
| Electrical Properties at Different Rear Gains | ||||||
| Power Gain (%) | Parameters | |||||
| 10 | 621 | 43.00 | 14.44 | 51.28 | 15.30 | |
| 15 | 644 | 43.00 | 14.98 | 51.28 | 15.87 | |
| 20 | 667 | 43.00 | 15.51 | 51.28 | 16.43 | |
| 25 | 690 | 43.00 | 16.05 | 51.28 | 17.01 | |
| 30 | 713 | 43.00 | 16.58 | 51.28 | 17.57 | |
