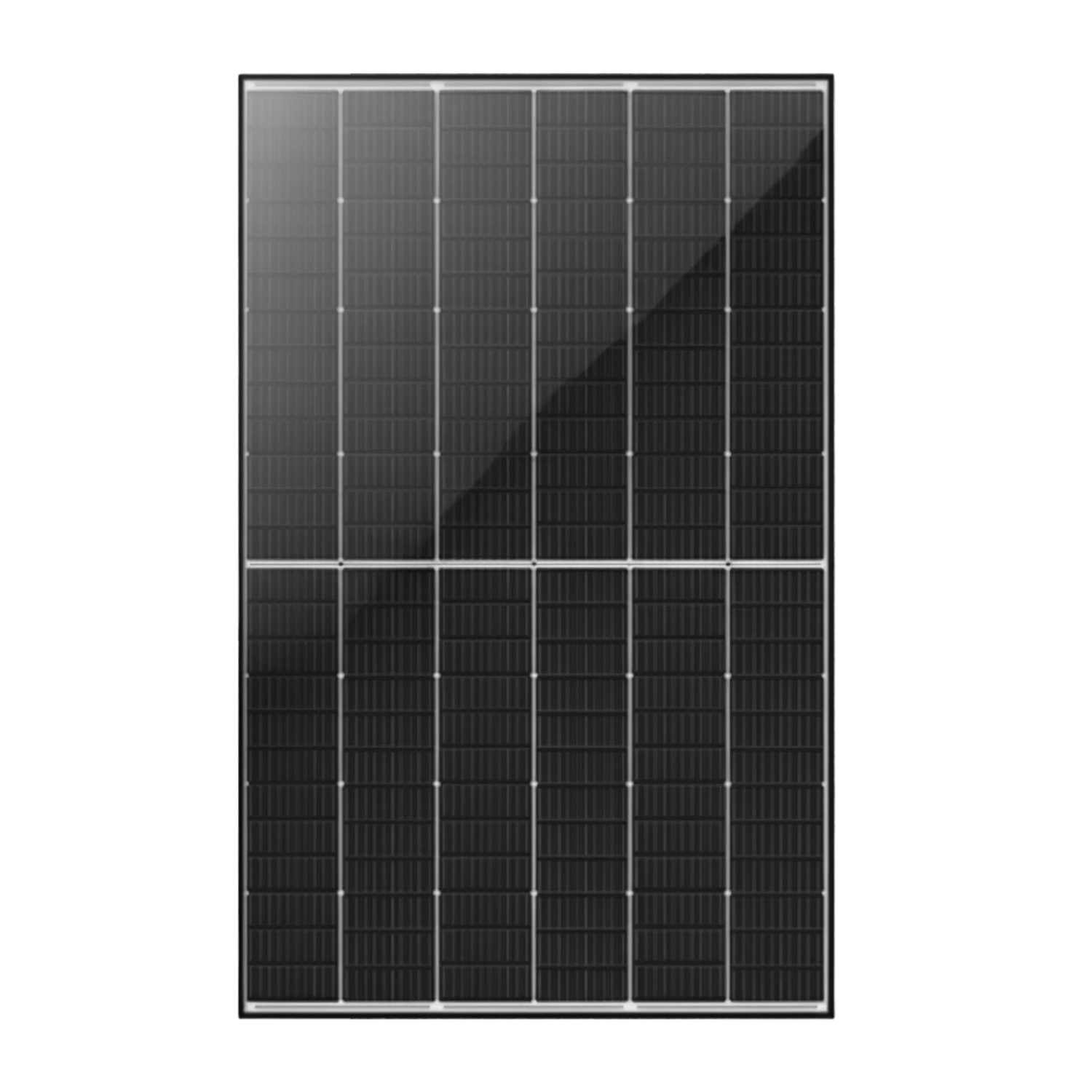

Module ZNshine ZXM7-UHLDD108 410W BF / Bifacial
SKU: F10F2
EAN: 5905951588308
| Manufacturer | |
|---|---|
| Cable length (+) | |
| Frame thickness | |
| Linear power warranty | |
| Product warranty | |
| Number of BusBar | |
| Quantity per pallet | |
| Quantity per container | |
| Quantity per package | |
| Frame color | |
| Power | |
| Efficiency | |
| Width | |
| Type | Bifacial |
| Cell type | |
| Height | |
| Maximum static load (Pa) | |
| Tier 1 | |
| Technology | |
| Weight | 24,5 kg |
| CN | 85414300 |
Datasheet ZNshine ZXM7-UHLDD108 410W BF / Bifacial
datasheet-znshine-zxm7-uhldd108-410w-bf-bifacial.pdf
Product details
| Manufacturer | |
|---|---|
| Cable length (+) | |
| Frame thickness | |
| Linear power warranty | |
| Product warranty | |
| Number of BusBar | |
| Quantity per pallet | |
| Quantity per container | |
| Quantity per package | |
| Frame color | |
| Power | |
| Efficiency | |
| Width | |
| Type | Bifacial |
| Cell type | |
| Height | |
| Maximum static load (Pa) | |
| Tier 1 | |
| Technology | |
| Weight | 24,5 kg |
| CN | 85414300 |
ZXM7-UHLDD108 Photovoltaic Modules
The ZXM7-UHLDD108 photovoltaic modules are a series of bifacial modules with a power output of 410-425W, utilizing N-type cells and TOPCon technology. Thanks to their innovative technology and design, these modules offer high efficiency, reliability, and aesthetics, making them an ideal solution for both residential and commercial photovoltaic installations.
Key Features of the ZXM7-UHLDD108 Modules:
- Bifacial Design – allows electricity generation from both sides of the module, increasing energy yield by up to 25% depending on albedo.
- High Output Power – the modules are available in power ratings from 410W to 425W, enabling more energy generation from a smaller roof area.
- Excellent Performance in Low Light Conditions – the ZXM7-UHLDD108 modules are characterized by high efficiency even with low sunlight, resulting in greater energy production throughout the day.
- High Mechanical Durability – the modules feature a robust construction that protects them from mechanical damage and ensures long-lasting operation.
- Long-Term Warranties – 12-year product warranty and 30-year performance warranty ensures investment security.
Who is this a good choice for?
The ZXM7-UHLDD108 photovoltaic modules are an excellent choice for investors seeking high-quality, efficient, and reliable solar modules. With advanced technology, bifacial design, and long-term warranties, these modules are ideal for both residential and commercial photovoltaic installations.
Datasheet ZNshine ZXM7-UHLDD108 410W BF / Bifacial
datasheet-znshine-zxm7-uhldd108-410w-bf-bifacial.pdf
| Electrical Characteristics | STC* | ||||
|---|---|---|---|---|
| Parameter | ZXM7-UHLDD108-410/N | ZXM7-UHLDD108-415/N | ZXM7-UHLDD108-420/N | ZXM7-UHLDD108-425/N |
| Nominal Maximum Power Pmax (W) | 410 ± 5 | 415 ± 5 | 420 ± 5 | 425 ± 5 |
| Maximum Power Voltage Vmp (V) | 31.10 | 31.30 | 31.50 | 31.70 |
| Maximum Power Current Imp (A) | 13.19 | 13.26 | 13.34 | 13.41 |
| Open Circuit Voltage Voc (V) | 37.60 | 37.80 | 38.00 | 38.20 |
| Short Circuit Current Isc (A) | 13.97 | 14.04 | 14.11 | 14.18 |
| Module Efficiency (%) | 21.00 | 21.25 | 21.51 | 21.76 |
| Electrical Characteristics | NMOT* | ||||
| Maximum Power Pmax (W) | 309.60 | 313.20 | 317.10 | 320.08 |
| Maximum Power Voltage Vmp (V) | 29.20 | 29.40 | 29.60 | 29.80 |
| Maximum Power Current Imp (A) | 10.59 | 10.64 | 10.70 | 10.76 |
| Open Circuit Voltage Voc (V) | 35.50 | 35.70 | 35.90 | 36.00 |
| Short Circuit Current Isc (A) | 11.27 | 11.33 | 11.39 | 11.44 |
| ELECTRICAL CHARACTERISTICS (BNPI) | ||||
| Nominal Power (Pmax) [W] | 450±5 | 455±5 | 460±5 | 470±5 |
| Open Circuit Voltage (Voc) [V] | 37.70 | 37.90 | 38.10 | 38.30 |
| Short Circuit Current (Isc) [A] | 15.31 | 15.39 | 15.46 | 15.55 |
| Electrical Characteristics with 25% Additional Gain from the Rear Side | ||||
| Front Power Pmax (W) | 410 | 415 | 420 | 425 |
| Total Power Pmax (W) | 513 | 519 | 525 | 531 |
| Vmp (V) | 31.20 | 31.40 | 31.60 | 31.80 |
| Imp (A) | 16.43 | 16.52 | 16.61 | 16.71 |
| Voc (V) | 37.70 | 37.90 | 38.10 | 38.30 |
| Isc (A) | 17.40 | 17.49 | 17.57 | 17.67 |
| Mechanical Data | ||||
| Solar Cells | N-type monocrystalline | N-type monocrystalline | N-type monocrystalline | N-type monocrystalline |
| Cell Orientation | 108 (6×18) | 108 (6×18) | 108 (6×18) | 108 (6×18) |
| Module Dimensions (mm) | 1722 x 1134 x 30 (With Frame) | 1722 x 1134 x 30 (With Frame) | 1722 x 1134 x 30 (With Frame) | 1722 x 1134 x 30 (With Frame) |
| Weight | 24.5 ± 1.0 kg | 24.5 ± 1.0 kg | 24.5 ± 1.0 kg | 24.5 ± 1.0 kg |
| Glass | 2.0 mm + 2.0 mm, High Transparency, AR Coating, Tempered | 2.0 mm + 2.0 mm, High Transparency, AR Coating, Tempered | 2.0 mm + 2.0 mm, High Transparency, AR Coating, Tempered | 2.0 mm + 2.0 mm, High Transparency, AR Coating, Tempered |
| Junction Box | IP68, 3 diodes | IP68, 3 diodes | IP68, 3 diodes | IP68, 3 diodes |
| Cables | H1Z2Z2-K 1×4.0mm² | H1Z2Z2-K 1×4.0mm² | H1Z2Z2-K 1×4.0mm² | H1Z2Z2-K 1×4.0mm² |
| Connectors | PV-XT101.1 Suzhou Xtong Photovoltaic Technologies Co., Ltd. | PV-XT101.1 Suzhou Xtong Photovoltaic Technologies Co., Ltd. | PV-XT101.1 Suzhou Xtong Photovoltaic Technologies Co., Ltd. | PV-XT101.1 Suzhou Xtong Photovoltaic Technologies Co., Ltd. |
| Temperature Indicators | ||||
| NMOT | 44°C ± 2°C | 44°C ± 2°C | 44°C ± 2°C | 44°C ± 2°C |
| Power Temperature Coefficient Pmax | (-0.30 ± 0.03)%/°C | (-0.30 ± 0.03)%/°C | (-0.30 ± 0.03)%/°C | (-0.30 ± 0.03)%/°C |
| Voltage Temperature Coefficient Voc | -0.25%/°C | -0.25%/°C | -0.25%/°C | -0.25%/°C |
| Current Temperature Coefficient Isc | 0.046%/°C | 0.046%/°C | 0.046%/°C | 0.046%/°C |
| Bifacial Factor | (80 ± 10)% | (80 ± 10)% | (80 ± 10)% | (80 ± 10)% |
| Operating Conditions | ||||
| Maximum System Voltage | 1500 V DC | 1500 V DC | 1500 V DC | 1500 V DC |
| Operating Temperature | -40°C ~ +85°C | -40°C ~ +85°C | -40°C ~ +85°C | -40°C ~ +85°C |
| Maximum Fuse in Series | 30 A | 30 A | 30 A | 30 A |
| Maximum Load Front / Back | 3600 / 1600 | 3600 / 1600 | 3600 / 1600 | 3600 / 1600 |
| Packaging Configuration | ||||
| Units Per Box | 36 | 36 | 36 | 36 |
| Units Per Container (40′ HQ) | 936 | 936 | 936 | 936 |
