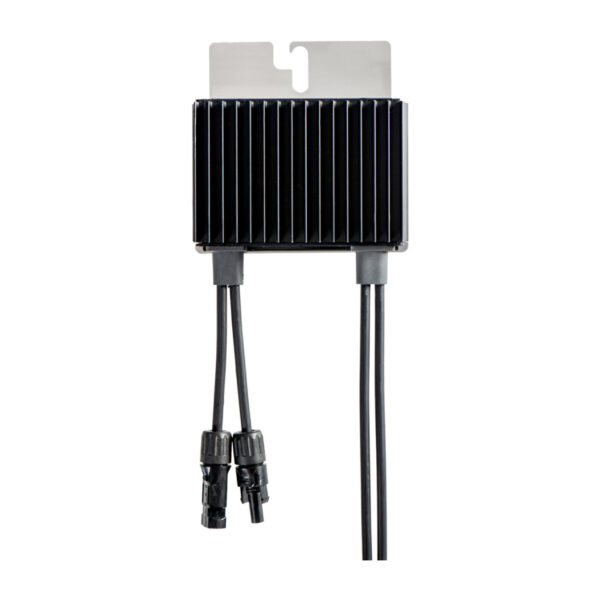

Optimizer SOLAR EDGE S440 – 1GM4MRM
SKU: F250E
EAN: 5905951584799
| Manufacturer | |
|---|---|
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| Cable length | |
| Quantity per pallet | |
| Quantity per package | |
| Maximum efficiency | |
| Maximum output current | |
| Maximum short-circuit current | |
| Mounting method | |
| Package weight | |
| Application | |
| Rated input power | |
| Weight | 0,8 kg |
| CN | 90308900 |
Datasheet Optimizer Solar Edge S440 - 1GM4MRM
datasheet-optimizer-solar-edge-s440-1gm4mrm.pdf
Product details
| Manufacturer | |
|---|---|
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| Cable length | |
| Quantity per pallet | |
| Quantity per package | |
| Maximum efficiency | |
| Maximum output current | |
| Maximum short-circuit current | |
| Mounting method | |
| Package weight | |
| Application | |
| Rated input power | |
| Weight | 0,8 kg |
| CN | 90308900 |
SolarEdge S440 and S500 Optimizers
The SolarEdge S440 and S500 optimizers are advanced devices designed to enhance the efficiency and safety of photovoltaic installations on a module level. Created to work seamlessly with SolarEdge inverters for residential systems, these optimizers deliver top performance and reliability while simplifying the installation process.
Key Features of SolarEdge S440 and S500:
- High Compatibility – specifically designed to work with SolarEdge inverters for residential installations, ensuring complete system integration.
- PV Connector Anomaly Detection – optimizers detect abnormalities in photovoltaic connector behavior, preventing potential safety issues.
- Module-Level Voltage Shut Down – enhances the safety of installers and firefighters by allowing for quick and safe voltage disconnection.
- High Efficiency – the optimizers offer exceptional efficiency at 99.5%, allowing for maximum energy yield.
- Minimization of Module Mismatch Losses – eliminates any losses due to manufacturing tolerances or partial shading.
- Quick and Easy Installation – a streamlined cable management system and mounting with a single screw expedite the installation process.
- Flexible System Design – allows for optimal use of space with any arrangement of modules in the installation.
- Compatibility with Bifacial Modules – optimizers work with bifacial PV modules, ensuring additional energy harvest.
Who Is This a Good Choice For?
The SolarEdge S440 and S500 optimizers are an ideal solution for homeowners and installers looking for an advanced tool to enhance the performance and safety of photovoltaic systems. With easy installation, flexibility in design, and advanced safety features, these devices are perfect for any PV installation.
Datasheet Optimizer Solar Edge S440 - 1GM4MRM
datasheet-optimizer-solar-edge-s440-1gm4mrm.pdf
| Specification | S440 | S500 |
|---|---|---|
| Rated Input Power DC(1) [W] | 440 | 500 |
| Absolute Maximum Input Voltage (Voc) [V DC] | 60 | 60 |
| MPPT Operating Range [V DC] | 8 – 60 | 8 – 60 |
| Maximum Short Circuit Current (Isc) [A DC] | 14.5 | 15 |
| Maximum Efficiency [%] | 99.5 | 99.5 |
| Weighted Efficiency [%] | 98.6 | 98.6 |
| Surge Category | II | II |
| OUTPUT DURING OPERATION | ||
| Maximum Output Current [A DC] | 15 | 15 |
| Maximum Output Voltage [V DC] | 60 | 60 |
| STANDBY OUTPUT | ||
| Safe Optimizer Voltage [V DC] | 1 | 1 |
| COMPLIANCE STANDARDS | ||
| Electromagnetic Compatibility | FCC Part 15 Class B, IEC61000-6-2, IEC61000-6-3, CISPR11, EN-55011 | FCC Part 15 Class B, IEC61000-6-2, IEC61000-6-3, CISPR11, EN-55011 |
| Safety | IEC62109-1 (Class II Safety), UL1741 | IEC62109-1 (Class II Safety), UL1741 |
| Material | UL94 V-0, UV resistant | UL94 V-0, UV resistant |
| RoHS | Yes | Yes |
| Fire Safety | VDE-AR-E 2100-712:2013-05 | VDE-AR-E 2100-712:2013-05 |
| INSTALLATION SPECIFICATIONS | ||
| Maximum System Voltage [V DC] | 1000 | 1000 |
| Dimensions (W x D x H) [mm] | 129 x 153 x 30 | 129 x 153 x 30 |
| Weight (including cables) [g / lb] | 655 / 1.5 | 655 / 1.5 |
| Input Connector | MC4(2) | MC4(2) |
| Input Cable Length [m] | 0.1 | 0.1 |
| Output Connector | MC4 | MC4 |
| Output Cable Length (+) [m] | (+) 2.3, (-) 0.10 | (+) 2.3, (-) 0.10 |
| Operating Temperature Range(3) [˚C] | -40 to +85 | -40 to +85 |
| Protection Rating | IP68/NEMA6P | IP68/NEMA6P |
| Relative Humidity [%] | 0 – 100 | 0 – 100 |
