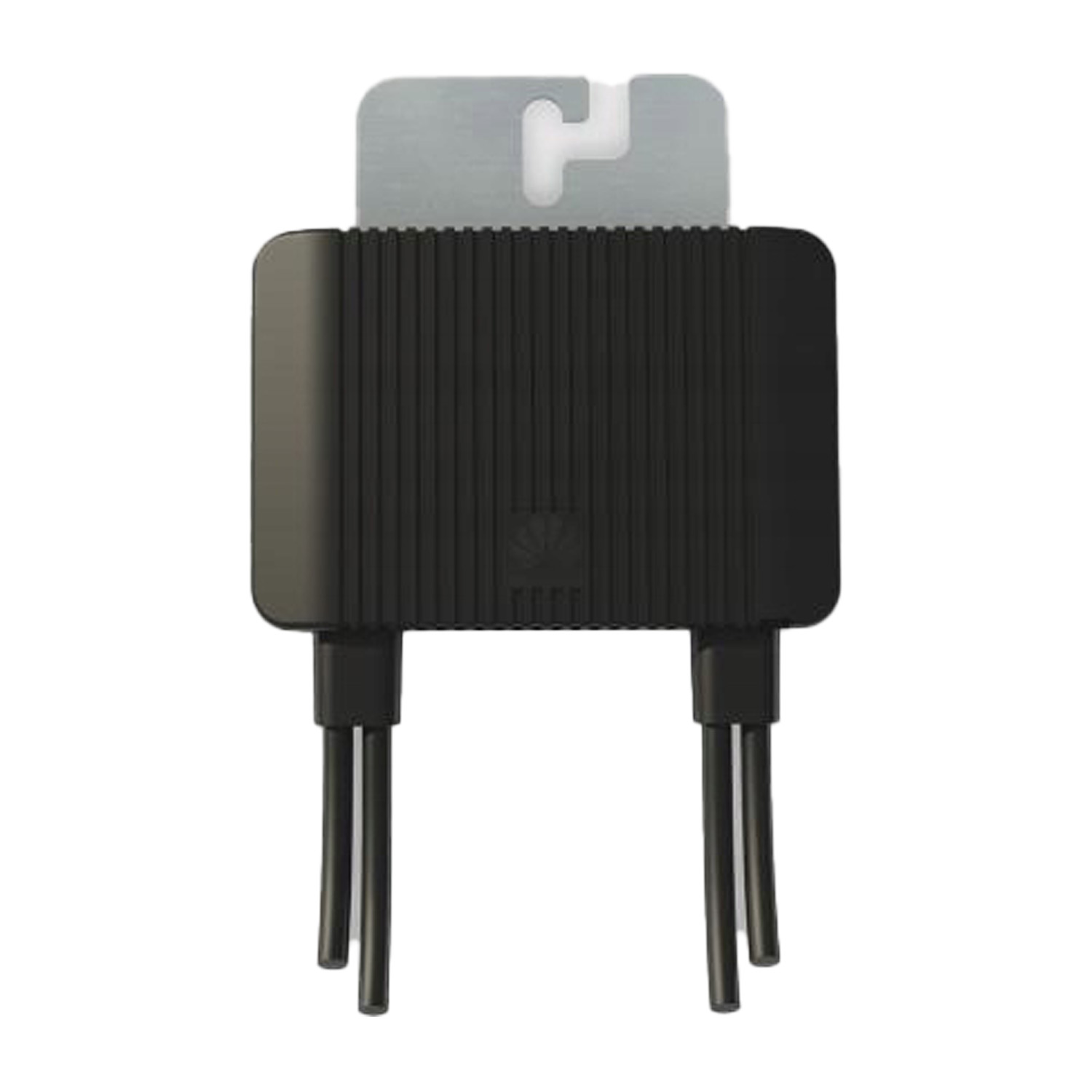

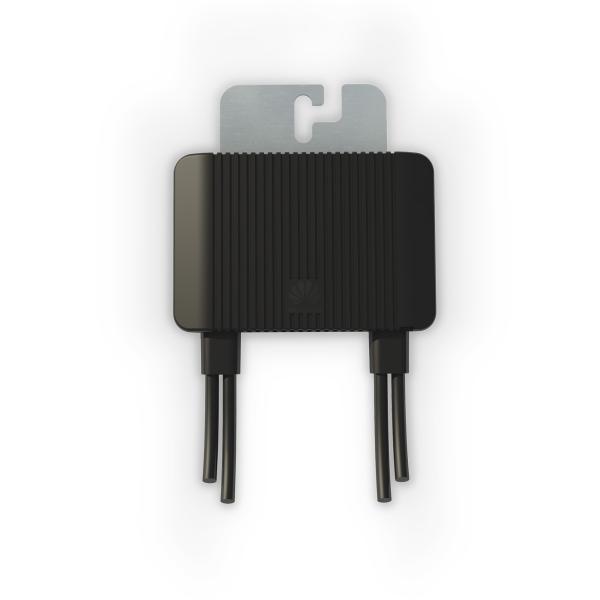

HUAWEI MERC1300W-P Optimizer Short Cable
| Manufacturer | |
|---|---|
| Application | |
| Rated input power | |
| Maximum short-circuit current | |
| Maximum output current | |
| Maximum output voltage | |
| Maximum efficiency | |
| Cable length | |
| Mounting method | |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| Weight | 1,212 kg |
| CN | 90308900 |
Gross
Product details
| Manufacturer | |
|---|---|
| Application | |
| Rated input power | |
| Maximum short-circuit current | |
| Maximum output current | |
| Maximum output voltage | |
| Maximum efficiency | |
| Cable length | |
| Mounting method | |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| Weight | 1,212 kg |
| CN | 90308900 |
Intelligent Power Optimizer Huawei MERC-1100/1300W-P
The intelligent module controller Huawei MERC-1100/1300W-P is a next-generation power optimizer designed to maximize energy yield and provide the highest level of safety for photovoltaic installations. With compatibility for high-power modules and advanced diagnostic features, it is a future-proof solution for both commercial systems and demanding residential installations.
Key features of the Huawei MERC-1100/1300W-P:
- Advanced safety features: The device delivers top-level safety thanks to precise arc fault pinpointing (Arc Fault Pinpoint Positioning), temperature detection, and a safe shutdown function that reduces voltage to 1 V.
- High compatibility and power: Supports modules with input power up to 1300 W and current up to 20 A, ensuring full compatibility with the latest high-performance PV panels on the market.
- Design flexibility for C&I: Enables longer panel strings, which is especially beneficial in commercial and industrial (C&I) scenarios, simplifying design and reducing installation costs.
- Fast commissioning and high efficiency: Automatic module mapping in under 5 seconds significantly speeds up commissioning, while a maximum efficiency of 99.5% minimizes energy losses.
- Full durability and reliability: Rated IP68 for complete dust and water protection, ensuring long-lasting, dependable operation in all weather conditions.
Who is this a good choice for?
This is an ideal solution for investors and installers of photovoltaic systems in the commercial and industrial (C&I) sectors, where design flexibility (longer strings) and the highest safety standards are critical. It also performs excellently in advanced residential installations, especially when using modern high-power modules. With features such as fault pinpointing and safe shutdown, the Huawei optimizer gives full control over the system and peace of mind for years to come.
| Parameter | MERC-1100W-P | MERC-1300W-P |
|---|---|---|
| Input | ||
| Rated DC input power (W)¹ | 1100 | 1300 |
| Max. input voltage (V) | 125 | 125 |
| MPPT operating voltage range (V) | 12.5 – 105 | 12.5 – 105 |
| Max. short-circuit current (Isc) (A) | 20 | 20 |
| Max. efficiency (%) | 99.5% | 99.5% |
| Weighted efficiency (%) | 99.0% | 99.0% |
| Overvoltage category | II | II |
| Output | ||
| Max. output voltage (V) | 80 | 80 |
| Max. output current (A) | 22 | 22 |
| Output bypass² | Yes | Yes |
| Output voltage when optimizer is turned off (V)³ | 1 | 1 |
| Standards compliance | ||
| Safety | IEC62109-1 (Class II safety) | IEC62109-1 (Class II safety) |
| RoHS | Yes | Yes |
| General data | ||
| Dimensions (W x H x D) (mm) | 149 x 104 x 49 | 149 x 104 x 49 |
| Weight (including cables) (kg) | 1.05 | 1.05 |
| Mounting accessory (optional) | PV module frame plate, T-shaped screw | PV module frame plate, T-shaped screw |
| Input connector | MC4 | MC4 |
| Input cable length (m) | 0.1 (short input cable version)⁴ | 0.1 (short input cable version)⁴ |
| Output connector | MC4 | MC4 |
| Output cable length (m) | 0.1 (+), 5.1 (-) (short input cable version)⁴ | 0.1 (+), 5.1 (-) (short input cable version)⁴ |
| Operating temperature/humidity range | -40°C to +85°C⁵ / 0%-100% RH | -40°C to +85°C⁵ / 0%-100% RH |
| Protection rating | IP68 | IP68 |
| Compatible inverter | SUN2000-8/10/12/15/17/20KTL-M2 SUN2000-20/29.9/30/36/40KTL-M3 SUN2000-12/15/17/20/23/25KTL-M5 SUN2000-50KTL-M3 |
|
String configuration (full optimizer configuration)
| Inverter | Minimum number of optimizers per string | Maximum number of optimizers per string | Recommended number of strings per inverter | Maximum DC power per string (W) |
|---|---|---|---|---|
| SUN2000-12-20KTL-M2 | 6 | 25 | 12KTL: 1, 15-20KTL: 2 | 20,000 |
| SUN2000-12-25KTL-M5 | 6 | 25 | 12KTL: 1, 15-25KTL: 2 | 20,000 |
| SUN2000-20-40KTL-M3 | 6 | 25 | 30/36KTL: 3, 40KTL: 4 | 20,000 |
| SUN2000-50KTL-M3 | 6 | 20 | 4 | 20,000 |
*1 The rated power of modules under Standard Test Conditions (STC) should not exceed the optimizers’ rated DC input power. Module power may be up to 5% higher than the optimizer’s rated power.
*2 A faulty optimizer will be bypassed so other optimizers and inverters are not affected by the failure.
*3 When the optimizer output is open or the inverter connected to the optimizer is turned off, the optimizer’s default output voltage is 1 V DC.
*4 For the short input cable version (input cable 0.1 m (+/-), output cable 0.1 m (+), 5.1 m (-)), ensure PV module cables are long enough to connect to the optimizers. A long input cable version is available on request.
*5 When the optimizer’s operating temperature reaches 70°C to 85°C, the optimizer may shut down due to overheat protection and trigger an alarm. After the temperature drops to 70°C or below, the optimizer will automatically resume operation without risk of damage.
