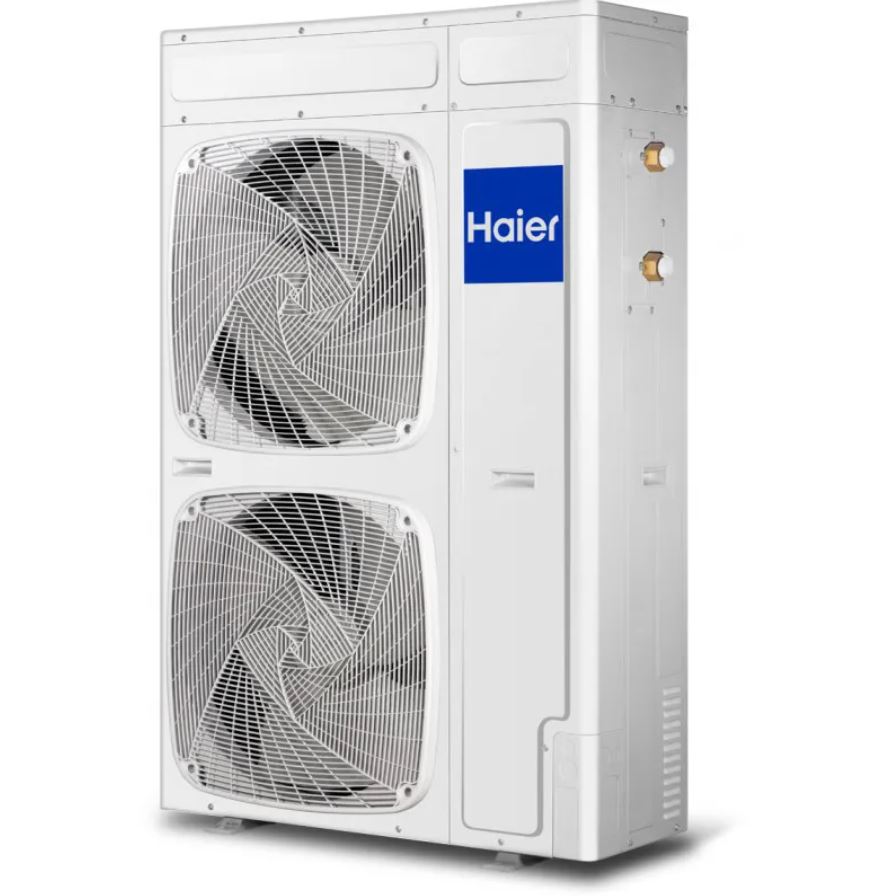

Heat pump – HAIER – AU112FYCRA(HW) – 11 kW
| Manufacturer | |
|---|---|
| Power supply | |
| Net width | |
| Net depth | |
| Net height | |
| Power | |
| Model | |
| Weight | 142 kg |
| CN | 84186100 |
Incl. VAT
Product details
| Manufacturer | |
|---|---|
| Power supply | |
| Net width | |
| Net depth | |
| Net height | |
| Power | |
| Model | |
| Weight | 142 kg |
| CN | 84186100 |
Monoblock CO + DHW
Monoblock CO + DHW is a series of Haier heat pumps with refrigerant R32, designed for heating and cooling. The units work with fan coil units, underfloor heating and conventional radiators, and precise sensors help achieve the set room temperature. Domestic hot water preparation requires the optional ATW-A01 module.
Key advantages of the Monoblock CO + DHW
- Compatibility with three types of heat emitters: fan coil units, underfloor heating and conventional wall-mounted radiators.
- Heating capacity 7.8–16 kW depending on the model, at water inlet/outlet temperature 30/35°C and ambient temperature 7/6°C.
- TURBO mode: according to the datasheet increases performance by 15% during heating or cooling.
- Multi-stage noise reduction: DC Inverter fan motor, sound-absorbing material around the components that generate the most noise, and QUIET low-noise operation mode.
- Freeze protection: automatic assessment of temperature differences to maintain appropriate temperatures of the water and refrigerant in the system.
- Water outlet temperature: 20–55°C during heating and 5–20°C during cooling.
Who is this a good choice for?
The series is intended for users who need heating and cooling of spaces using fan coil units, underfloor heating or wall-mounted radiators. Those also interested in domestic hot water production should consider the optional ATW-A01 module, required for DHW operation. The QUIET mode addresses the need to adapt the unit’s operation with respect to noise.
| Parameter | AU082FYCRA(HW) | AU112FYCRA(HW) | AU162FYCRA(HW) |
|---|---|---|---|
| Power supply | |||
| Power supply (f/V/Hz) | 1/220-240/50/60 | ||
| Cooling (*1) | |||
| Cooling capacity (kW) | 5,50 | 11,5 | 14,50 |
| Power input (kW) | 1,77 | 2,61 | 3,86 |
| EER (kW/kW) | 2,35 | 3,00 | 2,95 |
| Cooling (*2) | |||
| Cooling capacity (kW) | 7,00 | 13,5 | 16,00 |
| Power input (kW) | 1,77 | 2,61 | 3,86 |
| EER (kW/kW) | 3,40 | 4,60 | 4,40 |
| Heating (*3) | |||
| Heating capacity (kW) | 7,50 | 10,5 | 15,00 |
| Power input (kW) | 1,77 | 2,61 | 3,86 |
| COP (kW/kW) | 3,20 | 3,12 | 3,25 |
| Heating (*4) | |||
| Heating capacity (kW) | 7,80 | 11,00 | 16,00 |
| Power input (kW) | 1,77 | 2,61 | 3,86 |
| COP (kW/kW) | 4,40 | 4,22 | 4,15 |
| Flows and connections | |||
| Outdoor unit air flow (m³/h) | 4200 | 7200 | |
| Water flow (m³/h) | 1,38 | 1,89 | 2,75 |
| Water inlet and outlet diameter (inches) | 1-1/4″ | ||
| Refrigerant | |||
| Refrigerant type | R32 | ||
| Refrigerant charge (kg) | 1,15 | 2,40 | 2,60 |
| Dimensions and weight | |||
| Net dimensions (W × H × D) (mm) | 950×965×395 | 950×1490×380 | |
| Net weight (kg) | 87 | 139 | |
| Operating conditions | |||
| Ambient temperature range during cooling (°C) | 10~46 | ||
| Ambient temperature range during heating (°C) | -20~35 | ||
| Anti-freeze function activation temperature (°C) | below 5 | ||
| Water outlet temperature during cooling (°C) | 5~20 | ||
| Water outlet temperature during heating (°C) | 20~55 | ||
| Acoustics | |||
| Outdoor unit sound power level (*3) (dB(A)) | 60,9 | 62,7 | 67,4 |
| Accessories | |||
| Wired controller (optional) | YR-E27 | ||
| Hot water control board (optional) | ATW-A01 | ||
*1: cooling, water inlet/outlet 12/7°C, ambient 35°CDB. *2: cooling, water 23/18°C, ambient 35°CDB. *3: heating, water 40/45°C, ambient 7/6°CDB. *4: heating, water 30/35°C, ambient 7/6°CDB. DHW only with ATW-A01.
