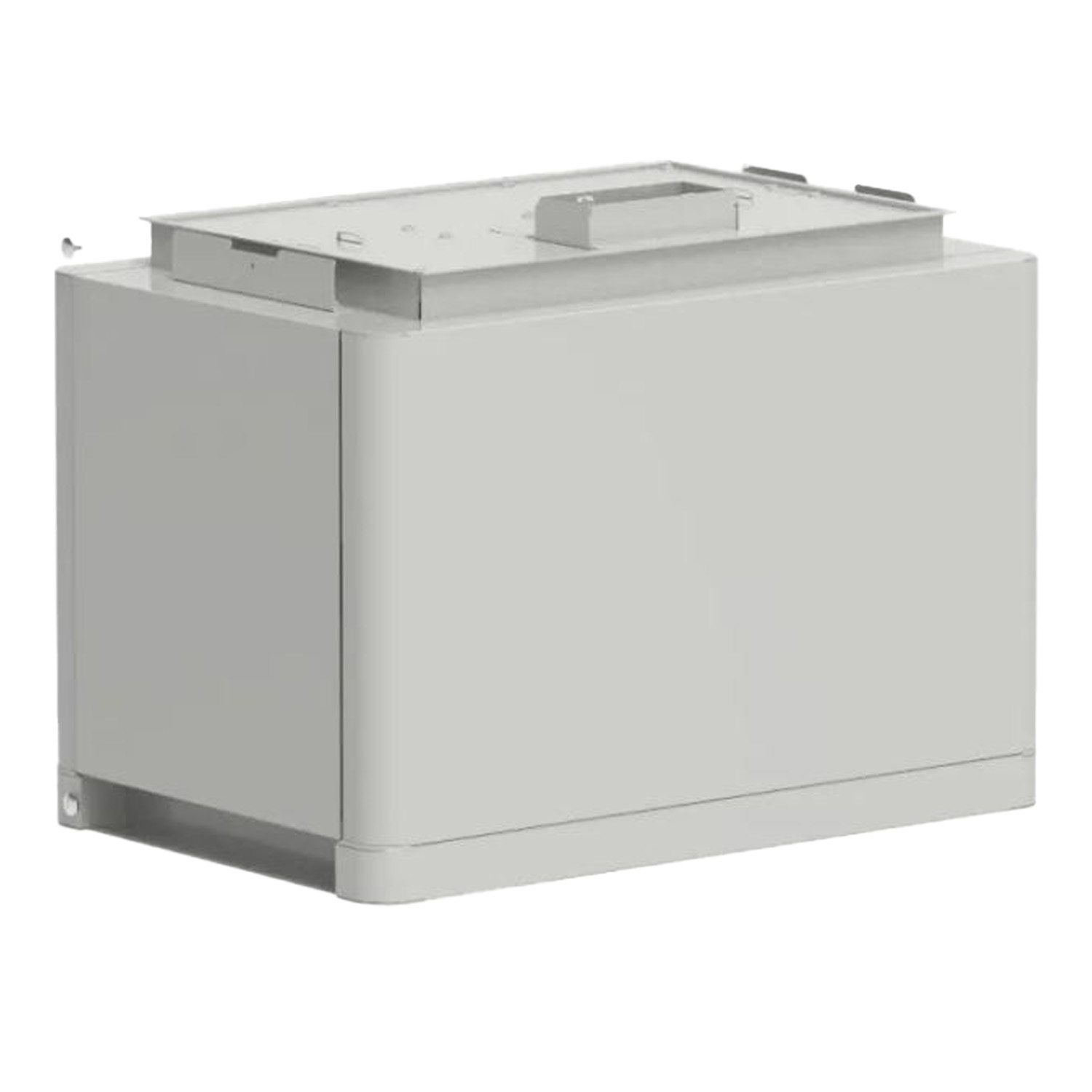

PYLONTECH Battery Module 3.55kWh – H2
SKU: F1164
EAN: 5905951581057
| Manufacturer | |
|---|---|
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| Depth of Discharge | |
| Number of charging cycles | |
| Module voltage | |
| Capacity | |
| Charging current | |
| Discharge current | |
| Cell type | |
| Required number of modules | |
| Weight | 35 kg |
| CN | 85076000 |
Safety datasheet Pylontech 3.55kWh battery module - H2
safety-datasheet-pylontech-3-55kwh-battery-module-h2.pdf
Product details
| Manufacturer | |
|---|---|
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| Depth of Discharge | |
| Number of charging cycles | |
| Module voltage | |
| Capacity | |
| Charging current | |
| Discharge current | |
| Cell type | |
| Required number of modules | |
| Weight | 35 kg |
| CN | 85076000 |
Pylontech Force H1/H2
The energy storage system Pylontech Force H1/H2 is an advanced solution for storing electrical energy, featuring a flexible configuration and easy installation. With its modular design, this system allows users to tailor both capacity and voltage to individual needs, offering a voltage range from 96V to 384V and capacities from 7.1 kWh to 24.86 kWh.
Key features of the Pylontech Force H1/H2 storage system:
- Capacity range of 7.1–24.86 kWh – Enables flexible adaptation to residential and commercial needs.
- Flexible installation – The modular system allows for easy setup and adaptation to existing solutions.
- Plug & Play – Intuitive installation saves time and reduces installation costs.
- 90% DOD (Depth of Discharge) – High efficiency in utilizing available energy.
- Weather resistant – Suitable for both outdoor and indoor applications.
Who is this a good choice for?
The energy storage system Pylontech Force H1/H2 is an excellent solution for large homes and smaller commercial properties that require a reliable energy storage system. With its high flexibility and efficiency, it is well-suited for various applications, providing savings in both time and money, as well as stability in energy supply.
Safety datasheet Pylontech 3.55kWh battery module - H2
safety-datasheet-pylontech-3-55kwh-battery-module-h2.pdf
Pylontech Force H1 / H2 – Specification
| Basic Parameters | Force H1 (336V74AH) | Force H2 (384V37AH) |
|---|---|---|
| Battery Module | FH48074 | FH9637M |
| Battery Module Voltage (Vdc) | 48 | 96 |
| Battery Module Capacity (Ah) | 74 | 37 |
| Number of Battery Modules (Option) | 3-7 Pcs | 2-4 Pcs |
| Battery System Capacity (kWh) | 24.86 | 14.21 |
| Battery System Voltage (V) | 336 | 384 |
| Dimensions (W*D*H cm) | 600 x 380 x 1380 | 450 x 296 x 1415 |
| Weight (kg) | 259 | 155 |
| Depth of Discharge | 90% | 90% |
| Charging and Discharging Current (Continuous / Max. A) | 37 / 40 | 18.5 / 40 |
| Communication | CAN, Modbus | CAN, Modbus |
| Protection Level | IP55 | IP55 |
| Operating Temperature (°C) | 0-50 | 0-50 |
| Storage Temperature (°C) | -20-60 | -20-60 |
| Lifetime | 15+ years (25°C / 77°F) | 15+ years (25°C / 77°F) |
| Certification Level | UL/IEC62619/IEC62477/IEC62040/CE/UN38.3 | UL/IEC62619/IEC62477/IEC62040/CE/UN38.3 |
