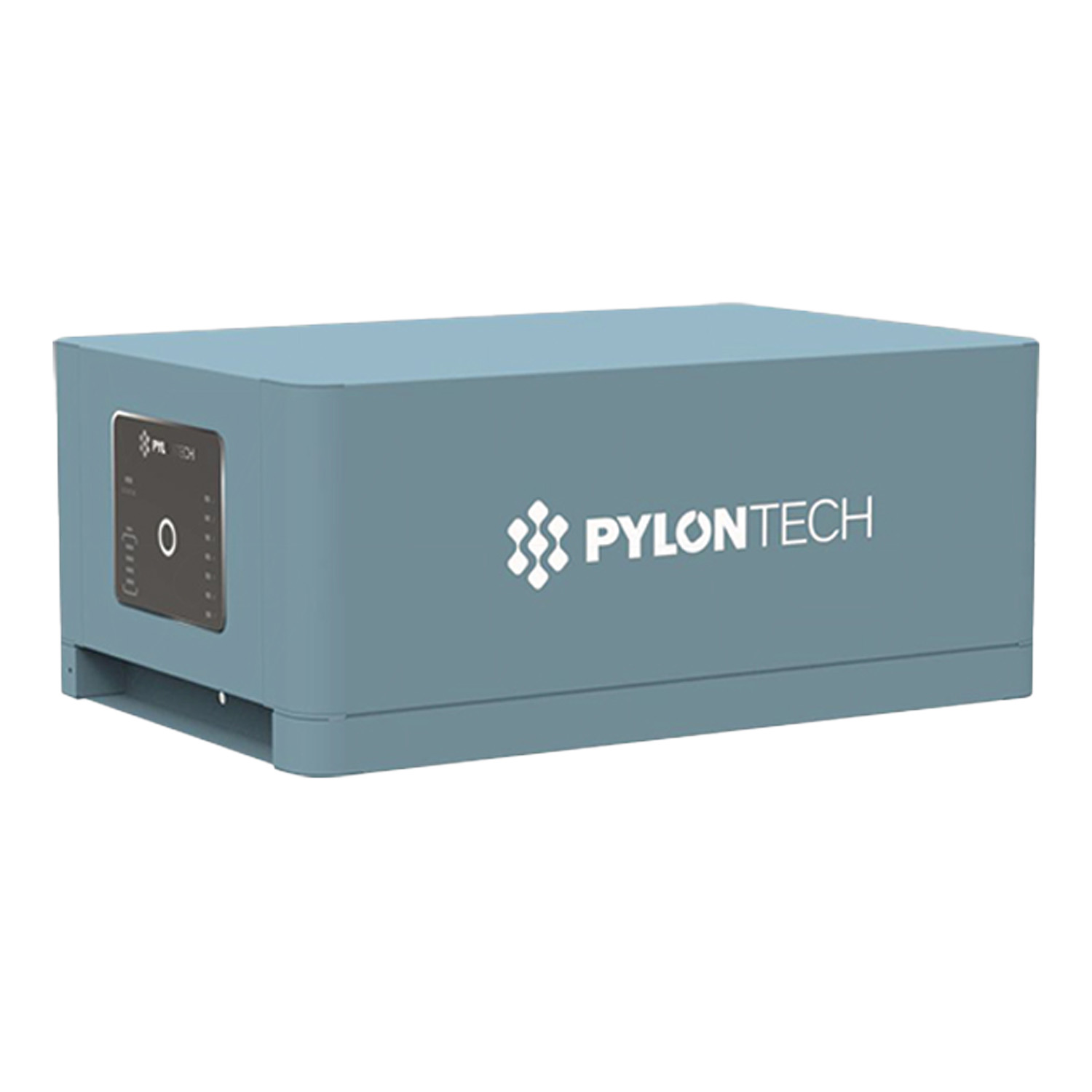

PYLONTECH energy bank control module H2 – FC0500M-40S-B / OUTLET
| Manufacturer | |
|---|---|
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| RS485 | Yes |
| RS232 | Yes |
| CAN | Yes |
| USB | Nein |
| Weight | 17,3 kg |
| CN | 85371010 |
Product details
| Manufacturer | |
|---|---|
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| RS485 | Yes |
| RS232 | Yes |
| CAN | Yes |
| USB | Nein |
| Weight | 17,3 kg |
| CN | 85371010 |
Pylontech Force H1/H2 Battery Systems
The Pylontech Force H1/H2 represents the latest generation of high-voltage battery systems designed for electricity storage. This newly designed, modular system features easy installation (Plug&Play), which saves valuable time for installers. It offers flexible voltage and capacity configurations, perfectly adapting to the needs of both large homes and small commercial applications.
Key Features of Pylontech Force H1/H2 Battery Systems:
- Flexible configuration: Ability to adjust the system voltage from 96V to 384V and capacity from 7.1 kWh to 24.86 kWh, depending on the chosen model (Force H1 or Force H2) and the number of modules.
- High depth of discharge: Allowable depth of discharge (DOD) at 90%, enabling efficient use of stored energy.
- Easy installation: The Plug&Play system and the option for both indoor and outdoor installation (IP55 protection rating) ensure simplicity and versatility in setup.
- Long lifespan: The expected lifespan of the system is over 15 years when operating at 25°C.
- Modern design: The black-and-white color scheme of the steel casing reflects a strong energy storage capacity and aesthetically fits into the environment.
- Communication: The systems are equipped with CAN and Modbus communication interfaces.
Who is this a good choice for?
Pylontech Force H1/H2 battery systems are an excellent choice for owners of large single-family homes and small commercial properties looking for a reliable and flexible energy storage solution. With the ability to scale capacity, high depth of discharge, and long lifespan, these systems optimize energy consumption, increase self-consumption from photovoltaic installations, and ensure stable power supply. The ease of installation and aesthetic design are additional advantages for discerning users.
| Parameter | FORCE H1 (336V74AH) | FORCE H2 (384V37AH) |
|---|---|---|
| Basic Parameters | ||
| Battery Module | FH48074 | FH9637M |
| Battery Module Voltage (Vdc) | 48 | 96 |
| Battery Module Capacity (Ah) | 74 | 37 |
| Number of Battery Modules (Option) | 3~7 pcs | 2~4 pcs |
| Battery System Capacity (kWh) | 24.86 (for 7 modules) | 14.21 (for 4 modules) |
| Battery System Voltage (V) | 336 (for 7 modules) | 384 (for 4 modules) |
| Dimensions (W*D*H cm) | 600*380*1380 (for 7 modules) | 450*296*1415 (for 4 modules) |
| Weight (kg) | 259 (for 7 modules) | 155 (for 4 modules) |
| Depth of Discharge (%) | 90% | 90% |
| Charging and Discharging Current (continuous / max A) | 37 / 40 | 18.5 / 40 |
| Communication | CAN, Modbus | CAN, Modbus |
| Protection Class (IP) | IP55 | IP55 |
| Operating Temperature (°C) | 0-50 | 0-50 |
| Storage Temperature (°C) | -20-60 | -20-60 |
| Life Expectancy | 15+ years (25 °C/77F) | 15+ years (25 °C/77F) |
| Authentication Level | UL/IEC62619/IEC62477/IEC62040/CE/UN38.3 | UL/IEC62619/IEC62477/IEC62040/CE/UN38.3 |
Note: The battery system capacity, battery system voltage, dimensions, and weight are specified for the maximum number of modules in each configuration (7 for Force H1, 4 for Force H2). The actual capacity and voltage will depend on the number of installed modules (the minimum number of modules is 3 for H1 and 2 for H2).
