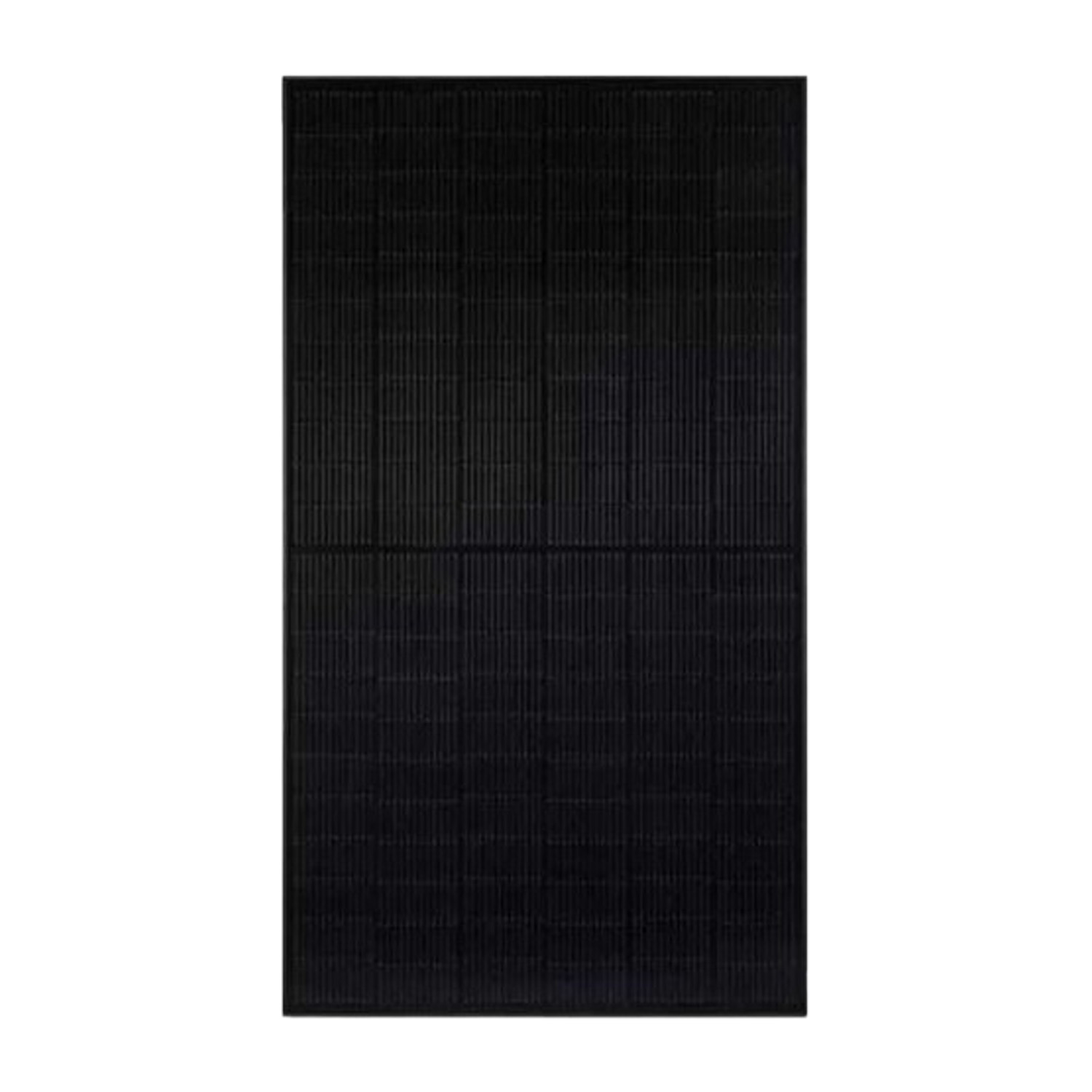

Q-CELLS Q.PEAK DUO BLK M G11S 400/113 Module
SKU: F140U0
EAN: 5905951587622
| Manufacturer | |
|---|---|
| Frame thickness | |
| Linear power warranty | |
| Product warranty | |
| Number of BusBar | |
| Quantity per pallet | |
| Quantity per container | |
| Frame color | |
| Power | |
| Efficiency | |
| Width | |
| Type | Monocrystalline |
| Cell type | |
| Height | |
| Maximum static load (Pa) | |
| Tier 1 | |
| Technology | |
| Cable length (+) | 1265 mm |
| Cable length (-) | 1265 mm |
| Weight | 22,45 kg |
| CN | 85414300 |
Datasheet Q-Cells Q.PEAK DUO BLK M G11S 400/113
datasheet-q-cells-q-peak-duo-blk-m-g11s-400-113.pdf
Product details
| Manufacturer | |
|---|---|
| Frame thickness | |
| Linear power warranty | |
| Product warranty | |
| Number of BusBar | |
| Quantity per pallet | |
| Quantity per container | |
| Frame color | |
| Power | |
| Efficiency | |
| Width | |
| Type | Monocrystalline |
| Cell type | |
| Height | |
| Maximum static load (Pa) | |
| Tier 1 | |
| Technology | |
| Cable length (+) | 1265 mm |
| Cable length (-) | 1265 mm |
| Weight | 22,45 kg |
| CN | 85414300 |
Q.PEAK DUO BLK M-G11S SERIES by Hanwha Q CELLS
The photovoltaic modules from the Q.PEAK DUO BLK M-G11S SERIES are designed using Q.ANTUM DUO technology, which enables breaking through the 21% efficiency barrier, enhancing power output and energy efficiency. Thanks to their innovative design and advanced protective technologies, these panels ensure long-lasting performance and reliability in all weather conditions.
Key features of the Q.PEAK DUO BLK M-G11S SERIES modules:
- Groundbreaking efficiency – Q.ANTUM DUO technology with an optimized module layout allows for achieving efficiency above 21%.
- Long-lasting high performance – Anti LeTID, Anti PID, and Hot-Spot Protect technologies guarantee reliable operation of the modules for many years.
- Resistance to extreme weather conditions – The frame, made from high-quality aluminum alloy, is certified to withstand snow loads of up to 8100 Pa and wind loads of up to 4000 Pa.
- Innovative technology for all conditions – Optimal energy yield regardless of weather conditions, thanks to excellent performance in low sunlight and high temperature conditions.
- Safe investment – A 12-year product warranty and a 25-year linear performance warranty ensure reliability.
- Highest quality testing standards – The modules have undergone the most comprehensive testing programs in the industry, obtaining TUV Rheinland certification.
Who is this a good choice for?
The modules from the Q.PEAK DUO BLK M-G11S SERIES are an ideal choice for individuals and companies that value top energy efficiency and reliability. With advanced technologies and resistance to extreme weather conditions, they are an excellent solution for both residential and commercial installations, guaranteeing long-lasting performance and savings.
Datasheet Q-Cells Q.PEAK DUO BLK M G11S 400/113
datasheet-q-cells-q-peak-duo-blk-m-g11s-400-113.pdf
Technical Specification Q.PEAK DUO BLK M-G11S SERIES
| Electrical Parameters | |||||
|---|---|---|---|---|---|
| Minimum Performance in Standard Testing Conditions, STC (power tolerance +5 W / −0 W) | |||||
| Power Classes | 390 | 395 | 400 | 405 | 410 |
| Power at MPP [P MPP] (W) | 390 | 395 | 400 | 405 | 410 |
| Short Circuit Current [I SC] (A) | 13.61 | 13.65 | 13.68 | 13.72 | 13.76 |
| Open Circuit Voltage [V OC] (V) | 37.02 | 37.04 | 37.07 | 37.10 | 37.13 |
| Current at MPP [I MPP] (A) | 12.88 | 12.95 | 13.02 | 13.09 | 13.16 |
| Voltage at MPP [V MPP] (V) | 30.27 | 30.49 | 30.71 | 30.93 | 31.14 |
| Efficiency [%] | ≥ 20.0 | ≥ 20.2 | ≥ 20.5 | ≥ 20.7 | ≥ 21.0 |
| Minimum Performance Under Normal Operating Conditions, NMOT | |||||
| Power Classes | 390 | 395 | 400 | 405 | 410 |
| Power at MPP [P MPP] (W) | 292.6 | 296.3 | 300.1 | 303.8 | 307.6 |
| Short Circuit Current [I SC] (A) | 10.97 | 11.00 | 11.03 | 11.06 | 11.09 |
| Open Circuit Voltage [V OC] (V) | 34.91 | 34.93 | 35.00 | 35.03 | 35.05 |
| Current at MPP [I MPP] (A) | 10.12 | 10.19 | 10.25 | 10.31 | 10.38 |
| Voltage at MPP [V MPP] (V) | 28.90 | 29.09 | 29.28 | 29.46 | 29.65 |
| Mechanical Parameters | |||||
| Dimensions | 1722 mm × 1134 mm × 30 mm (including frame) | 1722 mm × 1134 mm × 30 mm (including frame) | 1722 mm × 1134 mm × 30 mm (including frame) | 1722 mm × 1134 mm × 30 mm (including frame) | 1722 mm × 1134 mm × 30 mm (including frame) |
| Weight | 21.1 kg | 21.1 kg | 21.1 kg | 21.1 kg | 21.1 kg |
| Front Cover | 3.2 mm thermally reinforced glass with anti-reflective technology | 3.2 mm thermally reinforced glass with anti-reflective technology | 3.2 mm thermally reinforced glass with anti-reflective technology | 3.2 mm thermally reinforced glass with anti-reflective technology | 3.2 mm thermally reinforced glass with anti-reflective technology |
| Back Cover | Multi-layer film | Multi-layer film | Multi-layer film | Multi-layer film | Multi-layer film |
| Frame | Black anodized aluminum | Black anodized aluminum | Black anodized aluminum | Black anodized aluminum | Black anodized aluminum |
| Cell | 6 × 18 monocrystalline Q.ANTUM solar half-cells | 6 × 18 monocrystalline Q.ANTUM solar half-cells | 6 × 18 monocrystalline Q.ANTUM solar half-cells | 6 × 18 monocrystalline Q.ANTUM solar half-cells | 6 × 18 monocrystalline Q.ANTUM solar half-cells |
| Connection Socket | 53-101 mm × 32-60 mm × 15-18 mm, Protection class IP67, with bypass diodes | 53-101 mm × 32-60 mm × 15-18 mm, Protection class IP67, with bypass diodes | 53-101 mm × 32-60 mm × 15-18 mm, Protection class IP67, with bypass diodes | 53-101 mm × 32-60 mm × 15-18 mm, Protection class IP67, with bypass diodes | 53-101 mm × 32-60 mm × 15-18 mm, Protection class IP67, with bypass diodes |
| Cable | 4 mm² solar cable; (+) ≥ 1265 mm, (−) ≥ 1265 mm | 4 mm² solar cable; (+) ≥ 1265 mm, (−) ≥ 1265 mm | 4 mm² solar cable; (+) ≥ 1265 mm, (−) ≥ 1265 mm | 4 mm² solar cable; (+) ≥ 1265 mm, (−) ≥ 1265 mm | 4 mm² solar cable; (+) ≥ 1265 mm, (−) ≥ 1265 mm |
| Plug Device | Stäubli MC4, Hanwha Q CELLS HQC4; IP68 | Stäubli MC4, Hanwha Q CELLS HQC4; IP68 | Stäubli MC4, Hanwha Q CELLS HQC4; IP68 | Stäubli MC4, Hanwha Q CELLS HQC4; IP68 | Stäubli MC4, Hanwha Q CELLS HQC4; IP68 |
| System Connection Parameters | |||||
| Maximum System Voltage | 1000 V | 1000 V | 1000 V | 1000 V | 1000 V |
| Maximum Reverse Current | 25 A | 25 A | 25 A | 25 A | 25 A |
| Maximum Allowable Pressure/Tensile Load | 5400 / 2665 Pa | 5400 / 2665 Pa | 5400 / 2665 Pa | 5400 / 2665 Pa | 5400 / 2665 Pa |
| Maximum Pressure/Tensile Load Test | 8100 / 4000 Pa | 8100 / 4000 Pa | 8100 / 4000 Pa | 8100 / 4000 Pa | 8100 / 4000 Pa |
| Permitted Module Temperature | -40°C to +85°C | -40°C to +85°C | -40°C to +85°C | -40°C to +85°C | -40°C to +85°C |
| PV Module Classification | Class II | Class II | Class II | Class II | Class II |
| Fire Rating based on ANSI/UL 61730 | C/TYPE 2 | C/TYPE 2 | C/TYPE 2 | C/TYPE 2 | C/TYPE 2 |
| Temperature Coefficients | |||||
| Temperature Coefficient for ISC | α [%/K] +0.04 | α [%/K] +0.04 | α [%/K] +0.04 | α [%/K] +0.04 | α [%/K] +0.04 |
| Temperature Coefficient for UOC | β [%/K] −0.27 | β [%/K] −0.27 | β [%/K] −0.27 | β [%/K] −0.27 | β [%/K] −0.27 |
| Temperature Coefficient for PMPP | γ [%/K] −0.34 | γ [%/K] −0.34 | γ [%/K] −0.34 | γ [%/K] −0.34 | γ [%/K] −0.34 |
| Nominal Module Operating Temperature | NMOT [°C] 43±3 | NMOT [°C] 43±3 | NMOT [°C] 43±3 | NMOT [°C] 43±3 | NMOT [°C] 43±3 |
