KV PC 8104

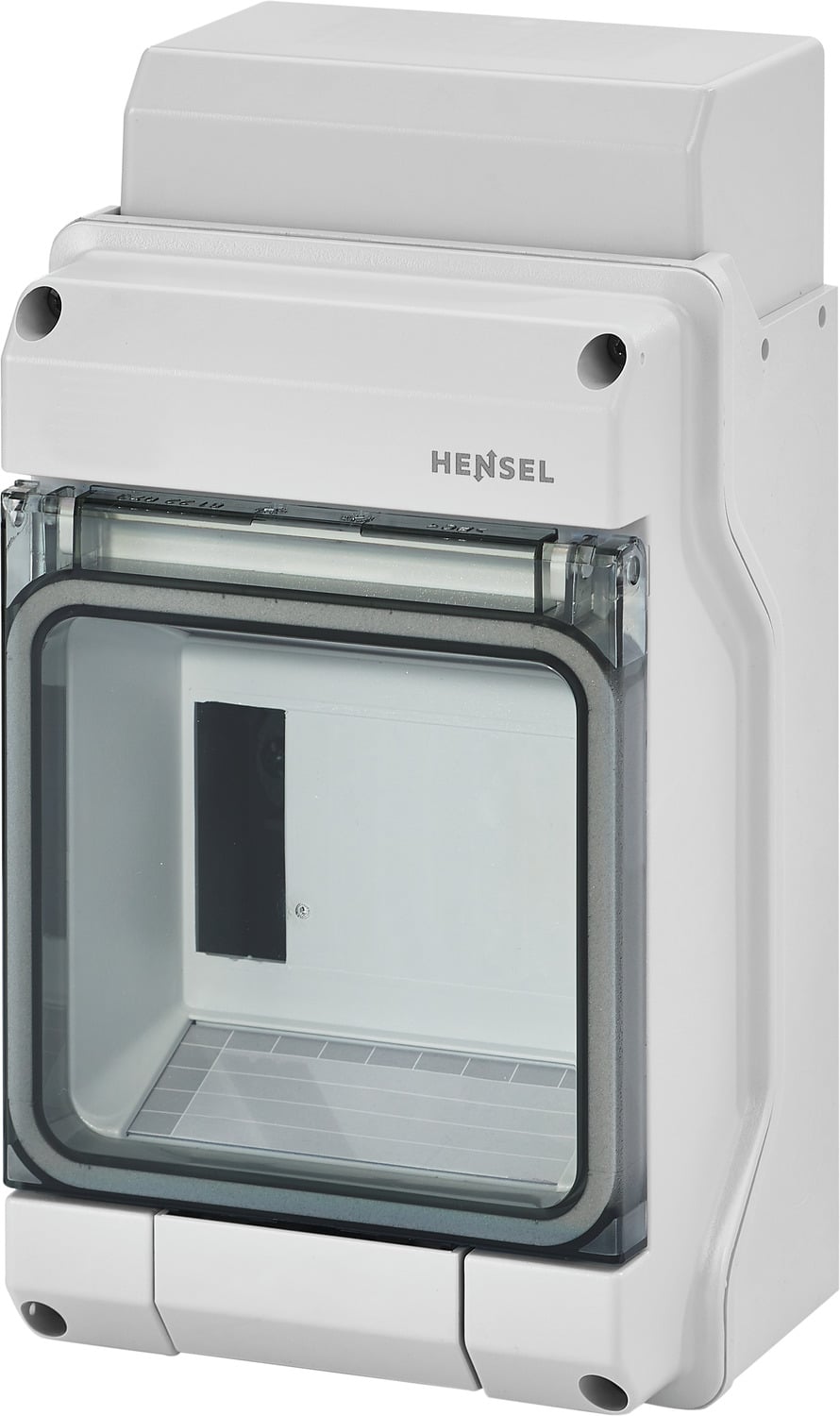

KV PC 8104 is a small enclosure without terminals, intended for indoor installation and for unprotected outdoor installations. It allows mounting devices with a rated current up to 63 A on a 35 mm DIN mounting rail. The polycarbonate housing has an IP65 protection rating, protection class II and a transparent cover.
Key advantages of KV PC 8104
- IP65 protection rating and protection class II — insulated housing, also suitable for unprotected outdoor installations.
- Single row with a width of 4,5 modules of 18 mm each — for mounting devices on a 35 mm DIN rail, with a rated current up to 63 A.
- Halogen- and silicone-free polycarbonate — material resistant to UV exposure, cold and sea water and corrosion.
- Flexible membrane cable glands — entries on the top and bottom walls with sealing ranges 7–16 mm and 10–20 mm.
- Transparent cover and supplied accessories — blanking plug, mounting rails, labeling strips and cable outlet cover.
- Dimensions 228 × 126 × 111 mm — height, width and depth; ambient temperature during use from -5 to +40°C.
Who is this a good choice for?
KV PC 8104 is an option for users who need a small enclosure for devices mounted on a DIN rail, indoors or in an unprotected outdoor installation. It is suitable where a single row of 4,5 modules is sufficient and an IP65 protection rating is required. For outdoor installation, consider the influence of ambient temperature and solar radiation on the mounted devices.
| Parameter | Value |
|---|---|
| Electrical properties | |
| Rated insulation voltage (V) | 1000 |
| Type of voltage | Alternating |
| Protection class | II |
| Rated current (A) | 63 |
| Power dissipation capacity according to DIN EN 60670-24 (W) | 12 |
| Temperature difference for power dissipation (K) | 30 |
| Cable entries | |
| Cable glands 7-16 mm | |
| Number of cable entries | 4 |
| Type of cable entries | Flexible membrane cable glands |
| Sealing range of cable entries (mm) | 10 – 20 |
| Location of cable entries | Wall top+bottom |
| Cable glands 10-20 mm | |
| Number of cable entries for range 10-20 mm | 1 |
| Type of cable entries for range 10-20 mm | Flexible membrane cable glands |
| Sealing range of additional cable entries (mm) | 10 – 20 |
| Location of cable entries for range 10-20 mm | Wall top+bottom |
| Mechanical properties | |
| Type of cover | Cover |
| Transparent cover | Yes |
| Width in module units (mod.) | 4,5 |
| Number of rows | 1 |
| Supplied accessories | Blanking plug, mounting rails, labeling strips, cable outlet cover |
| Protection rating IP | IP65 |
| Device cut-out | Break-out |
| Operating conditions | |
| Installation location | For unprotected installation |
| Maximum ambient temperature over 24 hours (°C) | 35 |
| Ambient temperature (°C) | -5 to +40 |
| Relative air humidity (%) | ≤ 50% at 40°C, ≤ 100% at 25°C |
| Material properties | |
| Material | Polycarbonate |
| Glow wire test temperature according to IEC 60695-2-11 (°C) | 960 |
| Flammability class according to UL 94 | V-2 |
| Temperature resistance (°C) | -25 to +80 |
| Halogen-free | Yes |
| Silicone-free | Yes |
| Weather resistance | Yes (resistant to UV load from sunlight, cold and sea water, corrosion, temperature resistance, impact resistance) |
| Dimensions and weight | |
| Height (mm) | 228 |
| Width (mm) | 126 |
| Depth (mm) | 111 |
| Net weight (kg) | 0,627 |
| Standards | |
| Standards compliance | DIN EN 60670-1, DIN EN 60670-24 |
Using the supplied plug does not change the stated degree of protection.
