Distribution board – NOARK – SHP-232 AC
SKU: F39073
EAN: 2010000038741
| Manufacturer | |
|---|---|
| Weight | 2,04 kg |
| CN | 85381000 |
Product details
| Manufacturer | |
|---|---|
| Weight | 2,04 kg |
| CN | 85381000 |

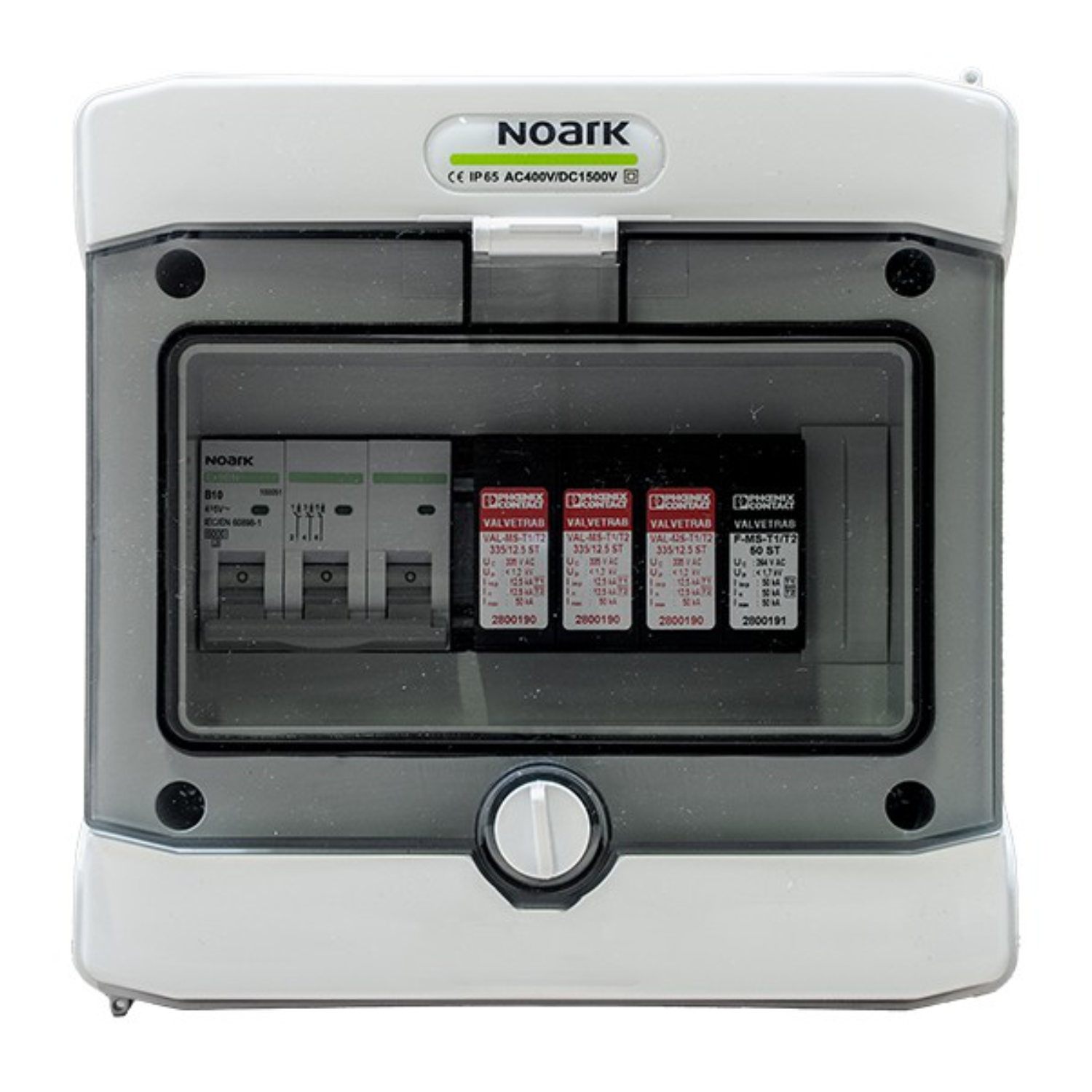

NOARK SHP-232 AC Distribution Box
The SHP-232 AC is a modular AC surge protection device of type T1/T2 integrated with an overcurrent circuit breaker, designed to protect photovoltaic installations from the effects of surges. The unit features an IP65 protection rating, UV resistance and is ready for connection, providing safety and reliability for the system.
Key features of the SHP-232 AC:
- Integrated T1/T2 surge protector and Noark B16A 3P overcurrent circuit breaker.
- Rated insulation voltage U: 400 V AC, 1500 V DC.
- IP65 protection rating and UV resistance.
- Modular design with the option of top or bottom connections.
- Rated breaking capacity of the overcurrent circuit breaker Icn: 6 kA (IEC 60898-1) / 10 kA (IEC 60947-2).
- Maximum surge current Imax (8/20 μs): 50 kA.
- Warranty: 5 years.
Who is this a good choice for?
The SHP-232 AC is an ideal solution for installers and owners of photovoltaic systems seeking comprehensive surge protection. Thanks to its high IP65 rating and UV resistance, the device is suitable for installation in harsh outdoor conditions, making it an excellent choice for residential and commercial installations where long-term equipment protection is critical.
Datasheet NOARK SHP-232 AC
NOARK-SHP-232-AC-Datasheet.pdf
| BASIC PARAMETERS | |
|---|---|
| Model | SHP-232 AC |
| Number of poles | 8 |
| ELECTRICAL AND MECHANICAL ENCLOSURE PARAMETERS | |
| Enclosure dimensions without glands and MC4 (L|W|H) (mm) | 120.00 | 202.00 | 201.00 |
| Compliant with | EN 60670-1, EN 62208 |
| Degree of protection | IP65 |
| Protection class | II |
| Rated insulation voltage U₁ (V) | 400 V AC, 1500 V DC |
| Glow wire test (°C) | 650°C |
| Impact resistance | IK08 |
| UV resistance | Yes |
| Recyclable plastic | Halogen-free |
| Operating temperature (°C) | -25°C to +60°C |
| DETAILED SPECIFICATIONS | |
| Miniature Circuit Breaker (MCB) | |
| Manufacturer / Model | Noark / Ex9BN 3P B16 |
| Rated current (A) | 16 A; 3-pole |
| Rated operational voltage Ue (V) | 230/415 V AC |
| Minimum voltage (V) | 72 V DC per pole (1P, 2P), 48 V DC per pole (3P, 4P) |
| Rated impulse withstand voltage Uimp (kV) | 6 kV |
| Rated short-circuit making capacity Icn (kA) | 6 kA (IEC/EN 60898-1), 10 kA (IEC/EN 60947-2) |
| Rated insulation voltage U₁ (V) | 690 V AC |
| Number of poles | 3 |
| Frequency (Hz) | 50/60 Hz |
| Tripping curve | B |
| Compliant with | IEC/EN 60898-1, IEC/EN 60947-2 |
| Mechanical endurance (operations) | 20,000 |
| Electrical endurance (operations) | 10,000 |
| Energy limiting class | 3 |
| Utilization category | A |
| Supply direction | Any (top or bottom) |
| AC Surge Protective Device (SPD) | |
| Manufacturer / Model | Phoenix/VAL-MS-T1/T2 335/12.5/3+1 |
| Compliant with | EN 61643-11 / IEC 61643-11 |
| IEC test class | I / II, T1 / T2 |
| IEC power system | TT, TN-S |
| Number of poles | 4 |
| Protection paths | L-N, L-PE, N-PE |
| Operating direction | 3L-N & N-PE |
| Nominal voltage Un (V) | 240/415 V AC |
| Nominal frequency fN (Hz) | 50 Hz (60 Hz) |
| Maximum continuous operating voltage Uc (L-N) (V AC) | 335 V AC |
| Maximum continuous operating voltage Uc (L-PE) (V AC) | 335 V AC |
| Maximum continuous operating voltage Uc (N-PE) (V AC) | 264 V AC |
| Rated continuous current I (A) | 80 A |
| Protective conductor current |PE (mA) | ≤ 5 mA |
| Power consumption in standby Pc (mVA) | ≤ 810 mVA |
| Nominal discharge current I (8/20) µs (kA) | 12.5 kA (L-N), 12.5 kA (L-PE), 50 kA (N-PE) |
| Maximum discharge current Imax (8/20) µs (kA) | 50 kA |
| Test lightning current (10/350) µs, charge (As) | 6.25 As (L-N), 6.25 As (L-PE), 25 As (N-PE) |
| Test lightning current (10/350) µs, specific energy (kJ/Ω) | 39 kJ/Ω (L-N), 39 kJ/Ω (L-PE), 625 kJ/Ω (N-PE) |
| Test lightning current (10/350) µs, peak current Iimp (kA) | 12.5 kA (L-N), 12.5 kA (L-PE), 50 kA (N-PE) |
| Total discharge current Itotal (8/20) µs (kA) | 50 kA |
| Total discharge current Itotal (10/350) µs (kA) | 50 kA |
| Follow-current extinguishing capability Ifi (N-PE) (kA) | 50 kA |
| Short-circuit withstand ISCCR (kA) | 100 A |
| Protection level Up (L-N) (kV) | ≤ 1.2 kV |
| Protection level Up (L-PE) (kV) | ≤ 1.6 kV (30 kA – 8/20 µs) |
| Protection level Up (N-PE) (kV) | ≤ 2 kV |
| Residual voltage Ures (L-N) (kV) | ≤ 1.7 kV |
| Residual voltage Ures (L-PE) (kV) | ≤ 1.2 kV (at In) |
| Residual voltage Ures (N-PE) (kV) | ≤ 1.2 kV (at 5 kA) |
| TOV behavior for U₁ (L-N) (V AC) | 415 V AC (5 s) |
| TOV behavior for U₁ (N-PE) (V AC) | 457 V AC (120 min) |
| Response time t₁ (L-N) (ms) | 1200 V AC (200 ms) |
| Response time t₁ (L-PE) (ns) | ≤ 25 ns |
| Response time t_d (N-PE) (ns) | ≤ 100 ns |
| Maximum upstream protection in through-feed installations (A) | 80 A (gG 16 mm²) |
| Maximum fuse rating in radial installations (A) | 160 A (gG) |
| Maximum discharge current Imax (8/20) µs (kA) | 65 kA |
| GENERAL INFORMATION | |
| Warranty (years) | 5 |
| Ready to connect | Yes |
| Weight (kg) | 1.740 kg |
