Distribution box – OPATÓWEK – IP 65 – 8p
SKU: F39021
EAN: 2010000043424
| Manufacturer | |
|---|---|
| Net width | |
| Net depth | |
| Net height | |
| Type of material | |
| Weight | 1,44 kg |
| CN | 85381000 |
Price
24,26 €
Incl. VAT
Incl. VAT
Product details
| Manufacturer | |
|---|---|
| Net width | |
| Net depth | |
| Net height | |
| Type of material | |
| Weight | 1,44 kg |
| CN | 85381000 |

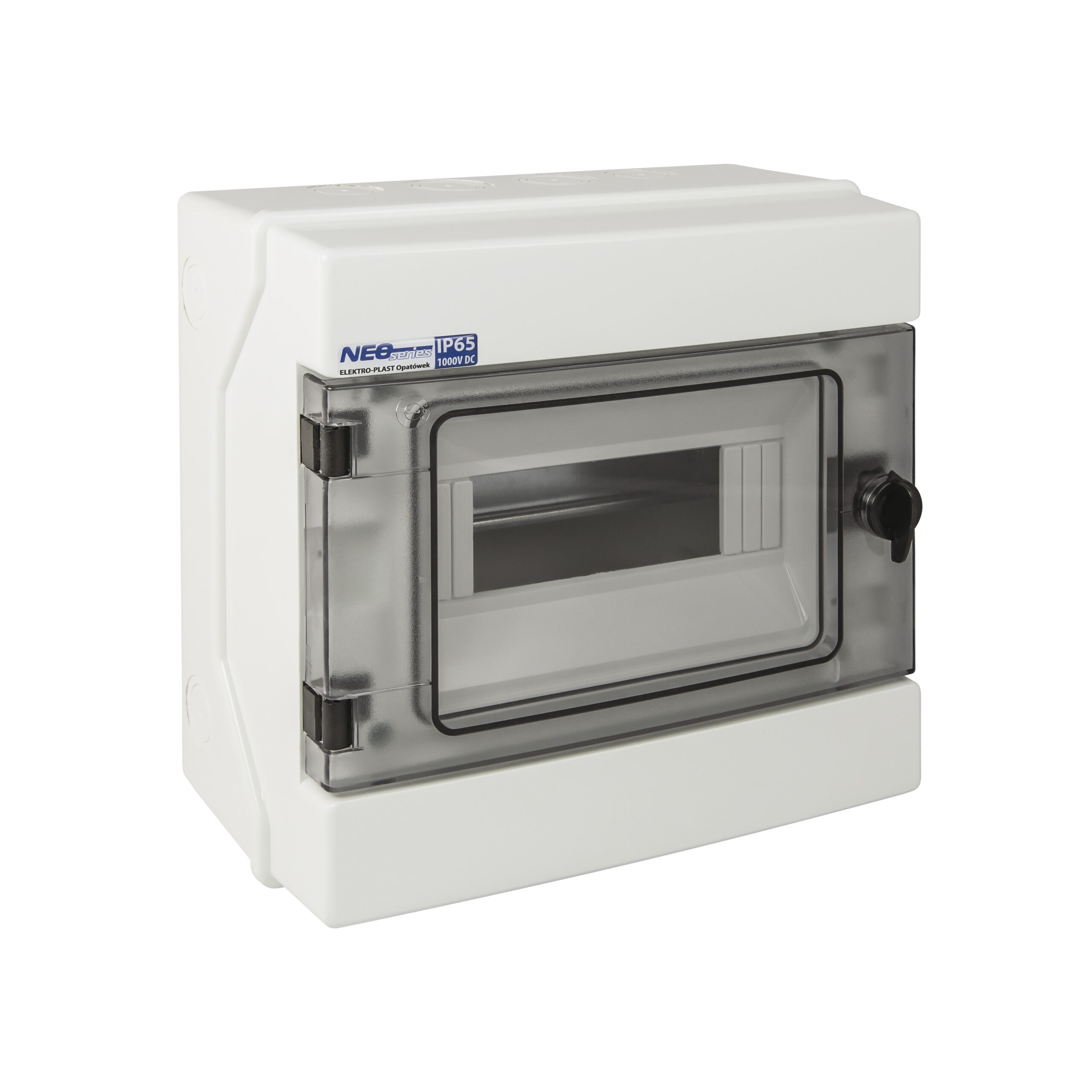

RH-8 HERMETIC DISTRIBUTION BOX
The RH-8 hermetic distribution box from the NEO series is a robust surface-mounted enclosure intended for use in industrial buildings, utility structures, and photovoltaic installations. The device provides a high degree of protection IP65 thanks to an advanced gasket system, ensuring reliable protection against dust and moisture. The well-thought-out design allows for easy installation of modular devices and convenient cable management.
Key features of the RH-8 HERMETIC DISTRIBUTION BOX:
- High protection rating IP65: Effective protection against dust and water jets thanks to a double sealing system of the enclosure.
- 8-module capacity: Single-row design on a TH35 rail with space for mounting the necessary electrical protection devices.
- Durable materials: Base made of durable white ABS plastic and transparent polycarbonate (PC) door.
- Extensive standard equipment: Integrated PE and N terminal blocks for conductors with cross-sections of 1,5–16 mm² are included.
- User safety: Protection class II, impact resistance rated IK07, and made of halogen-free materials.
- Mounting functionality: Door can be opened to the left or right and the enclosure can be sealed.
Who is this a good choice for?
The RH-8 distribution box is an excellent choice for installers and investors looking for proven and safe surface-mounted enclosures for indoor use. It performs well in demanding environmental conditions, such as industrial facilities, utility buildings, and modern DC and AC photovoltaic installations.
| Parameter | Value |
|---|---|
| Basic data | |
| Product name | RH-8 hermetic distribution box |
| Series | NEO |
| Catalog number | 36.8 |
| Mounting method | Surface-mounted |
| Number of modules | 8 |
| Number of TH rails | 1 |
| Electrical parameters | |
| Operating voltage Unr (V) | 230/400 |
| Insulation voltage Ui | 500 V AC / 1000 V DC |
| Rated current In AC (A) | 100 |
| Protection class | II |
| Mechanical and material parameters | |
| Enclosure color | White |
| Distribution box base | White ABS |
| Distribution box door | Transparent PC |
| Length (mm) | 260 |
| Width (mm) | 260 |
| Height (mm) | 138 |
| Closure type | Knob |
| Halogen-free | Yes |
| Impact resistance | IK07 |
| Degree of protection | IP65 |
| Operating temperature (°C) | -25 to +60 |
| Module height range (mm) | 68-75 (95) |
| Sealable | Yes |
| Lock | No |
| Mounting plate | No |
| Terminal blocks | |
| PE terminal | Yes |
| N terminal | Yes |
| Number of PE terminals | 9 × (1,5 – 16 mm²) |
| Number of N terminals | 9 × (1,5 – 16 mm²) |
| Logistics data | |
| Net weight (kg) | 1,27 |
| Gross weight (kg) | 1,44 |
| Pieces per pallet (pcs.) | 135 |
| EAN code | 5905548284026 |
| CN code | 85381000 |
| PKWiU | 27.12.31.0 |
