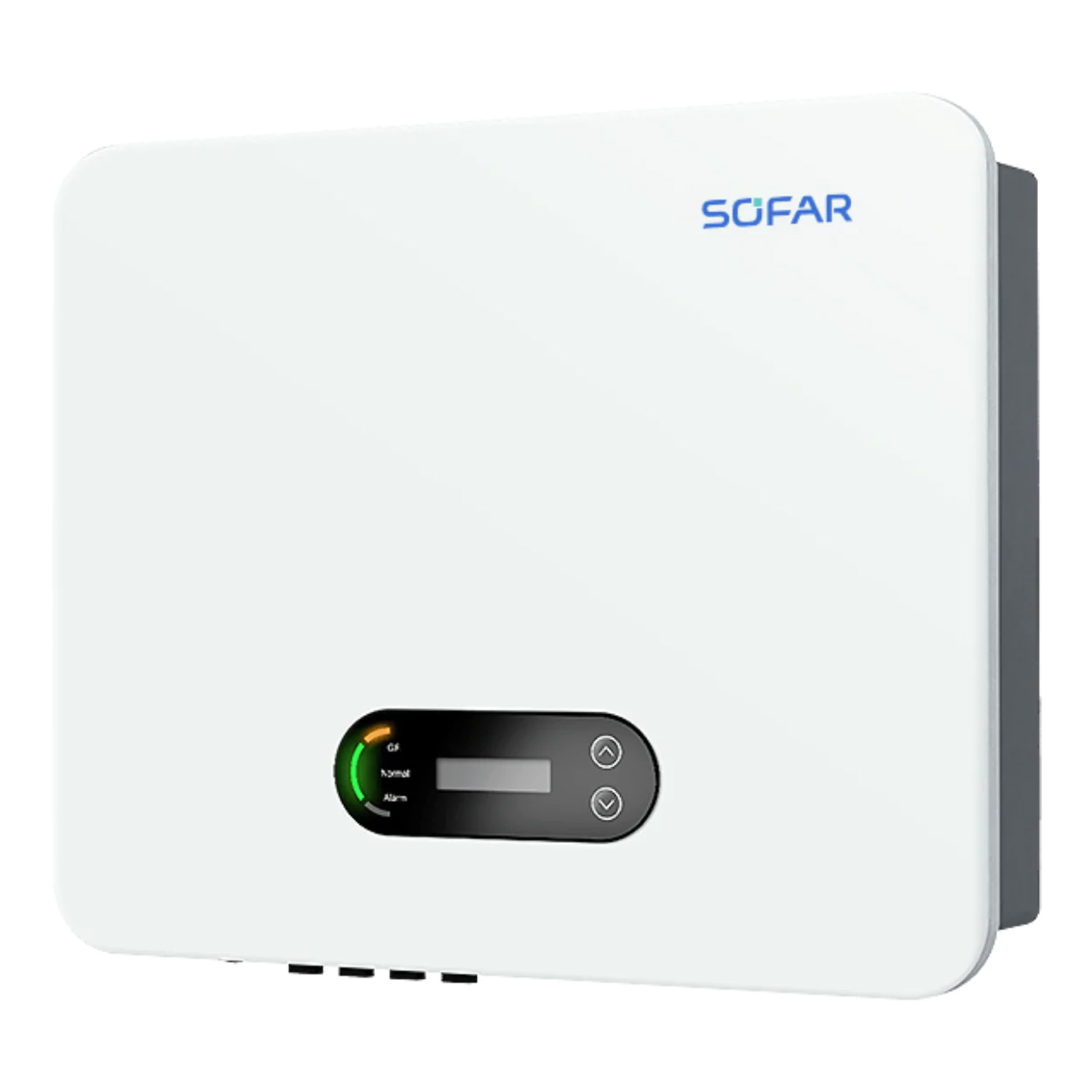

SOFAR 6.6 KTLX Inverter – G3

SKU: F230C1 EAN: 5905951582078
SOFAR 6.6 KTLX Inverter - G3
Manufacturer

Rated power

Power supply

Hybrid device

MPPT

2

AFCI

Optional

Warranty

Net width

Net depth

Net height

Bluetooth

Yes

GPRS

Optional

RS485

Yes

USB

Yes

Wi-Fi

Optional

SPD Type II

Weight18 kg
CN85044085

Login to place an order

807,68 €
Gross

In stock:

4 pcs
Login to place an order

Warranty Sofar 6,6 KTLX - G3 warranty-sofar-66-ktlx-g3.pdf

Product details

Manufacturer

Rated power

Power supply

Hybrid device

MPPT

2

AFCI

Optional

Warranty

Net width

Net depth

Net height

Bluetooth

Yes

GPRS

Optional

RS485

Yes

USB

Yes

Wi-Fi

Optional

SPD Type II

Weight18 kg
CN85044085

Sofar 3.3~12KTLX-G3 – Three-Phase Inverter with 2 MPPT

The Sofar 3.3~12KTLX-G3 inverter is a versatile and efficient solution for three-phase photovoltaic systems. With advanced technology and high efficiency, this model is perfect for both small and medium-sized installations.

Key Features:

  • Maximum Efficiency: Achieves up to 98.6%, ensuring effective operation.
  • Maximum Input Voltage: Supports direct current up to 1100 V, allowing flexible configurations for PV systems.
  • Remote Software Update: Enables easy management and keeps the system up to date.
  • Type II SPD Protection: Ensures safety on both the direct current and alternating current sides.
  • Low Startup Voltage: With a wide MPPT voltage range, it allows for early starts and longer operational hours during the day.

Why Choose the Sofar 3.3~12KTLX-G3?

The Sofar 3.3~12KTLX-G3 is an ideal choice for users seeking high efficiency and reliability. Natural cooling without fans ensures quiet operation, while intelligent monitoring of network voltage levels allows for complete control over system performance. With a wide power range from 3.3 kW to 12 kW, this inverter is suitable for various PV installation configurations.

Warranty Sofar 6,6 KTLX - G3 warranty-sofar-66-ktlx-g3.pdf

Data SheetSOFAR 3.3KTLX-G3SOFAR 4.4KTLX-G3SOFAR 5.5KTLX-G3SOFAR 6.6KTLX-G3SOFAR 8.8KTLX-G3SOFAR 11KTLX-G3SOFAR 12KTLX-G3
Input (DC)
Recommended Max PV Input Power (Wp)4500600075009000120001500018000
Number of MPPTs2222222
Number of DC Inputs1/11/11/11/11/11/12/1
Max Input Voltage (V)1100110011001100110011001100
Starting Voltage (V)160160160160160160
Nominal Input Voltage (V)650650650650650650
MPPT Operating Voltage Range (V)140-1000140-1000140-1000140-1000140-1000140-1000
MPPT Voltage Range at Full Power (V)160-850190-850240-850290-850380-850420-850460-850
Max MPPT Input Current (A)15/1515/1515/1515/1515/1515/1530/15
Max Short-Circuit Current on MPPT (A)22.5/22.522.5/22.522.5/22.522.5/22.522.5/22.522.5/22.545/22.5
Output (AC)
Rated Power (W)300040005000600080001000012000
Max AC Power (VA)330044005500660088001100013200
Max Output Current (A)4.86.48.09.612.815.919.1
Nominal Grid Voltage (Vac)3/N/PE, 230 / 4003/N/PE, 230 / 4003/N/PE, 230 / 4003/N/PE, 230 / 4003/N/PE, 230 / 4003/N/PE, 230 / 4003/N/PE, 230 / 400
Grid Voltage Range (Vac)310 – 480 Vac (according to local standard)310 – 480 Vac (according to local standard)310 – 480 Vac (according to local standard)310 – 480 Vac (according to local standard)310 – 480 Vac (according to local standard)310 – 480 Vac (according to local standard)310 – 480 Vac (according to local standard)
Nominal Grid Frequency (Hz)50 Hz / 60 Hz50 Hz / 60 Hz50 Hz / 60 Hz50 Hz / 60 Hz50 Hz / 60 Hz50 Hz / 60 Hz
Grid Frequency Range (Hz)45 – 55 Hz / 55 – 65 Hz (according to local standard)45 – 55 Hz / 55 – 65 Hz (according to local standard)45 – 55 Hz / 55 – 65 Hz (according to local standard)45 – 55 Hz / 55 – 65 Hz (according to local standard)45 – 55 Hz / 55 – 65 Hz (according to local standard)45 – 55 Hz / 55 – 65 Hz (according to local standard)45 – 55 Hz / 55 – 65 Hz (according to local standard)
Active Power Regulation Range0 – 100%0 – 100%0 – 100%0 – 100%0 – 100%0 – 100%0 – 100%
THDi<3%<3%<3%<3%<3%<3%
Power Factor1 default (adjustable +/-0.8)1 default (adjustable +/-0.8)1 default (adjustable +/-0.8)1 default (adjustable +/-0.8)1 default (adjustable +/-0.8)1 default (adjustable +/-0.8)
Efficiency
Max Efficiency (%)98.40%98.40%98.40%98.40%98.50%98.50%98.50%
European Efficiency (%)97.50%97.50%97.50%97.50%98.00%98.00%98.00%
Protection
DC Reverse Polarity ProtectionYesYesYesYesYesYesYes
Island Mode ProtectionYesYesYesYesYesYesYes
Residual Current ProtectionYesYesYesYesYesYesYes
Ground Fault DetectionYesYesYesYesYesYesYes
PV String Fault MonitoringYesYesYesYesYesYesYes
Energy Outflow BlockingYesYesYesYesYesYesYes
DC SwitchOptionalOptionalOptionalOptionalOptionalOptional
SPD Input/OutputPV: type II standard, AC: type II standardPV: type II standard, AC: type II standardPV: type II standard, AC: type II standardPV: type II standard, AC: type II standardPV: type II standard, AC: type II standardPV: type II standard, AC: type II standard
Communication
Standard Communication ModeRS485 / WiFi / Bluetooth, optional: EthernetRS485 / WiFi / Bluetooth, optional: EthernetRS485 / WiFi / Bluetooth, optional: EthernetRS485 / WiFi / Bluetooth, optional: EthernetRS485 / WiFi / Bluetooth, optional: EthernetRS485 / WiFi / Bluetooth, optional: Ethernet
General Data
Ambient Temperature Range-30°C … +60°C-30°C … +60°C-30°C … +60°C-30°C … +60°C-30°C … +60°C-30°C … +60°C
Night Power Consumption (W)<1<1<1<1<1<1
TopologyTransformerlessTransformerlessTransformerlessTransformerlessTransformerlessTransformerless
Protection RatingIP65IP65IP65IP65IP65IP65
Permissible Relative Humidity Range0 – 100%0 – 100%0 – 100%0 – 100%0 – 100%0 – 100%
Max Operating Height4000 m4000 m4000 m4000 m4000 m4000 m
Noise<40 dB<40 dB<40 dB<40 dB<40 dB<40 dB
Weight (kg)151515151717
CoolingNaturalNaturalNaturalNaturalNaturalNatural
Dimensions (mm)430*375*179430*375*179430*375*179430*375*179430*375*179430*375*179
DisplayLCD, application via BluetoothLCD, application via BluetoothLCD, application via BluetoothLCD, application via BluetoothLCD, application via BluetoothLCD, application via Bluetooth
Standards
EMCEN 61000-6-1, EN 61000-6-3, EN 61000-3-2, EN 61000-3-11, EN 61000-3-12EN 61000-6-1, EN 61000-6-3, EN 61000-3-2, EN 61000-3-11, EN 61000-3-12EN 61000-6-1, EN 61000-6-3, EN 61000-3-2, EN 61000-3-11, EN 61000-3-12EN 61000-6-1, EN 61000-6-3, EN 61000-3-2, EN 61000-3-11, EN 61000-3-12EN 61000-6-1, EN 61000-6-3, EN 61000-3-2, EN 61000-3-11, EN 61000-3-12EN 61000-6-1, EN 61000-6-3, EN 61000-3-2, EN 61000-3-11, EN 61000-3-12EN 61000-6-1, EN 61000-6-3, EN 61000-3-2, EN 61000-3-11, EN 61000-3-12
Safety StandardsIEC 62109-1 / 2, IEC 62116, IEC 61727, IEC 61683, IEC 60068 (1, 2, 14, 30)IEC 62109-1 / 2, IEC 62116, IEC 61727, IEC 61683, IEC 60068 (1, 2, 14, 30)IEC 62109-1 / 2, IEC 62116, IEC 61727, IEC 61683, IEC 60068 (1, 2, 14, 30)IEC 62109-1 / 2, IEC 62116, IEC 61727, IEC 61683, IEC 60068 (1, 2, 14, 30)IEC 62109-1 / 2, IEC 62116, IEC 61727, IEC 61683, IEC 60068 (1, 2, 14, 30)IEC 62109-1 / 2, IEC 62116, IEC 61727, IEC 61683, IEC 60068 (1, 2, 14, 30)IEC 62109-1 / 2, IEC 62116, IEC 61727, IEC 61683, IEC 60068 (1, 2, 14, 30)
Grid StandardsVDE V 0124-100, VDE-AR-N 4105, CEI 0-21, CEI 0-16, UNE 206 007-1, EN 50549, G98 / G99, EN 50530VDE V 0124-100, VDE-AR-N 4105, CEI 0-21, CEI 0-16, UNE 206 007-1, EN 50549, G98 / G99, EN 50530VDE V 0124-100, VDE-AR-N 4105, CEI 0-21, CEI 0-16, UNE 206 007-1, EN 50549, G98 / G99, EN 50530VDE V 0124-100, VDE-AR-N 4105, CEI 0-21, CEI 0-16, UNE 206 007-1, EN 50549, G98 / G99, EN 50530VDE V 0124-100, VDE-AR-N 4105, CEI 0-21, CEI 0-16, UNE 206 007-1, EN 50549, G98 / G99, EN 50530VDE V 0124-100, VDE-AR-N 4105, CEI 0-21, CEI 0-16, UNE 206 007-1, EN 50549, G98 / G99, EN 50530VDE V 0124-100, VDE-AR-N 4105, CEI 0-21, CEI 0-16, UNE 206 007-1, EN 50549, G98 / G99, EN 50530
