SOFAR GTX3000HV Inverter Base + Battery Storage Control Module (BCU)

SKU: F2A08 EAN: 5905951580708
SOFAR GTX3000HV Inverter Base + Battery Storage Control Module (BCU)
Manufacturer

Warranty

Net width

Net depth

Net height

Weight28,5 kg
CN85371010

Login to place an order

375,85 €
Gross

In stock:

9 pcs
Login to place an order

Datasheet Sofar GTX3000HV storage battery base + control unit (BCU) datasheet-sofar-gtx3000hv-storage-battery-base-control-unit-bcu.pdf

Product details

Manufacturer

Warranty

Net width

Net depth

Net height

Weight28,5 kg
CN85371010

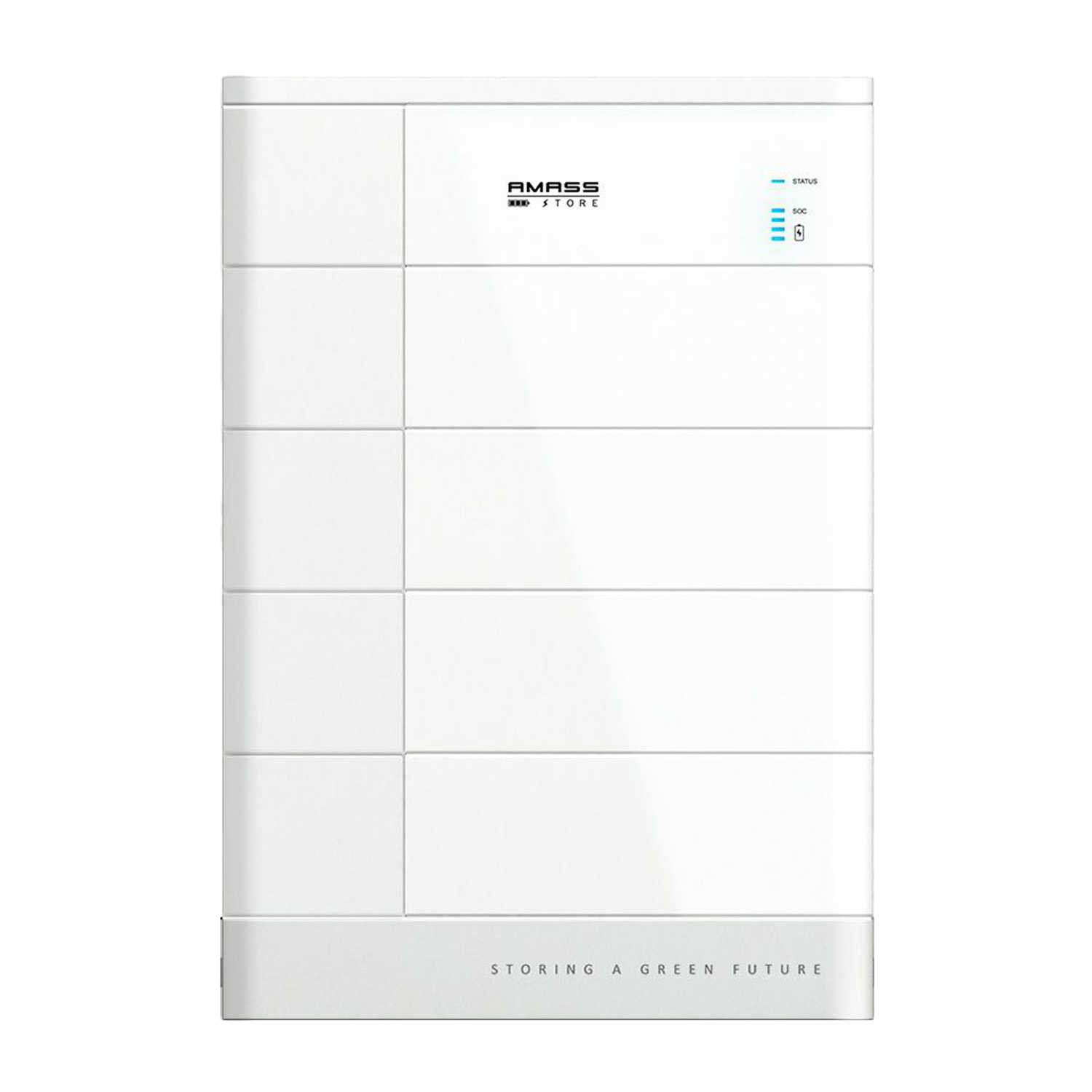

Sofar AMASS GTX3000 – Energy Storage Battery

The Sofar AMASS GTX3000 is an advanced solution for storing electrical energy,
perfectly suited for a variety of photovoltaic installations. Thanks to its compatibility with
inverters from different manufacturers and the scalability of the system, the GTX3000 offers flexibility and efficiency for many years of use.
Advanced technologies such as remote diagnostics and real-time data monitoring, along with easy operation, make
this battery an ideal choice for both residential and commercial users.

Key Features

  • Compatibility with various inverters: Ensures versatility and wide application possibilities.
  • Parallel connection capability: Supports up to 4 devices, increasing system capacity.
  • Energy storage for 6000 cycles: A long battery life ensures durability and reliability.
  • Simple installation: Quick setup saves time and reduces installation costs.
  • Remote diagnostics and monitoring: Allows real-time data control for greater safety and efficiency.
  • Safety certifications: Complies with standards such as IEC62619, UN38.3, IEC62040-1, SAA, confirming its quality.

Who is it a good choice for?

The Sofar AMASS GTX3000 is an ideal solution for those seeking a reliable and scalable energy storage system.
With compatibility with various inverters and the ability to expand the system, this battery is perfect for both residential
and commercial photovoltaic installations. Its long lifespan, advanced monitoring features, and high safety standards make it an excellent choice
for users who value quality, durability, and modern technology.

Datasheet Sofar GTX3000HV storage battery base + control unit (BCU) datasheet-sofar-gtx3000hv-storage-battery-base-control-unit-bcu.pdf

Basic Parameters
ParameterGTX 3000-H4GTX 3000-H5GTX 3000-H6GTX 3000-H7GTX 3000-H8GTX 3000-H9GTX 3000-H10
Number of Batteries45678910
Nominal System Voltage (V)204.8 V256 V307.2 V358.4 V409.6 V460.8 V512 V
Nominal Energy of the System (100% DOD)10 kWh12.5 kWh15 kWh17.5 kWh20 kWh22.5 kWh25 kWh
Available Energy of the System (90% DOD)9 kWh11.25 kWh13.5 kWh15.75 kWh18 kWh20.25 kWh22.5 kWh
Dimensions515 × 480 × 770 mm515 × 480 × 895 mm515 × 480 × 1020 mm515 × 480 × 1145 mm515 × 480 × 1270 mm515 × 480 × 1395 mm515 × 480 × 1520 mm
Weight160 kg190 kg220 kg250 kg280 kg310 kg340 kg
Protection ClassIP66IP66IP66IP66IP66IP66IP66
CoolingNaturalNaturalNaturalNaturalNaturalNaturalNatural
Electrical Parameters
Nominal Voltage51.2 VDC51.2 VDC51.2 VDC51.2 VDC51.2 VDC51.2 VDC51.2 VDC
Nominal Capacity50 Ah50 Ah50 Ah50 Ah50 Ah50 Ah50 Ah
DOD<90%<90%<90%<90%<90%<90%<90%
Nominal Charging Current25 A25 A25 A25 A25 A25 A25 A
Maximum Continuous Charging Current30 A30 A30 A30 A30 A30 A30 A
Nominal Discharge Current25 A25 A25 A25 A25 A25 A25 A
Maximum Continuous Discharge Current30 A30 A30 A30 A30 A30 A30 A
Operating Temperature–20℃ ~ 60℃–20℃ ~ 60℃–20℃ ~ 60℃–20℃ ~ 60℃–20℃ ~ 60℃–20℃ ~ 60℃–20℃ ~ 60℃
Storage Temperature≤25℃, 12 months; ≤35℃, 6 months; ≤45℃, 3 months≤25℃, 12 months; ≤35℃, 6 months; ≤45℃, 3 months≤25℃, 12 months; ≤35℃, 6 months; ≤45℃, 3 months≤25℃, 12 months; ≤35℃, 6 months; ≤45℃, 3 months≤25℃, 12 months; ≤35℃, 6 months; ≤45℃, 3 months≤25℃, 12 months; ≤35℃, 6 months; ≤45℃, 3 months≤25℃, 12 months; ≤35℃, 6 months; ≤45℃, 3 months
Humidity≤95% RH (non-condensing)≤95% RH (non-condensing)≤95% RH (non-condensing)≤95% RH (non-condensing)≤95% RH (non-condensing)≤95% RH (non-condensing)≤95% RH (non-condensing)
Maximum Operating Height≤2000 m above sea level≤2000 m above sea level≤2000 m above sea level≤2000 m above sea level≤2000 m above sea level≤2000 m above sea level≤2000 m above sea level
Certifications
CertificatesUN38.3, IEC62619, IEC62040-1, SAAUN38.3, IEC62619, IEC62040-1, SAAUN38.3, IEC62619, IEC62040-1, SAAUN38.3, IEC62619, IEC62040-1, SAAUN38.3, IEC62619, IEC62040-1, SAAUN38.3, IEC62619, IEC62040-1, SAAUN38.3, IEC62619, IEC62040-1, SAA
Life Cycle6000 cycles @ 80% DOD / 25℃ / 0.5C, 60% EOL6000 cycles @ 80% DOD / 25℃ / 0.5C, 60% EOL6000 cycles @ 80% DOD / 25℃ / 0.5C, 60% EOL6000 cycles @ 80% DOD / 25℃ / 0.5C, 60% EOL6000 cycles @ 80% DOD / 25℃ / 0.5C, 60% EOL6000 cycles @ 80% DOD / 25℃ / 0.5C, 60% EOL6000 cycles @ 80% DOD / 25℃ / 0.5C, 60% EOL
