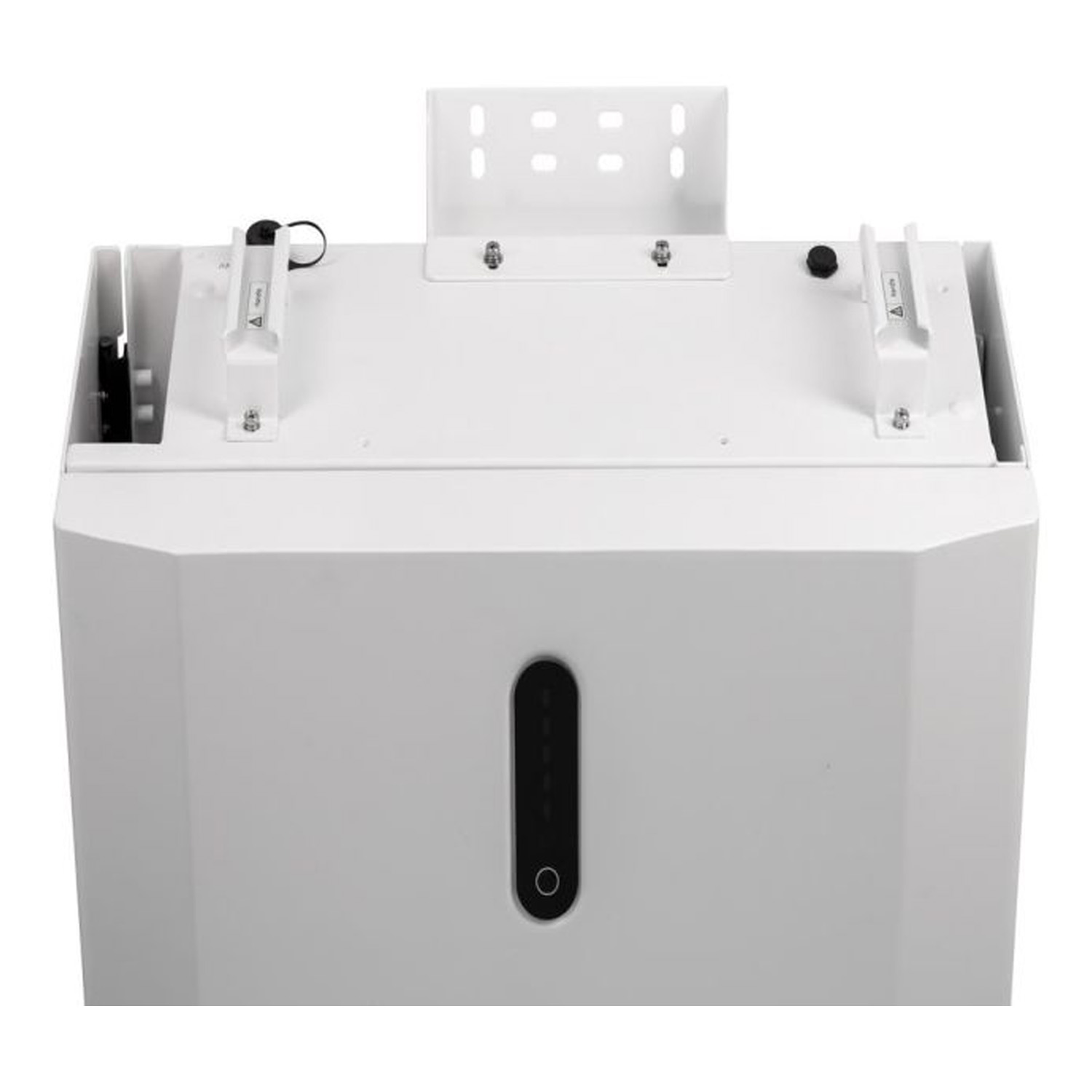

SOLAR EDGE StorEdge energy storage BAT-05K48MOB-01
| Manufacturer | |
|---|---|
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| Capacity | |
| Package weight | |
| Cell type | |
| RS485 | Yes |
| CAN | Yes |
| Weight | 60 kg |
| CN | 85076000 |
Product details
| Manufacturer | |
|---|---|
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| Capacity | |
| Package weight | |
| Cell type | |
| RS485 | Yes |
| CAN | Yes |
| Weight | 60 kg |
| CN | 85076000 |
SolarEdge Energy Storage BAT-05K48
The SolarEdge BAT-05K48 energy storage system is an advanced solution designed for households utilizing SolarEdge Hub and Wave three-phase inverters. By integrating with the SolarEdge ecosystem, this device ensures efficient energy management, enhanced performance, and full support for backup power.
Key Features:
- DC Energy Level: The energy storage system allows for comprehensive system efficiency, enabling effective energy storage and utilization.
- Smooth Integration: Fully integrated with the SolarEdge Home ecosystem, making system management simpler and enhancing logistical efficiency.
- Safety Features: Modern technologies ensure the protection of the energy storage system during everyday use.
- Scalability: Ability to combine multiple units to achieve a capacity of up to 23 kWh on a single inverter.
- Easy Installation: Plug-and-play system with automatic configuration via the SetApp application.
Why Choose the SolarEdge BAT-05K48 Energy Storage System?
The SolarEdge BAT-05K48 is the perfect solution for users who value flexibility, reliability, and advanced energy management capabilities. By monitoring all devices within the system, including energy storage units, the device allows for precise optimization of energy production and consumption.
This product also provides full support for backup power, ensuring independence from external energy suppliers. It works excellently in both new installations and as an upgrade to existing SolarEdge systems.
SolarEdge StorEdge BAT-05K48MOB – Specifications
| ENERGY STORAGE MODULE SPECIFICATIONS | |
|---|---|
| Available Energy (Wh) | 4600 |
| Continuous Output Power (charging/discharging) – for a single module (W) | 2825/4096 |
| Continuous Output Power (charging/discharging) – for multiple modules (W) | 5000/5000 |
| Maximum Cycle Efficiency (%) | >94.5 |
| Warranty (years) | 10 |
| Voltage Range (V DC) | 44.8 – 56.5 |
| Communication Interfaces | RS485 between modules, CAN bus to inverter |
| Number of Modules per Inverter | Up to 5 connected in parallel |
| Battery Type | Lithium-ion |
| Compatible Inverters | |
| COMPLIANCE WITH STANDARDS | |
| Safety (cell level) | IEC62619, UN38.3, UL9540A |
| Safety (module level) | UN38.3, IEC62619, IEC63056, IEC62040-1, VDE-AR-E 2510-50 |
| EMC | IEC61000-6-1, IEC61000-6-2, IEC61000-6-3, IEC61000-6-4, 61000-3-12 |
| MECHANICAL SPECIFICATIONS | |
| Dimensions (W x H x D, mm) | 540 x 500 x 240 |
| Weight (kg) | 54.7 |
| Mounting | Stand and wall bracket |
| Operating Temperature – Discharging/Charging (°C) | -10 to +50 |
| Storage Temperature (°C) | -10 to +45 |
| Maximum Installation Height (m) | 2000 |
| Enclosure Protection | IP65 / NEMA 3R |
| Cooling | Natural convection |
| Noise Emission (dBA) | <25 |
| SOLAREDGE HOME ENERGY STORAGE – ACCESSORIES (SOLD SEPARATELY) | |
| Energy storage accessories, top cover (1 required per tower) | IAC-RBAT-5KMTOP-01 |
| Energy storage accessories, wiring kit to connect energy storage to Hub inverter | IAC-RBAT-5KCINV-01 |
| Energy storage accessories, wiring kit to connect energy storage to Wave inverter | IAC-RBAT-5KCINV-02 |
| Energy storage accessories, wiring kit to connect energy storage to energy storage | IAC-RBAT-5KCBAT-01 |
| Energy storage accessories, wiring kit to connect towers | IAC-RBAT-5KCTOW-01 |
| Stand (optional) | IAC-RBAT-5KFSTD-01 |
| Accessory 10, additional connector kit for “energy storage to inverter” connections | IAC-RBAT-5KCNCT-01 |
| Accessory 10, additional connector kit for “tower to tower” connections | IAC-RBAT-5KCNCT-02 |
