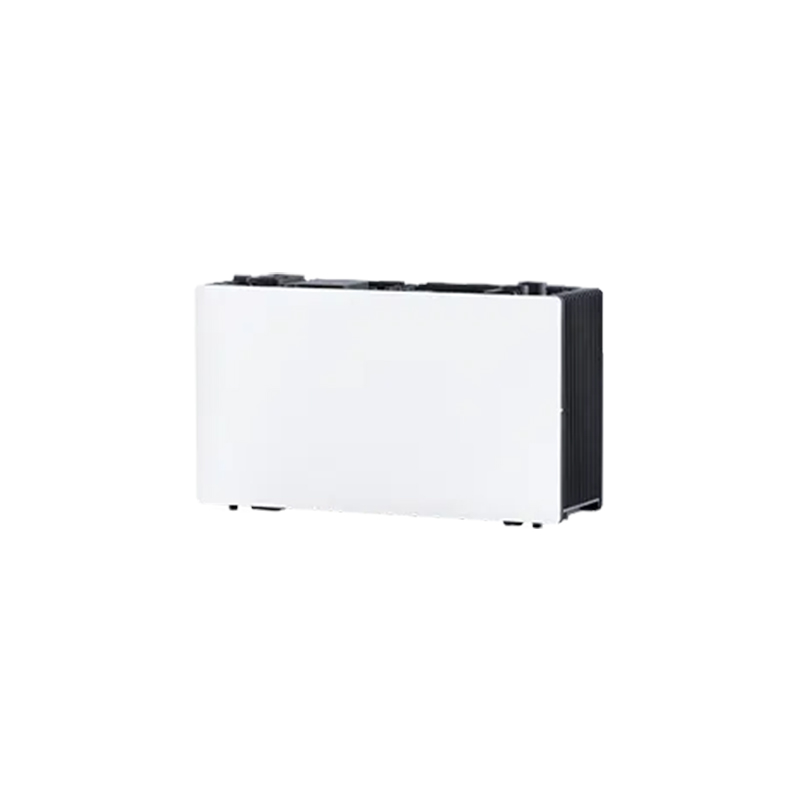

Battery module – SOLAREDGE – Nexis NX-BLCK-5K-A-02 – 5 kWh – HV

Nexis

Nexis is a scalable SolarEdge energy storage system designed for residential systems, both single-phase and three-phase. A configuration of 1 to 4 modules per stack allows usable energy capacity to be selected within a range of 4.65–18.6 kWh.

Key benefits of Nexis

• Modular configuration: from 1 to 4 modules per stack, with a nominal energy of 4.9–19.6 kWh.
• Compatibility with single- and three-phase systems: the nominal DC voltage is 450 V and 750 V, respectively.
• Charging and discharging power: 3.5–13 kW with a single-phase inverter and 3.5–14 kW with a three-phase inverter, depending on the number of modules.
• Peak discharge power: 5.3–14.5 kW for 10 seconds, depending on the configuration.
• Compliance with standards: the energy storage system complies with IEC 62619, UL 1973 and UL 9540A, among others.
• 10-year warranty: in accordance with the terms of the SolarEdge Nexis limited product warranty.

Who is this a good choice for?

Nexis is designed for households seeking energy storage for a single-phase or three-phase system. The option to choose the number of modules allows the usable energy capacity and charging and discharging power to be tailored to the needs of the home system.
